1. Introduktion
Thank you for choosing the AQQA Aquarium Heater. This device is designed to maintain a stable and optimal temperature in your aquarium, ensuring a healthy environment for your aquatic life. Please read this manual thoroughly before installation and operation to ensure proper use and safety.

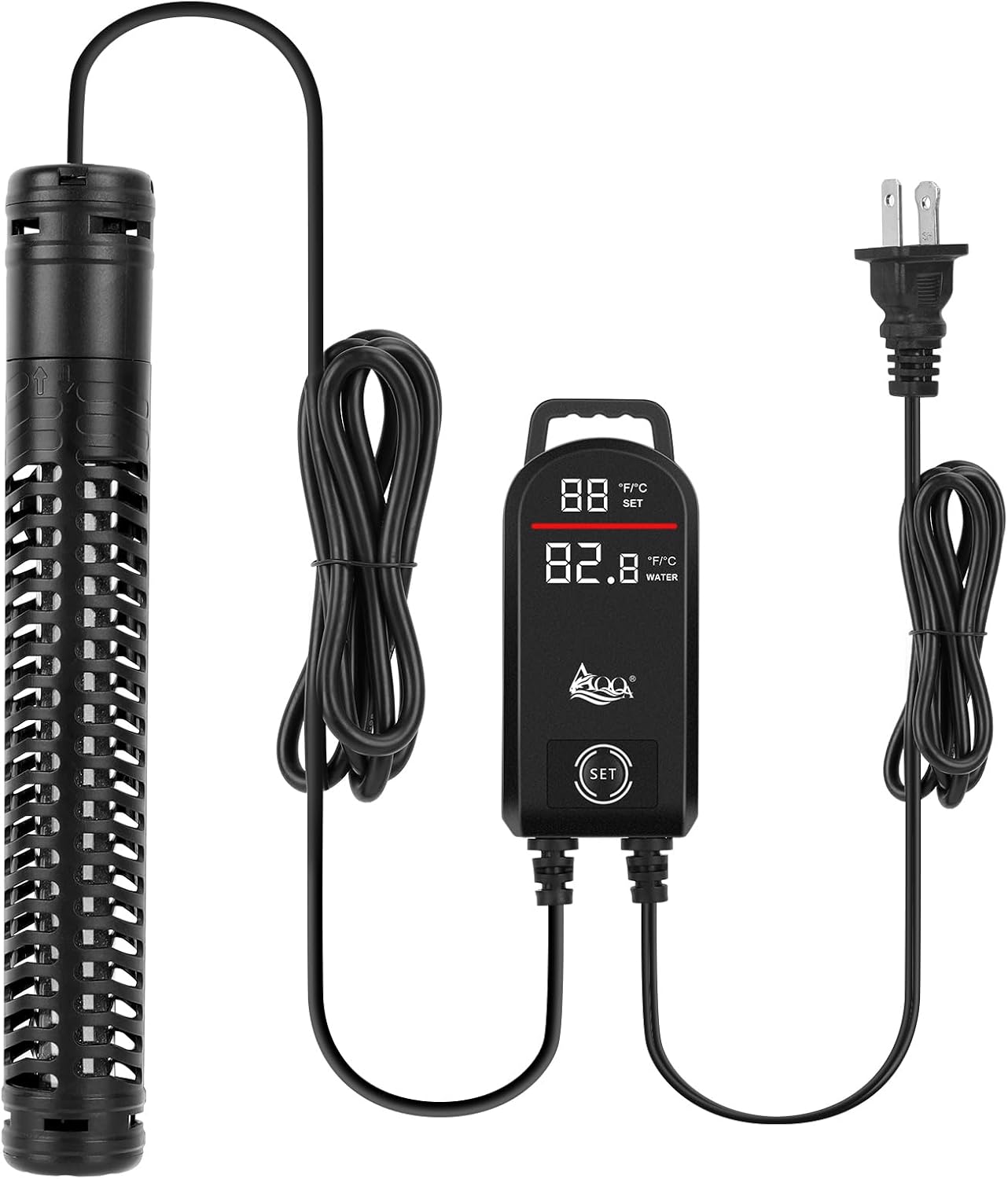

Image 1.1: The AQQA Aquarium Heater and its external temperature controller.
2. Sikkerhedsoplysninger
Adhering to these safety guidelines is crucial for preventing accidents and ensuring the longevity of your heater.
- Full Immersion: The heater must be completely immersed in water before being powered on. Operating the heater out of water will trigger the dry burning protection and can damage the unit.
- Sluk før håndtering: Always unplug the heater from the power outlet before performing any maintenance, cleaning, or handling the unit.
- Nedkølingsperiode: After unplugging, allow the heater to cool down completely in the water before removing it. This prevents thermal shock and potential damage.
- Regelmæssig rengøring: Scale accumulation on the heating rod can affect heat dissipation and pose safety risks. Regularly disassemble the heating rod shell to clean the rod body.
- Overtemperaturbeskyttelse: The heater is equipped with an over-temperature protection system. If the water temperature exceeds the set temperature by 3℉/3℃, the display will flash, and heating will stop until the temperature normalizes.
- Beskyttelse mod tørbrænding: If the heating rod leaves the water surface by 2.4 inches or more, it will automatically power off and display an 'E0' error code. The heater will resume normal operation once fully re-immersed.
- Electricity Leakage Protector: This device includes an electricity leakage protector for enhanced safety.
- Placering: Ensure the heater is placed in an area with good water circulation for accurate temperature readings and even heat distribution.
Image 2.1: Illustration of correct heater immersion in an aquarium.
3. Produktfunktioner
The AQQA Aquarium Heater incorporates several advanced features for reliable and efficient temperature control:
- Bredt temperaturområde: Adjustable from 59℉-93℉ (15℃-34℃).
- Intelligent Controller: Automatically heats when water temperature is 1℉/1℃ below the set temperature and stops when the set temperature is reached.
- Tydelige indikatorer: A red light indicates active heating, while a green light signifies that the set temperature has been reached.
- Hukommelsesfunktion: Retains the last set temperature even after a power outage, eliminating the need for re-setting.
- Holdbar konstruktion: Features an ABS removable anti-scald shell, high purity nickel chromium heating wire, and a thickened quartz glass tube for safety and longevity.
Image 3.1: Diagram showing the internal components of the heater, including the ABS shell, temperature probe, heating wire, and quartz tube.
4. Specifikationer
| Feature | Beskrivelse |
|---|---|
| Modelnummer | AQ068 |
| Strømindstillinger | 300W, 500W, 800W, 1000W, 1200W |
| Voltage/Frekvens | AC 110V-120V/60Hz (US Standard) |
| Ledningslængde | 3.6ft + 5.5ft (1.1m + 1.7m) |
| Application Range (Gallons) | 300W: 40-75 Gal (151-283L) 500W: 60-120 Gal (227-454L) 800W: 80-210 Gal (302-795L) 1000W: 135-235 Gal (511-890L) 1200W: 155-265 Gal (586-1003L) |
| Temperatur nøjagtighed | ±1℉ / ±1℃ |
| Temperaturområde | 59℉-93℉ / 15℃-34℃ |
| Controller dimensioner | 4.5in x 2in x 1in (11.5cm x 5cm x 2.5cm) for 300W/500W/800W 5.3in x 2.9in x 1in (13.5cm x 7.5cm x 2.5cm) for 1000W/1200W |
| Item Dimensions (Heater) | 11 x 2 x 2 inches (approximate for 300W) |
| Inkluderede komponenter | 1*heater |
Image 4.1: Detailed specifications and dimensions for various wattage modeller.
5. Opsætning og installation
Follow these steps to correctly install your AQQA Aquarium Heater:
- Pakker ud: Carefully remove the heater and controller from its packaging. Inspect for any visible damage.
- Placering: Position the heater fully submerged in your aquarium. Ensure it is placed vertically or tilted at approximately 30 degrees, in an area with good water flow. This helps in even heat distribution and accurate temperature sensing.
- Sikker: Use the provided suction cups to securely attach the heater to the inside wall of your aquarium.
- Placering af controller: Mount the external controller in a dry, easily accessible location outside the aquarium. Ensure the power cord and sensor cable are routed safely, avoiding kinks or damage.
- Initial Immersion: Before plugging in the heater, ensure it has been fully immersed in the aquarium water for at least 15-20 minutes. This allows the heater's internal components to acclimate to the water temperature, preventing thermal shock.
- Tænd: Once fully immersed and acclimated, plug the heater's power cord into a suitable electrical outlet.
Image 5.1: Recommended heater placement with a 30-degree tilt for optimal performance.
6. Betjeningsvejledning
Operating your AQQA Aquarium Heater is straightforward:
- Tænd: After proper installation and immersion, plug the heater into a power outlet. The controller display will illuminate.
- Indstil temperatur: Press the 'SET' button on the controller. Each press will increase the set temperature by 1℉ (or 1℃). The temperature range loops between 59℉ (15℃) and 93℉ (34℃).
- Fahrenheit/Celsius-konvertering: To switch between Fahrenheit (℉) and Celsius (℃), press and hold the 'SET' button for 5 seconds.
- Overvågning: The controller displays both the set temperature (top) and the real-time water temperature (bottom).
- Opvarmningsindikator: A red light line on the controller indicates that the heater is actively heating the water.
- Temperature Reached Indicator: A green light line indicates that the aquarium water has reached the set temperature, and the heater has stopped heating.
Billede 6.1: Overview of the intelligent controller display, showing set temperature, real-time temperature, and indicator lights.
Image 6.2: Heater operation in both freshwater and saltwater aquariums, illustrating heating and constant temperature indicators.
7. Vedligeholdelse
Regular maintenance ensures optimal performance and extends the lifespan of your heater:
- Rengøringsfrekvens: Due to the formation of scale in water over time, accumulation can affect heat dissipation and lead to safety issues. We recommend regularly disassembling the heating rod shell to clean the rod body.
- Rengøringsprocedure:
- Unplug the heater and allow it to cool completely while still submerged.
- Carefully remove the heater from the aquarium.
- Gently twist and pull the outer protective shell to separate it from the heating element.
- Clean the heating element and the inside of the protective shell using a soft brush or cloth and warm water. For stubborn scale, a mild aquarium-safe descaler can be used, followed by thorough rinsing.
- Reassemble the heater, ensuring all parts are securely fitted.
- Return the heater to the aquarium and follow the 'Initial Immersion' step from Section 5 before plugging it back in.
Image 7.1: Visual guide for disassembling the heater for cleaning.
8. Fejlfinding
Se dette afsnit for almindelige problemer og løsninger på disse:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Heater not heating / No red light | Power outage; Heater reached set temperature; Heater not fully immersed; Faulty unit. | Check power connection. Verify set temperature is above current water temperature. Ensure full immersion. If issues persist, contact support. |
| Displayet viser 'E0' | Dry burning protection activated (heater out of water). | Immediately unplug the heater. Ensure the heater is fully submerged in water. Allow it to cool, then plug it back in. |
| Water temperature flashing on display | Over-temperature protection activated (water temperature is 3℉/3℃ higher than set temperature). | The heater has stopped heating automatically. Monitor the temperature; it should return to normal once the water cools. Check for external heat sources or incorrect set temperature. |
| Inkonsekvent temperatur | Poor water circulation; Heater placement; Scale buildup. | Ensure adequate water flow around the heater. Adjust heater placement. Clean the heater regularly as per maintenance instructions. |

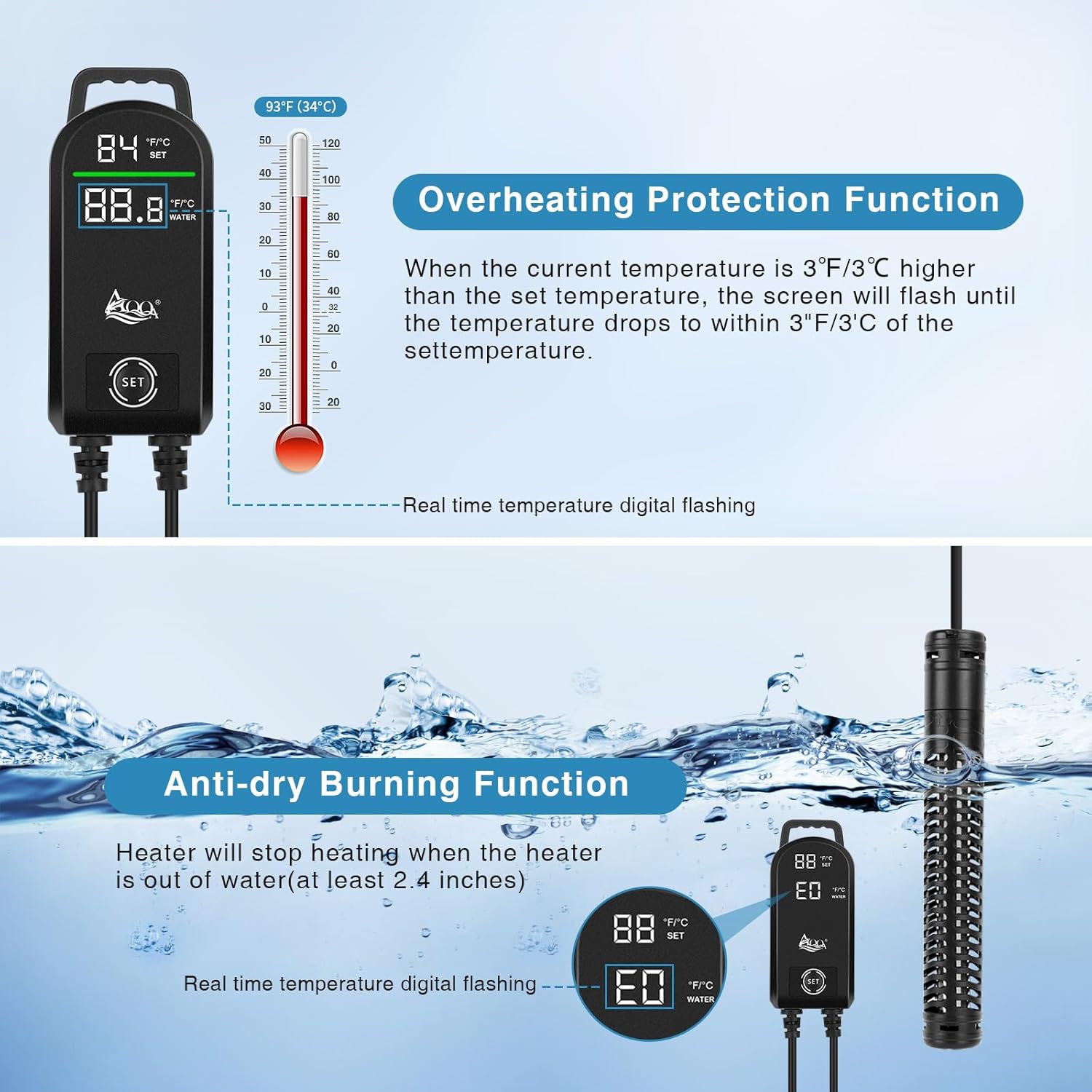

Image 8.1: Visual representation of the overheating protection (flashing temperature) and dry burning protection (E0 error code).
9. Garanti og support
Your AQQA Aquarium Heater comes with a 1 års producentgaranti fra købsdatoen.
Denne garanti dækker defekter i materialer og udførelse under normal brug. Den dækker ikke skader som følge af misbrug, ulykker, ændringer eller uautoriseret reparation.
For warranty claims, technical support, or any questions regarding your product, please contact AQQA customer service through the retailer's platform or the official AQQA website. Please have your purchase receipt and product model number (AQ068) available when contacting support.
