Indledning
The Gotrax Hoverboard Kart Seat Attachment is designed to transform your self-balancing scooter into a fun and stable go-kart. This accessory provides an ergonomic seat and intuitive hand controls, making it easier to balance and enjoy your ride. It is compatible with most hoverboards ranging from 6.5" to 10" wheel sizes, provided the hoverboard pedals are larger than 16.33".
Sikkerhedsoplysninger
Always prioritize safety when operating the Hoverfly Kart. Ensure all components are securely fastened before each use. Wear appropriate safety gear, including a helmet, knee pads, and elbow pads. Do not operate the device in unsafe conditions, near traffic, or on uneven terrain. Adult supervision is recommended for younger riders.
Komponenter
The Hoverfly Kart includes the following main components:
- Kart sæde
- Adjustable Frame (Dual Tube Design)
- Handlebar Controls with Rubber Grips
- Front Wheel Assembly (360° Swivel)
- Nylon Straps for Hoverboard Attachment
- Assembly Hardware (Screws, Nuts, Wrenches)
Figur 1: Eksploderet view of Hoverfly Kart components for assembly.
Opsætning og montering
Assembly of the Hoverfly Kart is quick and straightforward, typically taking less than 10 minutes. Follow these steps:
- Attach the seat to the main frame using the provided hardware.
- Insert the handlebar controls into their designated slots on the frame.
- Secure the front wheel assembly to the adjustable frame.
- Adjust the frame length to suit the rider's legroom. The frame can be adjusted from 29.33" to 37.8" by unscrewing the locking mechanism, sliding the frame, and re-securing.
- Attach the Hoverfly Kart to your hoverboard using the adjustable nylon straps. Ensure the straps are tightly secured around the hoverboard's footpads to prevent movement during operation.

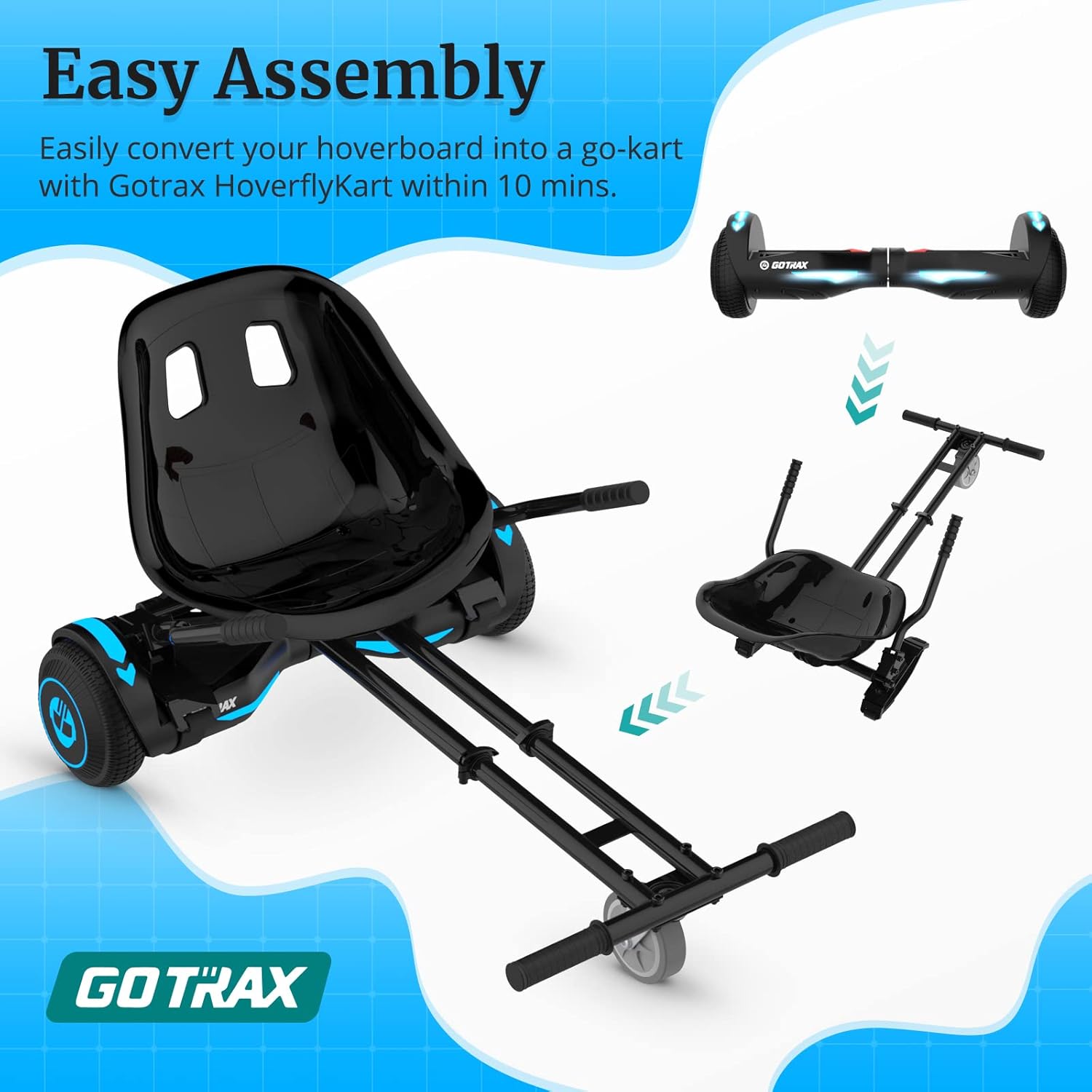

Figure 2: The Hoverfly Kart is designed for quick and easy assembly.
Figure 3: Adjustable frame length for various rider heights.
Figure 4: Compatible with 6.5"-10" hoverboards.
Betjeningsvejledning
The Hoverfly Kart is controlled using its handlebar steering system. This system allows for intuitive control of movement and direction.
- Frem: Push both handlebars downwards simultaneously.
- Baglæns: Pull both handlebars upwards simultaneously.
- Drej til venstre: Push the right handlebar down while holding the left handlebar in a neutral position.
- Drej til højre: Push the left handlebar down while holding the right handlebar in a neutral position.
- 360° Turns: Manipulate both handlebars in opposing directions to perform spins.
Figure 5: Hand controls for forward, backward, left, and right turns.
Figure 6: Key features for comfortable and safe riding.
Opretholdelse
To ensure the longevity and optimal performance of your Gotrax Hoverboard Kart, regular maintenance is recommended:
- Regularly inspect all screws, nuts, and bolts to ensure they are tight. Tighten as necessary.
- Check the condition of the nylon straps. Replace them if they show signs of wear or damage to ensure secure attachment to the hoverboard.
- Keep the kart clean by wiping it with a damp klæde. Undgå at bruge skrappe kemikalier, der kan beskadige finishen.
- Store the Hoverfly Kart in a dry place, away from direct sunlight and extreme temperatures.
Fejlfinding
If you encounter any issues with your Hoverfly Kart, consider the following common solutions:
- Kart not moving or responding: Ensure your hoverboard is fully charged and properly attached to the kart. Check that the hoverboard is powered on and functioning correctly independently.
- Difficulty steering: Verify that the handlebar controls are securely installed and move freely. Ensure the hoverboard's sensors are not obstructed by the kart's attachment.
- Unstable ride: Re-check all attachment points and ensure the nylon straps are tightly secured. Adjust the frame length to a comfortable and stable position for the rider.
For persistent issues, please refer to the customer support section.
Specifikationer
| Modelnavn | Hoverfly Kart |
| Mærke | Gotrax |
| Varens vægt | 12 pund |
| Emnedimensioner (LxBxH) | 20.4 x 18.1 x 9.8 tommer |
| Adjustable Frame Length | 29.33" til 37.8" |
| Kompatible Hoverboard Hjulstørrelser | 6.5" til 10" |
| Materiale | Plastic, Aluminum Frame |
| Stil | Dual Tube |
Garanti
The Gotrax Hoverfly Kart comes with a 180-day warranty from the date of purchase. This warranty covers manufacturing defects. Please retain your proof of purchase for warranty claims.
Kundesupport
For any questions, technical assistance, or warranty claims, please contact Gotrax customer support. Refer to the official Gotrax webwebstedet eller din købsdokumentation for at få de mest opdaterede kontaktoplysninger.
