DOOGEE S110 robust smartphone brugermanual

1. Introduktion

Welcome to the user manual for your new DOOGEE S110 Rugged Smartphone. This device is engineered for durability and high performance, designed to withstand challenging environments while providing advanced smartphone functionalities. This manual will guide you through the setup, operation, and maintenance of your device to ensure optimal performance and longevity.

Billede 1.1: Forside og bagside view of the DOOGEE S110 Rugged Smartphone.

2. Hvad er der i æsken

Upon opening your DOOGEE S110 package, you should find the following items:

• DOOGEE S110 smartphone
• Brugermanual
• Vægoplader (66W)
• USB Type-C-kabel
• SIM Ejector Tool
• Skærmbeskytter (forudpåsat eller i æske)

3. Enhed overview

Familiarize yourself with the physical components of your DOOGEE S110 smartphone.

3.1 Foran View

• 6.58-inch FHD+ Display: The main screen for all interactions.
• Forreste kamera: Located at the top center for selfies and video calls.
• Højttaler: Til lyd under opkald.

3.2 bag View

The rear of the device features a distinctive design with multiple cameras and a unique circular display.

• Main Camera (50MP): High-resolution camera for general photography.
• Night Vision Camera (24MP): Specialized camera for low-light conditions.
• Wide-angle Camera (16MP): Til optagelse af større scener.
• Bagskærm: A customizable circular display for quick information and controls.
• DOOGEE Branding: Placeret centralt på bagsiden.

Billede 3.1: Detaljeret bagside view highlighting the camera module and circular display.

3.3 Side Views

• Tænd/sluk-knap/fingeraftrykssensor: Placeret på siden til strømstyring og biometrisk godkendelse.
• Lydstyrkeknapper: Til justering af lydniveauer.
• USB Type-C-port: For charging and data transfer, typically covered by a protective flap.
• SIM/MicroSD-kortslot: For inserting SIM cards and expandable storage, typically covered by a protective flap.

4. Opsætning

4.1 Installation af SIM-kort og MicroSD-kort

1. Locate the SIM/MicroSD card slot on the side of your phone.
2. Brug det medfølgende SIM-kortudløserværktøj til at åbne bakken.
3. Placer forsigtigt dit/dine Nano-SIM-kort og/eller MicroSD-kort i de dertil beregnede pladser på bakken. Sørg for, at de vender korrekt.
4. Skub forsigtigt bakken tilbage i telefonen, indtil den flugter med enhedens kabinet.

4.2 Første opstart og grundlæggende opsætning

1. Tryk på tænd/sluk-knappen, og hold den nede, indtil DOOGEE-logoet vises.
2. Følg vejledningen på skærmen for at vælge dit sprog, oprette forbindelse til et Wi-Fi-netværk og konfigurere din Google-konto.
3. Review og accepterer vilkårene og betingelserne.

4.3 Fingerprint Recognition Setup

The DOOGEE S110 features a side-mounted fingerprint sensor for secure and quick unlocking.

1. Naviger til Indstillinger > Sikkerhed > Fingeraftryk.
2. Follow the on-screen instructions to register your fingerprint. You will be prompted to lift and press your finger multiple times on the sensor.
3. It is recommended to register multiple fingers for convenience.

Image 4.1: The side-mounted fingerprint sensor for secure access.

5. Betjening af din smartphone

5.1 Grundlæggende betjening

• Tænd/sluk: Tryk på tænd/sluk-knappen og hold den nede. Vælg 'Sluk' eller 'Genstart'.
• Skærmlås/lås op: Briefly press the Power button. Use fingerprint, PIN, pattern, or face unlock to access.
• Lydstyrkejustering: Brug knapperne til at skrue op/ned for lydstyrke på siden.

5.2 Rear Display Usage

The innovative rear display provides quick access to information and functions without needing to turn on the main screen.

• Tilpasning: Personalize the display with various clock faces, images, or widgets.
• Informationsdisplay: View time, date, battery level, and notifications.
• Hurtige handlinger: Use it as a compass, music control, or camera preview for selfies with the main camera.

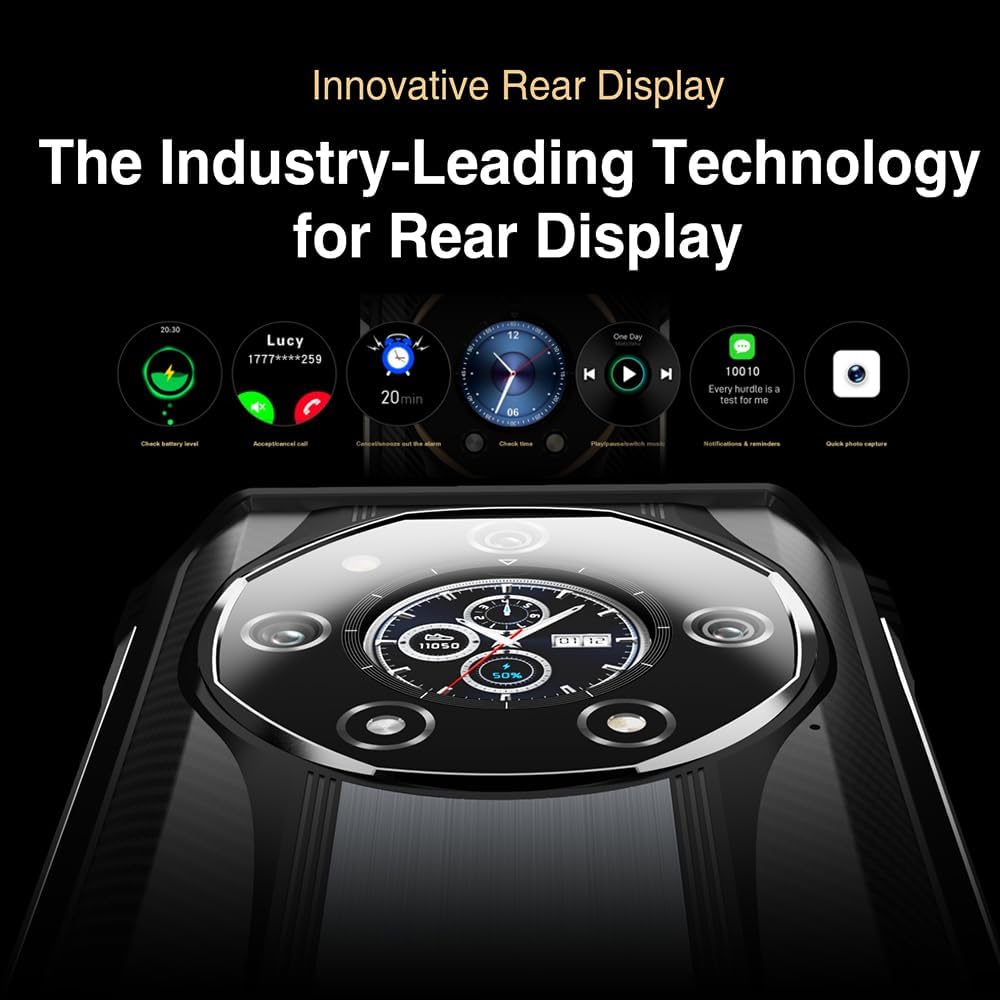

Billede 5.1: Eks.amples of information and functions displayed on the rear screen.

6. Kamerafunktioner

The DOOGEE S110 is equipped with a versatile camera system to capture various moments.

6.1 Bakkamerasystem

• 50MP hovedkamera: For high-detail photos in various lighting conditions.
• 24MP nattesynskamera: Utilizes infrared technology to capture clear images and videos in complete darkness.
• 16MP vidvinkelkamera: Ideal for landscapes, group photos, and fitting more into your frame.

Billede 6.1: Overview of the DOOGEE S110's triple rear camera setup.

6.2 32 MP frontkamera

The front-facing camera is designed for clear selfies and video calls, featuring portrait enhancement capabilities.

Image 6.2: The 32MP front camera provides clear images for selfies and video calls.

7. Connectivity and Performance

7.1 Netværk og trådløs forbindelse

• Dual 4G LTE: Supports two 4G SIM cards for flexible network usage.
• Dual-band Wi-Fi: Connects to 2.4G and 5G ac Wi-Fi networks for stable internet access.
• Bluetooth: Til tilslutning af trådløst tilbehør som hovedtelefoner og højttalere.
• NFC: Enables contactless payments and quick data sharing with compatible devices.
• GPS: Integreret GPS til navigation og positionstjenester.

Image 7.1: NFC functionality for convenient contactless interactions.

7.2 Ydeevne og lagring

The DOOGEE S110 is powered by the MTK Helio G99 Octa-Core processor, ensuring smooth multitasking and efficient operation.

• VÆDDER: 12GB base RAM, expandable up to 22GB with virtual RAM technology.
• ROM: 256 GB intern lagerplads.
• Udvidelig lagerplads: Supports MicroSD cards up to 2TB for additional storage.

Image 7.2: The MTK Helio G99 chipset powers the device, supported by ample RAM and ROM.

7.3 Display

Experience vibrant visuals on the 6.58-inch FHD+ display with a high refresh rate.

• Størrelse: 6.58 tommer.
• Opløsning: 2408 x 1080 pixels (FHD+).
• Opdateringshastighed: 120Hz for smoother scrolling and gaming.
• Beskyttelse: Features Gorilla Glass for enhanced durability.

Image 7.3: The 6.58-inch FHD+ display with a 120Hz refresh rate.

8. Batteri og opladning

The DOOGEE S110 is equipped with a large capacity battery and supports fast charging.

• Batterikapacitet: 10800mAh, providing extended usage times.
• Hurtig opladning: Supports 66W ultra-fast charging for quick power-ups.
• OTG omvendt opladning: Allows the smartphone to act as a power bank to charge other devices.

Image 8.1: The 10800mAh battery ensures long-lasting power.

Image 8.2: OTG reverse charging allows you to power other devices.

9. Vedligeholdelse

To ensure the longevity and optimal performance of your DOOGEE S110, follow these maintenance guidelines:

• Rensning: Brug en blød, fnugfri klud til at rengøre skærmen og kabinettet. Undgå skrappe kemikalier eller slibende materialer.
• Vand- og støvmodstand: The S110 is designed to be rugged and water-resistant. Ensure all port covers are securely closed to maintain water and dust resistance. Avoid prolonged submersion or exposure to high-pressure water.
• Batteripleje: Avoid extreme temperatures. Do not fully discharge the battery regularly. Use the provided charger for optimal charging.
• Softwareopdateringer: Søg regelmæssigt efter og installer systemopdateringer for at drage fordel af de nyeste funktioner, sikkerhedsrettelser og forbedringer af ydeevnen.

10. Fejlfinding

If you encounter issues with your DOOGEE S110, try the following troubleshooting steps:

10.1 Almindelige problemer og løsninger

• Enheden tænder ikke: Sørg for, at batteriet er opladet. Tilslut opladeren, og vent et par minutter, før du forsøger at tænde igen.
• Opladningsproblemer: Check if the charger and USB cable are properly connected. Try a different outlet or cable. Ensure the charging port is clean and free of debris.
• Network/Connectivity Issues: Check if airplane mode is off. Restart the device. Verify SIM card installation. For Wi-Fi, try forgetting the network and reconnecting.
• Apps der går ned/fryser: Luk og genåbn appen. Ryd appens cache (Indstillinger > Apps > [Appnavn] > Lager > Ryd cache). Genstart telefonen.
• Langsom ydeevne: Luk ubrugte apps. Ryd cache og midlertidige files. Consider uninstalling rarely used apps.

10.2 Fabriksindstilling

Advarsel: En fabriksnulstilling vil slette alle data på din telefon. Sikkerhedskopier vigtige data, før du fortsætter.

1. Gå til Indstillinger > System > Nulstil indstillinger > Slet alle data (fabriksnulstilling).
2. Confirm your decision. The phone will restart and restore to its original factory settings.

11. Specifikationer

Key technical specifications of the DOOGEE S110 smartphone:

12. Garanti og support

Your DOOGEE S110 smartphone comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.

For technical support, service, or further inquiries, please contact DOOGEE customer service or visit the official DOOGEE webwebsted for supportressourcer.

Online support: Visit the DOOGEE Store on Amazon
