Setpower FC20 Bærbart 12V Køleskab Brugermanual

Indledning

The Setpower FC20 Portable 12V Refrigerator is designed for efficient cooling and freezing on the go. This electric cooler offers a temperature range from -4℉ to 68℉, capable of fast cooling to 32℉ within 15 minutes. It operates with low power consumption and features a quiet compressor, making it suitable for various outdoor activities such as camping, travel, fishing, picnics, and road trips. Its compact design and multiple power supply options provide versatility for use in vehicles like SUVs, trucks, RVs, campers, Jeeps, vans, and boats, as well as at home.

Sikkerhedsoplysninger

Please read all safety instructions carefully before operating the Setpower FC20 Portable Refrigerator to ensure safe and proper use. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Ensure the refrigerator is placed on a stable, level surface to prevent tipping.
• Do not block ventilation openings. Maintain adequate space around the unit for proper airflow.
• Avoid exposing the unit to direct sunlight or heat sources, as this can affect cooling performance and efficiency.
• Do not immerse the refrigerator in water or other liquids.
• Use only the provided power cords (DC and AC) with the unit.
• Afbryd altid strømforsyningen før rengøring eller vedligeholdelse.
• Opbevares utilgængeligt for børn.
• The unit is designed to operate at up to a 40° tilt angle, but prolonged operation at extreme angles should be avoided.

Pakkens indhold

Når du åbner pakken, skal du kontrollere, at alle følgende varer er inkluderet:

• 1 x Setpower FC20 Portable Refrigerator
• 1 x DC-strømledning (12/24V)
• 1 x AC-strømadapter (110/240V)
• 1 x kopholder
• 1 x Umbrella Holder
• 1 x oplukker
• 1 x brugermanual

Image: The Setpower FC20 portable refrigerator shown with its lid open, filled with fruits and vegetables, alongside the included cup holder, umbrella holder, and bottle opener accessories.

Image: A visual representation of the package contents, including the portable freezer, DC cord, AC adapter, cup holder, umbrella holder, bottle opener, and user manual.

Opsætning

Strømtilslutning

The Setpower FC20 can be powered by both DC (12V/24V) and AC (110V/240V) power sources. Choose the appropriate power cord for your intended use.

• Jævnstrøm (12V/24V): Connect the DC power cord to the refrigerator's DC input port and then to your vehicle's 12V or 24V power outlet (e.g., cigarette lighter socket).
• AC Power (110V/240V): Tilslut AC-adapteren til køleskabets AC-indgangsport, og sæt derefter adapteren i en almindelig stikkontakt.

Image: Diagram illustrating various power supply options for the Setpower FC20, including power station, solar panel, home outlet (110-240V), 12V car, and 24V truck connections.

Removable 2-Way Door

The refrigerator features a removable lid that can be opened from either side, providing convenient access to contents. To change the door's opening direction, carefully detach the lid and reattach it to hinge on the opposite side.

Image: Illustration showing the removable 2-way door feature of the Setpower FC20, demonstrating how the lid can be reoriented to open from either the left or right side.

Safety Tie-down Points

The FC20 is equipped with four expansion holes on both sides, allowing for secure fastening within a vehicle using ropes or straps (not included). This prevents movement during travel, especially on bumpy roads or inclines.

Image: A diagram showing the Setpower FC20 refrigerator tilted at a 40-degree angle, highlighting the four tie-down points on its sides for secure placement in a vehicle.

Betjeningsvejledning

Kontrolpanel overview

The control panel on the top of the refrigerator allows you to manage settings. It includes buttons for temperature adjustment, power, and displays for temperature, voltage og batteribeskyttelsesniveau.

Billede: Nærbillede view of the Setpower FC20 control panel, indicating buttons for decreasing temperature, increasing temperature, on/off, battery protection level, voltage, and temperature display.

The unit has a memory function that automatically reverts to the last temperature setting when reconnected to power.

Temperature Control and Fast Cooling

The Setpower FC20 can cool rapidly. It can reach 32°F (0°C) from 77°F (25°C) in approximately 15 minutes and achieve its lowest temperature of -4°F (-20°C) in about an hour. The adjustable temperature range is from -4℉ (-20℃) to 68℉ (20℃).

Image: A graph showing the Setpower FC20's quick cooling capability, reaching 32°F in 15 minutes and -4°F in 60 minutes from an initial temperature of 77°F.

Brug knapperne '+' og '-' på kontrolpanelet til at indstille den ønskede temperatur. Displayet viser den aktuelle indvendige temperatur.

Batteribeskyttelsesniveauer

The refrigerator features three battery protection levels (H - High, M - Medium, L - Low) to prevent your vehicle's battery from draining. Select the appropriate level based on your battery's condition and usage.

Billede: En tabel med detaljerede oplysninger om udskærings- og indskæringsvolumentages for High, Medium, and Low battery protection modes for both 12V DC and 24V DC power sources.

Når den målte DC voltage drops below the "Cut Out" value, the compressor will shut off to prevent battery depletion. It will resume operation once the voltage rises above the "Cut In" value.

Støjsvag drift

The Setpower FC20 operates quietly, with noise levels below 42dB, ensuring it does not disturb your rest or activities.

Image: A graphic comparing the noise level of the Setpower FC20 refrigerator (42dB) to car driving (85-70dB), normal chat (70-43dB), and a whisper (40-20dB), illustrating its quiet operation.

Opretholdelse

Rensning

• Tag altid stikket ud af stikkontakten før rengøring.
• Rengør indvendige og udvendige overflader med adamp klud og mildt rengøringsmiddel. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Sørg for, at enheden er helt tør, før du tilslutter strømmen igen.
• Periodically clean the ventilation grilles to prevent dust buildup, which can affect performance.

Opbevaring

When storing the refrigerator for extended periods, ensure it is clean and dry. Leave the lid slightly ajar to prevent odors and mold growth.

Fejlfinding

If you encounter issues with your Setpower FC20, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Setpower customer support.

Specifikationer

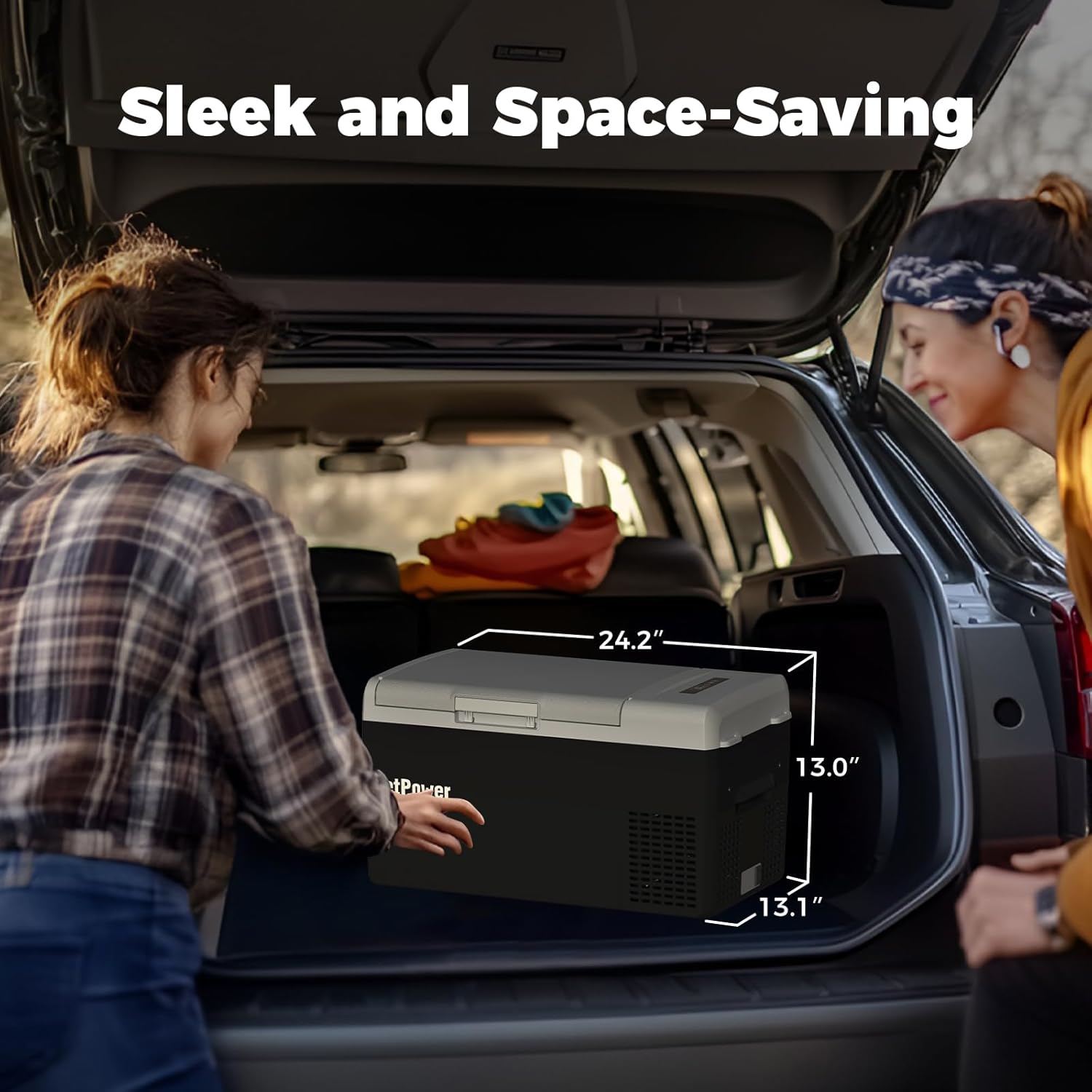

Image: A visual representation of the Setpower FC20's 21QT capacity, showing it can hold 28 cans of 355ml cola, and its external dimensions of 24.2" x 13.1" x 13.0".

Garanti og support

Setpower offers comprehensive support for your FC20 Portable Refrigerator:

• Kompressor garanti: 3 års teknisk support på kompressoren.
• Garanti for andre dele: 1 års garanti på alle andre dele.

For any product questions, technical assistance, or warranty claims, please do not hesitate to contact Setpower customer support. Refer to the contact information provided in the user manual included with your product or visit the official Setpower webwebsted.

You can also visit the official Setpower store on Amazon for more information: Setpower Store
