Jackery Portable Power Station Explorer 3000 Pro Brugermanual

Indledning

This manual provides essential information for the safe and efficient operation of your Jackery Portable Power Station Explorer 3000 Pro. The Explorer 3000 Pro is a high-capacity portable power station designed to provide reliable power for various applications, from outdoor adventures to home emergencies. It features a 3024Wh capacity and a 3000W output, capable of powering a wide range of appliances.

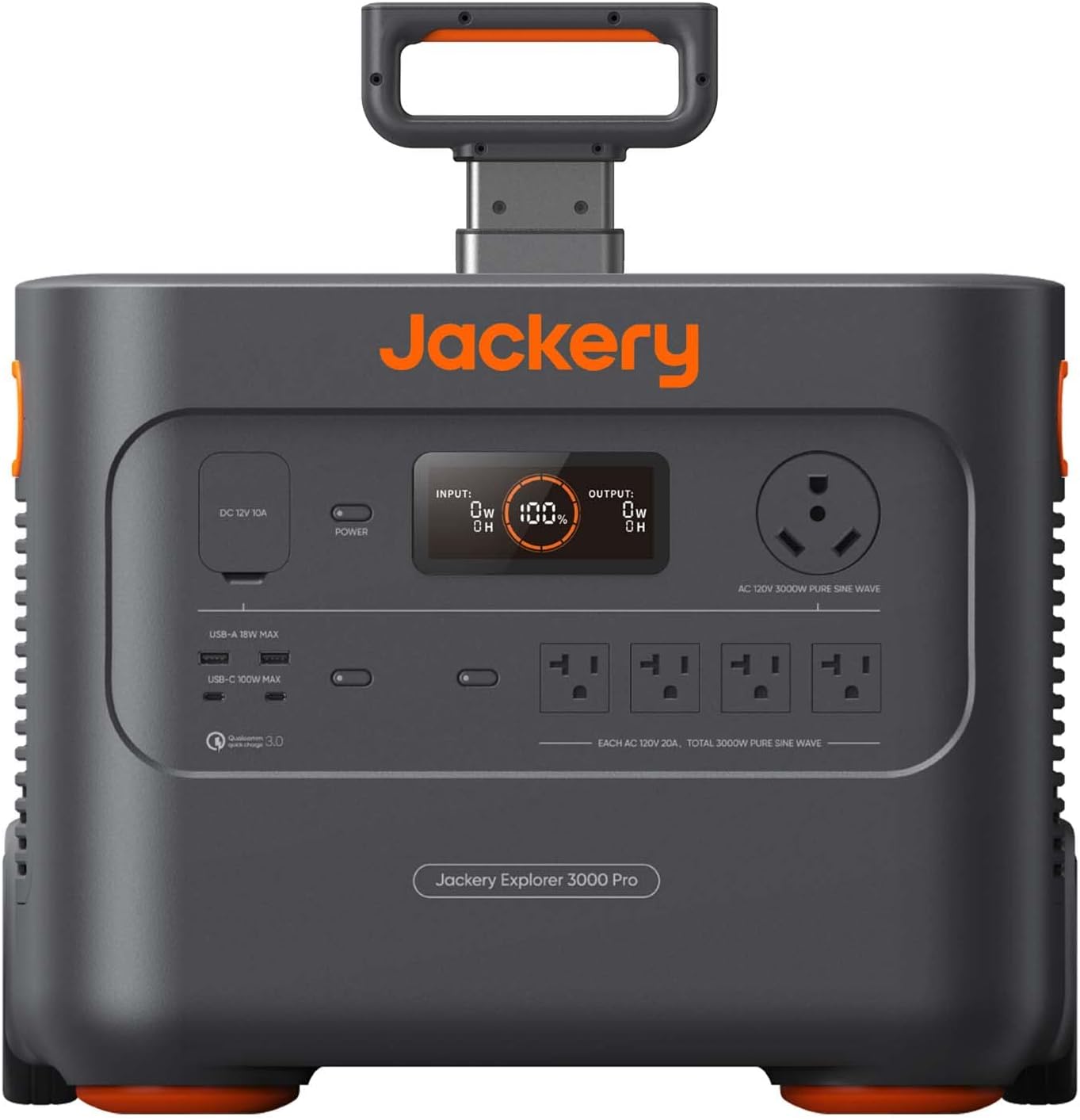

Figur 1: Front view of the Jackery Explorer 3000 Pro Portable Power Station, showing the display, various output ports (AC, USB-A, USB-C, DC), and power button.

Opsætning

Udpakning og indledende inspektion

Upon receiving your Jackery Explorer 3000 Pro, carefully unpack all components and inspect for any signs of damage. The package should include:

• 1x Jackery Explorer 3000 PRO Portable Power Station
• 1x AC Charge Cable
• 1x Car Charge Cable
• 2x DC7909 to DC8020 Adaptors
• 1x tilbehørstaske
• 1x Brugermanual (dette dokument)

Placering

Place the power station on a stable, flat surface in a well-ventilated area. Ensure there is adequate space around the unit for proper heat dissipation. The unit features an aluminum alloy pull rod and non-slip silicone strip for easy maneuverability and convenient stowing.

Figur 2: The portable suitcase design with a pull rod and wheels for easy transport.

Indledende opladning

Before first use, fully charge the power station. It can be charged via a standard wall outlet or compatible solar panels.

• Stikkontakt: Fully charged in approximately 2.4 hours. Simply connect the AC Charge Cable to the power station and a standard wall outlet.
• Solpaneler: Can be solar charged in 3-4 hours with 6x 200W Jackery SolarSaga panels. The power station supports industry-leading solar conversion efficiency of up to 25%.

Figur 3: The power station connected to multiple solar panels for ultra-fast charging.

Betjeningsvejledning

Tænd/sluk

To power on the unit, press and hold the main power button until the display illuminates. To power off, repeat the process. The power station is designed for simple operation: turn it on, plug in your devices, and continue with your activities.

Tilslutning af enheder

The Explorer 3000 Pro supports 99% of common appliances and devices. It offers various output ports:

• AC stikkontakter: Multiple AC 120V outlets for standard household appliances.
• USB-C porte: Two USB-C ports with up to 100W max output, ideal for laptops and modern devices.
• USB-A porte: Two USB-A ports with up to 18W max output for smartphones and smaller electronics.
• DC 12V 10A Port: For automotive and other 12V DC devices.

Simply plug your device's power cable into the appropriate port on the power station.

Typical Appliance Run Times (Approximate)

Note: Actual run times may vary based on appliance power consumption, usage patterns, and battery health.

Figur 4: The power station can keep essential appliances like refrigerators running during outages.

Figur 5: Powering entertainment devices like a TV is also possible.

Smart app kontrol

Monitor the real-time status of your power station, including remaining battery level, estimated running time, and input/output wattages, using the Jackery app via Wi-Fi or Bluetooth. You can also customize settings according to your needs directly from the app.

Figur 6: The Jackery app provides convenient monitoring and control features.

Opretholdelse

Opbevaring

The Jackery Explorer 3000 Pro features Zero Drain Technology, allowing it to sit idle for a full year and still retain 95% of its power. For optimal long-term storage, ensure the unit is fully charged and stored in a cool, dry place away from direct sunlight and extreme temperatures.

Sikkerhedsfunktioner

The power station incorporates an upgraded Battery Management System (BMS) for enhanced safety. Key safety features include:

• 12 forms of protection against various electrical issues.
• 30% improved heat dissipation efficiency to prevent overheating.
• An embedded security chip for reliable and versatile charging.

Figur 7: Advanced BMS ensures all-round safety during operation.

Fejlfinding

Fælles problemer og løsninger

• Enheden tænder ikke: Ensure the battery is charged. If not, connect to an AC outlet or solar panels for charging.
• Ingen output fra porte: Check if the specific output (AC, USB, DC) is enabled. Some outputs may have individual power buttons. Ensure the device connected is within the power station's output limits.
• Overbelastningsbeskyttelse: If the power station shuts down, it may be due to an overload. Disconnect some devices and restart the unit. Refer to the specifications for maximum output.
• Skærm virker ikke: Ensure the unit is powered on. If the issue persists, try a full recharge.

For persistent issues not covered here, please contact Jackery customer support.

Specifikationer

Garanti og support

Garantioplysninger

Jackery offers a 6-month warranty for all its renewed products. This warranty covers defects in materials and workmanship under normal use.

Kundeservice

For any issues or inquiries regarding your Jackery Explorer 3000 Pro, please contact Jackery customer service. You can find contact information on the official Jackery webwebsted eller via din købsplatform.
