JOOAN 3MP trådløst sikkerhedskamerasystem brugermanual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your JOOAN 3MP Wireless Security Camera System. This system offers high-definition surveillance with advanced features designed for reliable home and business security. Please read this manual thoroughly before setting up and operating the system.

Image 1.1: JOOAN 3MP Wireless Security Camera System overview, showing the NVR unit and four wireless cameras.

2. Produktfunktioner

The JOOAN 3MP Wireless Security Camera System is equipped with a range of features to ensure comprehensive surveillance:

• 3MP Ultra HD-opløsning: Giver klar og detaljeret videofootage (1296P, clearer than 1080P).
• 8-Channel NVR: Supports up to 8 cameras, allowing for future expansion (system includes 4 cameras, can add 4 more).
• Trådløs forbindelse: Cameras connect wirelessly to the NVR for flexible placement.
• Envejslyd: Built-in microphone on cameras allows for audio monitoring of the surveillance area.
• IP67 vandtæt rating: Cameras are designed for outdoor use, resistant to dust and water.
• Great Night Vision: Enhanced night vision capabilities for clear monitoring in low-light or no-light conditions.
• AI menneskelig detektion: Advanced motion detection specifically identifies human shapes, reducing false alarms.
• Multiple Alert Options: Receive NVR buzzer, email alerts, and APP notifications upon motion detection.
• H.265+ Video Compression: Efficient video compression technology saves storage space and bandwidth.
• Fjernadgang: View live footage and playback recordings from anywhere using the Eseecloud mobile app or software.
• Auto Pair & Plug N Play: Simplified setup with automatic camera pairing to the NVR.
• Signal Extension (Cascade Technology): Use one camera as a repeater to extend wireless signal range.

Image 2.1: The system provides 24/7 protection, suitable for various environments including home, outdoor, day, night, and in rainy conditions.

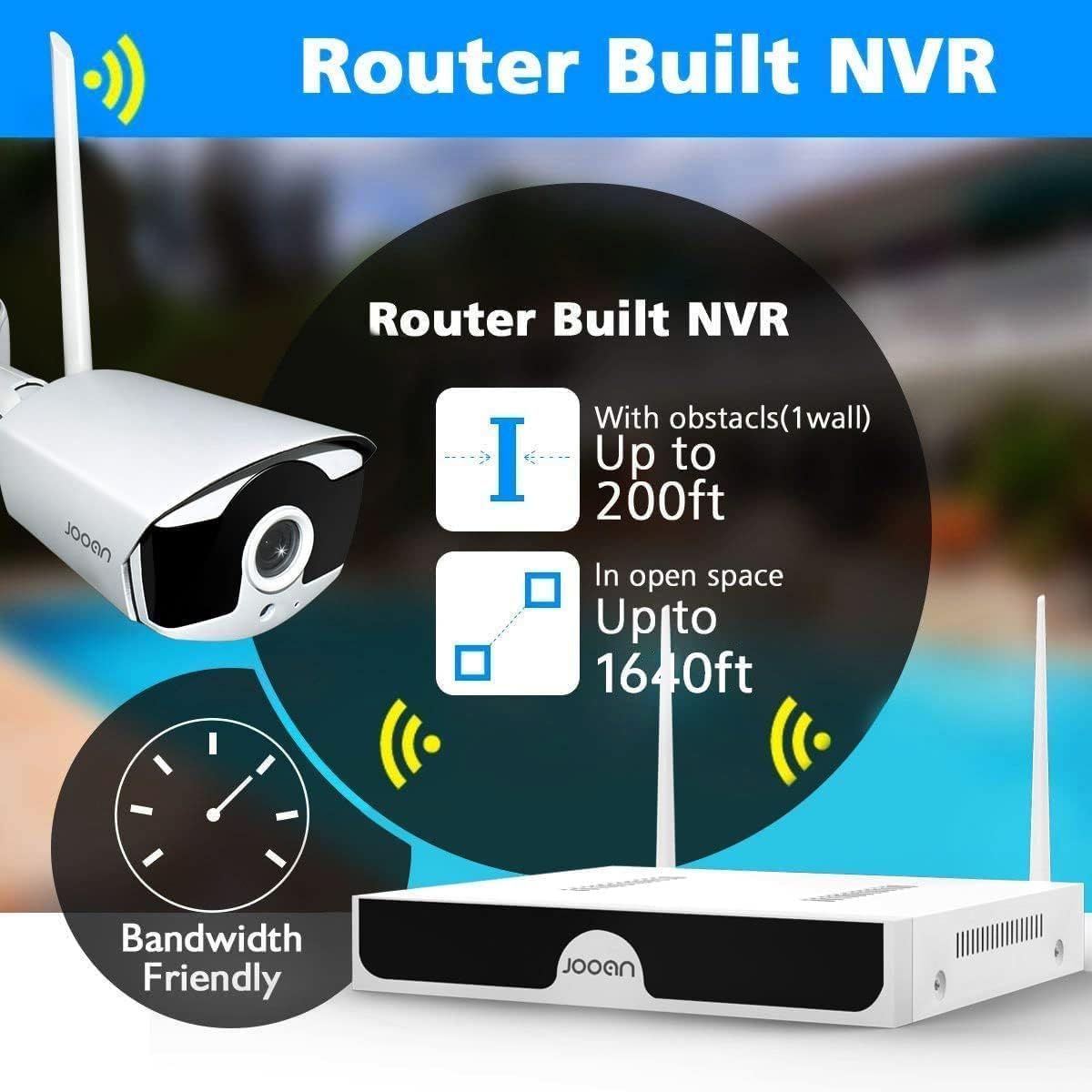

Image 2.2: The NVR features a built-in router, offering wireless range up to 200ft with one wall obstacle and up to 1640ft in open space.

3. Pakkens indhold

Kontroller venligst pakkens indhold ved udpakning for at sikre, at alle komponenter er til stede:

• 1 x 8-Channel Wireless NVR (No HDD included)
• 4 x 3MP trådløse IP-kameraer
• 1 x NVR-strømadapter
• 4 x Camera Power Adapters
• 1 x USB-mus
• 1 x Ethernet-kabel
• Mounting Screws and Plugs for Cameras
• Brugervejledning (dette dokument)
• Advarselsmærkat

Image 3.1: All components included in the JOOAN 3MP Wireless Security Camera System package.

4. Opsætningsvejledning

The JOOAN system is designed for easy setup with its auto-pairing feature.

4.1 Indledende opsætning

1. Tilslut NVR'en:
   • Connect the NVR to a power outlet using the provided NVR power adapter.
   • Connect the NVR to a monitor or TV via HDMI or VGA cable (not included) to view grænsefladen.
   • Connect the USB mouse to the NVR for navigation.
   • (Optional) Connect the NVR to your router using the Ethernet cable for internet access and remote viewing.
2. Power On Cameras:
   • Connect each camera to a power outlet using its respective power adapter.
   • The cameras will automatically pair with the NVR within a few moments. You should see the camera feeds appear on the monitor connected to the NVR.
3. Hard Drive Installation (Optional):
   • Hvis du ønsker at optage madtage, install a 3.5-inch SATA hard drive (not included) into the NVR. Refer to the detailed PDF user guide for installation steps.

Image 4.1: The system features auto-pairing for easy plug-and-play setup, connecting cameras wirelessly to the NVR.

4.2 Kamerainstallation

Choose suitable locations for your cameras, considering coverage area, power access, and wireless signal strength.

• Mount cameras securely using the provided screws and plugs.
• Adjust the camera angle to cover the desired area.
• Ensure cameras are within the NVR's wireless range. For extended range, consider using the cascade technology (see Section 6.3).
• The cameras are IP67 waterproof, suitable for outdoor installation.

Image 4.2: Cameras can be mounted on ceilings or walls, offering flexible installation options.

5. Betjeningsvejledning

5.1 Live View og afspilning

Når systemet er konfigureret, kan du view live feeds and playback recorded footage through the NVR's connected monitor or via the mobile application.

• NVR-grænseflade: Use the USB mouse to navigate the NVR's on-screen menu. Right-click to access main menu options like Live View, Playback, System Setup, etc.
• Afspilning: Select the 'Playback' option from the main menu. Choose the date and time to review recorded events.

5.2 One-Way Audio Function

Each camera is equipped with a microphone, allowing you to hear audio from the surveillance area.

• Under live viewing or playback, ensure the audio output on your monitor/TV or mobile device is enabled and volume is adjusted.
• The system records video and audio simultaneously, allowing for comprehensive event review.

Image 5.1: The system supports one-way audio, allowing users to hear sound from the monitoring scene during live viewing og afspilning.

6. Avancerede funktioner

6.1 AI Human Detection & Alerts

The system utilizes advanced AI algorithms to distinguish human shapes from other moving objects, significantly reducing false alarms caused by pets, vehicles, or swaying branches.

• When a human is detected, the system can trigger various alerts:
  • NVR Buzzer: An audible alarm from the NVR.
  • Email Alert: An email notification sent to a configured address.
  • APP Notification: A push notification to your mobile device via the Eseecloud app.
• Configure detection zones and sensitivity settings via the NVR menu or mobile app.

Image 6.1: AI Human Detection minimizes false alerts, and the system provides NVR buzzer, email, and app notifications.

6.2 H.265+ videokomprimering

The system employs advanced H.265+ video compression technology, which significantly reduces bandwidth usage and storage requirements compared to older H.264 or H.265 standards. This allows for longer recording times and smoother streaming with less data.

Image 6.2: H.265+ compression reduces storage occupation by up to 50% compared to H.264, while maintaining clear picture quality.

6.3 Wireless Signal Extension (Cascade Technology)

To overcome wireless range limitations, the system supports "Cascade Technology," allowing one camera to act as a repeater for another. This extends the effective wireless coverage.

• Position a camera strategically between the NVR and a distant camera to boost the signal.
• Refer to the NVR's system settings for configuring cascade mode.

Image 6.3: Cascade Technology allows one camera to serve as a repeater, extending the wireless signal for other cameras.

7. Mobile App and Remote Access

The Eseecloud app provides convenient remote access to your security system from anywhere.

7.1 Download og installation af appen

• Søg efter "Eseecloud" in the Apple App Store (for iOS devices) or Google Play Store (for Android devices).
• Download og installer appen på din smartphone eller tablet.

7.2 Connecting to Your NVR

• Open the Eseecloud app and create an account or log in.
• Add your NVR by scanning the QR code displayed on the NVR's monitor (found in System Info) or by manually entering the device ID.
• Ensure your NVR is connected to the internet via an Ethernet cable.

7.3 App funktioner

• Levende View: Watch live feeds from all connected cameras.
• Afspilning: Adgang og vedrview optaget footage stored on the NVR's hard drive.
• Meddelelser: Receive instant push notifications for motion detection events.
• Indstillinger: Adjust camera and NVR settings remotely.
• Del adgang: Share access to your system with family members.

Image 7.1: The Eseecloud app allows remote access to your security system from various devices, including smartphones, tablets, and laptops.

8. Vedligeholdelse

Regular maintenance helps ensure the longevity and optimal performance of your security system.

• Rengøring af kameralinser: Rengør kameralinserne regelmæssigt med en blød kludamp klud til at fjerne støv, snavs eller vandpletter, der kan blokere viewBrug ikke skrappe kemikalier.
• Tjek forbindelser: Ensure all power adapters and cables are securely connected to prevent power interruptions or signal loss.
• Firmwareopdateringer: Check the JOOAN official website or the Eseecloud app for any available firmware updates for your NVR and cameras. Keeping firmware updated can improve performance and add new features.
• Harddiskens tilstand: If a hard drive is installed, monitor its health through the NVR's system settings to prevent data loss.
• Miljøhensyn: While cameras are IP67 rated, avoid directing high-pressure water jets directly at them. Ensure proper ventilation for the NVR unit.

9. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på.

10. Specifikationer

Image 10.1: The cameras are IP67 waterproof and can operate in temperatures ranging from -35°C (-31°F) to 60°C (140°F).

Billede 10.2: Eks.ample of the system's clear night vision capabilities.

11. Garanti og support

For garantioplysninger og teknisk support henvises til den officielle JOOAN webwebsted eller kontakt deres kundeservice.

• Officiel brugervejledning: A detailed PDF user guide is available for download at https://manuals.plus/m/8b300119d4784c8e0500e9c84e9766aa0d73934fd41381c88615f272c2a079f5.
• Kundeservice: For further assistance, troubleshooting, or warranty claims, please contact JOOAN customer support through the contact information provided on their official webwebsted eller via din købsplatform.
