BougeRV Sunflow MPPT solcelleladeregulator 60A brugermanual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of the BougeRV Sunflow MPPT Solar Charge Controller 60A. This device is designed to efficiently manage power flow from solar panels to various battery types, including LiFePO4, SLD, Gel, FLD, and AGM batteries, in 12V or 24V systems. It is suitable for RV and marine applications.

2. Sikkerhedsinstruktioner

Please read all instructions carefully before installation and operation to ensure safe and optimal performance. Failure to follow these instructions may result in damage to the unit, personal injury, or property damage.

• Ensure all wiring connections are secure and correct before applying power.
• Do not disassemble or attempt to repair the controller. Contact qualified personnel for service.
• Installer styreenheden i et godt ventileret område, væk fra brandfarlige materialer og direkte sollys.
• Wear appropriate personal protective equipment, including eye protection, during installation.
• Bekræft batteri voltage and polarity before connecting to the controller.
• The controller is designed for 12V/24V systems. Do not connect to higher voltage systemer.

3. Produktet er slutview

The BougeRV Sunflow MPPT Solar Charge Controller 60A is designed for efficient solar power management. Key features include:

• LiFePO4 Battery Compatibility: Includes low-temperature cut-off charging (below 0°C / 32°F) to protect LiFePO4 batteries. It can also reactivate dormant 12V or 24V LiFePO4 batteries that have been shut down due to short circuits or over-discharge.
• Smart LCD and App Control: Features a backlit LCD display and remote app control via Bluetooth (up to 32 feet range). The 'Solar' APP provides real-time status for solar panels, batteries, and loads. The controller offers three display operation modes: Full-featured, No-load, and Viewing.
• Højeffektiv opladning: The controller can adjust the charge current from 0A to 60A. It achieves a tracking efficiency of up to 99.5% and a peak conversion efficiency of up to 99%, maximizing solar panel output. An integrated aluminum heat sink aids in heat dissipation, minimizing power loss during full-load operation.
• Integrated Protection Features: Certified by CE and RoHS. Features a dual MOS circuit to prevent reverse current and reduce operational heat. Includes 6 protection mechanisms: over-temperature, open-circuit, short-circuit, overload, reverse polarity, and current flow backward prevention.

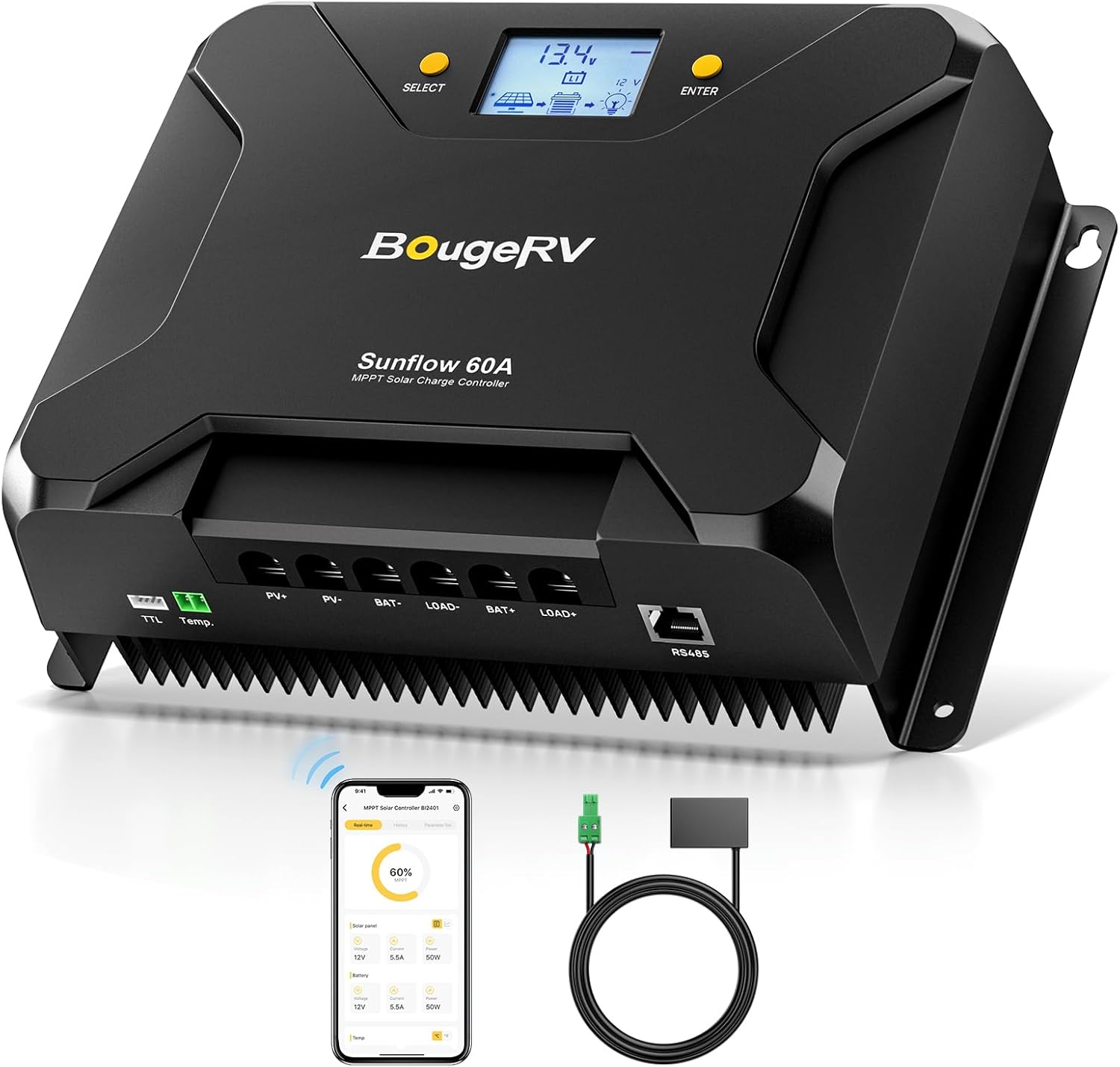

Figure 3.1: BougeRV Sunflow 60A MPPT Solar Charge Controller with included accessories.

Figure 3.2: Physical dimensions of the BougeRV Sunflow 60A MPPT Solar Charge Controller (10.35"L x 7.32"W x 3.34"H).

4. Installationsvejledning

4.1 Ledningsforbindelser

Follow the wiring sequence below to prevent damage to the controller or system components. Always connect the battery first, then the solar panels, and finally the load.

1. Tilslut batteriet: Connect the 12V/24V battery to the controller's battery terminals (BAT+ and BAT-). Ensure correct polarity. This step is crucial for the controller to recognize the system voltage and activate the display.
2. Tilslut solpanelerne: Connect the solar panel array to the controller's PV terminals (PV+ and PV-). Ensure correct polarity and that the maximum PV input voltage (95V) and power (900W/12V, 1800W/24V) are not exceeded.
3. Tilslut belastningen (valgfrit): Connect your DC loads to the controller's load terminals (LOAD+ and LOAD-).

Wire specifications: 15-8AWG.

Figure 4.1: Connection terminals and safety features of the controller.

4.2 Montering

Mount the controller vertically on a non-flammable surface in a dry, well-ventilated indoor location. Allow sufficient clearance around the controller for proper heat dissipation.

5. Betjeningsvejledning

5.1 LCD-skærm overview

The controller features a backlit LCD display that shows system status and parameters. Use the 'SELECT' and 'ENTER' buttons to navigate and adjust settings.

Figure 5.1: LCD display icons and their functions, including battery type, charging stage, system bindtage, load status, and communication indicators.

5.2 Arbejdstilstande

The controller supports three working modes:

• Full-featured Mode: All functions are accessible and editable via the buttons on the device. This mode allows comprehensive parameter adjustments without needing the mobile app.
• No-load Mode: Designed for systems where the load output of the controller is not utilized. Load-related settings are hidden, simplifying navigation.
• Viewing-tilstand: Allows monitoring of system status parameters only. Parameters cannot be edited in this mode.

Figur 5.2: Overview of the three operational modes.

5.3 Switching Working Modes

To switch between working modes:

1. Press and hold the 'SELECT' button for 5 seconds until the working mode icon on the display flashes.
2. Use the 'SELECT' button to cycle through the available modes (Full-featured, No-load, Viewing).
3. Once the desired mode is displayed, press and hold the 'ENTER' button for 2 seconds to save the setting.

Figure 5.3: Visual guide for switching working modes on the LCD.

5.4 App kontrol

The BougeRV Sunflow controller can be managed via a mobile application, offering enhanced monitoring and parameter adjustment capabilities.

5.4.1 Download og parring af app

• Søg efter 'BougeRV' on your device's app store.
• Alternatively, scan the QR code provided in the user manual or visit http://b.nxw.so/2o42ln for at downloade appen.
• Sørg for, at Bluetooth er aktiveret på din telefon.
• Open the app, click the Bluetooth logo, and connect to the device.

Figure 5.4: App download and pairing process.

5.4.2 App funktioner

• Overvågning i realtid: View current system status, including solar panel input, battery voltage, and load output. The app automatically detects system status and common fault interfaces, providing timely reports and adjustment options.
• Historiske data Viewing: Access historical data of the controller, solar panel output, and battery charging status.
• Convenient Parameter Setting: Adjust various parameters, such as battery type, charging voltage, and low-temperature protection settings, directly from the mobile app.

Figure 5.5: Real-time monitoring interface in the BougeRV app.

Figure 5.6: Historical data viewing in the BougeRV app.

Figure 5.7: Parameter setting interface in the BougeRV app.

6. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer din solcelleladeregulators levetid og optimale ydeevne.

• Rensning: Periodically clean the controller's exterior with a dry cloth to remove dust and debris. Ensure ventilation openings are clear.
• Tilslutningstjek: Annually inspect all wiring connections for tightness and corrosion. Loose connections can cause overheating and power loss.
• Firmwareopdateringer: Check the BougeRV app for any available firmware updates to ensure the controller operates with the latest features and improvements.

7. Fejlfinding

This section addresses common issues you might encounter with the BougeRV Sunflow MPPT Solar Charge Controller.

8. Tekniske specifikationer

9. Garanti og support

BougeRV provides an 18-month technical support period for the Sunflow MPPT Solar Charge Controller 60A. For any technical assistance, troubleshooting, or warranty claims, please contact BougeRV customer service through their official channels. Keep your purchase receipt for warranty validation.
