Landy Industries Minilæsser 1/2 Yard Cement & Beton Skovl med Tud Brugermanual

Indledning

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Landy Industries Skid Steer 1/2 Yard Cement & Concrete Bucket with Spout. Please read this manual thoroughly before using the equipment.

The Landy Industries Skid Steer 1/2 Yard Cement & Concrete Bucket is designed to efficiently transport and pour concrete, significantly reducing manual labor associated with tasks like pouring sidewalks, driveways, and other concrete jobs. Its design allows for easy cleaning, storage, and loading, making it a versatile attachment for your skid steer.

Sikkerhedsoplysninger

Always prioritize safety when operating heavy machinery and attachments. Failure to follow safety instructions can result in serious injury or death.

• Ensure the skid steer is stable and on level ground before attaching or detaching the bucket.
• Always wear appropriate personal protective equipment (PPE), including hard hat, safety glasses, and steel-toed boots.
• Do not exceed the rated capacity of the bucket or the skid steer. The bucket has a capacity of 1/2 yard of concrete.
• Keep all bystanders clear of the work area during operation.
• Inspect the bucket and all attachment points for damage or wear before each use.
• Never operate the equipment under the influence of drugs or alcohol.
• Refer to your skid steer's operator manual for additional safety guidelines.

Opsætning og installation

Korrekt installation er afgørende for sikker og effektiv drift.

1. Bekræft kompatibilitet: Before installation, ensure your skid steer's quick attach system is compatible with the bucket's mount plate. Refer to the provided size diagram for the mount plate dimensions.
2. Position the Skid Steer: Park the skid steer on a flat, stable surface. Engage the parking brake and lower the loader arms.
3. Align the Bucket: Carefully approach the bucket with the skid steer's quick attach plate. Align the top edge of the quick attach plate with the top hooks on the bucket.
4. Lift and Tilt: Slowly raise the loader arms and tilt the quick attach plate backward until the bucket is fully seated against the plate.
5. Secure the Pins: Engage the locking pins or levers on your skid steer's quick attach system to secure the bucket. Ensure both pins are fully engaged and locked.
6. Endelig kontrol: Gently lift the bucket a few inches off the ground and shake it to confirm it is securely attached before beginning operation.

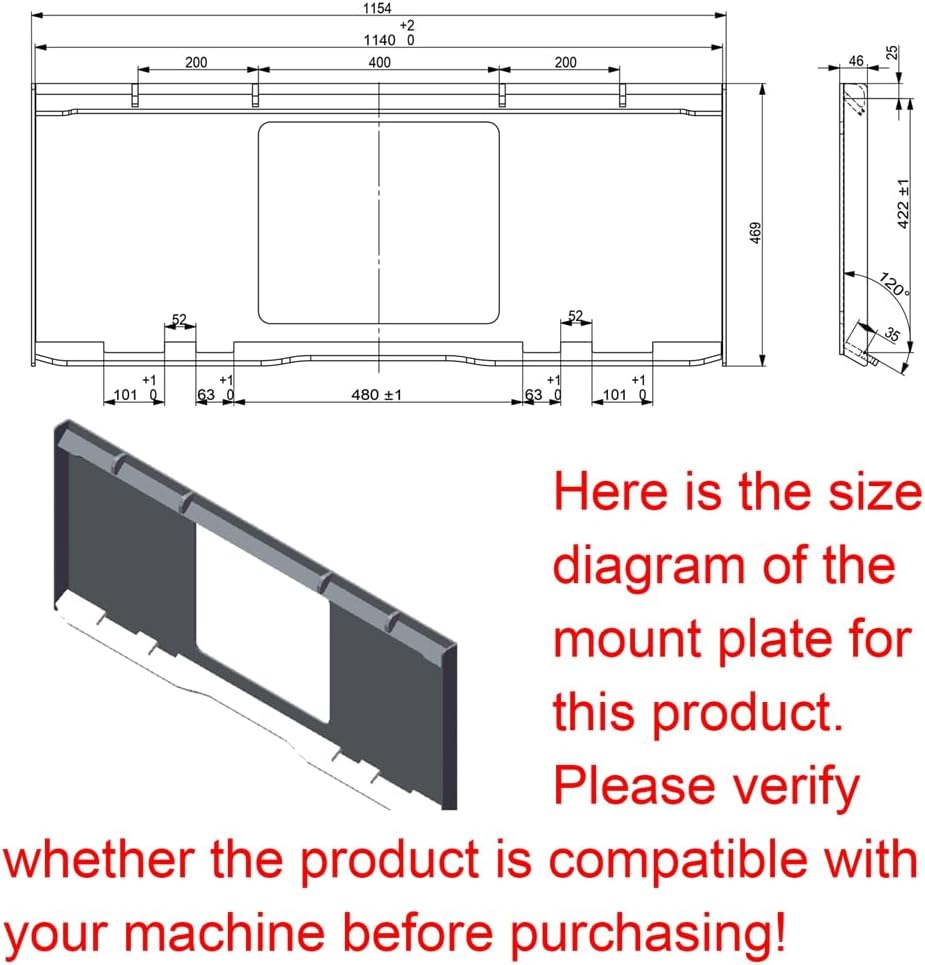

Figur 1: Mount Plate Size Diagram. This diagram illustrates the dimensions of the mount plate, essential for verifying compatibility with your skid steer's quick attach system. Please check these measurements carefully before purchase and installation.

Betjeningsvejledning

The Landy Industries Concrete Bucket is designed for efficient concrete handling. Follow these steps for optimal performance:

1. Loading Concrete: Position the bucket to receive concrete from a mixer or pump. Ensure the bucket is level to prevent spillage. The bucket can haul up to 1/2 yard of concrete.
2. Transport: With the bucket loaded, raise it to a safe transport height, typically just above the ground. Drive slowly and smoothly to the pouring location, avoiding sudden stops or turns that could cause concrete to slosh out.
3. Hældning: Position the bucket over the area where concrete is to be poured. Use the skid steer's tilt function to control the flow of concrete through the spout. The spout allows for precise placement, especially in tight areas, eliminating the need for a wheelbarrow and reducing back-breaking manual labor.
4. Tømning: Ensure the bucket is completely emptied after each pour to prevent concrete from hardening inside.

Figur 2: Front view of the concrete bucket, showing the main body and the attached pouring spout. This view highlights the robust construction and the design optimized for concrete flow.

Figur 3: Detaljeret view of the concrete pouring spout. The spout is designed for controlled and precise delivery of concrete, making it ideal for various pouring applications.

Opretholdelse

Regular maintenance ensures the longevity and optimal performance of your concrete bucket.

• Rensning: Immediately after each use, thoroughly clean the bucket and spout to remove all concrete residue. Hardened concrete is difficult to remove and can reduce the bucket's capacity and efficiency. Use water and a stiff brush or pressure washer.
• Inspektion: Periodically inspect the bucket for signs of wear, cracks, or damage, especially at weld points and attachment areas. Check all bolts and fasteners for tightness.
• Opbevaring: Store the bucket in a dry, covered area to prevent rust and corrosion when not in use.
• Smøring: If any moving parts or pivot points are present (though less common on a simple bucket), lubricate them according to standard machinery maintenance practices.

Figur 4: Indre view of the concrete bucket. Regular cleaning of this interior surface is vital to prevent concrete buildup and maintain the bucket's capacity and ease of use.

Fejlfinding

Specifikationer

Garanti og support

For warranty information, technical support, or to inquire about replacement parts, please contact Landy Industries directly. Refer to the product packaging or the official Landy Industries webhjemmeside for de seneste kontaktoplysninger.

Fabrikant: Landy Industries

Dato først tilgængelig: 11. august 2023
