Indledning
Thank you for choosing the Auronic Electric Air Dehumidifier. This appliance is designed to effectively remove excess moisture from the air, creating a more comfortable and healthier indoor environment. It is ideal for use in various spaces such as bathrooms, basements, and living areas, helping to prevent issues like mold, mildew, and dampness. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.
Figure 1: Auronic Electric Air Dehumidifier (Model AU3129 12L)
Figure 2: Humidity Reduction Effectiveness
Sikkerhedsoplysninger
For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse grundlæggende sikkerhedsforanstaltninger:
- Læs alle instruktioner før brug af apparatet.
- Sørg for, at strømforsyningen matcher voltage angivet på mærkatet.
- Brug ikke affugteren, hvis netledningen eller stikket er beskadiget.
- Placer altid enheden på en stabil, plan overflade.
- Keep the appliance at least 20 cm away from walls or other objects to ensure proper airflow.
- Stik ikke fingre eller fremmedlegemer ind i luftindtaget eller -udtaget.
- Tag stikket ud af affugteren, før du rengør, flytter eller udfører vedligeholdelse.
- Brug ikke apparatet i vådt eller damp environments where water may splash.
- Opbevares utilgængeligt for børn.
- If the unit has been tilted, allow it to stand upright for at least 24 hours before plugging it in.
Produkt overview
Familiarize yourself with the components of your Auronic Dehumidifier.
Figure 3: Dehumidifier Dimensions and Included Accessories
Figure 4: Easy Portability with Wheels and Handle

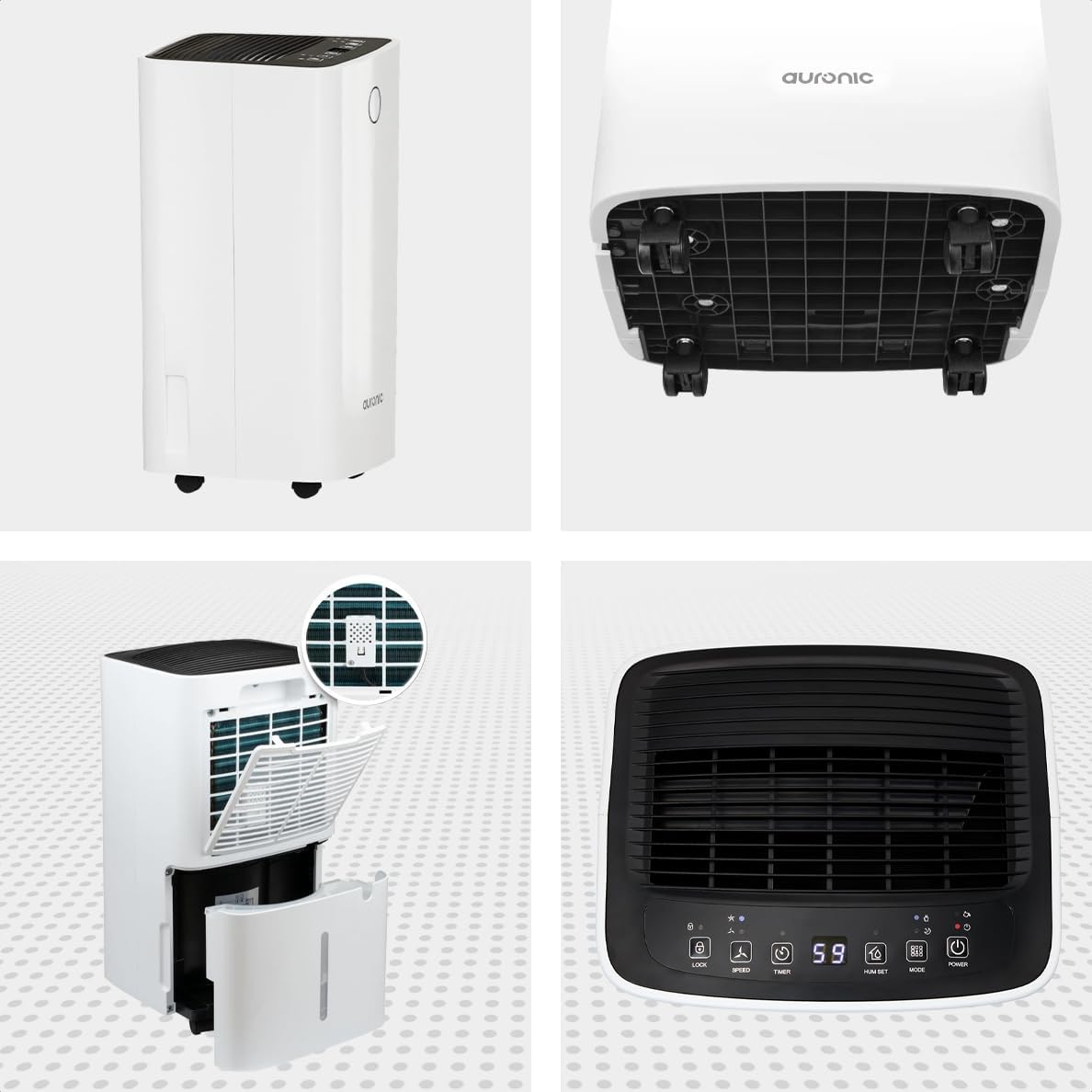

Figure 5: Multi-Angle View af affugteren
Figur 6: Kontrolpanel overview
Nøglekomponenter:
- Kontrolpanel: Intuitive interface for setting modes, humidity levels, and timer.
- Luftindtag/udtag: Where air enters and exits the unit. Ensure these are not obstructed.
- Vandtank: Removable 2-liter tank for collecting condensed water.
- Kontinuerlig drænudløb: Port for attaching a hose for continuous drainage.
- Hjul og håndtag: For nem transport.
- Luftfilter: Placeret bagpå, hjælper med at filtrere støv fra luften.
Opsætning
- Udpakning: Tag forsigtigt affugteren ud af emballagen. Gem emballagen til senere opbevaring eller transport.
- Placering: Place the unit upright on a firm, level surface in the desired location. Ensure there is at least 20 cm of clear space around all sides for proper air circulation.
- Indledende standby: If the unit was tilted during transport, let it stand upright for a minimum of 24 hours before plugging it in. This allows the refrigerant to settle.
- Strømtilslutning: Sæt netledningen i en jordet stikkontakt.
- Vandtank: Ensure the water tank is correctly inserted into the unit. The dehumidifier will not operate if the tank is full or improperly seated.
Betjeningsvejledning
Kontrolpanelets funktioner:
| Knap/indikator | Fungere |
|---|---|
| Power knap | Tænder eller slukker for enheden. |
| Mode knap | Cycles through operating modes (e.g., Dehumidify, Laundry Drying, Sleep). |
| Hum Set Button | Justerer det ønskede luftfugtighedsniveau (f.eks. 40% - 80% RF). |
| Timer knap | Indstiller timeren for automatisk tænding eller automatisk slukning (op til 12 timer). |
| Hastighedsknap | Adjusts fan speed (e.g., High, Low). |
| Låseknap | Låser kontrolpanelet for at forhindre utilsigtede ændringer. |
| Humidity Indicator LED | Changes color based on current humidity level (e.g., Blue: <45%, Green: 45-65%, Red: >65%). Figure 7: Humidity Indicator LED Explained |
Generel drift:
- Tænd: Tryk på Magt button. The display will show the current room humidity.
- Indstil ønsket luftfugtighed: Tryk på Hum Set button repeatedly to select your desired humidity level. The unit will operate until this level is reached, then cycle on and off to maintain it.
- Vælg tilstand: Tryk på Mode button to choose between different operating modes.
- Affugtningstilstand: Standard operation to reduce ambient humidity.
- Tørretilstand for vasketøj: Increases fan speed and continuous operation to assist in drying clothes.
Figure 8: Using the Dehumidifier for Laundry Drying
- Sove mode: Operates at a lower fan speed and reduced noise level for quiet nighttime use.
Figure 9: Silent Operation for Nighttime Use
- Indstil timer: Tryk på Timer button to set an auto-off time (when the unit is on) or an auto-on time (when the unit is off).
Figure 10: Integrated Timer Function
- Blæserhastighed: Brug Hastighed button to adjust the fan speed as desired.
- Børnelås: Tryk og hold på Låse button for 3 seconds to activate/deactivate the child lock function.
Kontinuerlig dræning:
For continuous operation without emptying the water tank, you can connect the included drain hose to the continuous drain outlet. Ensure the hose is sloped downwards to allow gravity drainage into a suitable receptacle or drain.
Figure 11: Continuous Drainage Setup
Opretholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger levetiden på din affugter.
Tømning af vandtanken:
When the water tank is full, the unit will automatically stop operating and an indicator light will illuminate. Carefully remove the tank, empty the collected water, and reinsert it firmly until it clicks into place.
Figure 12: Removing the 2-Liter Water Tank
Rengøring af luftfilteret:
Luftfilteret bør rengøres hver anden uge eller oftere afhængigt af brug og luftkvalitet.
- Sluk og tag stikket ud af affugteren.
- Find og fjern luftfilteret fra bagsiden af enheden.
- Clean the filter with warm, soapy water or use a vacuum cleaner to remove dust.
- Skyl grundigt, og lad filteret lufttørre helt, inden det sættes i igen.
Rengøring af enhedens yderside:
Tør ydersiden af affugteren af med en blød, damp klæde. Brug ikke skrappe kemikalier eller slibende rengøringsmidler.
Fejlfinding
Før du kontakter kundesupport, bedes du læse følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Affugteren tænder ikke. | No power, power cord loose, water tank full or improperly seated. | Check power connection, empty and reinsert water tank correctly. |
| Intet vand opsamlet. | Room humidity too low, temperature too low, air filter clogged, continuous drain hose connected. | Check room humidity/temperature, clean air filter, ensure continuous drain hose is not connected if tank collection is desired. |
| Enheden er støjende. | Unit not on a level surface, air filter clogged, internal component issue. | Place on a level surface, clean air filter. If noise persists, contact support. |
| Dehumidification is slow or ineffective. | Room size too large, doors/windows open, air inlets/outlets blocked, air filter dirty. | Ensure room is sealed, clear obstructions, clean air filter. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Auronic |
| Modelnavn | Auronic Silent Low Consumption Dehumidifier |
| Produktmål (L x B x H) | 21.5 x 47 x 25.5 cm |
| Varens vægt | 11 kilo |
| Kapacitet (affugtning) | 12 liter om dagen |
| Vandbeholdervolumen | 2 liter |
| Magt | 185 watt |
| Farve | Hvid |
| Særlige funktioner | Easy to use, Laundry Drying function, Prevents and effectively eliminates humidity, 2-liter tank, Automatic shut-off. |
| Anbefalet brug | Indenrigs |
Garanti og support
Auronic products are manufactured to the highest quality standards. For warranty information, technical support, or service inquiries, please refer to the contact details provided on your purchase receipt or visit the official Auronic website. Please have your model number (AU3129 12L) and purchase date ready when contacting support.
