Baseus 9-i-1 Dockingstation & 240W USB-C Kabel Brugermanual

1. Introduktion

This user manual provides detailed instructions for the Baseus 9-in-1 Laptop Docking Station and the Baseus 240W PD 3.1 USB-C to USB-C Charger Cable. This bundle is designed to enhance your connectivity and charging capabilities for various devices, including laptops, tablets, and smartphones.

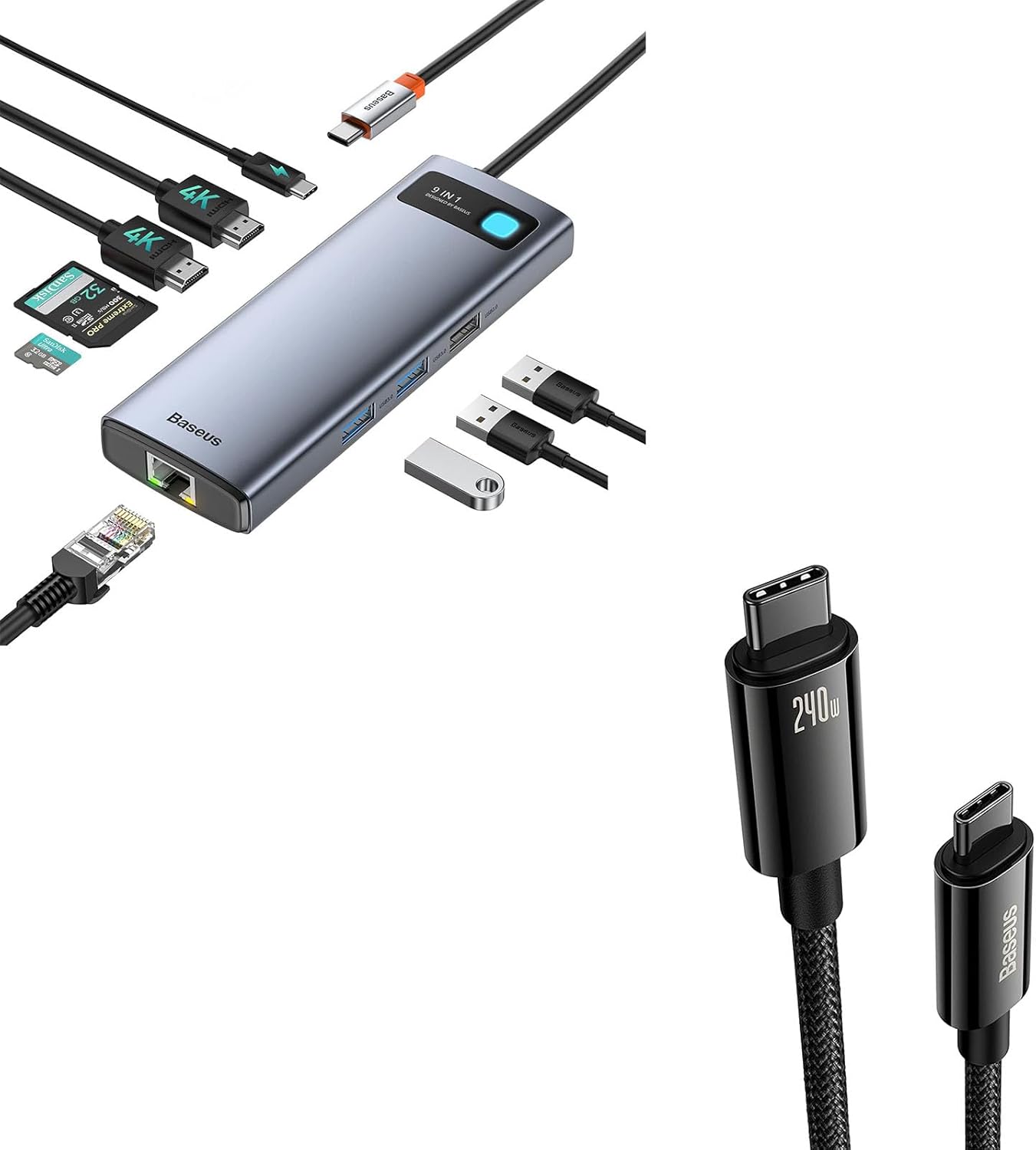

Figure 1: Baseus 9-in-1 Docking Station and 240W USB-C Cable Bundle. This image displays both the docking station with various ports and the USB-C to USB-C cable.

2. Produktfunktioner

2.1 Baseus 9-in-1 Laptop Docking Station

• Dual Monitor 4K Output: Connect up to two external displays with HDMI ports, supporting resolutions up to 4K@120Hz (single display) or 4K@30Hz (dual display).
• Stabil Gigabit Ethernet: Provides a reliable wired network connection up to 1000Mbps, ideal for stable internet access.
• Fast Power Delivery (PD): Equipped with a USB-C PD input port supporting up to 85W power delivery to charge your laptop while using the hub.
• Flere USB-porte: Includes USB 3.0 ports (500MB/s) and USB 2.0 ports (60MB/s) for connecting peripherals and data transfer.
• SD/TF-kortlæsere: Integrated slots for SD and TF (microSD) cards, supporting data transfer speeds up to 104MB/s.

Figur 2: Overview of the Baseus 9-in-1 Docking Station's ports and capabilities. This image highlights the various ports including HDMI, USB, SD/TF card slots, and PD input.

2.2 Baseus 240W PD 3.1 USB-C Cable

• 240W udgangseffekt: Supports PD 3.1 for ultra-fast charging up to 240W, backward compatible with 140W, 100W, and 60W.
• E-marker Technology: Features an advanced E-marker chip for safe and efficient charging, regulating current and voltage to protect devices.
• Holdbar konstruktion: Made with Zine Alloy connectors and a nylon braided cable for enhanced durability and longevity.

Figure 3: Baseus 240W USB-C Cable. This image emphasizes the cable's 240W power delivery capability.

3. Opsætningsvejledning

3.1 Tilslutning af dockingstationen

1. Opret forbindelse til værtsenhed: Sæt dockingstationens integrerede USB-C-kabel i en kompatibel USB-C-port på din bærbare computer, tablet eller smartphone.
2. Strømforsyning (valgfri): For optimal performance and to charge your host device, connect an external USB-C power adapter (not included) to the PD input port on the docking station.
3. Eksterne skærme: Connect your HDMI monitors to the HDMI 1 and HDMI 2 ports on the docking station using HDMI cables.
4. Netværks forbindelse: For a wired internet connection, connect an Ethernet cable from your router or modem to the RJ45 Ethernet port on the docking station.
5. Periferiudstyr: Connect your USB devices (e.g., mouse, keyboard, external hard drive, USB flash drive) to the available USB 3.0 or USB 2.0 ports.
6. Hukommelseskort: Insert SD or TF cards into their respective slots as needed.

Figure 4: Dual Monitor Setup with the Docking Station. This image illustrates a laptop connected to the docking station, which in turn is connected to two external monitors.

3.2 Using the 240W USB-C Cable

1. Tilslut til strømadapter: Plug one end of the 240W USB-C cable into a compatible USB-C power adapter (e.g., a 240W, 140W, 100W, or 60W PD charger).
2. Opret forbindelse til enhed: Plug the other end of the USB-C cable into the charging port of your USB-C compatible device (e.g., laptop, tablet, smartphone).
3. Dataoverførsel: The cable can also be used for high-speed data transfer between compatible USB-C devices.

4. Betjeningsvejledning

4.1 Display Output

Once connected, your operating system should automatically detect the external displays. You can configure display settings (mirror, extend, primary display) through your computer's display settings. For Windows, right-click on the desktop and select "Display settings." For macOS, go to "System Settings" > "Displays."

• Enkelt display: Supports up to 4K@120Hz.
• Dobbelt skærm: Supports up to 4K@30Hz on both HDMI ports simultaneously.

4.2 Netværksforbindelse

The Gigabit Ethernet port provides a stable and fast wired network connection. Once the Ethernet cable is connected to the docking station and your network, your device should automatically establish a connection. Verify network status in your operating system's network settings.

Figure 5: Stable Gigabit Ethernet Connection. This image shows the docking station with an active Ethernet connection, indicating high-speed network capability.

4.3 USB Ports and Card Readers

The USB 3.0 ports offer high-speed data transfer for devices like external hard drives and USB flash drives. The USB 2.0 ports are suitable for peripherals such as keyboards, mice, and printers. The SD and TF card readers allow for quick access to data on memory cards.

4.4 Strømforsyning

When an external power adapter is connected to the PD input port, the docking station can deliver up to 85W of power to your connected laptop, ensuring it remains charged during use. The 240W USB-C cable supports PD 3.1, enabling rapid charging for compatible devices when paired with a suitable power adapter.

Figure 6: Max 100W Power Input to Docking Station. This image illustrates the docking station receiving power input, capable of delivering up to 85W to the connected laptop.

Figure 7: Charging Speed Comparison (PD3.0 vs. PD3.1). This image visually compares the charging efficiency of PD3.0 and PD3.1, highlighting the faster charging capability of PD3.1 supported by the 240W cable.

Figure 8: Advanced E-Marker Chip in USB-C Cable. This image provides a detailed view of the E-marker chip within the USB-C cable, which ensures safe and efficient power delivery.

5. Vedligeholdelse

• Rensning: Use a soft, dry cloth to clean the surfaces of the docking station and cable. Avoid using liquid cleaners or abrasive materials.
• Opbevaring: Opbevar enhederne et køligt, tørt sted væk fra direkte sollys og ekstreme temperaturer.
• Håndtering: Avoid dropping or subjecting the devices to strong impacts. Do not bend the cable excessively, especially near the connectors.
• Havnepleje: Ensure ports are free of dust and debris before connecting cables.

Figure 9: Premium Texture and Durable Connector of USB-C Cable. This image highlights the quality and durability of the cable's zinc alloy connector and nylon braided texture.

6. Fejlfinding

7. Specifikationer

8. Garanti og support

Baseus products are designed with quality and reliability in mind. For warranty information or technical support, please contact Baseus Official Store directly through your purchase platform or visit the official Baseus webwebsted. Gem venligst din købsbevis til garantikrav.

Baseus Officiel Butik: Besøg Baseus-butikken på Amazon
