Indledning
The Phrozen Cure Mega S is an advanced resin curing station designed for post-processing 3D printed models. It features both drying and UV curing functions, a 360-degree transparent turntable, and dual high-speed fans to ensure efficient and uniform curing of large and small models. This manual provides essential information for the safe and effective operation, setup, and maintenance of your Phrozen Cure Mega S.
Sikkerhedsoplysninger
Læs venligst alle sikkerhedsinstruktioner omhyggeligt, inden du bruger apparatet, for at forhindre personskade eller beskadigelse.
- Always wear appropriate personal protective equipment (PPE), such as gloves and eye protection, when handling uncured resin or models that have not been fully cured.
- Ensure the device is placed on a stable, level surface away from direct sunlight and flammable materials.
- Do not look directly at the UV light source during operation.
- Hold enheden væk fra vand eller andre væsker for at undgå elektrisk stød.
- Tag stikket ud af stikkontakten, før du rengør eller udfører vedligeholdelse.
- Opbevares utilgængeligt for børn og kæledyr.
Produkt overview
The Phrozen Cure Mega S is a robust curing station designed for large-scale and high-volume post-processing. Its intuitive design allows for easy access and efficient operation.
Billede: Forside view of the Phrozen Cure Mega S curing station, showcasing its compact, black enclosure with a transparent orange-tinted door.
Nøglekomponenter
- Main Curing Chamber: The enclosed space where models are dried and cured.
- Transparent Turntable: Rotates models 360 degrees for even curing.
- UV-lyskilde: Emits 405nm UV light for resin solidification.
- High-Speed Fans: Two fans for efficient drying of models.
- Berøringspanel: User interface for controlling drying and curing settings.
- Removable Rack: Allows for flexible curing of various model sizes.
- Side-Swing Door: Provides easy access to the curing chamber.
- Built-In Interior Light: Illuminates the chamber for monitoring progress.
Image: Visual representation of the Phrozen Cure Mega S's smart design, highlighting the side-swing door, interior lighting, and the touch panel interface.
Opsætning
Follow these steps for the initial setup of your Phrozen Cure Mega S.
- Pak enheden ud: Carefully remove the Phrozen Cure Mega S from its packaging. Retain all packaging materials for future transport or storage.
- Vælg en placering: Place the curing station on a flat, stable, and heat-resistant surface in a well-ventilated area. Ensure there is sufficient space around the unit for air circulation.
- Tilslut strøm: Plug the power cord into the power input port on the back of the unit, then plug the other end into a grounded electrical outlet.
- Install Turntable: Place the transparent turntable securely onto the rotating mechanism inside the curing chamber.
- Optional Rack Installation: If curing smaller or multiple models, install the removable rack at the desired height within the chamber.
- Tænd: Press the power button on the touch panel to turn on the device.
Operation
The Phrozen Cure Mega S offers versatile drying and curing options for your 3D printed models.
Drying and Curing Functions
The device allows you to select between drying, curing, or a combined dry and cure cycle.
- Tørretilstand: Utilizes dual high-speed fans (1700 RPM) to quickly dry models, removing residual alcohol or moisture after washing.
- Curing Mode: Activates the 405nm UV light source to solidify resin models, enhancing their hardness and durability. The 360-degree light source and rotating turntable ensure uniform exposure.
- Dry & Cure Mode: Performs a drying cycle followed by a curing cycle automatically, streamlining the post-processing workflow.
Image: Depicts the Phrozen Cure Mega S in operation, highlighting its dual-action drying (1700 RPM) and 360-degree curing capabilities.
Brug af berøringspanelet
The touch panel provides intuitive control over the device's functions.
- Vælg tilstand: On the main screen, tap the desired mode: Fan + Cure (Dry & Cure), UV Cure, eller Ventilator (Drying).
- Indstil tid: Use the '+' and '-' buttons to adjust the duration for the selected mode. Recommended curing times vary based on resin type and model size.
- Start cyklus: Press the 'Start' button to begin the process. The interior light will activate, and the turntable will begin to rotate.
- Overvåg fremskridt: Use the built-in interior light to observe the drying or curing state of your models through the transparent door.
- Slutcyklus: The device will automatically stop once the set time has elapsed. You can also manually stop the cycle by pressing the 'Stop' button.

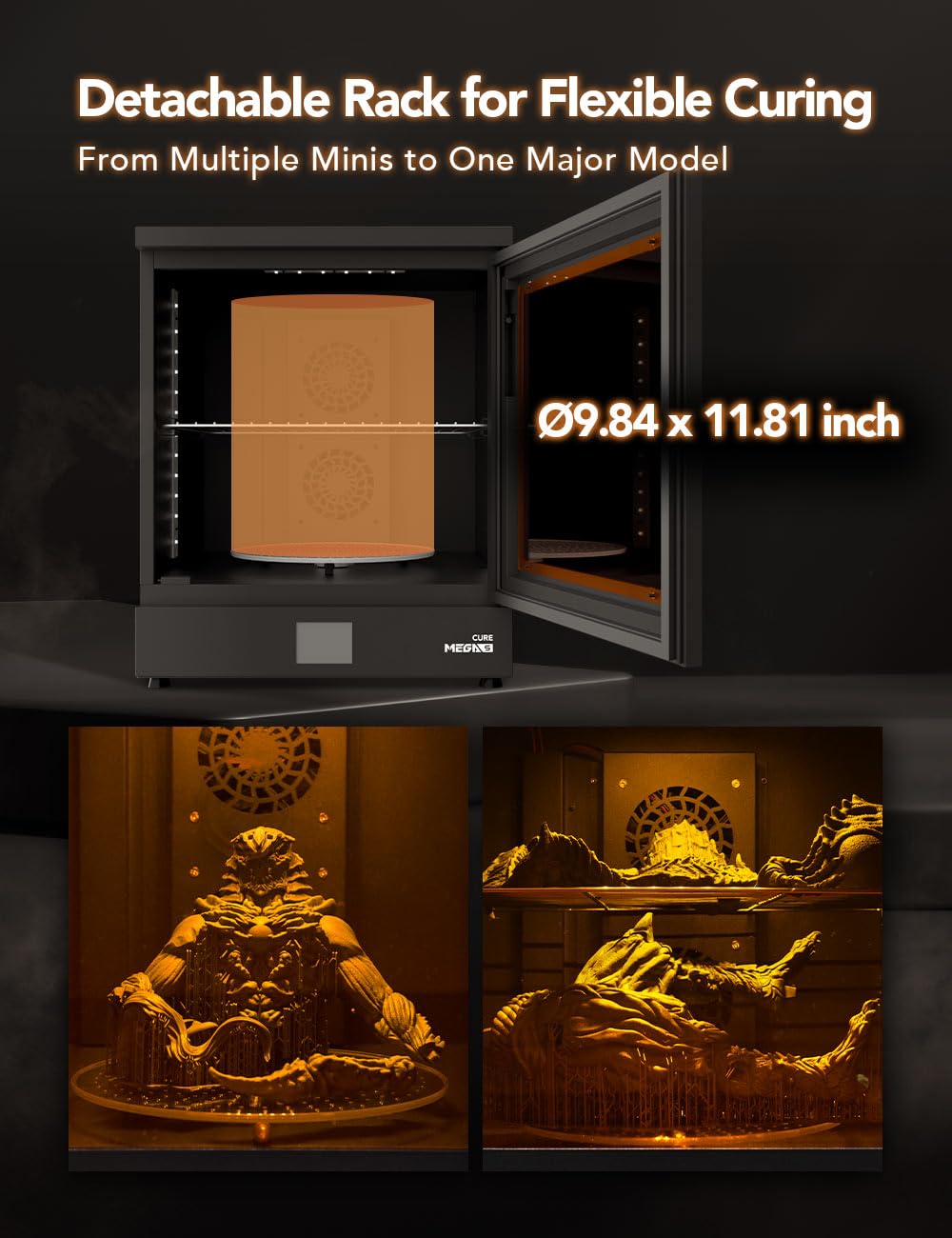

Image: Illustrates the detachable rack feature, showing how it accommodates both large single models and multiple smaller models for flexible curing.
Opretholdelse
Regular maintenance ensures optimal performance and longevity of your Phrozen Cure Mega S.
- Rengøring af kammeret: After each use, especially if resin spills occur, wipe down the interior of the curing chamber with a soft cloth dampened with isopropyl alcohol (IPA). Ensure the device is unplugged.
- Rengøring af drejeskiven: Remove the turntable and clean it with IPA. Ensure it is completely dry before placing it back into the unit.
- Udvendig rengøring: Tør de udvendige overflader af med en blød, tør klud. Undgå at bruge slibende rengøringsmidler eller opløsningsmidler.
- UV-lyskilde: Periodically check the UV LEDs for any dust or residue and gently clean them with a soft, dry cloth if necessary.
- Opbevaring: When not in use for extended periods, store the device in a cool, dry place, away from direct sunlight.
Fejlfinding
This section addresses common issues you might encounter with your Phrozen Cure Mega S.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke. | Netledningen er ikke korrekt tilsluttet; der er ingen strøm fra stikkontakten. | Kontroller strømkablets tilslutning. Test stikkontakten med en anden enhed. |
| UV light not activating. | Curing mode not selected; door not fully closed. | Ensure 'UV Cure' or 'Fan + Cure' mode is selected. Close the door securely. |
| Drejeskiven roterer ikke. | Turntable not properly seated; obstruction. | Re-seat the turntable. Check for any debris obstructing rotation. |
| Models not curing evenly. | Insufficient curing time; models too close together. | Increase curing time. Ensure models are spaced adequately on the turntable. |
| Models not drying effectively. | Drying mode not selected; fans obstructed. | Ensure 'Fan' or 'Fan + Cure' mode is selected. Check for obstructions near fan vents. |
Specifikationer
Technical specifications for the Phrozen Cure Mega S.
| Feature | Detalje |
|---|---|
| Modelnummer | CUREMEGAS00US |
| Produktdimensioner | 15.6"D x 18.7"W x 19.1"H (39.5cm W x 47.5cm D x 48.6cm H) |
| Varens vægt | 15 kilogram (33.07 pund) |
| Materiale | Metal |
| Hærdningsbølgelængde | 405nm UV Light |
| Blæserhastighed | 1700 RPM (Dual Fans) |
| Turntable Rotation | 360 grader |
| Fabrikant | PHROZEN TECH CO., LTD. |
| Første ledige dato | 9. august 2023 |
Image: Diagram showing the physical dimensions of the Phrozen Cure Mega S: 47.5cm depth, 39.5cm width, and 48.6cm height.
Garanti og support
For warranty information, technical support, or service inquiries, please contact Phrozen customer support through their official webwebstedet eller forhandleren, hvor produktet blev købt.
Online ressourcer: Visit the official Phrozen website for FAQs, updated drivers, and additional support materials.
Kontaktoplysninger: Refer to your purchase documentation or the Phrozen webwebstedet for specifikke kontaktoplysninger.
