1. Introduktion
The IHSENO Mini WiFi Smart Switch Relay is a compact and intelligent device designed to integrate your traditional lighting and appliances into a smart home system. It operates on 2.4GHz WiFi and is compatible with the Tuya Smart Life App, allowing for remote control, voice commands via Alexa and Google Home, and intelligent scheduling.
Billede 1.1: Overview of the IHSENO Mini WiFi Smart Switch Relay and its packaging.
Nøglefunktioner:
- Mini WiFi Smart Switch: Designed for 2.4GHz WiFi, enabling whole-house intelligence through the Tuya APP.
- Tuya Smart Life App Control: Connects with other smart devices for intelligent scene linkage.
- Customize Different Scene Modes: Allows setting scenes like 'Reading' or 'Movie' and controlling various smart devices.
- Alexa & Google Home Enabled: Supports voice control for hands-free operation.
- Kompakt design: Fits into most standard electrical boxes, even with existing wiring.
2. Sikkerhedsoplysninger
Læs alle sikkerhedsinstruktioner omhyggeligt inden installation og betjening. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller andre farer.
- Professionel installation anbefales: Electrical work should be performed by a qualified electrician.
- Sluk før installation: Afbryd altid strømmen ved afbryderen, før du installerer eller servicerer enheden.
- Kun indendørs brug: Denne enhed er beregnet til indendørs brug i tørre omgivelser.
- Voltage og nuværende vurderinger: Overskrid ikke den angivne voltage (AC 100-240V) and current (3 Amps) ratings.
- Ledningsføring: Ensure all wiring connections are secure and comply with local electrical codes. Input and output connections cannot be reversed.
Image 2.1: Safety and Certification details for the Mini Smart Switch.
3. Opsætning og installation
The IHSENO Mini WiFi Smart Switch Relay is designed for easy integration into your existing electrical system. It supports both 1-way and 2-way control setups.
Ledningsdiagrammer:
Vigtig: Always ensure the power is OFF at the circuit breaker before performing any wiring. Input and output connections cannot be reversed.
Image 3.1: Wiring Method 1 - Direct connection to a lamp and mains power.
Image 3.2: Wiring Method 2 - Connection with a 1-way wall switch.
Image 3.3: Wiring Method 3 - Connection with a 2-way wall switch.
App-parring:
- Download Tuya Smart or Smart liv app fra din smartphones appbutik.
- Registrer eller log ind på din konto.
- Sørg for, at din smartphone er forbundet til et 2.4 GHz WiFi-netværk.
- Power on the smart switch. The indicator light should blink rapidly, indicating it's in pairing mode. If not, refer to the troubleshooting section for resetting the device.
- In the app, tap '+' to add a device. Select 'Electrical' > 'Switch (Wi-Fi)' or allow the app to auto-discover the device.
- Følg instruktionerne på skærmen for at fuldføre parringsprocessen.
4. Betjeningsvejledning
Once installed and paired, you can control your IHSENO Mini WiFi Smart Switch Relay through various methods.
4.1. App-fjernbetjening
Control your connected devices from anywhere using the Tuya Smart Life App, as long as your smartphone and the switch are connected to the internet.
Image 4.1: WiFi Remote Control functionality.
Image 4.2: App Remote Control in action, showing control of a lamp.
4.2. Stemmekontrol
Integrate your smart switch with Amazon Alexa or Google Assistant for convenient voice commands.
- Åbn Alexa- eller Google Home-appen.
- Link your Tuya Smart Life account to the voice assistant.
- Opdag enheder.
- Use commands like "Alexa, turn on the lamp" or "Hey Google, turn off the kitchen light."
Billede 4.3: Stemmestyring med Alexa og Google Home.
4.3. Intelligent Timing and Scene Modes
Set schedules, countdowns, and create custom scene modes within the Tuya Smart Life App.
- Timing: Schedule devices to turn on/off at specific times (e.g., 23:30 Off).
- Cykling: Set recurring schedules (e.g., 08:00 ON Everyday).
- Nedtælling: Set a timer for the device to turn off after a specified duration.
- Scenetilstande: Combine multiple smart devices to activate with a single command or schedule (e.g., 'Movie Night' scene dims lights and turns on entertainment).

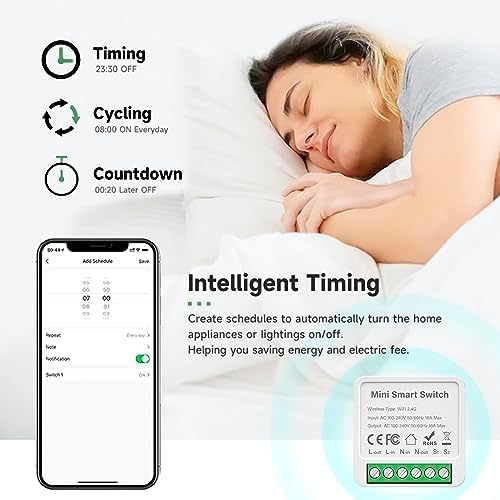

Image 4.4: Intelligent Timing features in the app.
4.4. Delingsfunktion
Share control of your smart devices with family members through the Tuya Smart Life App.
Image 4.5: Sharing function for family members.
5. Vedligeholdelse
To ensure the longevity and optimal performance of your IHSENO Mini WiFi Smart Switch Relay, follow these simple maintenance guidelines:
- Rensning: Brug en blød, tør klud til at rengøre enheden. Brug ikke flydende rengøringsmidler eller aerosoler.
- Miljø: Avoid exposing the device to excessive moisture, extreme temperatures, or direct sunlight.
- Inspektion: Kontrollér regelmæssigt ledningsforbindelserne for tegn på slid eller løshed.
6. Fejlfinding
If you encounter issues with your IHSENO Mini WiFi Smart Switch Relay, refer to the following common problems and solutions:
- Enheden parres ikke:
- Sørg for, at dit WiFi-netværk er 2.4 GHz. Enheden understøtter ikke 5 GHz WiFi.
- Check that the device is powered on and the indicator light is blinking rapidly. If not, power cycle the device or perform a factory reset (refer to app instructions for reset procedure).
- Move the device closer to your WiFi router during pairing.
- Device offline in app:
- Verify your home WiFi network is active and has internet access.
- Check the power supply to the smart switch.
- Genstart din WiFi-router.
- Stemmestyring virker ikke:
- Ensure your Tuya Smart Life account is correctly linked to Alexa or Google Home.
- Check the device name in the voice assistant app; ensure it's easy to pronounce and recognize.
- Bekræft, at din stemmeassistent har forbindelse til internettet.
- Fysisk kontakt reagerer ikke:
- Ensure all wiring connections are secure and correct according to the diagrams.
- Check if the physical switch itself is functional.
7. Specifikationer
Technical specifications for the IHSENO Mini WiFi Smart Switch Relay:
Billede 7.1: Detaljerede produktspecifikationer.
| Specifikation | Detalje |
|---|---|
| Mærke | IHSENO |
| Model | B0CF1FYYBN |
| Trådløs type | WiFi 2.4G |
| Input bindtage | AC 100-240V 50/60Hz |
| Udgang Voltage | AC 100-240V 50/60Hz |
| Maks. strømstyrke | 3 Amps (Note: Product image shows 16A Max, but product specifications list 3 Amps. Please verify with product packaging.) |
| Monteringstype | Overflademontering |
| Kontaktmateriale | Kobber |
| Materiale | PC V0 (Fireproof) |
| Størrelse | 41x20x41mm (approx. 1.6*0.8*1.6 inches) |
| Driftstilstand | (ON)-ON-OFF |
| Switch Type | 1-vejs |
| Skift stil | Tryk knap |
| Appkompatibilitet | Smart Life (Support iOS & Android) |
8. Garanti og support
IHSENO is committed to providing high-quality products and customer satisfaction.
If you have any questions about this product, please feel free to contact our customer service team. We aim to reply within 24 hours to assist you with any inquiries or issues.
Se venligst din købsdokumentation for specifikke garantivilkår.
