Miffy automatisk håndsæbedispenser brugermanual

Indledning

This manual provides essential information for the safe and efficient operation of your Miffy Automatic Hand Soap Dispenser. Please read this manual thoroughly before using the product and retain it for future reference.

The Miffy Automatic Hand Soap Dispenser is designed for convenient and hygienic hand washing, featuring a touchless operation and a charming Miffy design.

Sikkerhedsoplysninger

• Do not immerse the entire unit in water. The unit is IPX5 waterproof, meaning it is protected against low-pressure water jets from any direction, but not full submersion.
• Opbevares utilgængeligt for børn, medmindre det er under opsyn af en voksen.
• Use only recommended soap types. Avoid detergents with solid particles, as they may clog the dispenser.
• Ensure the USB charging port is dry and properly sealed with the rubber plug before exposure to water.
• Forsøg ikke at skille eller reparere enheden selv. Kontakt kundesupport for at få hjælp.

Pakkens indhold

Tjek venligst pakken for følgende varer:

• Miffy Automatic Hand Soap Dispenser (Yellow)
• USB opladningskabel
• Vægmonteringsbeslag
• Brugervejledning (dette dokument)

Produkt overview

Familiarize yourself with the main components of your Miffy Automatic Hand Soap Dispenser.

Figur 1: Forside view of the Miffy Automatic Hand Soap Dispenser.

Figure 2: Miffy Automatic Hand Soap Dispensers in yellow and pink, highlighting the design.

• Dispenser Nozzle: Where the foam is dispensed.
• Infrarød sensor: Detects hand movement for automatic dispensing.
• Soap Reservoir: Holds the liquid soap, visible through the clear window with the Miffy character.
• Opladningsport: USB-port til genopladning af det interne batteri.
• Indikatorlys: Shows charging status (red when charging, white when fully charged).

Opsætning

1. Charging the Dispenser

Before first use, fully charge the dispenser. A full charge can last for approximately 2-3 months or 5000 uses.

1. Locate the USB charging port, usually at the back or bottom of the unit.
2. Connect the provided USB charging cable to the dispenser and a suitable power source (e.g., USB wall adapter, computer USB port).
3. The indicator light will illuminate red during charging.
4. Charge for 2-3 hours until the indicator light turns white, indicating a full charge.

2. Påfyldning med sæbe

The dispenser is compatible with both foam soap and liquid soap. Proper dilution is crucial for liquid soaps to ensure optimal foam production and prevent clogging.

Figure 3: The dispenser ready for use on a surface.

• For Foam Soap: Pour foam soap directly into the reservoir. No dilution is needed.
• For Liquid Soap (e.g., shampoo, face cleaner, dish detergent):
  1. Dilute the liquid soap with water at a ratio of 1:4 (1 part soap to 4 parts water). For example, if you add 50ml of liquid soap, add 200ml of water.
  2. Stir the mixture thoroughly until well combined.
  3. Carefully pour the diluted mixture into the dispenser's reservoir.

  Important: Do not use sticky, creamy hand sanitizers, or detergents containing solid particles directly, as this will block the dispenser.

3. Vægmontering (valgfrit)

A wall mount bracket is included to prevent splashing and keep your bathroom tidy.

Figure 4: The dispenser shown with its wall mount bracket.

1. Clean and dry the desired wall surface.
2. Attach the wall mount bracket to the wall using the adhesive backing or appropriate fasteners (not included for adhesive).
3. Ensure the bracket is securely fixed before placing the dispenser.
4. Carefully place the Miffy Automatic Hand Soap Dispenser onto the bracket.

Betjeningsvejledning

Using your Miffy Automatic Hand Soap Dispenser is simple and hygienic.

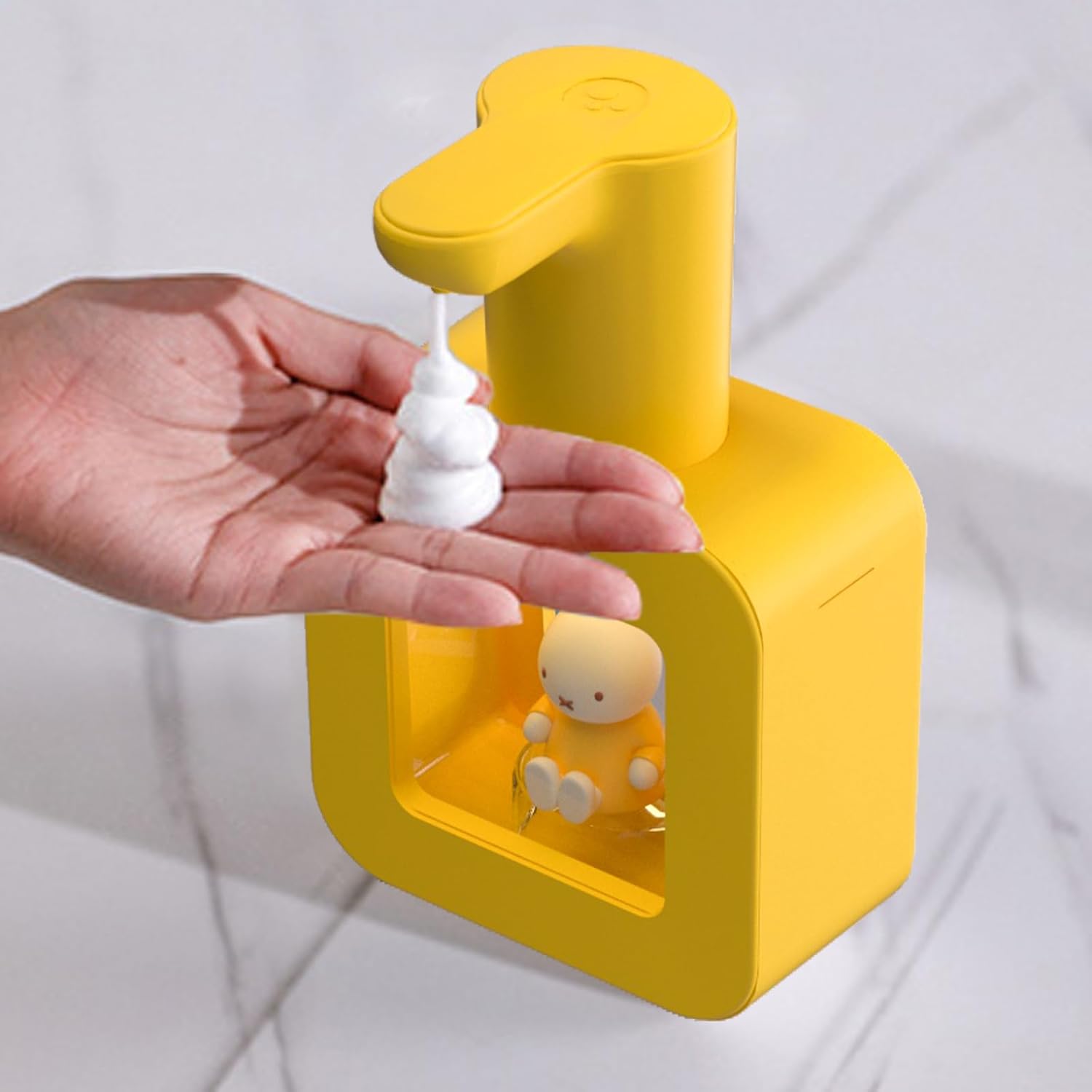

Figure 5: Hand placed under the sensor for foam dispensing.

1. Ensure the dispenser is charged and filled with appropriate soap.
2. Place your hand within the sensing area, typically directly under the nozzle.
3. The high-precision infrared sensor will detect your hand and dispense foam in approximately 0.25 seconds.
4. Remove your hand once the desired amount of foam is dispensed.

Opretholdelse

Regular cleaning ensures the longevity and optimal performance of your dispenser.

• Udvendig rengøring: Tør dispenserens yderside af med en blød kludamp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Rengøring af dyse: If the nozzle becomes clogged, gently wipe it with a damp cloth. Do not insert any objects into the nozzle.
• Soap Reservoir: If changing soap types or if the dispenser will not be used for an extended period, empty and rinse the reservoir with clean water. Dispense some clean water through the nozzle to clear any residue.
• Opbevaring: When not in use for a long time, ensure the dispenser is clean, dry, and fully charged. Store it in a cool, dry place.

Fejlfinding

Hvis du støder på problemer med din dispenser, kan du se følgende almindelige problemer og løsninger:

Specifikationer

Garanti og support

For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official MIPOW webwebstedet. Behold din købskvittering som købsbevis.

For yderligere assistance kan du også kontakte sælgeren direkte via den platform, hvor produktet blev købt.
