NWIASS 16-Inch Thermostatic Rain Shower System User Manual

1. Produktet er slutview

The NWIASS 16-Inch Thermostatic Rain Shower System is designed to provide a comprehensive and customizable showering experience. This system features multiple functions that can be used simultaneously or individually, including rainfall, waterfall, body jets, and a handheld spray.

• Multifunktionsbetjening: Each function (rainfall shower, waterfall shower, body jet shower, handheld spray, high-flow bathtub faucet) is individually controlled, allowing for simultaneous or individual use.
• Thermostatic Valve: Ensures a consistent water temperature, set at 100°F / 38°C, for a safe and comfortable shower experience without constant readjustment.
• Justerbare dyser: Features 6 body jets that can be rotated and adjusted 360 degrees, providing a massaging spa shower.
• LED Music Shower System: The 16-inch overhead shower system includes an LED light bar and music speaker for an enhanced showering atmosphere.
• Holdbar konstruktion: Made from solid brass and SS304 stainless steel with a polished chrome finish for longevity and style. Self-cleaning silicone nozzles prevent clogging.

Image: The NWIASS 16-Inch Thermostatic Rain Shower System demonstrating its multi-function outlets, including rainfall, waterfall, and body jets.

2. Sikkerhedsoplysninger

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in personal injury or property damage.

• Sørg for, at alle VVS-forbindelser er sikre og lækagefri.
• Sluk for hovedvandforsyningen, før du påbegynder installation eller vedligeholdelse.
• Hvis du er usikker på nogen del af installationen, skal du kontakte en kvalificeret VVS-installatør.
• The thermostatic valve is factory-set to 38°C (100°F). Do not attempt to adjust the temperature beyond safe limits.
• For LED and music features, ensure proper electrical connections are made by a qualified electrician, if required.

3. Pakkens indhold

Kontroller, at alle komponenter er til stede og ubeskadigede før installation.

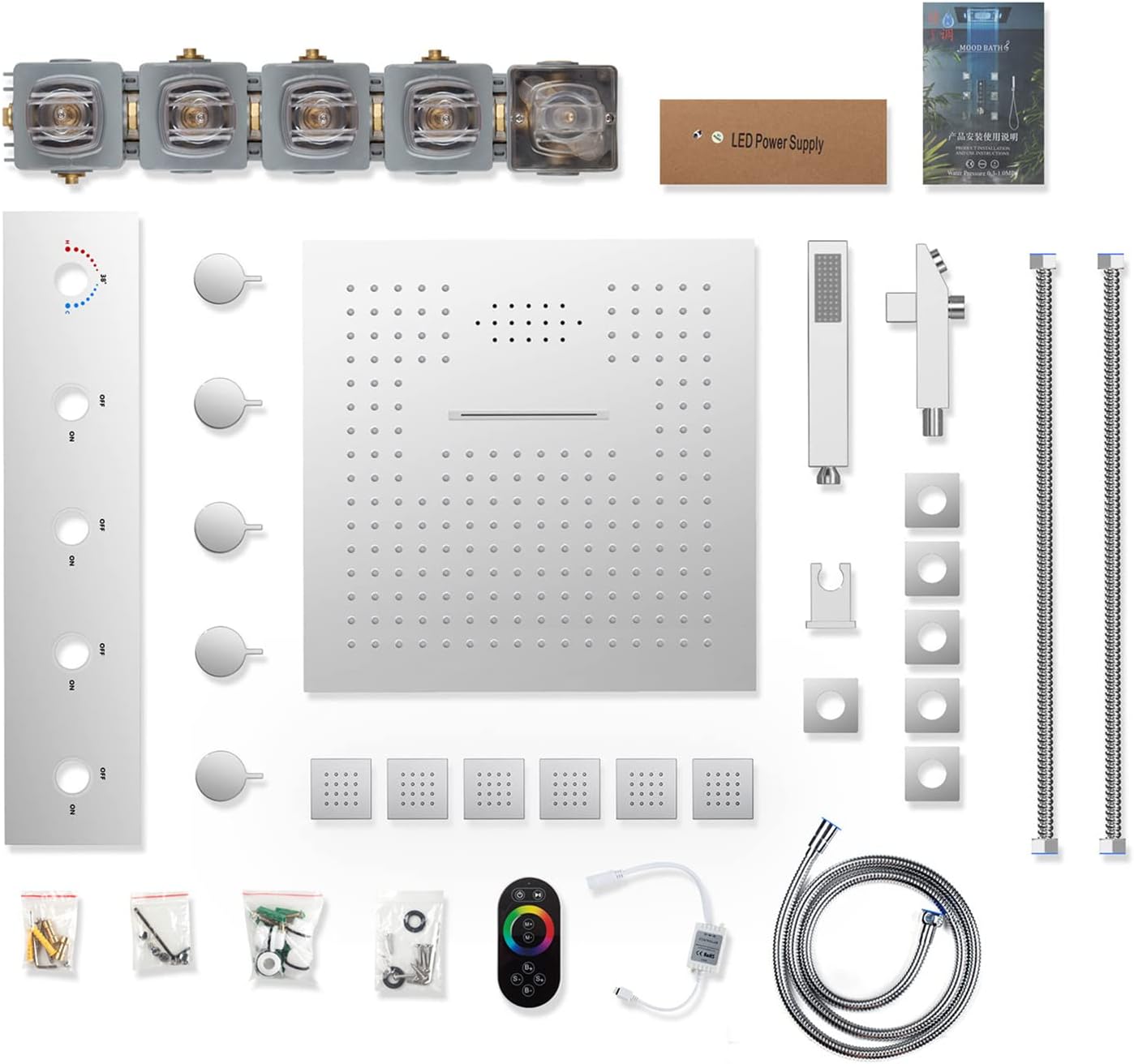

Image: A complete set of components for the NWIASS 16-Inch Thermostatic Rain Shower System, including the shower head, control panel, handheld shower, body jets, hoses, and mounting hardware.

• 16-Inch Ceiling Mount Shower Head (Rainfall & Waterfall)
• Thermostatic Mixer Valve with Control Panel
• Handheld Shower Spray with Hose
• Body Spray Jets (6 units)
• Bruserarm
• Monteringshardware og tilbehør
• LED Power Supply (if applicable)

4. Installationsvejledning

Professional installation is recommended. Ensure the main water supply is turned off before starting. This system is designed for in-wall installation.

4.1. Valve Body Placement

Determine the mounting height of the valve body according to comfortable operation. Mark the desired position on the wall.

4.2. Rough-in Installation

Create the necessary openings in the wall for the valve body and plumbing lines. Secure the valve body to the wall using appropriate fasteners. Connect the hot and cold water inlets (NPT3/4") and the outlets for the shower head, body sprays, and handheld shower (NPT1/2").

Image: A detailed diagram illustrating the hot and cold water inlets and the various outlets for the shower head, body sprays, and handheld unit, all connected to the central thermostatic valve.

4.3. Leak-Proof Testing

Before closing the wall, perform a connection test. Open each function knob to check if the water supply is normal and if there are any leaks at each connection. Close the system and test for leaks for 12 hours.

4.4. Slutsamling

Once the leak test is successful and the wall is finished, install the shower head, body jets, handheld shower, and control panel trim. Ensure all components are securely tightened.

Image: A fully installed NWIASS shower system, showcasing the ceiling-mounted shower head, multiple body jets, and the sleek control panel on a tiled wall.

5. Betjeningsvejledning

The NWIASS shower system offers intuitive controls for a personalized showering experience.

5.1. Thermostatic Control

The bottom knob on the control panel is the thermostatic switch. Rotate it to adjust the water temperature. The system is designed to maintain a consistent temperature, typically set at 38°C (100°F), to prevent sudden temperature changes.

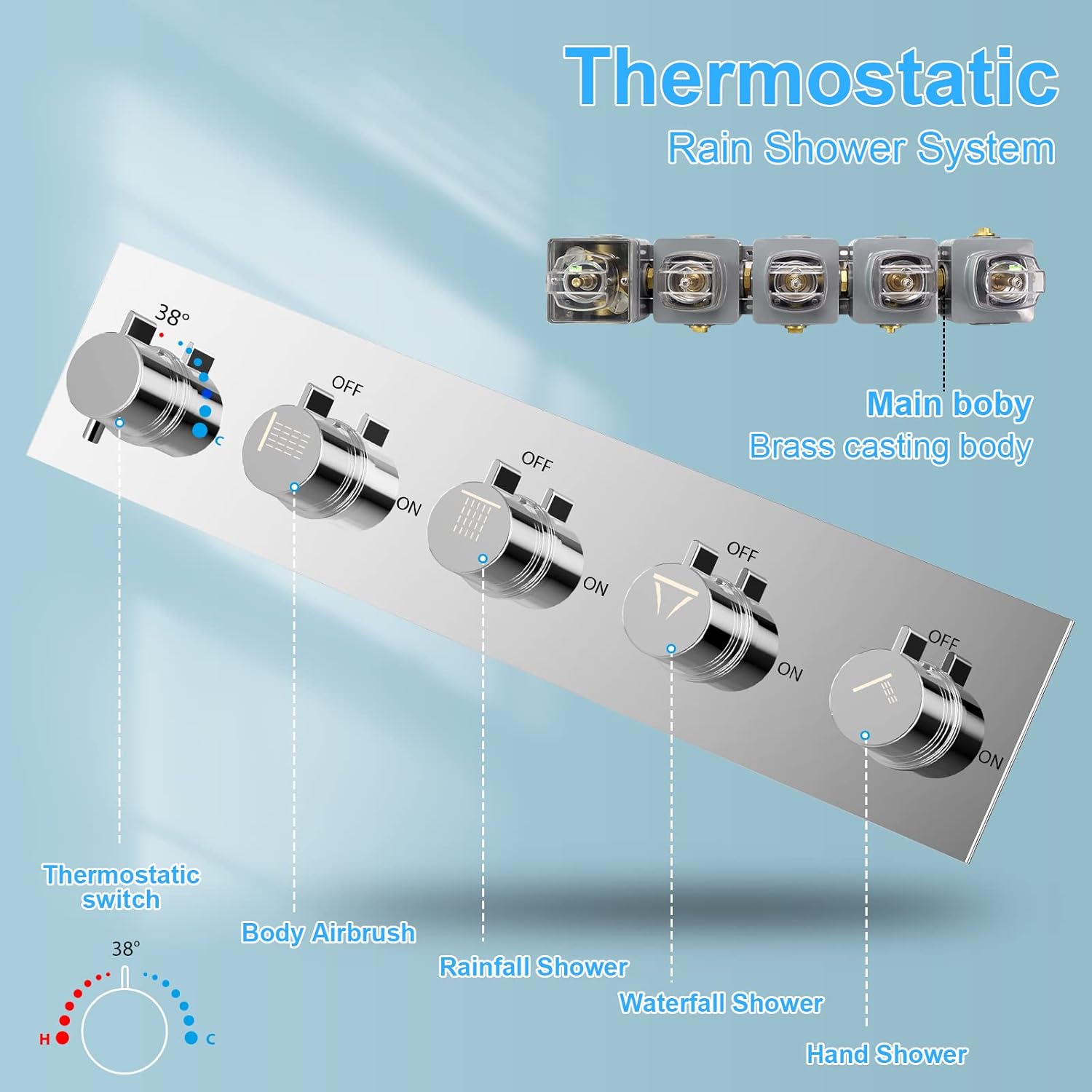

Image: A close-up of the thermostatic control panel, showing the temperature adjustment knob with markings for hot and cold, and the main body constructed from brass.

5.2. Funktionsvalg

The upper knobs control the individual shower functions: rainfall, waterfall, body jets, and handheld spray. Turn the desired knob to the 'ON' position to activate that function. Multiple functions can be activated simultaneously.

5.3. Body Jet Adjustment

The body jets can be rotated 360 degrees to direct the water flow as desired, providing a customizable massage experience.

5.4. LED and Music Features

The shower head features an integrated LED light system and music speaker. Use the provided remote control to change LED colors (64 options) and play music, creating a personalized ambiance.

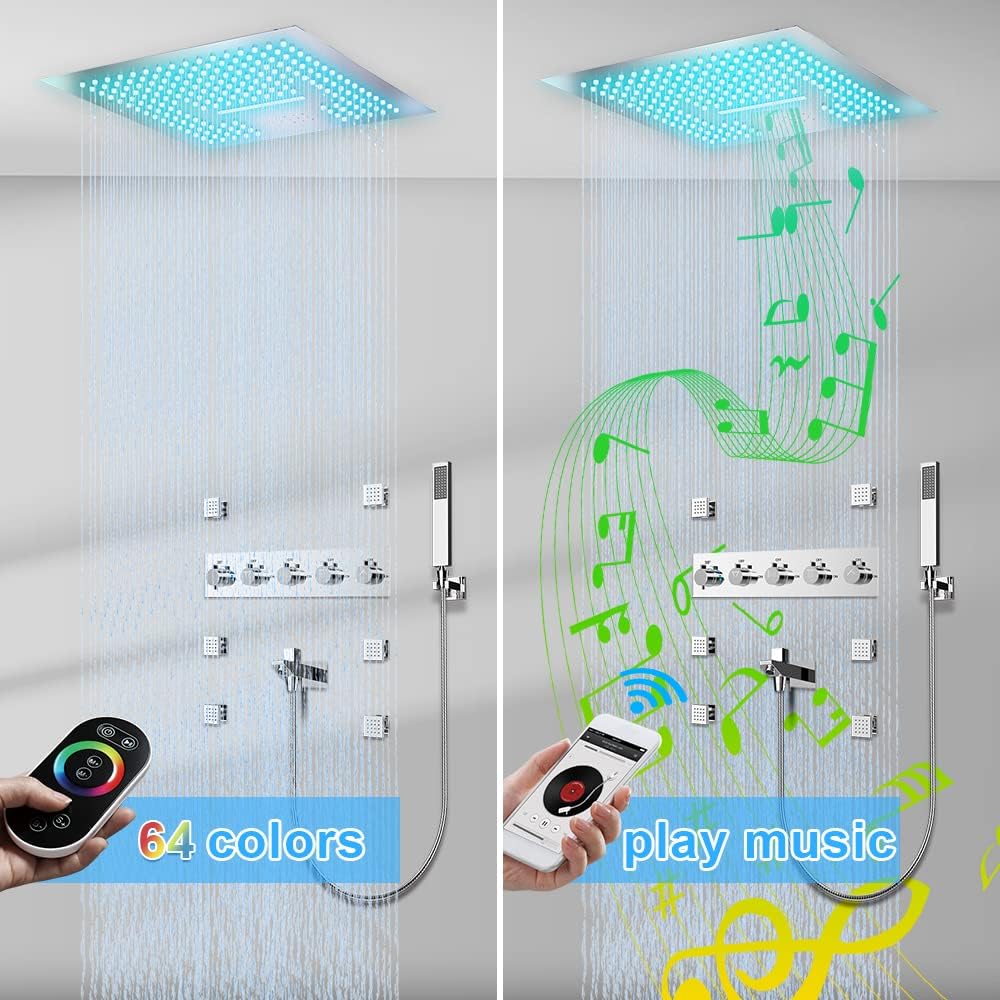

Image: The 16-inch shower head displaying LED lighting, with a remote control shown for adjusting colors and activating music playback.

6. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your NWIASS shower system.

6.1. Rengøring af dyserne

The shower head and body jets are equipped with self-cleaning silicone nozzles. To remove mineral buildup, gently rub the nozzles with your finger or a soft brush while water is flowing.

6.2. Rengøring af overfladebehandlingen

Clean the chrome finish with a soft cloth and mild soap or a non-abrasive bathroom cleaner. Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.

7. Fejlfinding

If you encounter issues with your shower system, refer to the following common problems and solutions.

7.1. Water Temperature Issues

If the water temperature is not consistent or cannot be adjusted correctly, the thermostatic valve may need adjustment or inspection.

7.2. No Mixed Water / No Hot or Cold Water

If you are experiencing issues with mixed water or a lack of hot/cold water, check the thermostatic valve cartridge. Ensure the plastic hot stop ring is properly seated with the opening facing the right. Match the two dark blue marks on the temperature valve stem. If the problem persists, unscrew the check-valve with a flat screw to inspect for blockage or damage. Clean if blocked, replace if broken.

Image: A diagram illustrating the internal components of the thermostatic valve, showing how to check and adjust the hot stop ring and align the temperature valve stem marks to resolve water mixing issues.

8. Specifikationer

9. Garanti og support

NWIASS is committed to providing high-quality products. For warranty information, technical support, or assistance with parts, please contact NWIASS customer service. Keep your purchase receipt for warranty claims.

Kontaktoplysninger: Refer to your product packaging or the NWIASS official webhjemmeside for de seneste kontaktoplysninger.
