1. Introduktion
This manual provides detailed instructions for the Radioddity DB40-D DMR & Analog 40W Mobile Radio. The DB40-D is a versatile dual-band amateur radio designed for both Digital Mobile Radio (DMR) and analog communication. It features high power output, extensive contact and channel capacity, Bluetooth connectivity for accessories, GPS/APRS functionality, and advanced repeating capabilities.
2. Pakkens indhold
Verify that all items listed below are included in your package. If any items are missing or damaged, please contact Radioddity support.
- 1 x DB40-D Mobile Radio (with 20A Fuse, Mounting Bracket and screws M4 x 10mm)
- 1 x GPS Antenna & BT Antenna
- 1 x Power Cable with Car Charger DC Power Cable (with 20A Fuse)
- 1 x BT PTT & Earpiece (with charging cable and three replaceable earbuds)
- 1 x Detachable Speaker Microphone and Programming Cable
Image 2.1: All components included with the Radioddity DB40-D mobile radio.
3. Produktet er slutview
Familiarize yourself with the main components and controls of your DB40-D mobile radio.
Billede 3.1: Forside view of the DB40-D radio, speaker microphone, Bluetooth PTT, and earpiece.

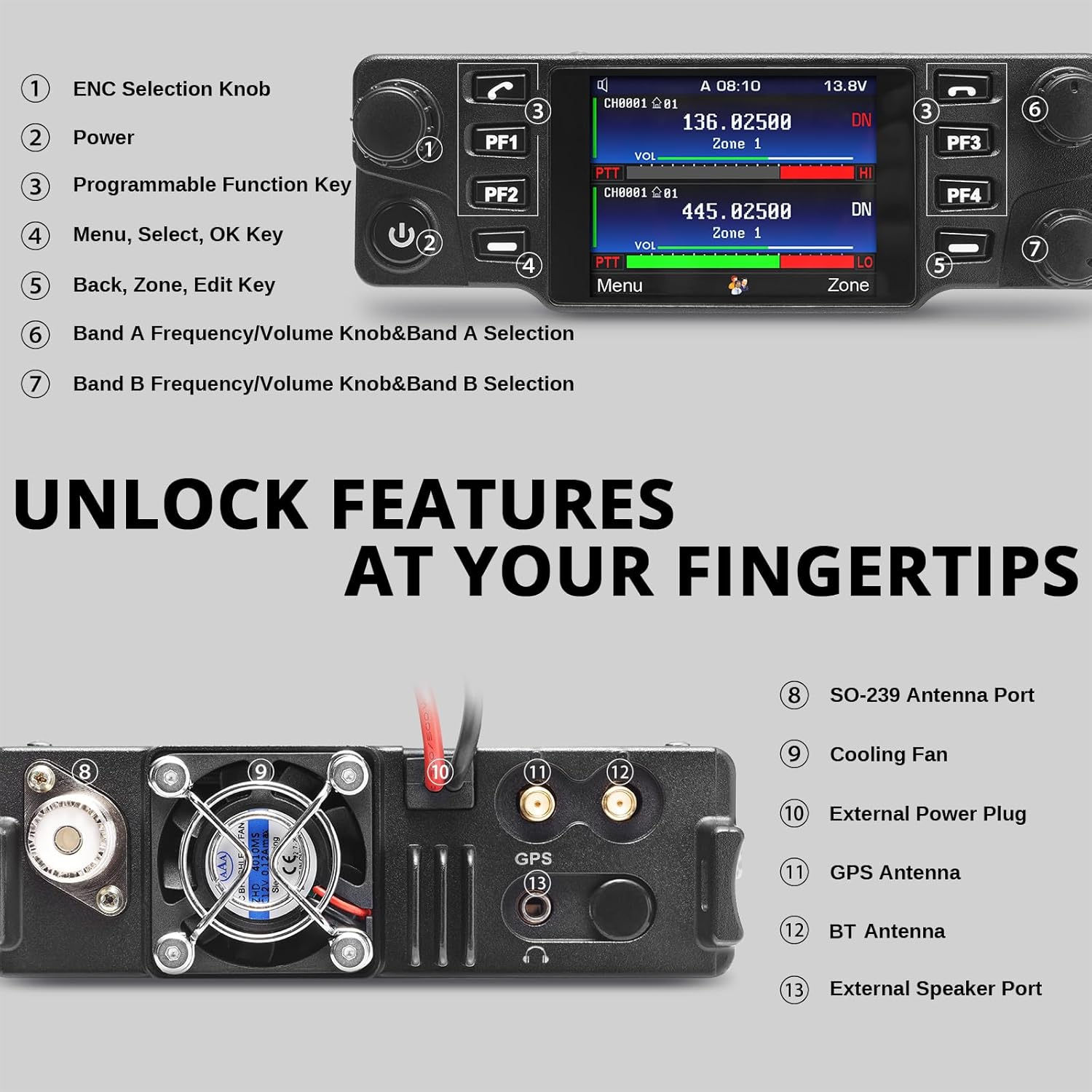

3.1 Betjeningselementer på frontpanelet
Image 3.2: Front panel controls and display.
- ENC Selection Knob: Bruges til menunavigation og valg.
- Power knap: Tænder eller slukker for radioen.
- Programmable Function Keys (PF1, PF2, PF3, PF4): Customizable keys for quick access to frequently used functions.
- Menu, Select, OK Key: Accesses the main menu, confirms selections.
- Back, Zone, Edit Key: Navigates back in menus, switches zones, or enters edit mode.
- Band A Frequency/Volume Knob & Band A Selection: Adjusts frequency and volume for Band A.
- Band B Frequency/Volume Knob & Band B Selection: Adjusts frequency and volume for Band B.
3.2 Bagpaneltilslutninger
Image 3.3: Rear panel connections and cooling fan.
- SO-239 Antenna Port: Connects to your external antenna.
- Køleventilator: Afleder varme under drift.
- External Power Plug: Connects to the DC power cable.
- GPS Antenna Port: Connects to the included GPS antenna.
- BT Antenna Port: Connects to the included Bluetooth antenna.
- External Speaker Port: Connects to an optional external speaker.
4. Opsætning
4.1 Montering af radioen
The DB40-D can be mounted in a vehicle or used as a base station. Use the included mounting bracket and screws to secure the radio in a stable location, ensuring adequate ventilation around the cooling fan.
Billede 4.1: Eks.ample of the DB40-D mounted in a vehicle.
4.2 Strømtilslutning
Connect the included DC power cable to the radio's external power plug. For vehicle use, connect the red wire to the positive terminal of your vehicle's 12V battery and the black wire to the negative terminal or chassis ground. Ensure the 20A fuse is properly installed in the power cable.
4.3 Antenneforbindelse
Connect a suitable VHF/UHF antenna to the SO-239 antenna port on the rear of the radio. Ensure the connection is secure. Connect the GPS antenna to its dedicated port and the Bluetooth antenna to its port for optimal performance of these features.
5. Betjeningsvejledning
5.1 Tænd/sluk og lydstyrkejustering
- Tænd: Press and hold the Power button (2) until the display illuminates.
- Sluk: Press and hold the Power button (2) until the radio shuts down.
- Bind: Rotate the Band A or Band B volume knobs (6, 7) to adjust the audio output for each band.
5.2 Channel and Zone Management
The DB40-D supports up to 4,000 channels and zones. Channels are organized into zones for easier navigation. Use the ENC Selection Knob (1) and the Band A/B Selection knobs (6, 7) to navigate through channels and zones. The Back, Zone, Edit Key (5) can be used to switch between zones.
5.3 DMR and Analog Operation
The radio operates in both Digital Mobile Radio (DMR) and analog modes. The display indicates the current mode for each band. Ensure your channels are programmed correctly for the desired mode of operation. The radio can store up to 500,000 DMR contact IDs.
Image 5.1: Dual band display showing VHF and UHF frequencies, supporting both digital and analog modes.
5.4 Bluetooth Operation (PTT & Earpiece)
The DB40-D includes a Bluetooth PTT button and earpiece for hands-free communication. Pair these accessories with the radio according to the instructions provided with the accessories. The Bluetooth PTT allows for convenient transmission without needing to reach the radio's microphone.
Image 5.2: Bluetooth PTT and earpiece for enhanced operational convenience.
5.5 GPS/APRS-funktionalitet
With the built-in GPS and APRS functions, the radio can report your location. Ensure the GPS antenna is connected and properly positioned for satellite reception. Refer to the detailed menu settings for configuring APRS reporting parameters.
Image 5.3: GPS functionality for location tracking and APRS reporting.
5.6 Cross-Band Repeater and SFR
The DB40-D supports both Cross-Band Repeater and Same-Frequency Repeater (SFR) functions to extend communication range.
- Krydsbåndsrepeater: Allows the radio to receive on one frequency band (e.g., VHF) and retransmit on another (e.g., UHF), or vice-versa. This enhances communication across different frequency bands.
- Same-Frequency Repeater (SFR): Enables the radio to receive and transmit on the same frequency, typically utilizing different time slots in DMR mode. This can create a local mesh network for improved signal coverage.
Image 5.4: Cross-band repeater operation.
Image 5.5: Same-Frequency Repeater (SFR) functionality.
5.7 brugerdefinerbare taster
The DB40-D features 10 customizable keys (PF1, PF2, PF3, PF4 on the front panel, and others on the speaker microphone) that can be programmed for swift access to 20 frequently used functions. Refer to the programming software (CPS) for detailed customization options.
Image 5.6: Customizable function keys for personalized operation.
6. Programmering
The Radioddity DB40-D requires programming via Computer Programming Software (CPS) to configure channels, zones, digital contacts, and other advanced features. The programming cable is included in the package. Please download the latest CPS software and drivers from the official Radioddity website. Detailed programming guides are typically available with the software or on the product support page.
7. Vedligeholdelse
- Rensning: Brug en blød, tør klud til at rengøre radioens yderside. Brug ikke skrappe kemikalier eller opløsningsmidler.
- Miljø: Avoid exposing the radio to extreme temperatures, direct sunlight for prolonged periods, or excessive dust and moisture. While the radio is water-resistant, it is not waterproof.
- Forbindelser: Periodically check all cable connections (power, antenna, microphone) for security and wear.
- Firmwareopdateringer: Check the Radioddity webwebstedet for tilgængelige firmwareopdateringer for at sikre optimal ydeevne og adgang til nye funktioner.
8. Fejlfinding
This section addresses common issues you might encounter with your DB40-D radio.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Radioen tænder ikke. | Ingen strøm, løs forbindelse, sprunget sikring. | Check power cable connections. Verify the 20A fuse in the power cable. Ensure vehicle battery has sufficient charge. |
| No audio or low audio output. | Volume too low, external speaker not connected, incorrect channel settings. | Adjust volume knobs. Check external speaker connection. Verify channel settings in CPS. |
| Transmission cuts off or is garbled. | Antenna issue, power supply instability, firmware issue, radio overheating. | Check antenna connection and SWR. Ensure stable 12V power supply. Allow radio to cool if operating for extended periods. Check for firmware updates. |
| Difficulty programming via CPS. | Incorrect drivers, incompatible CPS version, cable issue. | Ensure correct USB drivers are installed. Use the latest CPS version from Radioddity. Verify programming cable connection. |
| GPS/APRS not functioning. | GPS antenna not connected, poor satellite reception, incorrect settings. | Sørg for, at GPS-antennen er korrekt tilsluttet og har en klar view of the sky. Check GPS/APRS settings in the radio menu and CPS. |
9. Specifikationer
| Feature | Specifikation |
|---|---|
| Varens vægt | 4.42 pund |
| Pakkedimensioner | 13.35 x 8.78 x 2.64 tommer |
| Varemodelnummer | DB40 DMR |
| Mærke | Radiodity |
| Farve | Sort |
| Antal kanaler | 4000 |
| Særlige funktioner | BT PTT, Digital Display, GPS/APRS, Cross-Band Repeater, SFR |
| Frekvensområde | UHF-VHF |
| Voltage | 13.8V DC (nominel) |
| Vandmodstandsniveau | Vandtæt |
| Udgangseffekt | 20W / 40W (Selectable) |
| DMR Contact IDs | Op til 500,000 |
Image 9.1: Radioddity DB40-D dimensions.
10. Garanti og support
The Radioddity DB40-D Mobile Radio comes with an 18-month warranty. For technical support, warranty claims, or further assistance, please visit the official Radioddity website or contact their customer service department. Ensure you have your product model number and purchase details available when seeking support.
