Dripex Adjustable Electric Standing Desk 43-inch User Manual

Indledning

Thank you for choosing the Dripex Adjustable Electric Standing Desk. This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your new desk. Please read this manual thoroughly before use to ensure proper function and safety. Keep this manual for future reference.

Image: The Dripex 43-inch Adjustable Electric Standing Desk, showcasing its clean white design and integrated control panel.

Vigtige sikkerhedsoplysninger

• Sørg for, at alle komponenter er forsvarligt fastgjort før brug.
• Overbelast ikke skrivebordet. Den maksimale vægtkapacitet er 80 kg.
• Hold børn og kæledyr væk fra skrivebordet under drift.
• Ensure there are no obstructions in the desk's path when adjusting height.
• Du må ikke sidde eller stå på skrivebordet.
• Afbryd strømmen før rengøring eller vedligeholdelse.
• Brug kun den medfølgende strømadapter.

Pakkens indhold

Kontroller, at alle dele er til stede, før monteringen påbegyndes:

• Skrivebord (43x24 tommer)
• Skrivebordsben og rammekomponenter
• Kontrolpanel
• Strømadapter og kabel
• Kopholder
• Høretelefonkrog
• Monteringshardware (skruer, værktøj)
• Brugermanual

Monteringsvejledning

Assembly typically involves a simple 4-step process. Follow the included graphical instructions for detailed steps. Ensure you have adequate space and a clean work area.

1. Fastgør ben til skrivebordet: Carefully place the desktop upside down on a soft, clean surface. Attach the leg frames to the pre-drilled holes on the desktop using the provided screws.
2. Install Crossbar and Motor: Connect the crossbar between the two leg frames. Install the electric motor and connect it to the leg mechanisms as per the diagram.
3. Mount Control Panel and Accessories: Attach the control panel to the underside of the desktop in the desired position. Install the cup holder and headphone hook.
4. Cable Management and Power Connection: Route all cables neatly and secure them. Connect the power adapter to the control panel and then to a power outlet.

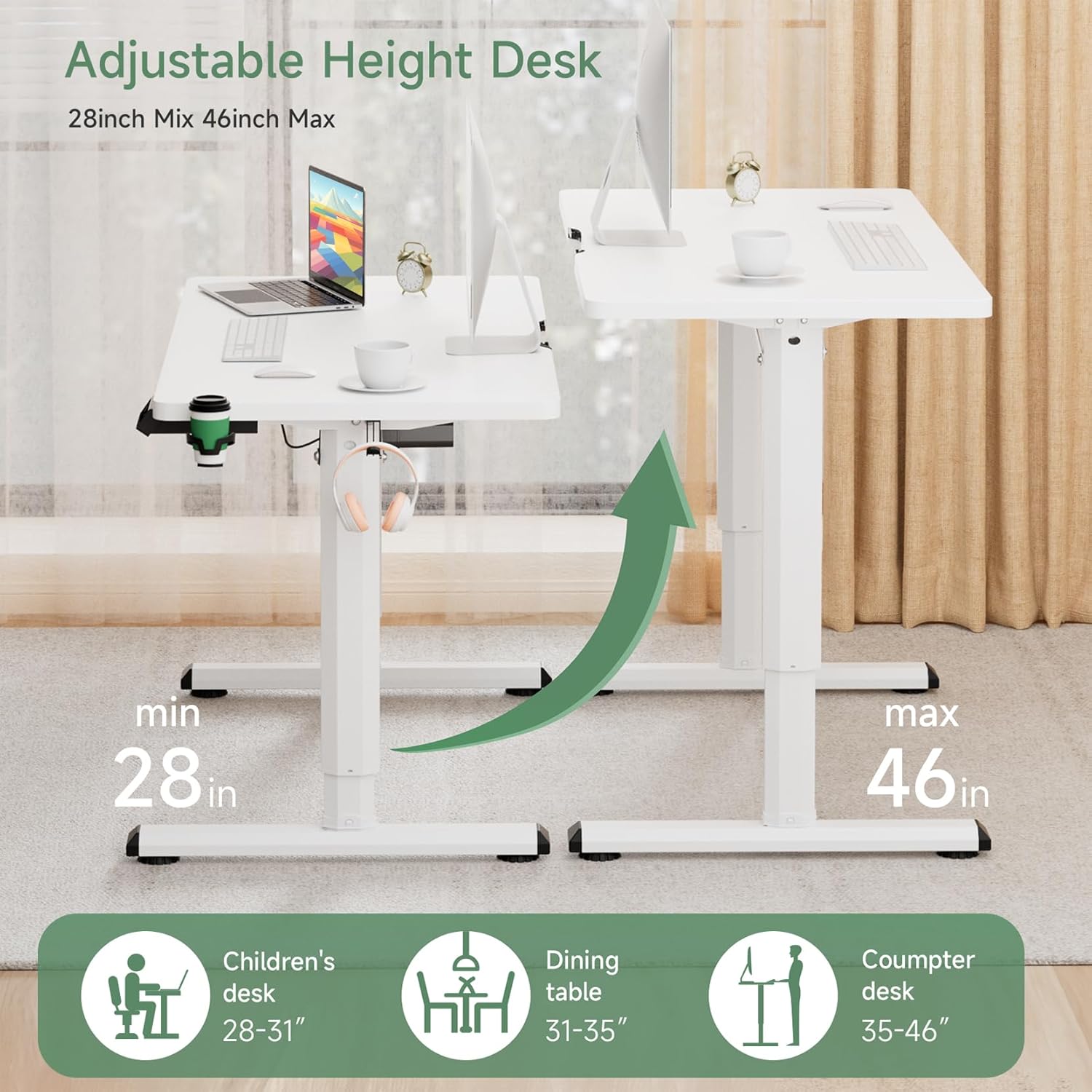

Image: Visual representation of the desk's adjustable height range and versatile applications.

Betjeningsvejledning

Kontrolpanel overview

Image: The intelligent control panel for height adjustment and memory functions.

• Op/ned-pile (▲ / ▼): Press and hold to manually adjust the desk height up or down.
• Sitting/Standing Presets (👧 / 👦): These buttons allow you to save and recall preferred sitting and standing heights.
• NULSTIL: Used to reset the desk's system, typically after initial setup or troubleshooting.

Justering af højden

To adjust the desk height, press and hold the Up (▲) or Down (▼) arrow button until the desk reaches your desired height. Release the button to stop the movement.

Indstilling af hukommelsesforudindstillinger

The control panel features dedicated buttons for saving sitting and standing heights. To set a preset:

1. Adjust the desk to your desired sitting height using the Up/Down arrows.
2. Press and hold the Sitting preset button (👧) for 3 seconds until you hear a beep or see a confirmation on the display (if available).
3. Repeat the process for your desired standing height using the Standing preset button (👦).

Once set, a short press on the respective preset button will automatically move the desk to the saved height.

Nulstilling af skrivebordet

If the desk encounters an error or does not move smoothly, a reset may be required:

1. Tryk og hold på NULSTIL knappen i cirka 3-5 sekunder.
2. The desk will move to its lowest position and then slightly back up, indicating a successful reset.
3. Release the button once the reset sequence is complete.

Anti-kollisionsfunktion

The desk is equipped with an anti-collision system. If the desk encounters an obstruction during height adjustment, it will automatically stop and reverse slightly to prevent damage. Remove any obstructions before resuming operation.

Nøglefunktioner

• Ergonomisk design: Promotes alternating between sitting and standing to reduce physical stress and improve concentration.
• Bredt højdejusteringsområde: Electrically adjustable from 28.7 inches to 46.46 inches to suit various user heights and activities.
• Robust Motor System: Features a high-quality motor for smooth, reliable, and quiet height adjustments.
• Stabil konstruktion: Industrial-grade steel frame and diamond-shaped legs provide excellent stability and support up to 176 lbs.
• Rummeligt skrivebord: A 43x24 inch desktop offers ample space for monitors, laptops, and other office essentials.
• Integreret tilbehør: Includes a convenient cup holder and headphone hook for an organized workspace.

Image: The desk's high-quality motor system ensures smooth and efficient height adjustments.

Image: Demonstrating the unique benefit of alternating between sitting and standing for improved comfort and posture.

Billede: Detaljeret view of the desk's thoughtful features, including cable management, accessories, and design elements.

Vedligeholdelse og pleje

To ensure the longevity and optimal performance of your Dripex standing desk, follow these simple maintenance guidelines:

• Rensning: Tør skrivebordet og rammen af ​​med reklameamp klud. Undgå skrappe kemikalier eller slibende rengøringsmidler, der kan beskadige overfladen.
• Regelmæssig kontrol: Periodically check all screws and bolts to ensure they remain tight. Tighten if necessary.
• Kabelstyring: Keep cables organized to prevent snagging during height adjustments.

Fejlfinding

If you encounter any issues with your desk, refer to the table below for common problems and solutions:

Produktspecifikationer

Image: Dimensions of the 43-inch desktop, providing amparbejdsområdet.

Garanti og support

Dripex is committed to providing high-quality products. For warranty information, technical support, or any questions regarding your Adjustable Electric Standing Desk, please refer to the contact information provided with your purchase or visit the official Dripex webwebsted. Hav venligst dit modelnummer og købsdato klar, når du kontakter support.
