Indledning
Thank you for choosing the DJXFLI 180W LED Moving Head Light. This professional-grade stage lighting fixture is designed to deliver dynamic and vibrant lighting effects for various events, including discos, clubs, parties, dances, weddings, bars, KTVs, and live shows. Featuring a powerful 180W white LED, 11 colors, 14 gobos, a rotating prism, and a 6x magnification lens, this light offers versatile control options including Sound control, Automatic, Master/Slave, DMX 512, and RDM. Please read this manual thoroughly before operation to ensure safe and optimal performance.
Image: The DJXFLI 180W LED Moving Head Light, showcasing its sleek black design and powerful light output.
Sikkerhedsoplysninger
- Tilslut altid armaturet til en jordet stikkontakt.
- Åbn ikke kabinettet; der er ingen dele indeni, som brugeren kan servicere. Overlad al service til kvalificeret personale.
- Undgå direkte øjeneksponering for lyskilden.
- Sørg for korrekt ventilation omkring armaturet for at forhindre overophedning.
- Keep the fixture away from moisture, water, and flammable materials.
- Brug kun den specificerede voltage (110 Volts) for operation.
- Securely mount the fixture using appropriate hardware and safety cables.
Hvad er der i æsken
Ved udpakning skal du kontrollere, at alle nedenstående komponenter er til stede og i god stand:
- 1 x Moving Head Light
- 1 x strømkabel
- 1 x DMX kabel
- 1 x Brugermanual (dette dokument)
- 1 x Bow Mount
- 2 x skruer
Opsætning
Fysisk installation
The DJXFLI 180W LED Moving Head Light can be placed on a flat surface or mounted to a truss or wall using the included bow mount and screws. Ensure the surface or mounting point is stable and can support the fixture's weight (approximately 14.77 pounds).
Image: Dimensions of the DJXFLI 180W LED Moving Head Light, showing its compact size (16"L x 11"W x 10.8"H) suitable for various installations.
Strømtilslutning
Connect the provided power cable to the power input on the rear of the fixture and then to a standard 110V AC power outlet. Ensure the connection is secure.
DMX Connection (Optional)
For DMX control, connect a DMX cable from your DMX controller's output to the DMX IN port on the fixture. If linking multiple fixtures, connect from the DMX OUT of the first fixture to the DMX IN of the next, and so on. Terminate the last fixture in the chain with a DMX terminator.
Betjeningsvejledning
The DJXFLI 180W LED Moving Head Light offers multiple control modes to suit various applications.
Kontrolpanel og skærm
The fixture features an LCD display and control buttons for menu navigation and setting adjustments. Refer to the on-screen menu for specific parameter settings.
Bevægelse og Amplitude
The moving head offers a Pan range of 540 degrees (16-bit electric correction) and a Tilt range of 270 degrees (16-bit electric correction), allowing for wide coverage and precise positioning.

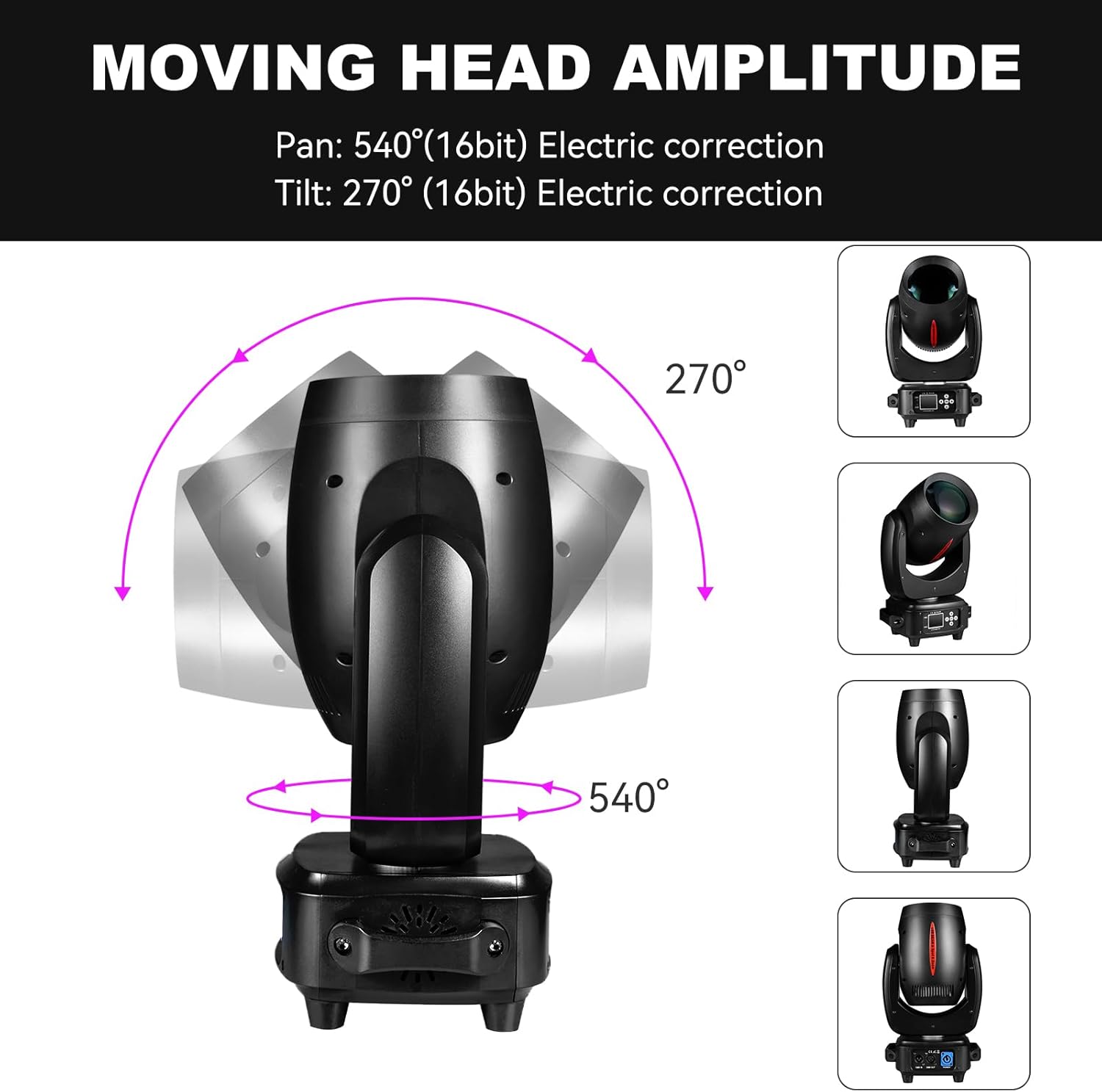

Image: Diagram illustrating the 540-degree Pan and 270-degree Tilt movement capabilities of the moving head light.
Key Features and Effects
- 180W White LED: Provides a stable and powerful light output with an 8000K color temperature for bright and clear projections.
- 11 Colors & Half-Color Effects: A dedicated color wheel with 11 vibrant colors and half-color options, allowing for a wide spectrum of atmospheric lighting. The color wheel can rotate infinitely.
- 14 Gobos & Shaking Speed: A gobo wheel with 14 distinct patterns, offering various shapes and textures. Gobos can shake and rotate infinitely for dynamic effects.
- Rotating Prism & 6x Magnification Lens: Features a 24-facet rotating prism with independent infinite rotation speed, expanding the beam coverage and creating multi-faceted patterns. The 6x magnification lens (with 7-colors) enhances the visual impact.
- Strålezoomvinkel: Adjustable beam zoom from 1.5° to 15° for precise control over beam width, suitable for both narrow spot effects and wider coverage.
- Strobe: Capable of strobing at up to 25 times per second for intense, pulsating light effects.
Billede: Nærbillede view of the 180W White LED and internal components, including the 24-turn prism, 7-color wheel with 6x magnifying lens, 14 gobos, and 11-color wheel.
Billede: Eksamples of various gobo patterns projected by the light, demonstrating the 14 gobos wheel effect with shaking and rotation capabilities.
Image: Illustrations of different color beams and half-color effects produced by the 11-color wheel, showcasing the light's ability to create diverse atmospheric lighting.
Kontroltilstande
The fixture supports the following control modes:
- Lydkontrol: Lyset reagerer på omgivende lyde og synkroniserer effekter med musik eller lyd.
- Automatisk tilstand: Pre-programmed light shows run automatically without external input.
- Master/Slave-tilstand: Link multiple fixtures where one acts as the master, controlling the others (slaves) to create synchronized light shows.
- DMX 512 Mode: Professional control via a DMX controller, allowing precise adjustment of all parameters (colors, gobos, movement, dimming, strobe, etc.).
- RDM (Remote Device Management): Allows for remote configuration and monitoring of DMX fixtures. This enables scanning for connected lights and changing settings like control mode, light time, and fan speed directly from an RDM-compatible controller.
Image: Visual representation of the various control modes available, including Sound, Auto, Master/Slave, DMX 512, and RDM, demonstrating the light's versatility.
Opretholdelse
Rensning
Regular cleaning of the lens and housing is recommended to maintain optimal light output and performance. Use a soft, lint-free cloth and a mild glass cleaner. Do not use abrasive materials or solvents.
Opbevaring
When not in use, store the fixture in a dry, dust-free environment, preferably in its original packaging or a padded case to protect it from damage.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm | Power cable disconnected, faulty outlet, internal fuse. | Check power cable connection. Test outlet with another device. If fuse is accessible and replaceable, check and replace. |
| Ingen DMX kontrol | Incorrect DMX address, faulty DMX cable, no DMX signal, missing terminator. | Verify DMX address settings. Check DMX cable integrity. Ensure DMX controller is sending signal. Add DMX terminator to the last fixture. |
| Light not moving/responding | Motor error, control mode issue. | Cycle power to the unit. Check selected control mode. If issue persists, contact support. |
| Gobo/Color wheel error | Internal mechanism obstruction or fault. | Cycle power to the unit. If the problem continues, professional servicing may be required. |
Specifikationer
| Feature | Specifikation |
|---|---|
| Lyskilde | 180W hvid LED |
| Farvetemperatur | 8000 Kelvin |
| Voltage | 110 volt |
| Wattage | 180 Watts (Max Compatible 200 Watts) |
| Produktmål (L x B x H) | 16 cm x 11 cm x 10.8 cm |
| Varens vægt | 14.77 pund |
| Pan Bevægelse | 540° (16-bit electric correction) |
| Tilt bevægelse | 270° (16-bit electric correction) |
| Farvehjul | 11 Colors + Half-color effect (infinite rotation) |
| Gobo hjul | 14 Gobos + Shake (infinite rotation) |
| Prisme | 24-facet Rotating Prism (independent infinite rotation) |
| Forstørrelsesobjektiv | 6x (with 7-colors) |
| Strålevinkel | 1.5° - 15° |
| Strobe | 25 gange / sekund |
| Kontroltilstande | Sound Control, Automatic, Master/Slave, DMX 512, RDM |
| Monteringstype | Gulvmontering |
| Materiale | Plastic, Glass (Shade) |
Garanti og support
DJXFLI products are manufactured with quality and performance in mind. This product comes with a 2-year manufacturer's warranty covering defects in materials and workmanship from the date of purchase.
For technical support, warranty claims, or any inquiries regarding your DJXFLI 180W LED Moving Head Light, please contact our customer service team. Details can be found on the official DJXFLI webwebstedet eller gennem dit købssted.
Gem venligst din købsbevis for at validere garantien.
