AUTOOL ATF 705 Fuldautomatisk Transmissionsvæskeveksler Instruktionsmanual

1. Produktet er slutview

The AUTOOL ATF 705 is a full automatic transmission fluid exchanger designed for efficient and thorough replacement of old transmission fluid with new fluid. It features intelligent control for precise fluid exchange, cycle cleaning, and automatic identification of oil flow direction and power polarity.

Image 1.1: AUTOOL ATF 705 unit with various connectors and accessories.

2. Sikkerhedsoplysninger

Always read and understand all safety warnings and instructions before operating the AUTOOL ATF 705. Failure to do so may result in serious injury or equipment damage.

• Ensure the work area is well-ventilated and free from ignition sources.
• Brug passende personlige værnemidler (PPE), herunder sikkerhedsbriller og handsker.
• Do not operate the machine with damaged cables or hoses.
• Ensure the vehicle is securely supported and the engine is off before connecting the exchanger.
• Bortskaf gammel transmissionsolie i henhold til lokale miljøforskrifter.

3. Opsætning

3.1 Udpakning og inspektion

Carefully remove all components from the packaging. Inspect the unit and accessories for any signs of damage. Report any damage to your supplier immediately.

3.2 Strømtilslutning

Tilslut strømmen clamps to the vehicle's battery. The AUTOOL ATF 705 automatically identifies positive and negative poles, preventing damage from incorrect connections.

Image 3.1: Automatic identification of power polarity for safe connection.

3.3 Slangetilslutning

Connect the oil inlet and outlet pipes to the vehicle's transmission system. The unit automatically identifies the oil flow direction, eliminating the need for manual distinction.

Image 3.2: Automatic identification of oil flow direction for simplified setup.

3.4 Connector Selection

Select the appropriate special connectors from the provided kit to match your vehicle's transmission system.

Image 3.3: Assortment of special connectors for diverse vehicle compatibility.

4. Betjeningsvejledning

4.1 Kontrolpanel overview

The control panel provides access to all functions and displays real-time information such as oil pressure and temperature. The new and old oil levels are visually displayed.

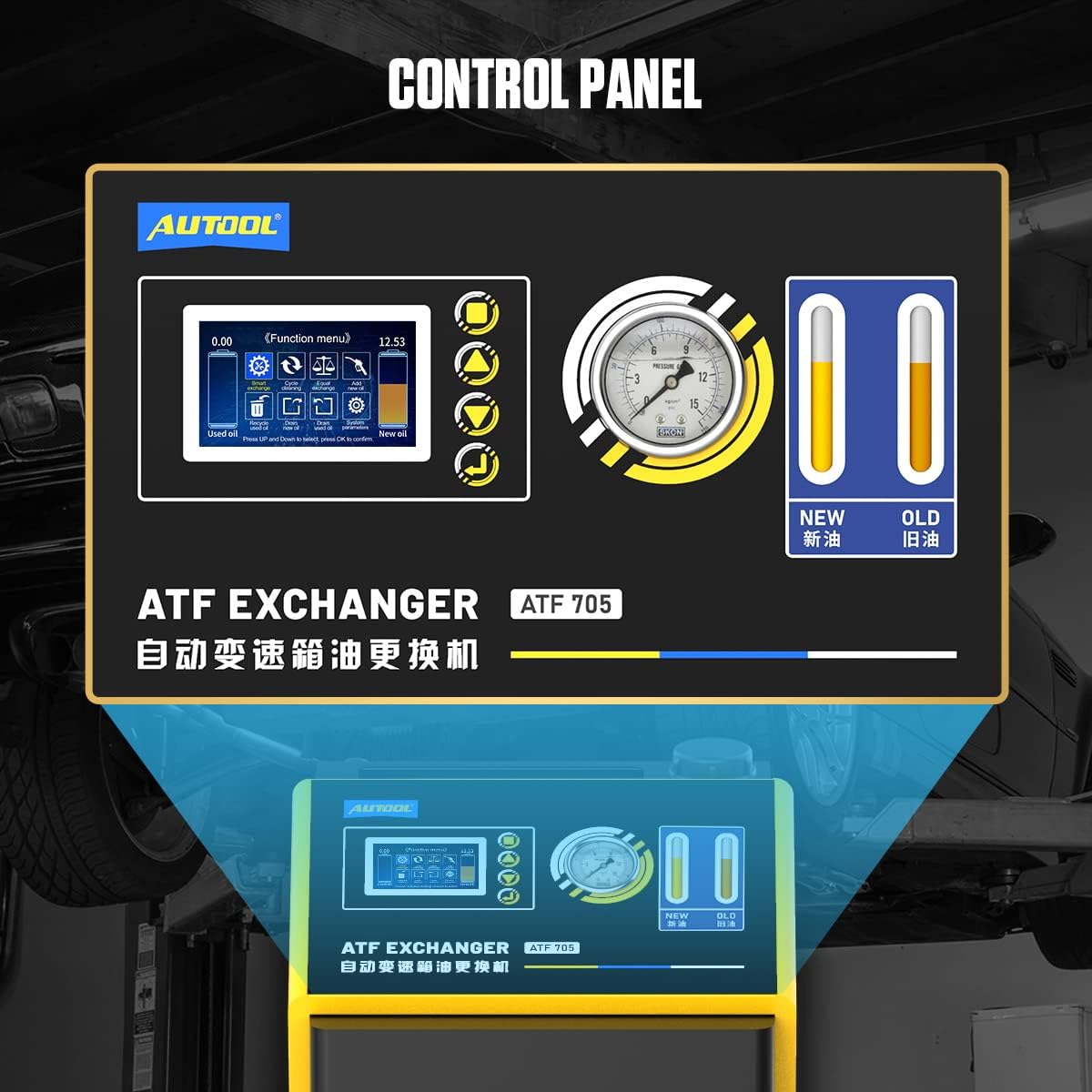

Billede 4.1: Detaljeret view of the control panel, showing display, pressure gauge, and oil level indicators.

4.2 Smart Exchange Process

The Smart Exchange function automates the fluid replacement process. The unit dynamically adjusts new oil flow to balance with old oil outflow, ensuring an equivalent exchange.

• The system first drains the new and old oil tanks.
• Once pressure is generated, new and old oil are dynamically replaced.
• The oil change rate can reach nearly 100%, preventing residual liquid and sludge buildup.

Image 4.2: Smart Exchange display showing real-time progress and steps.

4.3 Cycle Cleaning Function

Before fluid exchange, the unit can perform a cycle cleaning of the transmission system. This ensures the system is clean and old oil is completely discharged, improving the effectiveness of the new fluid.

• Set the desired cleaning time on the display.
• Initiate the cleaning cycle.
• The system circulates cleaning agents or a small amount of new fluid to flush out contaminants.

Image 4.3: Cycle Cleaning display showing time setting and cleaning process.

4.4 Automatic Equal Exchange

The built-in high-precision electronic scale ensures an exact equal exchange of new and old oil. This maintains the correct fluid level and pressure within the transmission system.

• Set the desired volume for exchange on the display.
• The unit will precisely exchange the specified amount of fluid.

Image 4.4: Automatic Equal Exchange display for precise volume control.

5. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your AUTOOL ATF 705 unit.

• Rensning: Efter hver brug skal maskinens yderside tørres af med en ren, tør klud.amp klæde. Undgå at bruge skrappe kemikalier.
• Hose and Connector Inspection: Regularly inspect all hoses and connectors for wear, cracks, or leaks. Replace damaged components immediately.
• Styring af væsketank: Ensure the new and old fluid tanks are clean and free of debris. Drain old fluid completely after each use.
• Opbevaring: Store the unit in a dry, clean environment away from direct sunlight and extreme temperatures.

6. Fejlfinding

Dette afsnit omhandler almindelige problemer, du kan støde på under drift.

• Uneven Fluid Exchange: If the new oil flows slower or faster than the old oil, the ATF 705's automatic adjustment function should compensate. If an imbalance persists, check for blockages in hoses or incorrect connections.
• Ingen strøm: Sørg for strømmen clamps are securely connected to the vehicle battery and the battery has sufficient charge. Check all power cables for damage.
• Skærm virker ikke: Verify power connection. If the issue persists, contact customer support.
• Væskelækager: Immediately stop operation. Check all hose connections and ensure they are tight. Inspect hoses and connectors for damage.

For issues not covered here, please refer to the Warranty & Support section for contact information.

7. Specifikationer

Technical specifications for the AUTOOL ATF 705 unit.

Image 7.1: Visual representation of product specifications and dimensions.

8. Garanti og support

AUTOOL provides a comprehensive warranty and dedicated customer support for the ATF 705.

8.1 Garantioplysninger

The AUTOOL ATF 705 comes with a Tre års garanti. For damage caused by non-human factors, AUTOOL commits to resending parts for free within this 3-year period.

8.2 Kundesupport

For any inquiries, technical assistance, or warranty claims, please contact AUTOOL customer support. We aim to respond as soon as possible, typically within 24 hours.

• Online support: Besøg den officielle AUTOOL webwebsted for ofte stillede spørgsmål og supportressourcer.
• E-mail support: Se din produktemballage eller den officielle webwebsted for kundeservice-e-mailadressen.
