Homall Elektrisk Stående Skrivebord Model 01 (140x60cm, Hvid) Brugermanual

1. Introduktion

Welcome to your new Homall Electric Standing Desk. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your desk. Please read these instructions carefully before use and retain them for future reference.

Sikkerhedsoplysninger

Do not exceed the maximum weight capacity of 50 kg (110 lbs) on the desktop.
Ensure the desk is placed on a level surface and properly anchored to prevent tipping.
Hold børn og kæledyr væk fra skrivebordet under brug for at forhindre skader.
Undgå at placere væsker direkte på kontrolpanelet eller i nærheden af elektriske komponenter.
Do not disassemble or modify the desk's electrical components. Contact customer support for service.
Sørg for, at der ikke er nogen forhindringer i skrivebordets bane under højdejusteringen.

2. Opsætning og montering

The Homall Electric Standing Desk is designed for straightforward assembly. All necessary tools and detailed instructions are included in the packaging. The desktop is composed of multiple sections that fit together precisely using dowels and screws.

Monteringstrin overview:

Pak alle komponenter ud, og kontroller dem i forhold til delelisten i samlevejledningen.
Assemble the desktop sections using the provided dowels and screws. Ensure a flush and secure fit.
Attach the lifting columns to the desktop using the designated hardware.
Install the foot supports onto the lifting columns.
Mount the control panel and motor unit according to the instructions.
Connect all electrical cables as indicated in the assembly guide.
Perform an initial test of the height adjustment function.

Homall Electric Standing Desk in an office setting with multiple monitors and accessories. — Figure 2.1: Fully assembled Homall Electric Standing Desk.

3. Betjeningsvejledning

Your Homall Electric Standing Desk features an intuitive control panel for easy height adjustment and personalized settings.

Kontrolpanelets funktioner:

Close-up of the Homall desk control panel with LCD display, up/down buttons, memory presets, and USB charging port. — Figure 3.1: Control Panel with USB charging port.

Højdejustering: Brug + (Op) og - (Down) buttons to smoothly adjust the desk height between 73 cm and 118 cm. The current height is displayed on the LCD screen.
Hukommelsesforudindstillinger: The desk supports 3 programmable height memory positions. To save a position: Adjust the desk to your desired height, then press the M knappen efterfulgt af 1, 2, eller 3. To recall a saved position, simply press the corresponding number button (1, 2, eller 3).
Stillesiddende påmindelse: Activate the sedentary reminder function to receive alerts to change your working posture. Refer to the detailed assembly guide for specific activation and setting instructions.
USB opladningsport: A convenient USB port is integrated into the control panel for charging mobile devices or powering small accessories.
Anti-kollisionsteknologi: The desk is equipped with an anti-collision system that automatically stops and slightly reverses the desk's movement if it encounters an obstruction during height adjustment, enhancing safety.

Illustration showing the adjustable height range of the Homall Electric Standing Desk from 73cm to 118cm. — Figure 3.2: Height adjustment range from 73 cm to 118 cm.

4. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your Homall Electric Standing Desk.

Rensning: Tør skrivebordet og rammen af med en blød kludamp klud. Undgå slibende rengøringsmidler eller barske kemikalier, der kan beskadige overfladen.
Inspektion: Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de er fastspændte. Efterspænd om nødvendigt.
Kabelstyring: Sørg for, at alle kabler er pænt placeret og ikke klemt eller filtret sammen, især under højdejusteringer.
Motorpleje: The motor is designed for quiet and stable operation. Avoid overloading the desk, which can strain the motor.

5. Fejlfinding

If you encounter issues with your Homall Electric Standing Desk, refer to the following common troubleshooting steps:

Problem	Mulig årsag	Løsning
Desk does not move up or down.	Power cable disconnected, motor error, overload.	Check power connection. Unplug and replug the desk. Reduce weight on the desktop. Refer to the full manual for error codes.
Skrivebordet bevæger sig ujævnt eller laver usædvanlige lyde.	Uneven load, loose connections, obstruction.	Distribute weight evenly. Check and tighten all assembly screws. Ensure no objects are interfering with the lifting columns.
Memory presets are not working.	Forkert lagringsprocedure.	Ensure you press 'M' then the number button to save. To recall, press only the number button.
Anti-collision feature triggers frequently.	Obstruction in path.	Clear any objects above or below the desk that might be causing interference.

If the problem persists after attempting these solutions, please contact Homall customer support for further assistance.

6. Specifikationer

Detailed technical specifications for the Homall Electric Standing Desk Model 01 (140x60cm, White).

Mærke: Homall
Modelnummer: 01
Farve: Hvid
Produktmål (L x B x H): 140 cm x 60 cm x 73-118 cm
Justerbart højdeområde: 73 cm til 118 cm
Maksimal vægtkapacitet: 50 kg
Materiale: Alloy Steel (frame), Painted finish (desktop)
Særlige funktioner: Ergonomic, Adjustable, Electric, USB Charging Port, Sedentary Reminder, 3 Memory Positions, Anti-collision Technology
Støjniveau: Approximately 55 dB during operation (comparable to quiet conversation)
Varens vægt: Cirka 25.5 kg

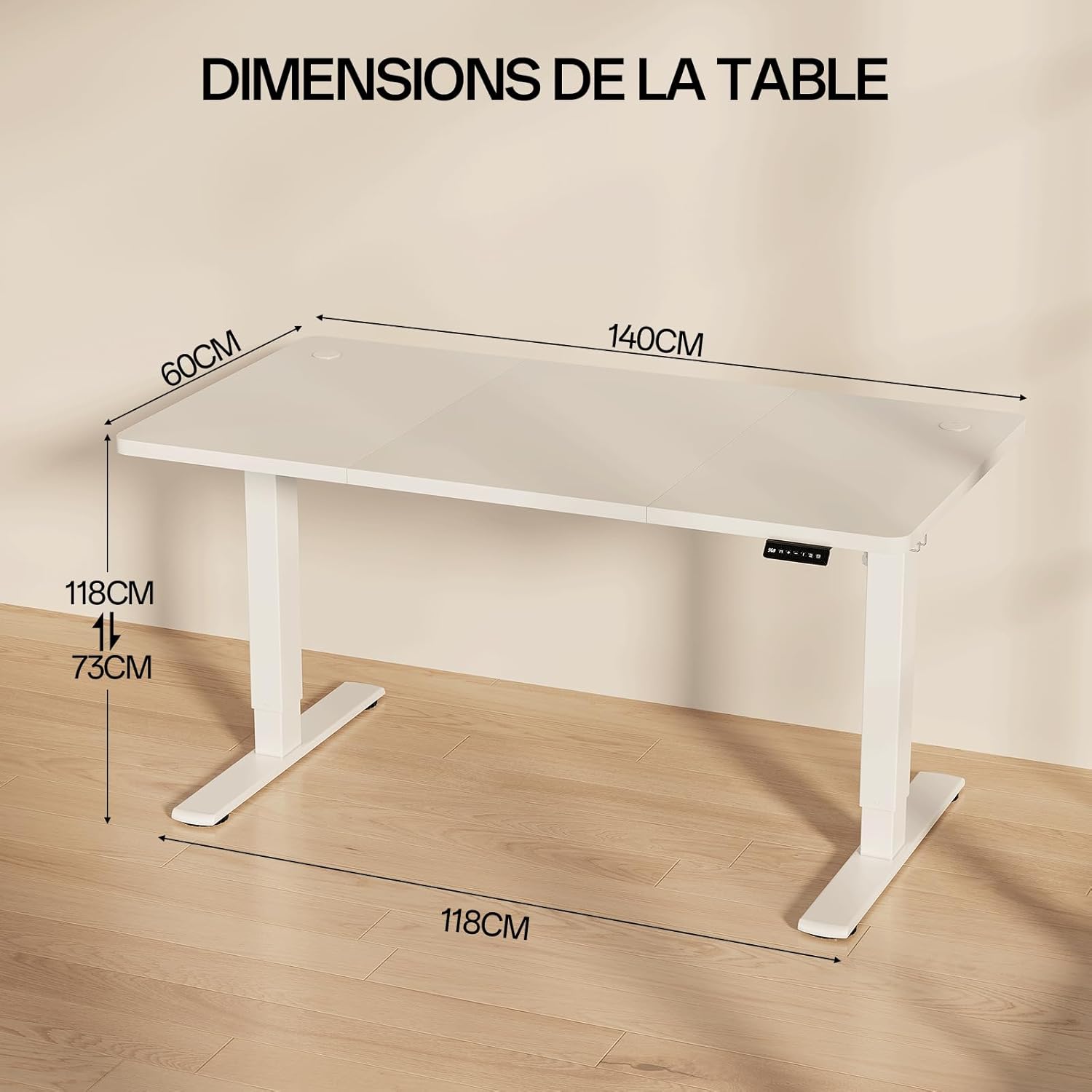

Diagram showing the dimensions of the Homall Electric Standing Desk: 140cm length, 60cm width, and adjustable height from 73cm to 118cm. — Figure 6.1: Desk Dimensions.

Infographic comparing noise levels: falling leaves at 10dB, desk motor at 55dB, and car at 80dB. — Figure 6.2: Motor Noise Level Comparison.

7. Garanti og support

For warranty information, product support, or to purchase replacement parts, please contact Homall customer service. Refer to your purchase documentation for specific warranty terms and contact details.

You can typically find support contact information on the Homall official webhjemmeside eller gennem den forhandler, hvor du købte produktet.
