FACEIL BSX325 Håndledsblodtryksmåler Brugermanual

1. Vigtige sikkerhedsoplysninger

Please read this manual thoroughly before using the FACEIL BSX325 Wrist Blood Pressure Monitor. Retain this manual for future reference.

• This device is intended for adult home use to measure blood pressure and pulse rate. It is not intended for diagnosis or treatment of any medical condition.
• Kontakt din læge for fortolkning af blodtryksmålinger. Selvdiagnose og -behandling baseret på målinger kan være farligt.
• Brug ikke denne enhed på spædbørn, børn eller personer, der ikke kan give samtykke.
• Avoid taking measurements in a moving vehicle, during exercise, or immediately after bathing or consuming alcohol/caffeine.
• If you experience discomfort during measurement, press the START/STOP button to stop the inflation immediately.
• Hold enheden væk fra stærke elektromagnetiske felter.
• Use only specified batteries or the provided USB cable.

2. Produktet er slutview

The FACEIL BSX325 is an automatic wrist blood pressure monitor designed for convenient and accurate blood pressure and pulse rate measurement at home.

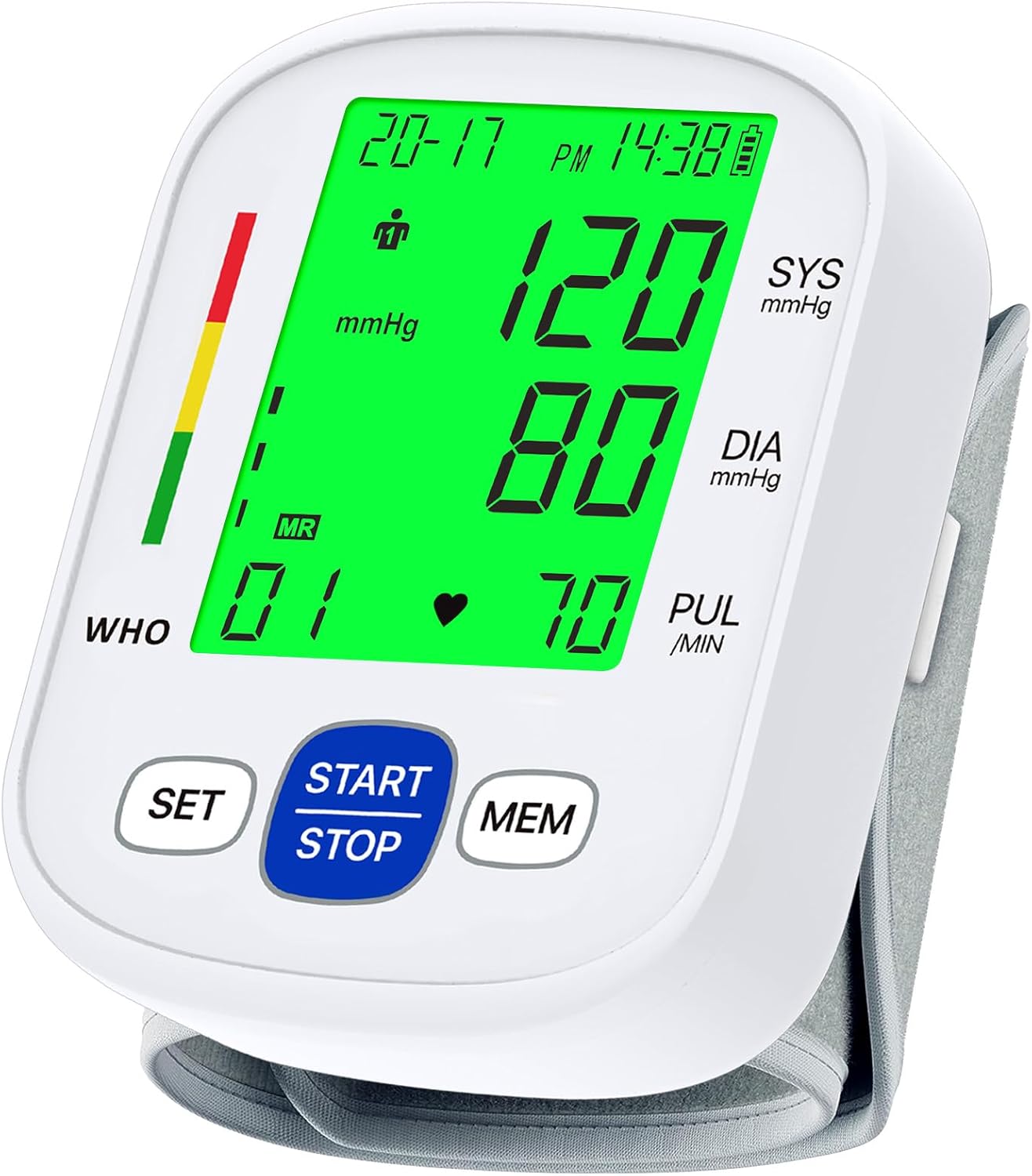

Image: The FACEIL BSX325 Wrist Blood Pressure Monitor with its digital display and wrist cuff.

2.1 Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• 1 x Wrist Blood Pressure Monitor
• 1 x Opbevaringsboks
• 2 x AAA batterier
• 1 x USB-kabel
• 1 x Brugermanual (dette dokument)

Image: Visual representation of the items included in the product package: monitor, storage box, batteries, USB cable, and user manual.

3. Vis introduktion

The LCD display provides clear readings and indicators for various functions.

Image: Detailed diagram illustrating the various symbols and readings on the LCD display, including User ID, Systolic/Diastolic Blood Pressure, Pulse Rate, Memory Symbol, and WHO Blood Pressure Level Indicator.

• User ID Symbol: Indicates which user (1 or 2) is currently selected.
• Systolic (SYS) & Diastolic (DIA) Blood Pressure: Your blood pressure readings in mmHg.
• Pulse Rate (PUL): Your heart rate in beats per minute.
• Memory Symbol (MR): Vises når viewing stored measurements.
• WHO Indicator: A color-coded bar indicating your blood pressure level according to WHO guidelines.
• Batteriindikator: Viser den resterende batterilevetid.
• Dato/tid: Viser den aktuelle dato og klokkeslæt.

4. Opsætning

4.1 Strømforsyning

The monitor can be powered by either AAA batteries or a USB cable.

• Batteri installation: Open the battery compartment cover on the back of the device. Insert 2 AAA batteries, ensuring correct polarity (+/-). Close the cover securely.
• USB Strøm: Connect the provided USB cable to the monitor's USB port and the other end to a compatible USB power source (e.g., wall adapter, computer USB port).

Image: Illustration of the two power supply methods: 2 AAA batteries (included) and USB cable connection (included).

4.2 Indstilling af dato og klokkeslæt

Setting the correct date and time ensures accurate recording of your measurements.

1. Når enheden er slukket, skal du trykke på og holde SÆT -knappen i cirka 3 sekunder, indtil året blinker.
2. Tryk på MEM button to adjust the year. Press SÆT to confirm and move to the month.
3. Repeat the process using MEM at justere og SÆT to confirm for month, day, hour, and minute.
4. Når alle indstillinger er bekræftet, afslutter enheden opsætningstilstanden.

5. Betjeningsvejledning

5.1 Før måling

• Hvil i mindst 5 minutter, før du foretager en måling.
• Avoid eating, drinking alcohol or caffeine, smoking, or exercising for 30 minutes prior to measurement.
• Ensure your bladder is empty.
• Take measurements in a quiet environment.

5.2 Påføring af håndledsmanchetten

1. Remove any tight clothing or accessories from your wrist.
2. Wear the device around your bare wrist with your palm facing upwards. The display should be on the inside of your wrist.
3. Ensure the distance between the device and your palm is approximately 1-2 cm.
4. Fasten the cuff snugly but not too tightly. You should be able to insert one finger between the cuff and your wrist.

Image: Visual instructions for wearing the device (Step 1 & 2), maintaining correct posture (Step 3), and initiating measurement (Step 4).

5.3 Correct Measurement Posture

1. Sid behageligt med ryggen støttet og fødderne fladt på gulvet.
2. Place your elbow on a table so that the monitor is at the same level as your heart.
3. Relax your hand and keep it still.

5.4 Tage en måling

1. Ensure the cuff is correctly applied and you are in the proper posture.
2. Tryk på START/STOP knappen. Manchetten pustes automatisk op.
3. Forbliv stille og tavs under målingen.
4. Once the measurement is complete (approximately 45 seconds), your systolic, diastolic, and pulse readings will be displayed. The device will automatically store the result.

Image: A user demonstrating the ease of wearing and operating the wrist blood pressure monitor by pressing the START/STOP button.

5.5 Selecting User (A/B)

The device supports two users, each with 99 memory slots.

• Før du foretager en måling, skal du trykke på SÆT button briefly to toggle between User 1 and User 2. The User ID symbol on the display will change accordingly.
• Ensure the correct user is selected before taking a measurement to store readings in the appropriate memory bank.

Image: Illustration demonstrating the 2-user support feature, showing separate memory banks for User A and User B.

6. Fortolkning af dine resultater

Your blood pressure reading consists of two numbers: Systolic (the top number) and Diastolic (the bottom number). The pulse rate is also displayed.

• Systolic Pressure (SYS): The pressure when your heart beats, pumping blood.
• Diastolic Pressure (DIA): The pressure when your heart rests between beats.
• Pulse Rate (PUL): The number of times your heart beats per minute.

6.1 WHO Blood Pressure Classification

The monitor includes a WHO (World Health Organization) indicator bar to help classify your blood pressure readings. Consult your doctor for a professional interpretation.

Image: The WHO blood pressure level indicator on the monitor's display, showing color-coded ranges for normal, middle high, and high pressure.

7. Hukommelsesfunktion

The FACEIL BSX325 stores up to 99 measurements for each of the two users, including date and time stamps.

• Til view gemte målinger, tryk på MEM knappen, når enheden er slukket.
• Hvert tryk på MEM button will cycle through the stored readings from most recent to oldest.
• To exit memory mode, press the START/STOP button or wait for automatic power-off.
• To clear all memory for the currently selected user, press and hold the MEM button for 3 seconds while in memory recall mode. The display will show "CL" and then turn off, indicating memory has been cleared.

8. Vedligeholdelse og opbevaring

8.1 Rengøring

• Rengør monitorens hus og manchet med en blød, tør klud.
• Brug om nødvendigt en let kludampened with water or a mild detergent, then wipe dry immediately.
• Brug ikke slibende rengøringsmidler, opløsningsmidler, og nedsænk ikke enheden i vand.

8.2 Opbevaring

• Store the device in its provided storage box to protect it from dust, moisture, and physical damage.
• Keep the monitor in a cool, dry place, away from direct sunlight and extreme temperatures.
• Hvis enheden ikke skal bruges i længere tid, skal batterierne fjernes for at forhindre lækage.

9. Fejlfinding

Hvis du støder på problemer med din skærm, kan du se tabellen nedenfor for almindelige problemer og løsninger.

10. Specifikationer

11. Garanti og support

For warranty information or technical support, please refer to the documentation included with your purchase or contact the seller directly. Keep your purchase receipt as proof of purchase.
