1. Introduktion
The CURT TriFlex NEXT Electric Trailer Brake Controller (Model 51146) is designed to provide smooth and responsive braking for trailers equipped with electric brakes. Utilizing a triple-axis, motion-sensing accelerometer, it automatically adjusts power output based on terrain and braking intensity, ensuring enhanced control and safety during towing. This manual provides essential information for proper installation, operation, and maintenance of your TriFlex NEXT brake controller.
2. Sikkerhedsoplysninger
Always read and understand all instructions before installing or operating this product. Failure to do so could result in property damage, serious injury, or death. Ensure all connections are secure and properly insulated. Disconnect the vehicle's battery before beginning installation. This device is intended for use with trailers equipped with electric brakes only. Do not exceed the towing capacity of your vehicle or trailer.
3. Pakkens indhold
The CURT TriFlex NEXT 51146 package includes:
- TriFlex NEXT Brake Controller Unit
4. Opsætning og installation
The TriFlex NEXT brake controller offers versatile mounting options and automatic leveling for simplified setup. A vehicle-specific CURT brake controller wiring harness (sold separately) is recommended for easy plug-and-play installation.
4.1. Monteringssted
Select a mounting location within your vehicle that is easily accessible to the driver, unobstructed, and allows for clear visibility of the display. The slim, low-profile design and unique bracket system provide improved dash clearance, allowing installation at any angle.
4.2. Ledningsforbindelse
For plug-and-play installation, connect the brake controller to your vehicle's existing brake control wiring harness. If your vehicle does not have a pre-installed harness, a universal wiring harness may be required (sold separately). Ensure all connections are secure.
4.3. Indledende kalibrering
The TriFlex NEXT features automatic leveling and calibration. Once installed and connected, the unit will self-calibrate. Refer to the operating instructions for specific details on verifying calibration and making initial adjustments.
5. Betjeningsvejledning
The TriFlex NEXT offers an easy-to-read display with full-text diagnostics and large buttons for intuitive operation.
5.1. Adjustable Settings
The controller provides fully adjustable power and ramp time with a range of gain and load settings. These settings allow you to match the brake controller's performance to your specific vehicle-trailer configuration and towing conditions.
- Forstærkningsindstilling: Adjusts the maximum braking power delivered to the trailer. Increase for heavier loads or more aggressive braking, decrease for lighter loads or less aggressive braking.
- Indstilling af belastning: Fine-tunes the ramp-up speed of the trailer brakes.
5.2. Triple-Axis Motion Sensing
The integrated triple-axis, motion-sensing accelerometer ensures smooth, responsive stops. The third axis dynamically adjusts power when driving on uphill or downhill terrain, optimizing braking performance without manual intervention.
5.3. Day/Night Modes
The display brightness can be adjusted for optimal visibility in both day and night driving conditions.
6. Vedligeholdelse
Regularly inspect all wiring connections for wear or damage. Ensure the brake controller unit is securely mounted. Keep the display clean and free from debris. No user-serviceable parts are inside the unit.
7. Fejlfinding
The TriFlex NEXT features full-text diagnostics and troubleshooting messages on its display to assist in identifying and resolving common issues. If a problem persists, consult the detailed troubleshooting section in the full product manual or contact CURT customer support.
- No Trailer Connected: Ensure the trailer is properly connected to the tow vehicle's wiring harness.
- Bremsefejl: Check trailer brake wiring and connections. Verify the tow vehicle's electrical system is functioning correctly.
- Visningsfejl: Refer to the full-text diagnostics on the display for specific error codes and recommended actions.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | 51146 |
| Aktiveringssystem | Proportional |

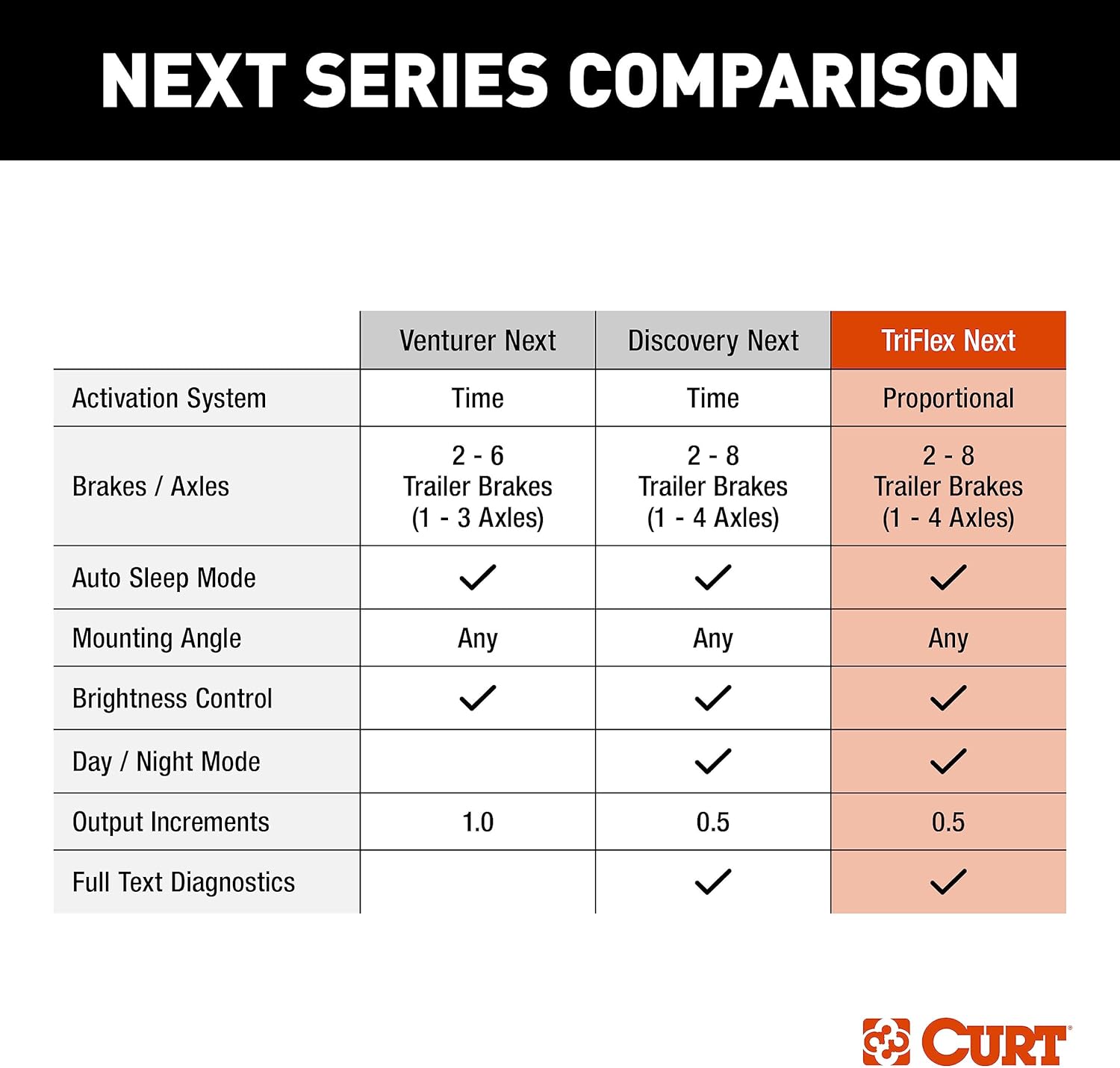

| Brakes / Axles Controlled | 2-8 Trailer Brakes (1-4 Axles) |
| Automatic Leveling & Calibration | Ja |
| Triple-Axis Motion Sensing | Ja |
| Reverse Polarity & Short-Circuit Protection | Ja |
| Display Type | Easy-to-read with full-text diagnostics |
| Adjustable Gain & Load Settings | Ja |
| Dag/nat tilstand | Ja |
| Dimensioner | 8.13 x 5.38 x 2.75 tommer |
| Varens vægt | 9.6 ounce |
9. Garanti og support
For warranty information or technical support, please refer to the documentation included with your product or visit the official CURT website. Contact information for customer service is typically provided in the product packaging or on the manufacturer's webwebsted.
10. Juridisk ansvarsfraskrivelse
The information provided is for general informational purposes only.
