Indledning
Thank you for choosing the MOD LIGHTING Jewels & Pearls Pendant Light Fixture. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read this manual thoroughly before installation and retain it for future reference.
Produktegenskaber
- Ideal for Any Space: Suitable for kitchens, kitchen islands, bedrooms, dining rooms, cafes, restaurants, and offices.
- Holdbar konstruktion: Made with high-quality aluminum and glass for longevity.
- Dæmpbar LED-pære inkluderet: Comes with a 12W, E26 LED bulb (3000K Warm White) compatible with standard dimmer switches.
- Adjustable Hanging Wire: Up to 47.2 inches (120 cm) to fit various ceiling heights.
- Nem installation: Designed for straightforward hardwiring with minimal assembly.
- Certificeringer: CCC, ROHS, CE Certified for safety and quality.
Sikkerhedsoplysninger
WARNING: Always turn off the power at the main circuit breaker before beginning any electrical installation.
- Sørg for, at alle elektriske forbindelser overholder lokale forskrifter og bestemmelser samt den nationale elektriske kode (NEC).
- Hvis du er usikker på elinstallationerne, bør du kontakte en autoriseret elektriker.
- Overskrid ikke det specificerede wattage for pæren.
- Håndter glaskomponenter forsigtigt for at forhindre brud.
- Hold emballagemateriale væk fra børn.
Pakkens indhold
Kontroller, at alle komponenter er til stede og ubeskadigede, før installationen påbegyndes.
- Pendant Light Fixture (1 unit)
- 12W E26 Dimmable LED Bulb (1 unit)
- Mounting Hardware Kit (including mounting bracket, screws, wire nuts)
- Instruktionsmanual
Billede: Overview of included components for the pendant light fixture.
Opsætning og installation
Følg disse trin omhyggeligt for korrekt installation. Professionel installation anbefales, hvis du ikke er bekendt med elektriske ledninger.
Nødvendige værktøjer (ikke inkluderet):
- Phillips hovedskruetrækker
- Trådstrippere
- Elektrisk tape
- Drill (if new holes are needed)
- Stige
Installationstrin:
- Sluk for strømmen: Før start skal du sørge for, at strømforsyningen til installationsområdet er afbrudt ved afbryderen.
- Forbered monteringsbeslag: Fastgør monteringsbeslaget til samledåsen i loftet med de medfølgende skruer. Sørg for, at det er sikkert fastgjort.
- Adjust Hanging Length: The pendant light features an adjustable hanging wire. Loosen the set screw on the canopy to adjust the cable length to your desired height (up to 47.2 inches / 120 cm). Tighten the set screw once the desired length is achieved.
- Ledningsforbindelser: Connect the fixture's wires to the corresponding wires from the junction box using wire nuts. Connect the live (black) wire to the live wire, the neutral (white) wire to the neutral wire, and the ground (green or bare copper) wire to the ground wire. Secure connections with electrical tape.
- Monteringsbeslag: Carefully push the fixture's canopy up to the ceiling, aligning the holes with the mounting bracket. Secure the canopy with the provided screws.
- Installer pære: Screw the included 12W E26 LED bulb into the socket.
- Gendan strøm: Tænd for strømmen igen ved hovedafbryderen.
Image: Step-by-step installation diagram for the pendant light.
Image: The pendant light highlighting its adjustable hanging length and dimmer compatibility.
Betjeningsvejledning
The MOD LIGHTING Jewels & Pearls Pendant Light Fixture is designed for simple operation.
- Tænd/sluk: Brug din almindelige vægkontakt til at tænde eller slukke lysarmaturet.
- Dæmpningsfunktion: If connected to a compatible dimmer switch, adjust the dimmer to control the brightness of the light. The included LED bulb is dimmable.
- Lys farvetemperatur: The included bulb provides a Warm White (3000K) light, ideal for creating an inviting ambient glow.
Image: Illustration of Warm White (3000K) and Cool White (6000K) light options, though this model comes with 3000K.
Opretholdelse
Regular maintenance will help prolong the life and appearance of your light fixture.
- Rensning: Turn off the power before cleaning. Use a soft, dry cloth to wipe down the fixture. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Udskiftning af pære: Ensure the power is off and the bulb has cooled before attempting to replace it. Use only E26 base LED bulbs, preferably dimmable, to maintain compatibility and performance.
- Inspektion: Kontrollér regelmæssigt alle forbindelser og monteringsudstyr for at sikre, at de forbliver fastgjorte.
Fejlfinding
Hvis du støder på problemer med din lampe, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power supply; Loose wiring; Faulty bulb. | Check circuit breaker; Verify wire connections (power off); Replace bulb. |
| Lyse flimrer. | Løs pære; Inkompatibel lysdæmper; Løs ledningsføring. | Tighten bulb; Ensure dimmer is LED compatible; Check wire connections (power off). |
| Lyset er for svagt eller for klart. | Dimmer setting; Incorrect bulb wattage. | Adjust dimmer; Ensure correct bulb wattage bruges. |
If the problem persists after trying these solutions, please contact MOD LIGHTING customer support.
Specifikationer
| Mærke | MOD BELYSNING |
| Modelnavn | Jewels & Pearls |
| Modelnummer | MOD018-GD-B-WW |
| Farve | Gold (Oval) |
| Materiale | Glas, jern |
| Produktdimensioner | 20.32 cm L x 15.24 cm B x 40.64 cm H (8 cm L x 6 cm B x 16 cm H) |
| Adjustable Hanging Wire | Op til 47.2 tommer (120 cm) |
| Lyskildetype | LED |
| Wattage | 12 watt |
| Lysstyrke | 1000 lumen |
| Farvetemperatur | 3000 Kelvin (varm hvid) |
| Pære base | E26 |
| Voltage | 120 volt (AC) |
| Certificeringer | CCC, ROHS, CE |
| Varens vægt | 3.04 pund (1.38 kg) |
| UPC | 810143080247 |
Garanti og support
MOD LIGHTING stands behind the quality of its products.
- Produktgaranti: This product comes with a 1-year product warranty.
- Support efter salg: Lifetime after-sale support is provided.
- Kontakt support: For any installation questions or support needs, please contact MOD LIGHTING customer service. Refer to the product packaging or the MOD LIGHTING webwebsted for kontaktoplysninger.
Yderligere oplysninger

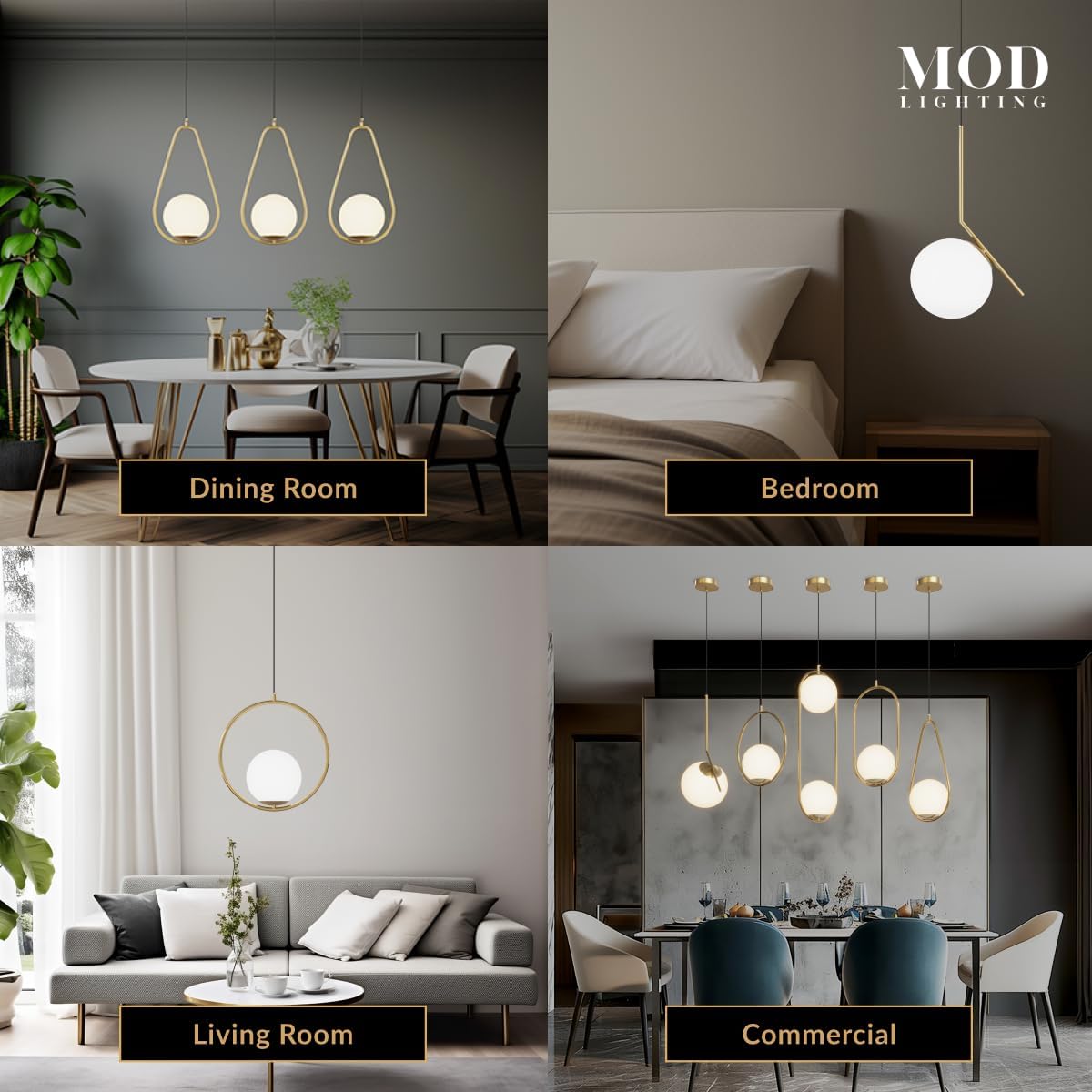

Produktanvendelse Eksamples
Image: Pendant light used in a dining room.
Image: Pendant light used in a bedroom.
Image: Pendant light used in a living room.
Image: Pendant light used in a commercial space.
Produktvideo overståetview
No official seller videos are available for this product in the provided data.
