Toro OEM V-Belt 110-5759 Instruction Manual

1. Introduktion

This instruction manual provides essential information regarding the Toro OEM V-Belt, part number 110-5759. It covers product overview, compatibility, general installation guidelines, maintenance, and specifications. Proper installation and maintenance are crucial for the optimal performance and longevity of your equipment.

2. Produktet er slutview

The Toro OEM V-Belt 110-5759 is a genuine replacement part designed for specific Toro Z Master Mowers. V-belts are critical components in power transmission systems, transferring power from the engine to various mower functions, such as the cutting deck or drive system. This belt is manufactured to Toro's original equipment specifications, ensuring proper fit and performance.

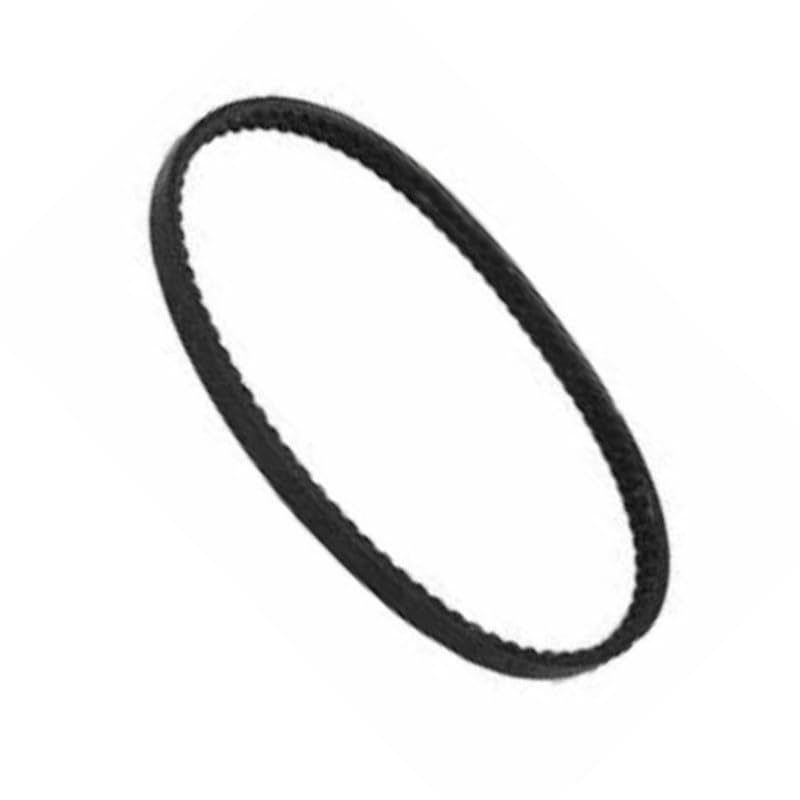

Image: A black V-belt, designed for power transmission in lawn mowers. This is the Toro OEM V-Belt part number 110-5759.

3. Kompatibilitet

This Toro OEM V-Belt (Part # 110-5759) is compatible with the following Toro Z Master Mower models:

• Z580/Z589 60" & 72" Z Master Mowers
• Model 74253
• Model 74253CP
• Model 74254
• Model 74254CP

Always verify the part number against your equipment's owner's manual or parts diagram to ensure correct fitment.

4. Installationsvejledning

Sikkerhed først: Before attempting any installation or maintenance, ensure the mower engine is off, the spark plug wire is disconnected, and all moving parts have come to a complete stop. Refer to your mower's specific owner's manual for detailed safety precautions and installation procedures.

1. Forberedelse: Park the mower on a flat, level surface. Engage the parking brake. Disconnect the spark plug wire to prevent accidental starting.
2. Adgang: Depending on the belt's location (e.g., deck belt, drive belt), you may need to remove the mower deck or access panels. Consult your mower's manual for specific access instructions.
3. Fjern gammel rem: Carefully release any tensioners or idler pulleys to loosen the old belt. Note the routing path of the old belt before removal, as this will be crucial for installing the new one.
4. Installer ny rem: Route the new Toro OEM V-Belt 110-5759 exactly as the old belt was routed. Ensure the belt is seated correctly in all pulley grooves.
5. Spænding: Re-engage any tensioners or idler pulleys. The belt should be taut but not overly tight. Refer to your mower's manual for proper belt tension specifications.
6. Verifikation: Manually rotate the pulleys to ensure the belt moves freely and does not bind. Reconnect the spark plug wire.
7. Prøve: Start the mower and engage the relevant function (e.g., PTO for the deck) at a low speed in a safe area to confirm proper operation.

Hvis du er usikker på et trin, anbefales det at konsultere en kvalificeret servicetekniker.

5. Operation Considerations

Once installed, the V-belt operates as an integral part of your mower's power transmission system. Ensure that the belt is free from obstructions and that all guards are properly in place before operating the mower. Listen for unusual noises, which could indicate a problem with the belt or associated components.

6. Vedligeholdelse

Regular inspection and maintenance of your V-belt will extend its lifespan and ensure consistent mower performance.

• Visuel inspektion: Periodically inspect the belt for signs of wear, cracks, fraying, glazing, or missing sections. Check for proper tension; a loose belt can slip, while an overly tight belt can cause premature wear on bearings.
• Rensning: Keep the belt and pulleys free from dirt, grass clippings, oil, and other debris. Contaminants can cause slippage and accelerate wear.
• Opbevaring: If the mower is stored for an extended period, ensure the belt is not under excessive tension.
• Udskiftning: Replace the belt if any signs of significant wear or damage are observed. Using a worn belt can lead to decreased performance and potential damage to other mower components.

7. Fejlfinding

Common issues related to V-belts and potential causes:

• Bæltet glider: May be caused by insufficient tension, worn belt, glazed belt, or oil/grease on the belt or pulleys.
• Overdreven støj (hvinende/skrigende): Often indicates a loose or worn belt, misaligned pulleys, or a seized bearing in a pulley.
• Belt Breaking Prematurely: Can result from incorrect tension (too tight), misaligned pulleys, foreign objects, or using an incorrect belt type.
• Vibration: Could be due to an unbalanced or damaged belt, or worn pulleys.

Always address these issues promptly to prevent further damage to your equipment.

8. Specifikationer

9. Garanti og support

For information regarding warranty coverage for this genuine Toro OEM part, please refer to the official Toro warranty documentation provided with your original equipment or visit the official Toro website. For technical support or further assistance, contact an authorized Toro service dealer.
