1. Introduktion
Thank you for choosing the Kalamera KRC-75BSS 19-Bottle Dual Zone Wine Refrigerator. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read these instructions thoroughly before use and retain them for future reference.
The Kalamera KRC-75BSS is designed to store up to 19 standard 0.75-liter wine bottles, featuring two independent temperature zones to accommodate both red and white wines. Its compressor technology ensures stable temperatures with minimal vibration and quiet operation.
Billede 1.1: Forside view of the Kalamera KRC-75BSS wine refrigerator with bottles stored inside.
2. Sikkerhedsoplysninger
Følg disse grundlæggende forholdsregler for at reducere risikoen for brand, elektrisk stød eller skade, når du bruger dit apparat:
- Læs alle instruktioner før brug af apparatet.
- Do not allow children to operate, play with, or crawl inside the appliance.
- Rengør aldrig apparatets dele med brændbare væsker. Dampene kan skabe brandfare eller eksplosion.
- Opbevar eller brug ikke benzin eller andre brændbare dampe og væsker i nærheden af dette eller noget andet apparat. Dampene kan skabe brandfare eller eksplosion.
- Sørg for, at apparatet er korrekt jordet.
- Tag stikket ud af stikkontakten før rengøring eller reparationer.
- Beskadig ikke kølemiddelkredsløbet.
- Dette apparat er kun beregnet til husholdningsbrug.
3. Produktet er slutview og funktioner
The KRC-75BSS wine refrigerator is designed for optimal wine storage with user-friendly features.
Nøglefunktioner:
- Dobbelte temperaturzoner: Separate zones for red and white wines (Upper: 5-10°C, Lower: 10-18°C).
- Kompressorkøling: Provides consistent cooling with low vibration and quiet operation (41 dB).
- LED Digital Display & Touch Control Panel: Easy temperature adjustment and monitoring.
- White LED Interior Lighting: Illuminates your wine collection.
- 7 Removable Solid Beech Wood Shelves: Securely hold bottles and allow for flexible storage.
- Aktivt kulfilter: Helps maintain optimal air quality inside the cabinet.
- Temperature Storage Function: Resets to the last set temperature after a power outage.
- Stainless Steel Glass Door: Elegant design with an invisible handle.
Image 3.1: Diagram highlighting key features including removable wooden shelves, white LED light, invisible handle, and stainless steel door hinge.
Billede 3.2: Nærbillede view of wine bottles resting on the solid beech wood shelves.
Image 3.3: Illustration emphasizing the quiet operation and low vibration of the compressor system, suitable for living spaces.
4. Opsætning og installation
Udpakning af dit apparat:
- Remove all packaging materials. Keep the original packaging if possible, in case you need to transport the appliance in the future.
- Fjern eventuel beskyttelsesfilm fra de udvendige og indvendige overflader.
- Rengør den indvendige overflade med lunkent vand og en blød klud.
Placering og placering:
- This appliance is designed for freestanding installation. It can also be placed under a counter, ensuring adequate ventilation.
- Place the appliance on a flat, solid surface strong enough to support it when fully loaded.
- Allow at least 10 cm (4 inches) of space at the back and sides for proper air circulation.
- Avoid placing the appliance in direct sunlight or near heat sources (e.g., oven, heater, radiator).
- Sørg for, at omgivelsestemperaturen er inden for det anbefalede område for optimal ydeevne.
Image 4.1: The wine refrigerator installed under a kitchen counter, demonstrating its compact fit.
Image 4.2: The wine refrigerator placed freestanding in a room, showcasing its versatile placement options.
Nivellering af apparatet:
The appliance has adjustable legs. Turn the legs clockwise or counter-clockwise to level the unit. Proper leveling is important to reduce vibration and ensure proper door closure.
Elektrisk tilslutning:
Før du tilslutter apparatet, skal du sørge for at lydstyrken ertage and frequency indicated on the rating label match your household power supply. Connect the appliance to a dedicated, grounded wall outlet. Do not use extension cords or ungrounded adapters.
5. Betjeningsvejledning
Kontrolpanel:
The control panel is located inside the appliance, between the upper and lower zones. It features an LED display and touch controls for temperature adjustment and lighting.
Image 5.1: Close-up of the control panel, showing temperature settings for the upper and lower zones, and the temperature memory function.
Indstilling af temperatur:
- Tryk på UP or NED arrows for the respective zone (Upper or Lower) to adjust the desired temperature.
- The upper zone temperature range is 5-10°C (41-50°F).
- The lower zone temperature range is 10-18°C (50-64°F).
- The display will flash while setting and then show the current internal temperature once set.
Temperaturhukommelsesfunktion:
I tilfælde af en magt outage, the appliance will automatically restore the last set temperature for both zones once power is re-established.
Indvendig belysning:
Tryk på LYS button on the control panel to turn the interior white LED light on or off.
Loading Bottles:
The wooden shelves are removable to accommodate different bottle sizes. Ensure bottles are placed securely to prevent rolling. Avoid overloading the shelves.

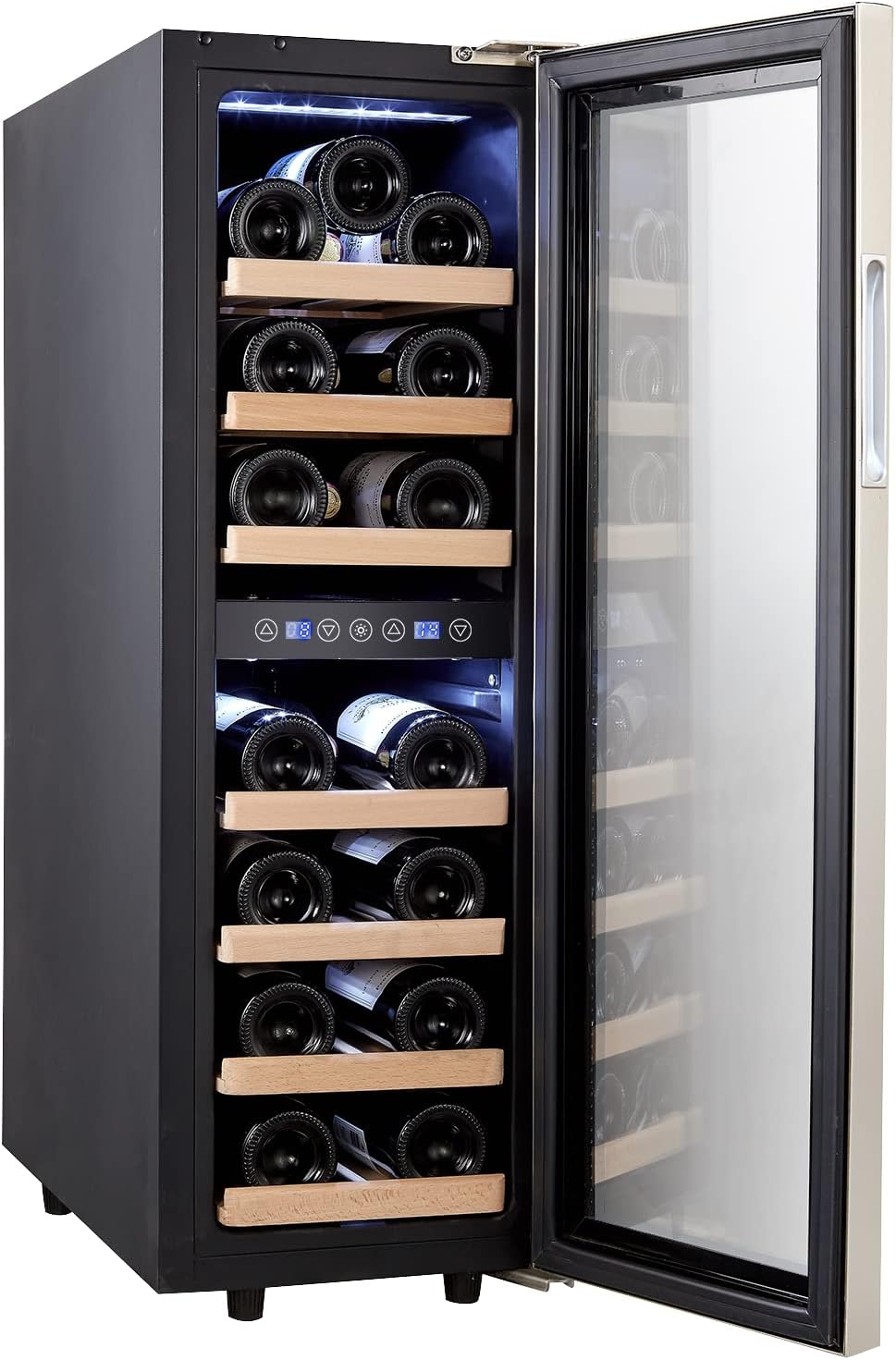

Image 5.2: The wine refrigerator with its door open, revealing the interior layout and wooden shelves.
6. Vedligeholdelse og rengøring
Rengøring af interiøret:
- Tag altid stikket ud af stikkontakten før rengøring.
- Wash the interior with a mild detergent and warm water solution.
- Remove the wooden shelves and clean them separately with a damp cloth. Dry thoroughly before returning them to the unit.
- Brug ikke slibende rengøringsmidler eller opløsningsmidler.
Rengøring af ydersiden:
- Rengør ydersiden med en blød klud og et mildt rengøringsmiddel.
- For the stainless steel door frame, use a stainless steel cleaner if necessary, following the product instructions.
- Rengør dørpakningen regelmæssigt for at sikre korrekt tætning.
Aktivt kulfilter:
The activated carbon filter helps to purify the air inside the wine refrigerator. It should be replaced periodically (typically every 3-6 months) to maintain effectiveness. Refer to the manufacturer's guidelines for replacement parts.
afrimning:
This appliance features a manual defrost system. Frost buildup is generally minimal. If significant frost accumulates, unplug the unit, remove bottles and shelves, and allow the frost to melt naturally. Wipe away excess water and dry the interior thoroughly before restarting.
7. Fejlfinding
Før du kontakter kundeservice, bedes du kontrollere følgende almindelige problemer:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Apparatet fungerer ikke. | Ikke tilsluttet; afbryder udløst; strømafbrydelsetage. | Sørg for, at stikket er sikkert fastgjort; kontroller afbryderen; verificer strømforsyningen. |
| Temperaturen er ikke kold nok. | Door not closed properly; excessive door opening; warm ambient temperature; poor ventilation; temperature setting too high. | Check door seal; reduce door openings; ensure proper ventilation; lower temperature setting. |
| Appliance is making too much noise. | Appliance not leveled; loose parts; bottles rattling. | Adjust leveling legs; check for loose components; ensure bottles are stable on shelves. |
| Vibration. | Appliance not leveled. | Juster nivelleringsbenene. |
| Døren lukker ikke ordentligt. | Appliance not leveled; door gasket dirty or damaged; shelves out of position. | Level the appliance; clean or replace gasket; reposition shelves. |
8. Specifikationer
Detailed specifications for the Kalamera KRC-75BSS wine refrigerator:
Image 8.1: Diagram illustrating the external and internal dimensions of the wine refrigerator.
- Model: KRC-75BSS
- Kapacitet: 19 Bottles (0.75 liters each), 75 Litres
- Produktmål (B x D x H): 29.5 x 57 x 88 cm (including rubber feet)
- Vægt: 29.5 kg
- Upper Compartment Internal Dimensions (W x H x D): 21.4 x 34.7 x 43.5 cm
- Lower Compartment Internal Dimensions (W x H x D): 21.4 x 38.8 x 43.5 cm
- Temperaturzoner: Upper: 5-10°C; Lower: 10-18°C
- Støjniveau: 41 dB
- Årligt energiforbrug: 119 kWh
- Energiklasse: G
- Kølevæske: R600a
- Voltage: 220 volt (AC)
- Wattage: 115 watt
- Installationstype: Frit stående
- Hyldemateriale: Wood (7 removable solid beech wood shelves)
- Dørmateriale: Stainless steel + glass
- Særlige funktioner: Activated Carbon Filter, Height-adjustable legs, LED Digital Display, Stainless Steel Glass Door
Image 8.2: Energy label for the Kalamera KRC-75BSS, showing energy class G, annual consumption of 119 kWh, 19 bottle capacity, and 41 dB noise level. For more details, refer to the EPREL database: https://eprel.ec.europa.eu/qr/101445
9. Garanti og support
Kalamera provides customer support for product inquiries and issues. In case of shipment damage or product problems, please contact the Kalamera service team directly.
- E-mail: sales@kalamera.com
Please have your model number (KRC-75BSS) and purchase information ready when contacting support.
