Indledning
The Kidde Mariner 5 Fire Extinguisher is designed for use on boats to combat common marine fires, specifically those involving flammable liquids and gases (Class B) and electrical equipment (Class C). This manual provides essential information on the proper use, installation, maintenance, and specifications of your fire extinguisher to ensure optimal safety and performance.
Image: Kidde Mariner 5 Fire Extinguisher, showing the product and its packaging.
Produktegenskaber
- Fire Class Compatibility: Effective against Class B (flammable liquids and gases) and Class C (electrical equipment) fires, making it suitable for marine environments.
- Korrosionsbestandighed: Engineered with durable aluminum and stainless steel components for enhanced resistance to corrosion, crucial for marine applications.
- Quick and Powerful Discharge: Features a discharge time of 8-12 seconds and a discharge range of 4-6 feet, operating at 100 PSI.
- Easy-to-Read Pressure Indicator: A clear gauge indicates if the extinguisher is charged, with the arrow pointing to the green area for readiness.
- Konstruktion helt i metal: Includes a metal valve assembly, rust and impact-resistant stainless-steel handle and lever, and an easy-pull safety pin for reliable operation.
- US Coast Guard (USCG) Approved: Meets USCG standards for marine safety equipment.
- UL-listet: Certified by Underwriters Laboratories for safety and performance.
- Inkluderet tilbehør: Comes with a UL-approved plastic strap bracket for convenient mounting.
- Fire Fighting Agent: Contains 2 lbs. of sodium bicarbonate dry chemical agent.
Image: Illustration highlighting 12 times more corrosion resistance compared to a standard fire extinguisher.
Image: Visual representation of fire types the extinguisher is effective against: Class B (flammable liquids & gases) and Class C (energized electrical equipment).

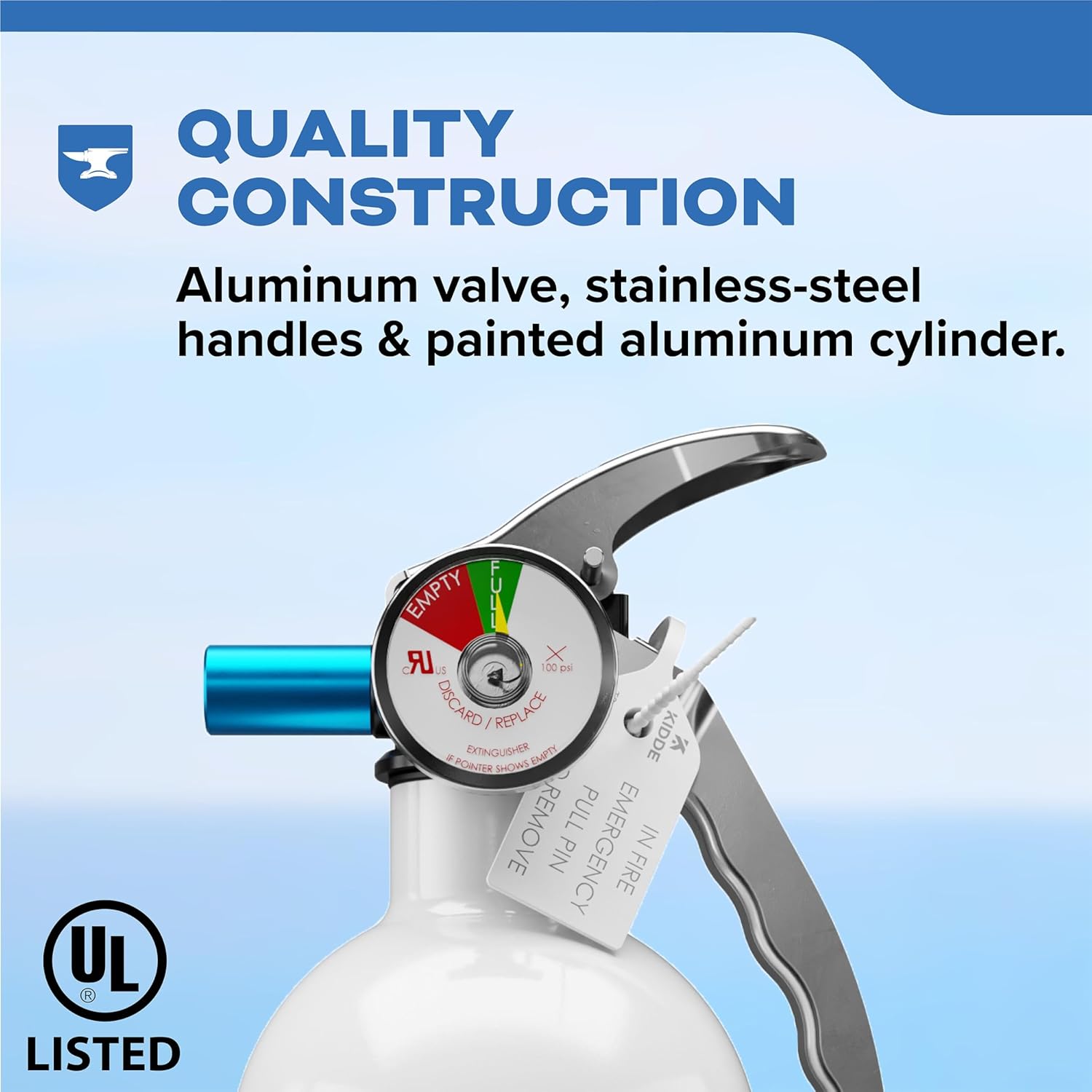

Image: Detail of the fire extinguisher highlighting its quality construction, including aluminum valve and stainless-steel handles.
Sikkerhedsoplysninger
Always prioritize safety when handling fire extinguishers. Ensure the extinguisher is easily accessible in an emergency. Recreational boats over 26 feet may require more than one fire extinguisher. Place the extinguisher within easy reach where fires are most likely to start.
The dry chemical agent in this fire extinguisher is non-toxic and will not damage metal surfaces. However, it may cause skin irritation upon contact. Avoid direct exposure to skin and eyes. In case of contact, rinse thoroughly with water.
Image: A boat on the water, indicating the product is US Coast Guard Approved. The extinguisher must be installed with the included UL approved strap bracket.
Opsætning og installation
The Kidde Mariner 5 Fire Extinguisher comes with a UL-approved plastic strap bracket for secure mounting. Choose a location that is easily accessible in case of a fire, yet protected from extreme temperatures or direct sunlight. Ensure the mounting surface is sturdy enough to support the extinguisher's weight.
- Select a suitable mounting location on your boat.
- Position the strap bracket and mark the drilling points.
- Drill pilot holes if necessary, then secure the bracket using appropriate fasteners (not included).
- Place the fire extinguisher into the strap bracket, ensuring it is held firmly in place.
Image: The Kidde Mariner 5 Fire Extinguisher shown alongside its included plastic strap bracket for mounting.
Operating Instructions (PASS Method)
In the event of a fire, follow the P.A.S.S. method for effective fire suppression:
- P - Pull the Pin: Hold the extinguisher with the nozzle pointing away from you. Pull the safety pin located at the top of the extinguisher.
- A - Aim at the Base of the Fire: Stand a safe distance from the fire (approximately 4-6 feet). Aim the nozzle at the very bottom of the fire, not the flames.
- S - Squeeze the Lever: Squeeze the operating lever slowly and evenly to discharge the extinguishing agent.
- S - Sweep Side to Side: While squeezing the lever, sweep the nozzle from side to side, covering the entire area of the fire's base until the fire is extinguished.
Always ensure the fire is completely out before leaving the area. If the fire re-ignites, repeat the process if safe to do so, or evacuate immediately and call emergency services.
Image: A hand demonstrating how to easily pull the safety pin from the fire extinguisher.
Image: A visual guide detailing the four steps of the P.A.S.S. (Pull, Aim, Squeeze, Sweep) method for operating a fire extinguisher.
Opretholdelse
Regular inspection and maintenance are crucial to ensure your fire extinguisher is ready for use when needed.
- Trykkontrol: Inspect the pressure indicator monthly. The arrow should always be in the green area, indicating the extinguisher is fully charged. If the arrow is in the red ("EMPTY" or "RECHARGE") area, the extinguisher is not ready for use and must be replaced.
- Fysisk inspektion: Check for any signs of damage, corrosion, or tampering. Ensure the nozzle is clear and unobstructed.
- Safety Pin and Seal: Verify that the safety pin is intact and the tampforseglingen er ubrudt.
- Bortskaffelse og udskiftning: Dispose of and replace the fire extinguisher if it has been used, discharged, or if it is over 12 years old. Single-use fire extinguishers do not require 6-year internal examinations per NFPA 10, but annual external examinations and corrective actions are required.
Billede: Et nærbillede view of the pressure indicator, showing the green "FULL" zone for a charged extinguisher.
Image: The base of the fire extinguisher, indicating where to check for the manufacture year for service life tracking.
Fejlfinding
- Lavt tryk: If the pressure indicator is not in the green zone, the extinguisher is undercharged and must be replaced immediately. Do not attempt to recharge it yourself.
- Damaged Extinguisher: If the extinguisher shows signs of physical damage, corrosion, or if the safety pin or tamper seal is broken, it should be replaced.
- Discharge Issues: If the extinguisher does not discharge when the lever is squeezed (after pulling the pin), ensure the nozzle is not blocked. If it still fails, replace the unit.
Specifikationer
| Modelnummer | MAR5 |
| Varens vægt | 3.2 pund |
| Produktmål (L x B x H) | 3.25 x 3.25 x 11.3 tommer |
| Agent vægt | 2 lbs. (Sodium Bicarbonate) |
| Udladningstid | 8-12 sekunder |
| Udledningsområde | 4-6 fod |
| Driftstryk | 100 PSI |
| Materiale | Dual-Purpose Dry Chemical, Powder Coated Aluminum |
| Inkluderede komponenter | Fire Extinguisher, Plastic Strap Bracket |
| UL vurdering | 5-B:C |
Image: Diagram illustrating the dimensions (11.3 inches height, 4.65 inches width) and weight (2 lbs agent, 3.3 lbs total) of the fire extinguisher.
Garanti og support
The Kidde Mariner 5 Fire Extinguisher comes with a 12-year limited manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use and service.
For quick access to online registration, warranty details, and additional product information, you can scan the QR code located on the product label.
Image: A seal indicating the product is covered by a 12-year limited warranty.
Image: The QR code on the fire extinguisher, which can be scanned to access online registration, warranty, and product information.
For further assistance or inquiries, please visit the official Kidde webwebsted eller kontakt deres kundesupport.
