1. Introduktion og sikkerhedsoplysninger
The Kidde Pro 460 Fire Extinguisher is designed for commercial and residential use, providing effective protection against common types of fires. This manual provides essential information for the proper installation, operation, maintenance, and care of your fire extinguisher.
It is crucial to read and understand all instructions before using this product. Failure to follow these instructions may result in property damage, serious injury, or death.
Fire Classifications
The Kidde Pro 460 is a multi-purpose dry chemical extinguisher rated 3-A:40-B:C, suitable for the following fire types:
- Class A Fires: Involve ordinary combustible materials such as wood, paper, cloth, trash, and plastics.
- Class B Fires: Involve flammable liquids and gases such as gasoline, oil, paint, propane, and natural gas.
- Class C Fires: Involve energized electrical equipment such as appliances, wiring, and circuit breakers.

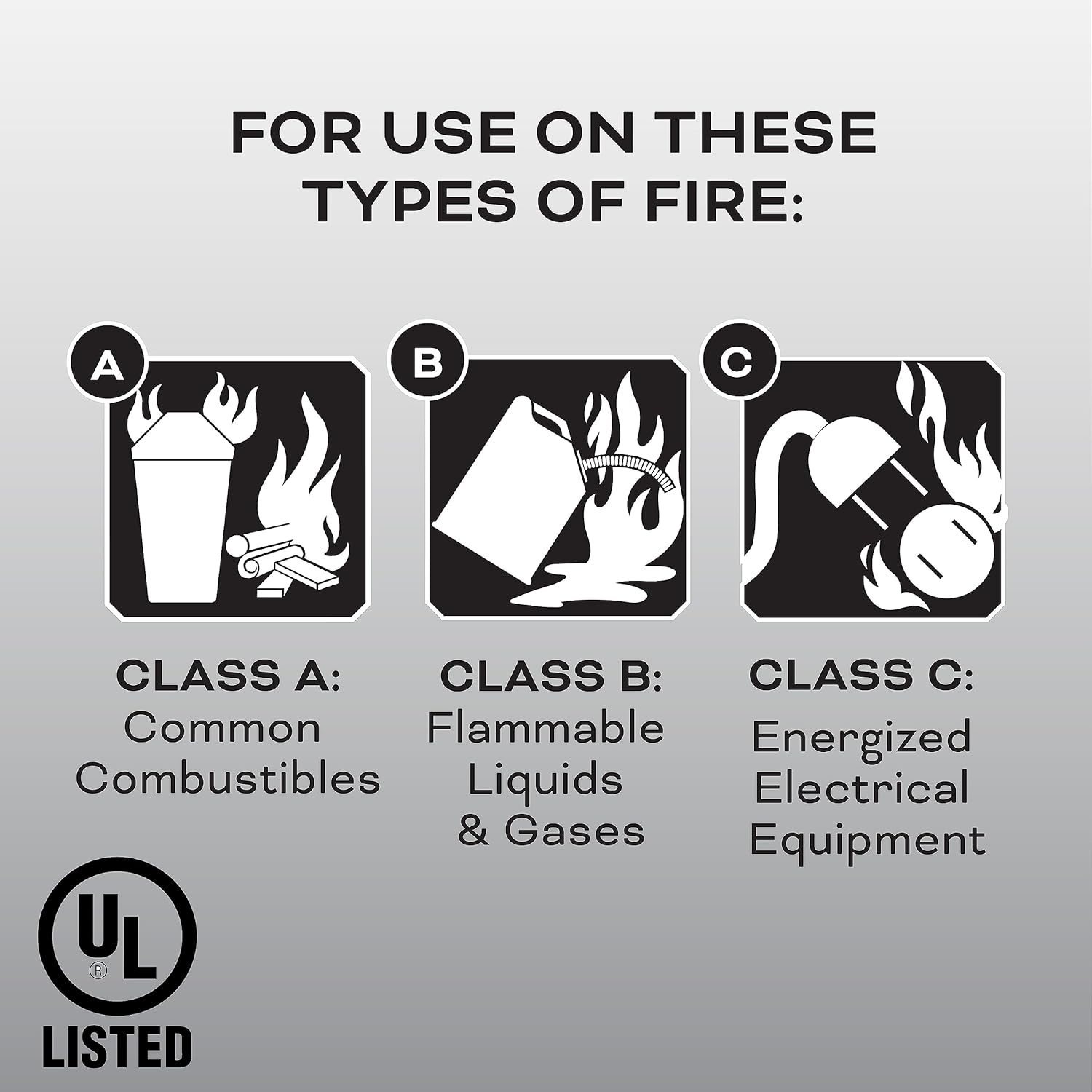

Figure 1.1: Types of fires the Kidde Pro 460 is effective against, including Class A (common combustibles), Class B (flammable liquids and gases), and Class C (energized electrical equipment).
2. Produktfunktioner og komponenter
The Kidde Pro 460 Fire Extinguisher is built with durable materials and designed for ease of use and reliability.
- Holdbar konstruktion: Features a corrosion-resistant aluminum cylinder, metal valve, and painted aluminum handles.
- Easy-to-Read Pressure Gauge: Indicates the extinguisher's charge status.
- Easy-to-Pull Safety Pin: Designed for quick removal in an emergency.
- Hose and Wall Mount: Included for convenient storage and accessibility.
- Refillable and Reusable: Can be recharged by a certified professional after use.
Figure 2.1: Detail of the Kidde Pro 460's quality construction, highlighting the metal valve and durable handles.
Figure 2.2: The pressure gauge indicates the extinguisher is fully charged when the arrow is within the green area.
3. Opsætning og installation
Proper placement and installation are critical for quick access during an emergency.
- Pakker ud: Carefully remove the fire extinguisher and wall hanger from its packaging.
- Inspicere: Before installation, inspect the extinguisher for any signs of damage. Ensure the pressure gauge needle is in the green "Charged" area.
- Vælg placering: Select a visible, easily accessible location, preferably near an exit, and away from potential fire hazards. Consider placing one on each level of your home or business, and in areas like the kitchen, garage, or workshop.
- Montering: Use the included wall hanger to securely mount the extinguisher. Ensure it is mounted at a height that allows for easy removal by all intended users.
Figure 3.1: The Kidde Pro 460 mounted on a wall using the included wall hanger for easy access.
General Safety Product Placement Guide
Figure 3.2: Recommended placement guidelines for fire extinguishers and other safety products within a typical home layout.
4. Operating Instructions (P.A.S.S. Method)
In the event of a fire, remember the P.A.S.S. method for effective fire extinguisher operation:
- P - Pull the Pin: Hold the extinguisher with the nozzle pointing away from you. Pull the safety pin from the handle. The tamper seal will break.
- A - Aim at the Base of the Fire: Stand back approximately 8 feet from the fire. Aim the nozzle or hose at the base of the fire, not the flames.
- S - Squeeze the Lever: Squeeze the operating lever slowly and evenly to discharge the extinguishing agent.
- S - Sweep Side to Side: Sweep the nozzle from side to side, covering the entire area of the fire. Continue until the fire is completely out. Watch the area in case of re-ignition.
Figure 4.1: Visual guide to the P.A.S.S. method for operating the fire extinguisher.
Figure 4.2: The easy-to-pull safety pin must be removed before operation. Keep the tamper seal in place until an emergency.
5. Vedligeholdelse og pleje
Regular maintenance ensures your fire extinguisher remains ready for use.
- Månedlig inspektion:
- Check the pressure gauge: The needle should be in the green "Charged" area.
- Inspect for physical damage: Look for dents, corrosion, or a clogged nozzle.
- Ensure the safety pin is intact and the tampforseglingen er ubrudt.
- Verify the extinguisher is easily accessible and its path is unobstructed.
- Professionel servicering: The Kidde Pro 460 is refillable and reusable. After any use, or if the pressure gauge indicates a loss of pressure, the extinguisher must be recharged by a certified fire equipment professional.
- Fremstillingsdato: The manufacturing date is located on the bottom of the cylinder. Service is required every 6 years from this date, or after each use if used prior to the 6-year date.
Figure 5.1: The Kidde Pro 460 is designed to be refilled and reused by a certified professional.
Figure 5.2: The manufacturing date is stamped on the bottom of the cylinder, indicating when professional service is due.
6. Fejlfinding
This section addresses common issues you might encounter with your fire extinguisher.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pressure gauge needle is not in the green area. | Loss of pressure, possibly due to a leak or previous partial discharge. | Do not attempt to recharge yourself. Have the extinguisher inspected and recharged by a certified professional. Replace if unserviceable. |
| Safety pin is missing or tamper seal is broken. | Accidental removal or tampering. | If the pressure gauge is still in the green, the extinguisher may still be functional, but it is recommended to have it inspected by a professional. If pressure is lost, recharge or replace. |
| Nozzle is clogged or damaged. | Debris or physical damage. | Do not attempt to clear the nozzle yourself. Have the extinguisher inspected and serviced by a certified professional. |
| Extinguisher shows signs of corrosion or significant dents. | Environmental exposure or physical impact. | Do not use. Replace the extinguisher immediately. |
Vigtig: For any issue related to pressure loss or physical damage, always consult a certified fire equipment professional. Do not attempt to repair the extinguisher yourself.
7. Specifikationer
Detailed technical specifications for the Kidde Pro 460 Fire Extinguisher:
- Modelnummer: Pro460
- UL-vurdering: 3-A:40-B:C
- Agent Type: Monoammonium Phosphate (Dry Chemical)
- Agent Weight: 10 lbs
- Samlet enhedsvægt: Cirka 17 lbs
- Udledningstid: 19 til 22 sekunder
- Discharge Range: 20 fod
- Driftstryk: 195 PSI
- Dimensioner (H x B x D): 18.75 x 5.21 x 5.21 tommer
- Materiale: Aluminum cylinder, metal valve, painted aluminum handles
- Inkluderede komponenter: Fire Extinguisher, Wall Hanger
- Batterier påkrævet: Ingen
- USCG Approved: Yes, with strap bracket (not included)
Figure 7.1: Agent and total weight of the Kidde Pro 460 Fire Extinguisher.

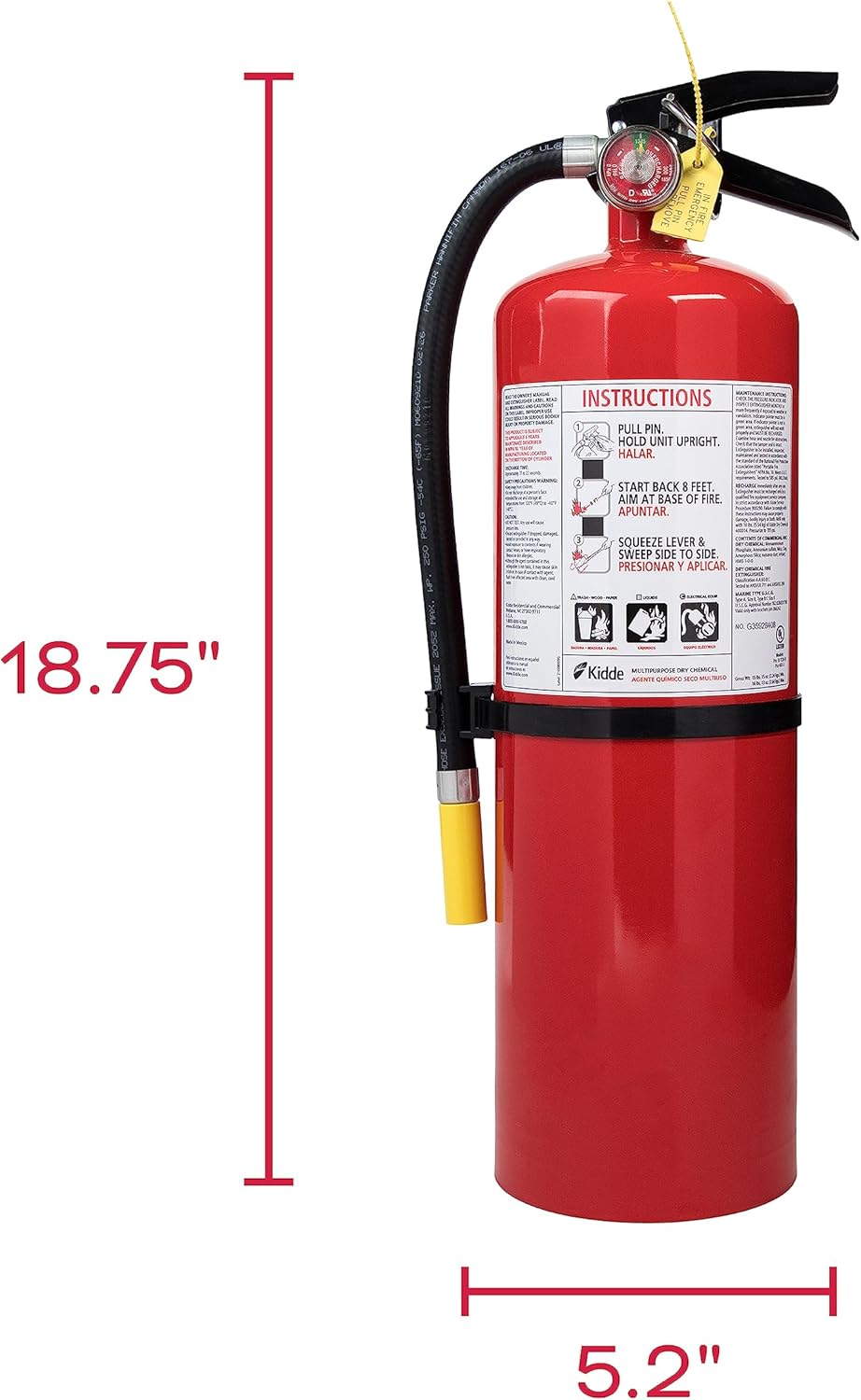

Figure 7.2: Key dimensions of the Kidde Pro 460 Fire Extinguisher.
8. Garanti og support
The Kidde Pro 460 Fire Extinguisher comes with a manufacturer's warranty and dedicated support.
Begrænset producentgaranti
Dette produkt er bakket op af en 6 års begrænset producentgarantiDenne garanti dækker materiale- og fabrikationsfejl ved normal brug og service. Gem venligst din købsbevis i tilfælde af garantikrav.
Figure 8.1: The Kidde Pro 460 Fire Extinguisher is covered by a 6-year limited manufacturer's warranty.
Kundesupport
For technical assistance, warranty inquiries, or to locate a certified professional for servicing or recharging your fire extinguisher, please visit the official Kidde website or contact their customer service department. Always refer to the contact information provided on the product packaging or the official Kidde webwebstedet for de seneste supportoplysninger.
Du kan finde flere oplysninger og supportressourcer ved at besøge Kidde Store on Amazon.
