VIVOHOME Level 2 Portable EV Charger (Model VH1239US)

1.Overview

The VIVOHOME Level 2 Portable EV Charger is designed to provide efficient and safe charging for your electric vehicle. Featuring a 32A, 240V capacity and a NEMA 14-50 plug, this charger offers fast charging speeds, allowing for approximately 44 miles of driving range per hour of charge. It includes a smart screen for real-time monitoring and adjustable current settings to suit various charging needs. The portable design, coupled with a 23.2ft charging cable, ensures convenience for both home and on-the-go use.

Image 1: VIVOHOME Level 2 Portable EV Charger components.

2. Pakkens indhold

Bekræft at alle varer er til stede i pakken:

• Brugsanvisning x 1
• Charging Gun (J1772 Connector) x 1
• Opbevaringspose x 1

3. Opsætningsvejledning

3.1 Connecting the Charger to Power

1. Ensure the NEMA 14-50 plug is clean and free of debris.

2. Insert the NEMA 14-50 plug into a compatible 240V NEMA 14-50 wall outlet. Ensure the connection is secure.

3. The charger's control box will power on, and the smart screen will display standby information.

Video 1: Demonstration of unboxing, plugging the charger into a NEMA 14-50 outlet, and connecting to an EV.

3.2 Tilslutning til dit elbil

1. Open the charging port cover on your electric vehicle.

2. Take the J1772 charging connector and firmly insert it into your vehicle's charging port until it clicks into place. For Tesla vehicles, an appropriate adapter (not included) is required.

3. Once connected, the charger will initiate the charging process, and the smart screen will update to show active charging status.

Image 2: Portable EV charger connected to an electric vehicle.

4. Betjeningsvejledning

4.1 Justering af ladestrøm

The charger allows you to adjust the charging current to optimize for your vehicle's needs or available power supply. To change the current:

1. Ensure the charger is in standby mode (not actively charging).
2. Press and hold the 'A' button on the control box for 3 seconds. This prevents accidental changes during charging.
3. Briefly press the 'A' button to cycle through available current settings: 10A, 16A, 20A, 24A, 32A.
4. The selected current will be displayed on the screen. The charger will use this setting for subsequent charging sessions until changed again.

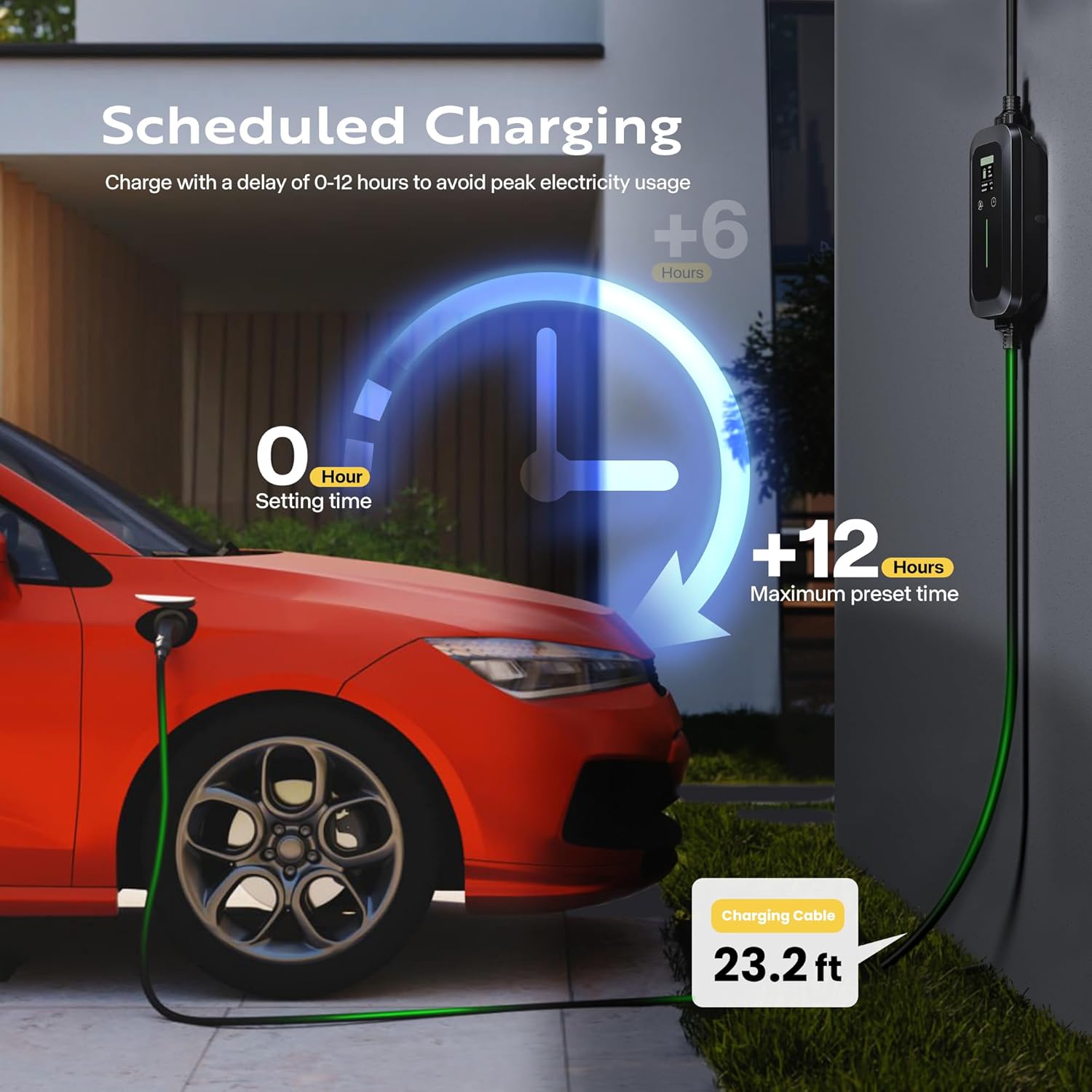

4.2 Planlagt opladning

Utilize the smart scheduling feature to charge during off-peak electricity hours:

1. While in standby mode, press the 'Time' button on the control box.
2. Each press will increase the delay time by one hour, from 0 to 12 hours.
3. Once the desired delay is set, the charger will automatically begin charging after the specified time has elapsed.

Image 3: Scheduled charging feature on the VIVOHOME EV charger.

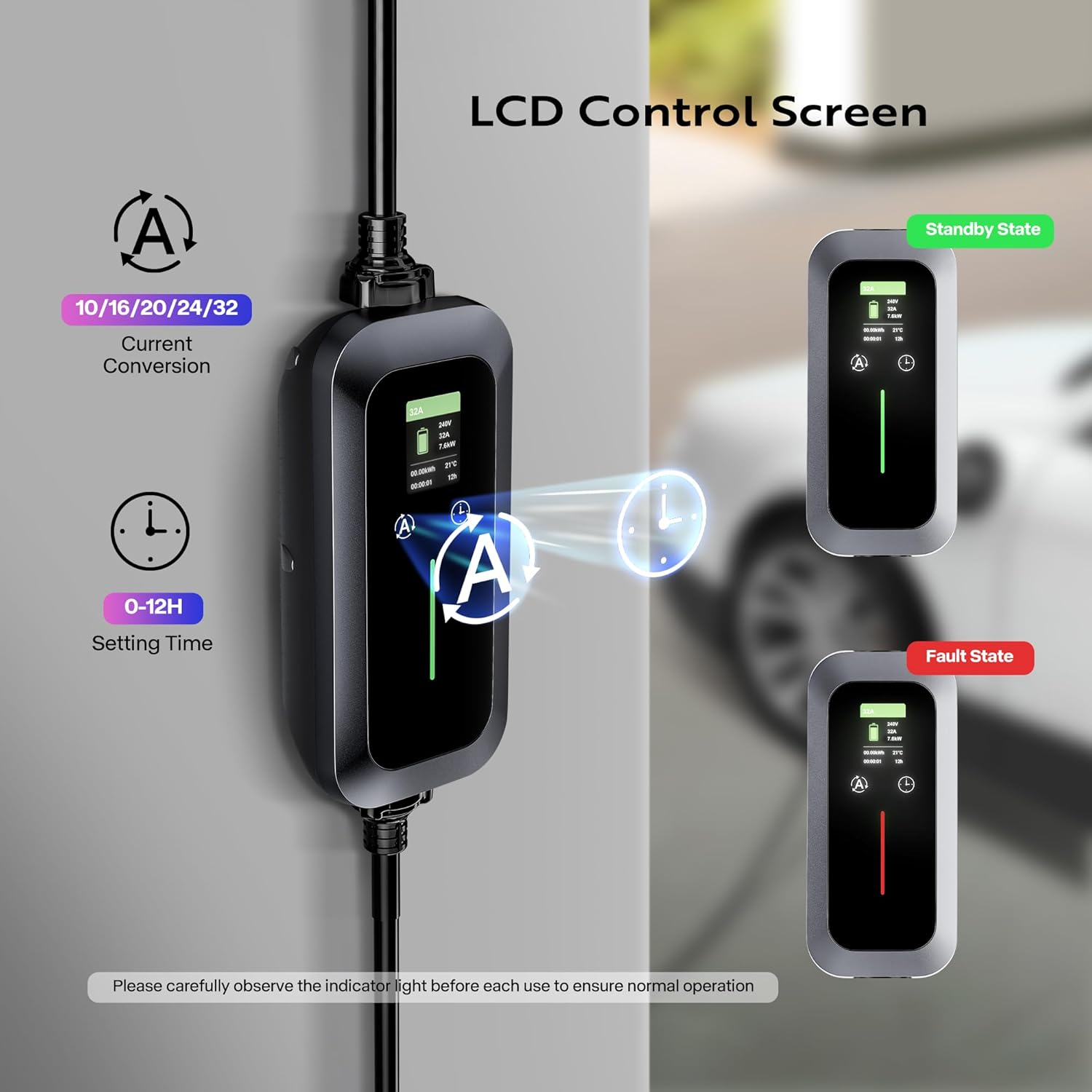

4.3 Overvågning af opladningsstatus

The integrated smart screen provides real-time information about the charging process:

• Current og Voltage: Displays the real-time charging current (Amps) og bindtage (Volts).
• Temperatur: Shows the operating temperature of the charger.
• Opladningsvarighed: Indicates how long the current charging session has been active.
• Real-time Battery Capacity: Provides an estimate of the energy delivered to the vehicle.
• LED-indikatorer: Lights on the control box indicate charging status (e.g., green for charging, orange for standby, red for fault).

Image 4: LCD Control Screen displaying charging information.

Video 2: Overståetview of the VIVOHOME Portable EV Charger, highlighting its smart screen and portability.

5. Sikkerhedsretningslinjer

The VIVOHOME EV Charger is designed with multiple safety features to ensure a secure charging experience. Always adhere to the following guidelines:

• UL-certificerede komponenter: The charger head and cable are UL-certified for safety.
• Beskyttelsesdæksel: The charger head is equipped with a protective cover.
• Lav voltage Beskyttelse: Automatically shuts off if input voltage er for lavt.
• Overstrømsbeskyttelse: Forhindrer skader fra for høj strøm.
• Høj voltage Beskyttelse: Safeguards against dangerously high input voltage.
• Overophedningsbeskyttelse: Monitors internal temperature and reduces power or shuts down if overheating occurs.
• Lynbeskyttelse: Offers protection against electrical surges from lightning.
• Lækagebeskyttelse: Registrerer og forhindrer elektrisk lækage.

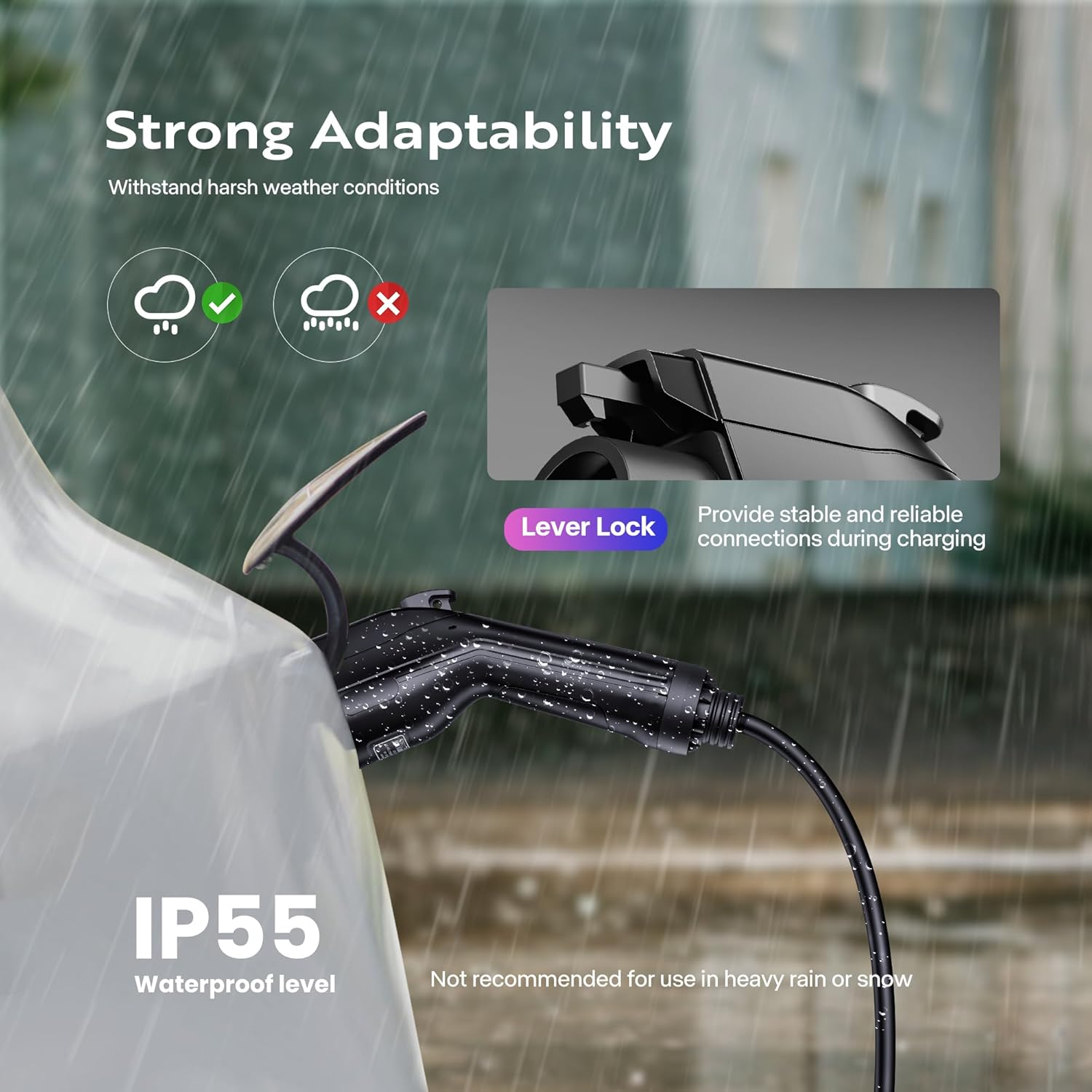

• IP55 vandtæt: Provides protection against dust and low-pressure water jets. While designed to withstand harsh weather, it is not recommended for use in heavy rain or snow.

Image 5: IP55 Waterproof rating and safety features.

6. Køretøjskompatibilitet

The VIVOHOME Level 2 Portable EV Charger is widely compatible with electric vehicles that use the SAE J1772 charging standard. This includes most electric vehicles and Plug-in Hybrid Electric Vehicles (PHEVs). For Tesla vehicles, a separate J1772 to Tesla adapter is required (not included).

Image 6: J1772 charger compatibility with various EV models.

7. Vedligeholdelse og pleje

To ensure the longevity and optimal performance of your VIVOHOME EV Charger, follow these maintenance guidelines:

• Rensning: Regularly wipe the control box and cables with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the charging connector is free of dust and moisture.
• Opbevaring: When not in use, store the charger in its provided storage bag in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid coiling the cable too tightly.
• Inspektion: Periodically inspect the cable, plug, and connector for any signs of damage, fraying, or corrosion. Do not use the charger if any damage is observed.
• Miljøforhold: While IP55 rated, avoid prolonged exposure to heavy rain, snow, or extreme humidity to prevent potential damage.

8. Fejlfinding

If you encounter issues with your VIVOHOME EV Charger, refer to the following common troubleshooting steps:

8.1 Charger Not Powering On

• Ensure the NEMA 14-50 plug is fully and securely inserted into the wall outlet.
• Check the circuit breaker for the outlet to ensure it has not tripped.
• Verify that the wall outlet is providing power (e.g., by plugging in another appliance).

8.2 Charging Not Initiating

• Confirm that the J1772 connector is firmly seated in the vehicle's charging port. Listen for a click.
• Check the vehicle's dashboard or infotainment system to ensure it is ready to accept a charge.
• If scheduled charging is enabled, verify the set delay time. The charger will only start after the delay.
• Ensure the vehicle's charging settings (if any) are not preventing charging.

8.3 Langsom opladningshastighed

• Check the current setting on the charger's control box. Ensure it is set to the desired amperage (e.g., 32A for maximum speed).
• Verify that your vehicle is capable of accepting the higher charging rate.
• Environmental factors (extreme cold or heat) can sometimes affect charging efficiency.

8.4 Error Codes on Screen

If an error code appears on the smart screen, consult the specific error code section in the full VIVOHOME product manual (if available) or contact customer support for assistance. Common error codes relate to overcurrent, overvoltage, undervoltage, or overheating.

9. Tekniske specifikationer

Billede 7: Produktmål og nøglespecifikationer.

10. Garanti og kundesupport

For warranty information, product registration, or technical support, please refer to the official VIVOHOME webwebstedet eller kontakt deres kundeserviceafdeling. Gem din købskvittering som købsbevis i tilfælde af garantikrav.
