Heybike Cityscape Elcykel Brugermanual

1. Produktet er slutview

The Heybike Cityscape Electric Bike is designed for urban commuting and leisure rides, offering a blend of traditional cycling and electric assistance. It features a step-through aluminum frame, a powerful motor, and a removable battery, making it a versatile and convenient option for adults seeking an efficient and comfortable ride.

Figure 1.1: The Heybike Cityscape Electric Bike, showcasing its design and included phone mount.

Key features include a 350W (peak 500W) rear-drive motor, a 36V 10Ah (360Wh) removable lithium-ion battery providing up to 40 miles of range with pedal assist, and a top speed of 23 MPH. The bike is equipped with 26-inch puncture-resistant tires, a 7-speed Shimano gearing system, and front shock absorbers for a smooth riding experience. Dual disc brakes and an integrated lighting system enhance safety.

2. Sikkerhedsoplysninger

Before operating your Heybike Cityscape Electric Bike, please read and understand all safety instructions. Failure to follow these instructions may result in serious injury or damage to the bike.

2.1 Generelle sikkerhedsretningslinjer

• Always wear a helmet that meets safety standards when riding.
• Overhold alle lokale færdselslove og regler.
• Udfør en inspektion før hver brug, hvor du kontrollerer bremser, dæk og batteri.
• Rid ikke under påvirkning af alkohol eller stoffer.
• Vær opmærksom på dine omgivelser og kør defensivt.
• Undgå at køre i dårligt vejr, såsom kraftig regn eller sne, hvis det er muligt.
• Sørg for, at batteriet er forsvarligt fastlåst, inden du kører.

2.2 Batterisikkerhed

• Use only the charger provided by Heybike.
• Udsæt ikke batteriet for ekstreme temperaturer eller direkte sollys i længere perioder.
• Do not puncture, drop, or disassemble the battery.
• Oplad batteriet i et godt ventileret område, væk fra brandfarlige materialer.

3. Komponenter og funktioner

Familiarize yourself with the main components of your Heybike Cityscape Electric Bike.

3.1 Motor System

The Cityscape is equipped with a powerful 350W rear-hub motor, capable of reaching peak power of 500W, providing robust assistance for various riding conditions. This motor allows for a top speed of 23 MPH.

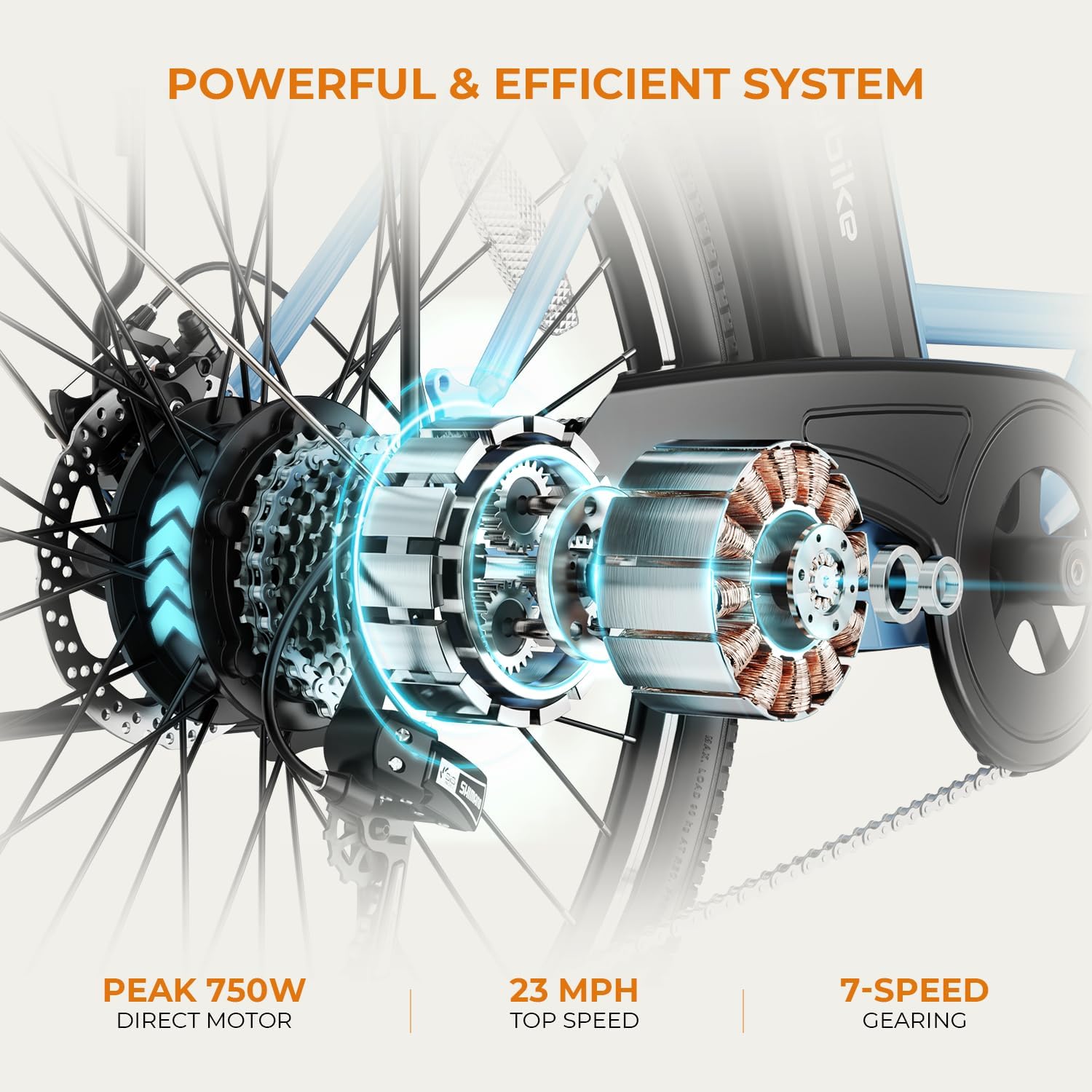

Figure 3.1: Illustration of the powerful and efficient motor system, highlighting the direct motor, 23 MPH top speed, and 7-speed gearing.

3.2 Batteri

The bike features a modular and removable 36V 10Ah (360Wh) lithium-ion battery, integrated into the frame for a sleek design. It includes a Battery Management System (BMS) for intelligent safety and a convenient removable USB charging port. The battery provides a range of up to 40 miles with pedal assist (PAS) and approximately 25 miles using throttle only.

Figure 3.2: The modular and safe large battery, detailing its 36V 10Ah capacity, BMS intelligent safety, removable USB charging port, and UL certification, along with estimated range.

3.3 Ophængssystem

The Heybike Cityscape is equipped with a front suspension fork with lockout, designed to absorb shocks and provide a smoother, more comfortable ride across various terrains, including neighborhood streets, travel paths, and even light trails.

Figure 3.3: The all-terrain ready damping system, showing the front suspension fork with lockout for a smooth and comfortable ride.

3.4 Betjeningselementer på styret

The handlebar features a multifunctional display, twist throttle, lighting controls, and a horn system for comprehensive control during your ride. The Shimano 7-speed shifter is also conveniently located on the handlebar.

Figure 3.4: Stable control direction, illustrating the multifunctional display, twist throttle, lighting controls, and horn system on the handlebar.

4. Opsætning og montering

The Heybike Cityscape Electric Bike comes mostly pre-assembled, significantly reducing the time required for setup. Follow these steps to complete the assembly and prepare for your first ride.

1. Udpakning: Tag forsigtigt cyklen og alle komponenter ud af emballagen. Gem emballagen til senere transport eller opbevaring.
2. Justering af styr: Løsn stilken clamp and adjust the handlebar to a comfortable riding position. Ensure it is centered and then securely tighten the clamp.
3. Pedal installation: Identify the left (L) and right (R) pedals. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Apply a small amount of grease to the threads and tighten them firmly.
4. Montering af forhjul (hvis afmonteret): If the front wheel is not pre-installed, align it with the front fork dropouts and secure it using the quick-release skewer or axle nuts, ensuring it is centered and spins freely.
5. Justering af sadelpind: Insert the seat post into the frame and adjust the saddle height to ensure your feet can comfortably touch the ground when stopped. Secure the quick-release lever.
6. Batteri installation: Insert the fully charged battery into its designated slot on the frame and lock it securely with the key.
7. Tjek før kørsel: Before your first ride, check tire pressure (refer to tire sidewall for recommended PSI), ensure brakes are functioning correctly, and confirm all bolts and quick releases are tightened.

5. Betjeningsvejledning

Understanding the operating modes and controls of your Heybike Cityscape will enhance your riding experience.

5.1 Tænd/sluk

• For at tænde: Tryk og hold tænd/sluk-knappen på styrets display nede i et par sekunder, indtil skærmen lyser.
• For at slukke: Tryk på tænd/sluk-knappen igen, og hold den nede, indtil skærmen slukker.

5.2 Køretilstande

The Cityscape offers three distinct riding modes:

• 1. Pedal Assist Mode (PAS): This mode provides electric assistance as you pedal. Use the '+' and '-' buttons on the display to cycle through different levels of pedal assist (typically 1-3 or 1-5, depending on the model's firmware). Higher levels provide more assistance.
• 2. Gashåndtagstilstand: Engage the twist throttle on the right handlebar to propel the bike without pedaling. This mode is ideal for quick acceleration or when you need a break from pedaling. The throttle can be used from a standstill or while riding.
• 3. Manuel tilstand: Ride the bike like a traditional bicycle with no electric assistance. This mode is useful for exercise or when the battery is depleted.

5.3 Gearskift

The Heybike Cityscape features a 7-speed Shimano gear system. Use the shifter on the right handlebar to change gears. Shift to lower gears for climbing hills and higher gears for flat terrain or downhill riding. Always shift gears while pedaling lightly to ensure smooth transitions and prevent damage to the drivetrain.

5.4 Bremsning

The bike is equipped with dual disc brakes for reliable stopping power. The left lever controls the rear brake, and the right lever controls the front brake. Apply both brakes simultaneously and smoothly for effective and safe stopping. Avoid sudden, hard braking, especially with the front brake, to prevent skidding.

5.5 Opladning af batteriet

Sådan oplades batteriet:

1. Sørg for, at cyklen er slukket.
2. Locate the charging port on the battery (or on the bike frame if charging while installed).
3. Tilslut opladeren til opladningsporten, og sæt derefter opladeren i en almindelig stikkontakt.
4. The charger's indicator light will typically turn red during charging and green when fully charged.
5. Når den er fuldt opladet, skal du først frakoble opladeren fra stikkontakten og derefter fra batteriet.

It is recommended to charge the battery after each significant ride to maintain optimal battery health.

6. Vedligeholdelse

Regular maintenance ensures the longevity and safe operation of your Heybike Cityscape Electric Bike.

• Dæktryk: Check tire pressure before each ride. Maintain the PSI recommended on the tire sidewall for optimal performance and safety.
• Bremser: Kontroller regelmæssigt bremseklodserne for slid, og sørg for, at bremsegrebene giver en fast og responsiv bremsekraft. Juster eller udskift efter behov.
• Kæde: Hold kæden ren og smurt for at sikre jævn gearskiftning og forhindre for tidlig slitage.
• Fastgørelsesmidler: Kontrollér regelmæssigt alle bolte, møtrikker og hurtigudløsere for at sikre, at de er forsvarligt spændt.
• Rensning: Rengør cyklen regelmæssigt med reklameamp klud og mild sæbe. Undgå at bruge højtryksrensere direkte på elektriske komponenter.
• Batteripleje: Store the battery in a cool, dry place. If storing for extended periods, charge it to about 50-70% every 1-2 months.

7. Fejlfinding

This section addresses common issues you might encounter with your Heybike Cityscape Electric Bike.

For issues not listed here or if solutions do not resolve the problem, please contact Heybike customer support.

8. Specifikationer

Detailed technical specifications for the Heybike Cityscape Electric Bike.

Figure 8.1: Key dimensions and weight specifications for the Heybike Cityscape Electric Bike, including recommended rider height and load capacity.

9. Garanti og support

Heybike stands behind the quality of its products. For detailed warranty information, including coverage periods and terms, please refer to the warranty card included with your purchase or visit the official Heybike webwebsted.

If you encounter any issues or have questions regarding your Heybike Cityscape Electric Bike, please contact Heybike customer support. Have your model name and purchase date ready to assist the support team.

Heybike Official Webwebsted: www.heybike.com

E -mail til kundesupport: support@heybike.com (Example, actual email may vary)
