DOVIICO Military Smart Watch HK87 User Manual

1. Introduktion

Welcome to the user manual for your new DOVIICO Military Smart Watch HK87. This manual provides essential information for setting up, operating, and maintaining your device. Please read it thoroughly to ensure optimal performance and longevity of your smartwatch.

The DOVIICO HK87 is designed for durability and functionality, featuring IP68 waterproofing, shock resistance, and dust protection, making it suitable for various outdoor activities. It offers comprehensive health monitoring, multiple sports modes, and convenient communication features.

2. Hvad er der i æsken

Upon unboxing, please verify that all items listed below are present:

• 1 x DOVIICO Smart Watch HK87
• 1 x magnetisk ladekabel
• 1 x Brugermanual (dette dokument)

3. Produktet er slutview

Familiarize yourself with the components of your DOVIICO Smart Watch HK87.

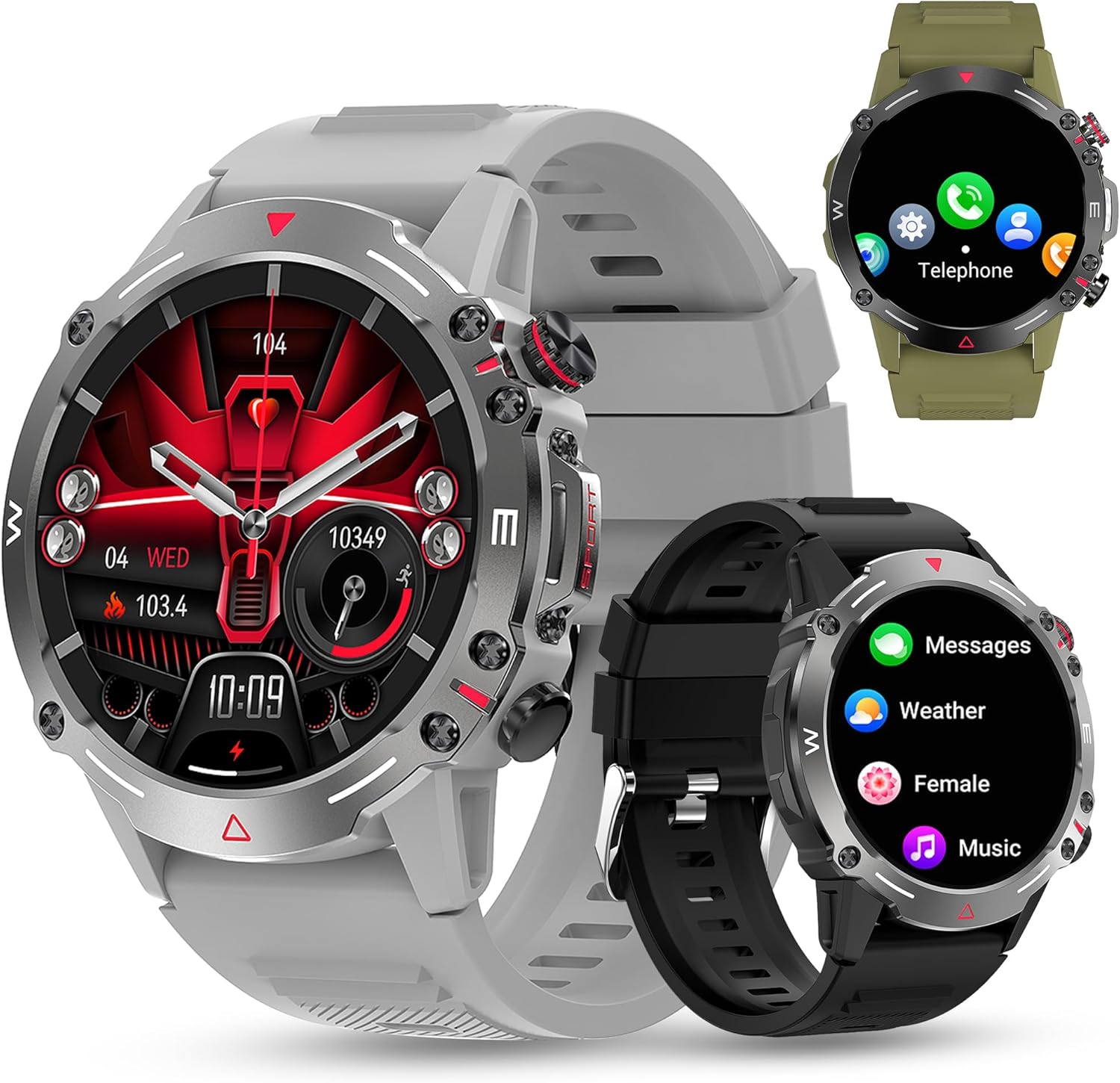

Figur 3.1: Front view of the DOVIICO Smart Watch HK87, illustrating its robust design and various display options.

Figur 3.2: Detaljeret view of the 1.43-inch AMOLED HD screen and the integrated heart rate sensor located on the watch's underside.

Nøglekomponenter:

• 1.43" AMOLED HD Display: High-resolution touch screen for clear visuals and easy navigation.
• Sideknapper: For power, menu access, and quick functions.
• Pulssensor: Placeret på bagsiden for kontinuerlig pulsmåling.
• Opladningskontakter: Magnetic points on the back for connecting the charging cable.
• Speaker & Microphone: For Bluetooth calls and AI voice assistant.

4. Opsætning

4.1 Opladning af smarturet

Before initial use, fully charge your smartwatch.

1. Connect the USB end of the magnetic charging cable to a power adapter (not included) or a computer's USB port.
2. Align the magnetic end of the charging cable with the charging contacts on the back of the watch. The magnets will snap it into place.
3. The watch display will indicate charging status. A full charge typically takes approximately 2 hours.

Figur 4.1: The watch display showing the charging indicator and battery life expectations.

4.2 Appinstallation og parring

To unlock the full functionality of your smartwatch, you need to install the companion app on your smartphone and pair the devices. The watch is compatible with Android 4.4 and above, and iOS 8.4 and above.

1. Download appen: Scan the QR code provided in the watch's quick start guide or search for the designated app (e.g., "FitCloudPro" or similar, check packaging for exact name) in your phone's app store (Google Play Store for Android, Apple App Store for iOS).
2. Aktiver Bluetooth: Sørg for, at Bluetooth er aktiveret på din smartphone.
3. Åbn appen: Start den installerede app, og følg instruktionerne på skærmen for at oprette en konto eller logge ind.
4. Tilføj enhed: Within the app, navigate to the "Device" or "Add Device" section. The app will search for available smartwatches.
5. Vælg dit ur: Select "HK87" or the corresponding device name from the list. Confirm the pairing request on both your phone and the watch if prompted.
6. Giv tilladelser: Grant all necessary permissions requested by the app (e.g., location, notifications, contacts) to ensure full functionality.

Vigtig: If you experience pairing issues, ensure the watch is sufficiently charged and not paired with another device. Restarting both the watch and your phone can often resolve connectivity problems.

5. Betjeningsvejledning

5.1 Grundlæggende navigation

• Tænd/sluk: Press and hold the side button to power on or off.
• Vækningsskærm: Raise your wrist or press the side button to wake the screen.
• Stryg op/ned/venstre/højre: Naviger gennem menuer, notifikationer og hurtigindstillinger.
• Tryk på: Vælg et element eller bekræft en handling.

5.2 Bluetooth-opkald og -notifikationer

Once paired, your smartwatch can handle calls and display notifications.

• Answering/Dialing Calls: Use the watch's dial pad or contact list to make calls. When a call comes in, you can answer or reject it directly from the watch.
• Meddelelsesmeddelelser: Receive alerts for SMS, WhatsApp, Instagram, Facebook, and other app messages. Swipe down from the main screen to view nylige notifikationer.

5.3 sportstilstande

The watch offers over 100 sports modes to track your physical activity.

Figur 5.1: A visual representation of the diverse sports modes available on the smartwatch.

1. Navigate to the "Sports" menu on your watch.
2. Select your desired activity (e.g., Running, Cycling, Hiking).
3. Tap to start tracking. The watch will record data such as steps, distance, calories burned, and heart rate.
4. Tap again to pause or hold to end the activity.

5.4 Sundhedsovervågning

The DOVIICO HK87 provides continuous monitoring of key health metrics.

Figur 5.2: The watch interface showing real-time health data, including heart rate, blood oxygen, and sleep.

• Heart Rate Monitoring: The watch continuously tracks your heart rate. View current and historical data in the app.
• Overvågning af ilt i blodet: Mål dine iltmætningsniveauer i blodet.
• Søvnovervågning: Automatically tracks your sleep patterns (deep sleep, light sleep, wake time). Review detailed sleep analysis in the app.
• Blodtryksovervågning: Provides an estimate of blood pressure. Note: This is not a medical device. Measurement data is for reference only and should not be used for medical diagnosis or treatment.

Figur 5.3: The sleep monitoring screen on the smartwatch, providing insights into sleep duration and quality.

5.5 Yderligere funktioner

• AI Voice Assistant: Activate the voice assistant for hands-free control.
• NFC: For compatible NFC functions (e.g., access control, check local availability and setup).
• Musik kontrol: Styr musikafspilning på din smartphone (afspil, pause, spring numre over).
• Fjernkamera: Brug dit ur som fjernbetjent udløser til din telefons kamera.
• Vejrudsigt: Få vejrudsigter i realtid (kræver app-synkronisering).
• Alarmer og påmindelser: Set alarms, sedentary reminders, and drink water reminders through the app.
• Kvindelig fysiologisk cyklus: Track and monitor physiological cycles (requires setup in the app).

6. Tilpasning

6.1 Ændring af urskiver

Tilpas dit ur med en række forskellige urskiver.

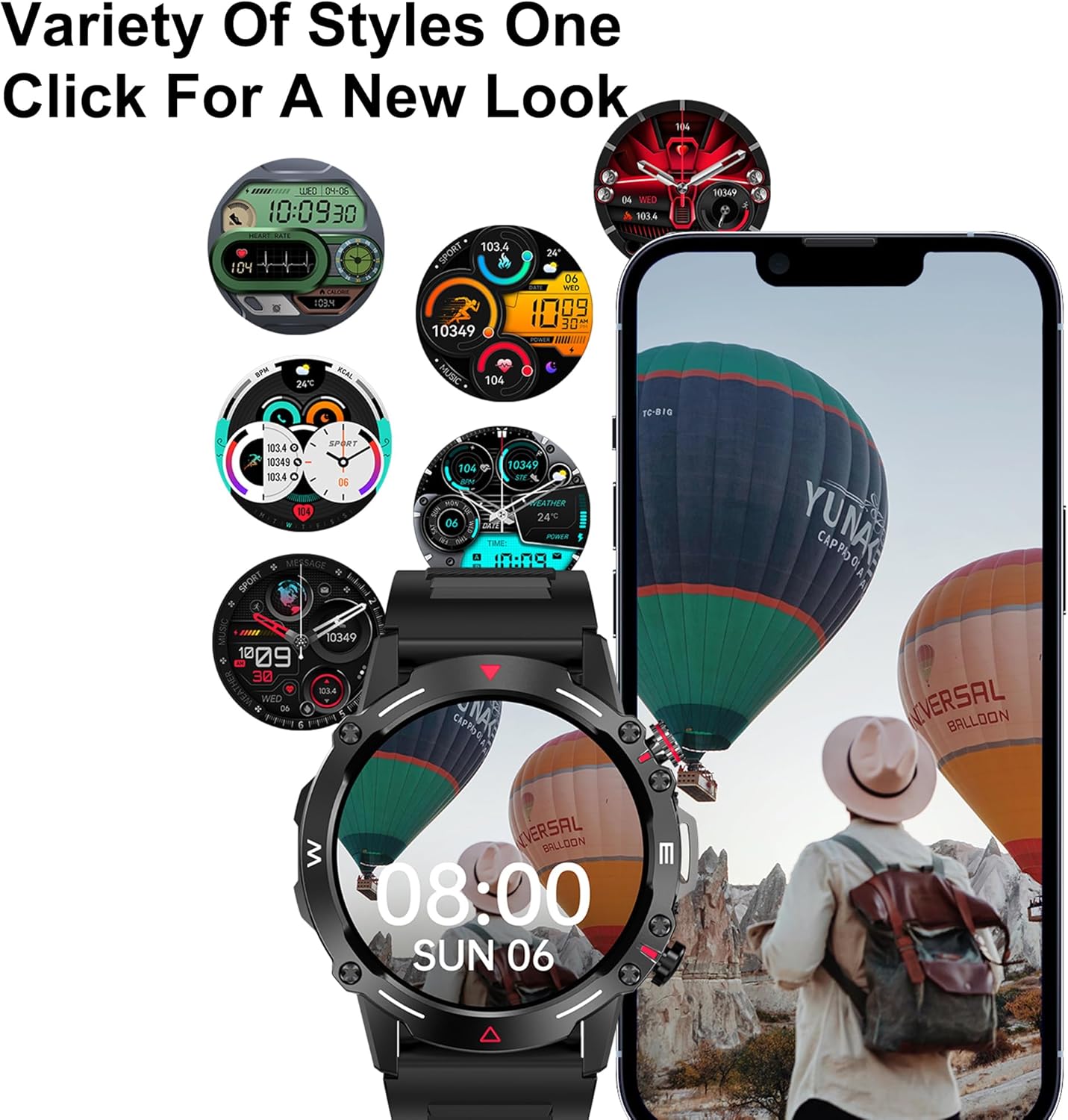

Figur 6.1: A selection of customizable watch faces available for the smartwatch.

• På vagten: Press and hold the main screen, then swipe left or right to browse pre-installed watch faces. Tap to select.
• Via appen: Open the companion app, navigate to the "Dial Market" or "Watch Faces" section. You can download and apply additional watch faces, and even customize some with your own photos.

7. Batteri og opladning

The DOVIICO HK87 is equipped with a 410mAh battery, offering extended usage.

• Batterilevetid: Expect 7-10 days of typical daily use and up to 45 days of standby time.
• Opladningstid: Cirka 2 timer for en fuld opladning.
• Opladningsmetode: Use the provided magnetic charging cable. Ensure proper alignment of the charging contacts.

To maximize battery life, consider adjusting screen brightness, reducing notification frequency, and disabling features not actively in use.

8. Vedligeholdelse

8.1 Waterproofing (IP68)

The DOVIICO HK87 has an IP68 waterproof rating, meaning it is resistant to dust and can withstand immersion in water up to 1.5 meters for up to 30 minutes.

• Den er velegnet til daglig brug, såsom håndvask, regn og lavvandet svømning.
• Undgå varmt vand, sauna eller dykning, da damp og højt tryk kan kompromittere tætningen.
• Betjen ikke knapper under vandet.
• After exposure to water, wipe the watch dry with a soft cloth.

8.2 Rengøring

• Regularly clean your watch and strap to prevent skin irritation and maintain appearance.
• Wipe the screen and body with a soft, damp, fnugfri klud.
• For the strap, use mild soap and water if necessary, then rinse thoroughly and dry completely before wearing.
• Undgå at bruge skrappe kemikalier eller slibende materialer.

9. Fejlfinding

10. Specifikationer

Detailed technical specifications for the DOVIICO Military Smart Watch HK87.

Figur 10.1: Physical dimensions of the DOVIICO Smart Watch HK87.

11. Sikkerhedsoplysninger

• Forsøg ikke at skille uret ad eller modificere det.
• Hold uret væk fra ekstreme temperaturer og direkte sollys.
• Undgå at udsætte uret for stærke magnetfelter.
• This device is not a medical instrument. Health data is for reference only and should not be used for medical diagnosis or treatment. Consult a medical professional for health concerns.
• Opbevares utilgængeligt for børn.

12. Garanti og support

DOVIICO products are designed for quality and reliability. For warranty information, please refer to the warranty card included with your purchase or contact DOVIICO customer support.

If you encounter any issues or have questions regarding your DOVIICO Smart Watch HK87, please contact our customer support team.

• Kundesupport: Refer to your product packaging or the DOVIICO official webwebsted for kontaktoplysninger.
• Online ressourcer: Visit the DOVIICO webwebsted med ofte stillede spørgsmål, opdaterede manualer og softwaredownloads.
