LONCIN GR2300iS Bærbar Inverter Generator Brugermanual

1. Introduktion

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your LONCIN GR2300iS Portable Inverter Generator. Please read this manual thoroughly before operating the generator to ensure proper use and to prevent injury or damage.

The LONCIN GR2300iS is a portable inverter generator designed to provide clean and stable power for various applications, including outdoor activities, travel, camping, RV use, and home backup. It features a peak power output of 2300 watts and a continuous operating power of 1800 watts.

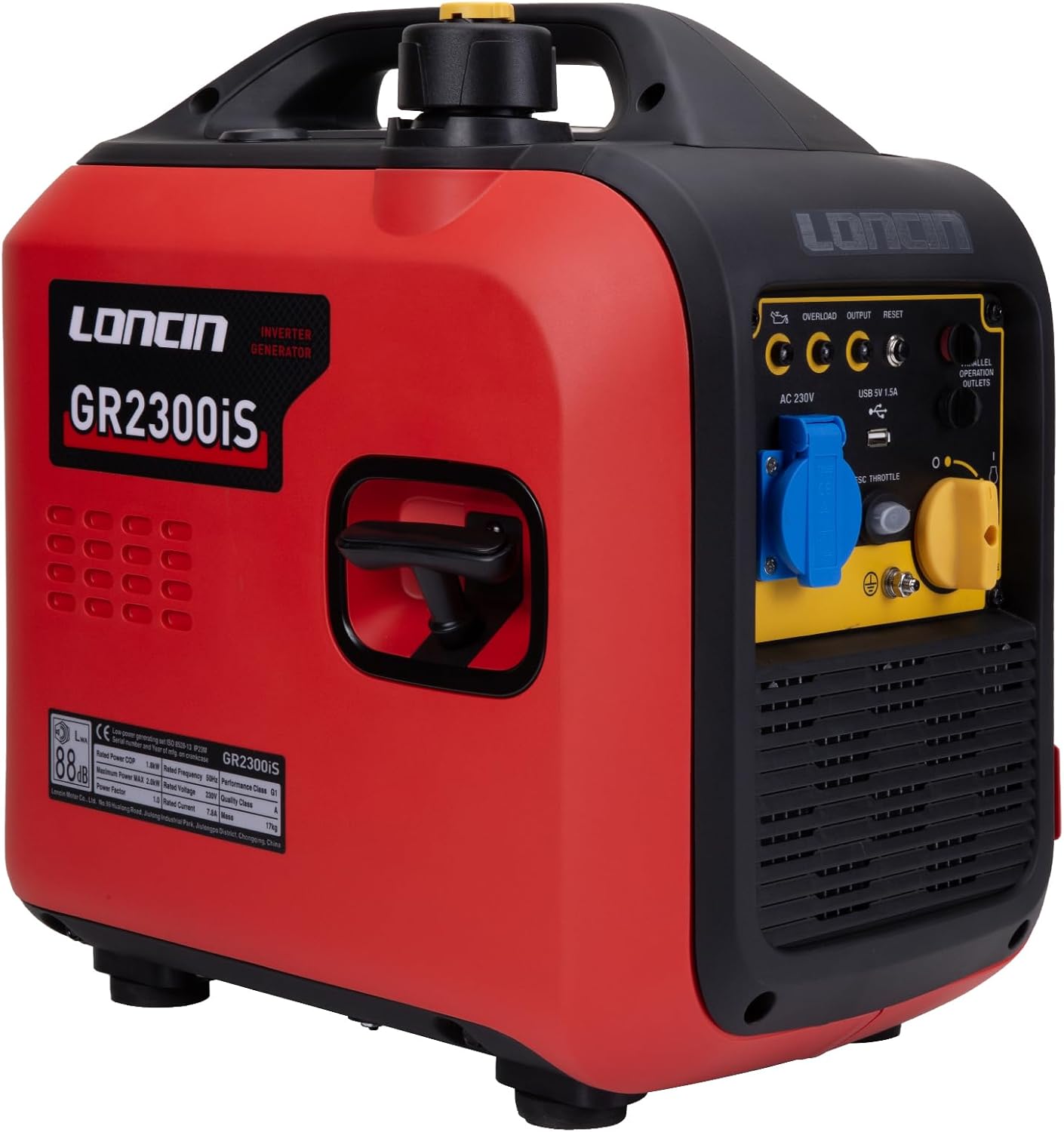

Front view of the LONCIN GR2300iS portable inverter generator, showcasing its red and black casing, control panel with outlets, and integrated handle.

2. Sikkerhedsinstruktioner

Always follow these safety guidelines to prevent serious injury or property damage:

• Operate the generator in a well-ventilated outdoor area. Never operate it in an enclosed space.
• Keep the machine clean and free from oil spills.
• Avoid using the generator in excessively humid environments.
• Turn off the generator and allow it to cool before refueling. Keep away from ignition sources during refueling.
• Keep children and pets away from the generator during operation and storage.
• Place the generator on a stable, level surface in a safe location.
• Be aware of high temperatures during operation, especially around the exhaust area.
• Do not overload the generator. Ensure the total wattagEffekten af ​​tilsluttede enheder overstiger ikke generatorens nominelle effekt.
• Always use a properly grounded extension cord when connecting appliances.

3. Pakkens indhold

Ved udpakning skal du kontrollere, at alle følgende dele er inkluderet:

• LONCIN GR2300iS Portable Inverter Generator
• Brugermanual
• Olietragt
• Skruetrækker
• Tændrørnøgle
• 12V DC Charging Clamps (maks. 8A)

4. Produktfunktioner

• Høj startkraft: Provides a peak power of 2300 watts and an operating power of 1800 watts, suitable for various household and outdoor power needs.
• Ultra-Long Running Time: Equipped with a 4L fuel tank, offering up to 8.6 hours of operation at 25% load (450W) and 6.3 hours at 50% load (900W).
• Kompakt og let design: Weighs approximately 17 kg, featuring a suitcase-style design for easy portability and storage.
• Støjsvag drift: Operates at a noise level of ≤ 60 dBA at 7 meters distance in ECO mode, ensuring a quiet environment.
• Ren effekt: Inverter technology generates a pure sine wave, providing stable and safe power for sensitive electronic devices.
• Alsidige stikkontakter: Includes one 230V 16 Amp AC socket and one 5V DC USB socket for compatibility with various electrical equipment.
• Parallel funktionalitet: Allows connection of two generators for increased power output when needed.

The LONCIN GR2300iS generator positioned outside a tent, illustrating its use in outdoor camping scenarios. Icons highlight features like high-quality power, multi-purpose use, low noise, clean power, long lifespan, and safety.

A person easily carrying the LONCIN GR2300iS generator, highlighting its lightweight design (17 kg) and portability.

5. Komponenter og kontroller

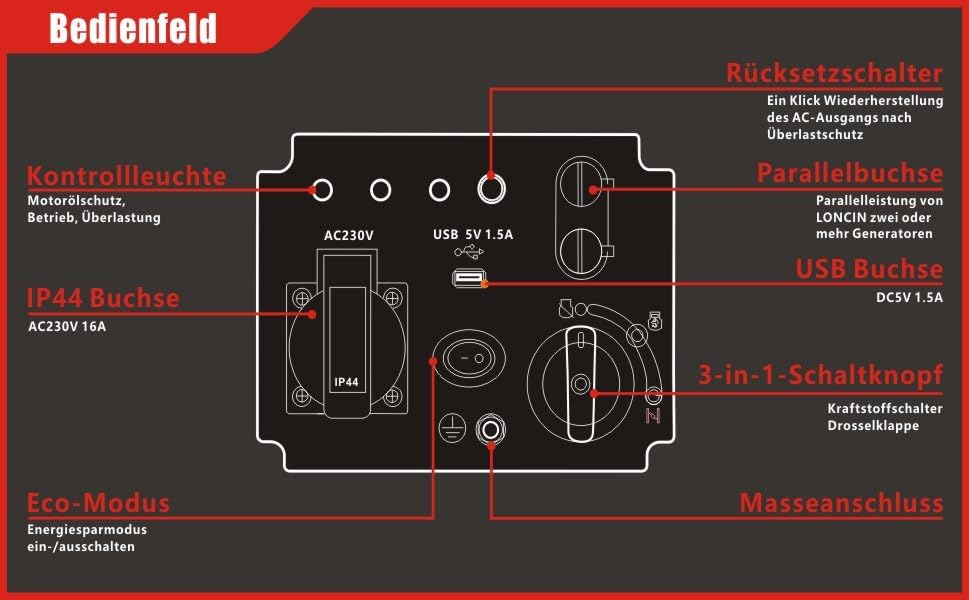

Detailed diagram of the generator's control panel, labeling key components such as the reset switch, parallel socket, USB socket, 3-in-1 switch knob (fuel switch/choke), IP44 AC 230V 16A socket, Eco-mode switch, and ground connection. Control lights for oil, operation, and overload are also indicated.

1. Kontrollys: Indicate low oil, normal operation, and overload status.
2. AC 230V 16A Socket (IP44): Main power output for standard appliances.
3. USB 5V 1.5A Socket: Til opladning af USB-drevne enheder.
4. Nulstil switch: Restores AC output after an overload protection event.
5. Parallel Socket: Used to connect two LONCIN generators for combined power.
6. 3-in-1 Switch Knob: Controls fuel flow and choke for starting and stopping the engine.
7. Eco-Mode Switch: Aktiverer eller deaktiverer energisparetilstanden.
8. Jordforbindelse: Til tilslutning af en jordledning for at sikre elektrisk sikkerhed.

6. Opsætning

6.1 Udpakning og inspektion

Tag forsigtigt generatoren ud af emballagen. Undersøg den for eventuelle forsendelsesskader. Rapporter eventuelle skader til din forhandler med det samme.

6.2 Påfyldning af motorolie

The generator is shipped without engine oil. It is crucial to add the correct amount and type of oil before first use.

• Placer generatoren på en plan overflade.
• Find oliepåfyldningsdækslet/målepinden.
• Using the provided funnel, add approximately 0.4 - 0.45 liters of 5W-30 engine oil. Fill until the oil level reaches the upper mark on the dipstick or the edge of the fill opening.
• Sæt oliepåfyldningsdækslet sikkert på igen.

6.3 Påfyldning af brændstof

Brug blyfri benzin med et oktantal på 87 eller højere.

• Sørg for, at generatoren er slukket og afkølet.
• Åbn brændstoftankens dæksel.
• Carefully pour gasoline into the fuel tank, up to the indicated fill line. The tank capacity is 4 liters.
• Do not overfill. Securely close the fuel tank cap.

6.4 Jordforbindelse af generatoren

For safety, connect the generator to an earth ground. Use a grounding wire (not included) connected to the ground connection terminal on the control panel and to a suitable earth ground rod.

7. Betjeningsvejledning

7.1 Start af motoren

1. Sørg for, at generatoren står på en plan overflade, og at alle forbindelser er sikre.
2. Turn the 3-in-1 switch knob to the 'CHOKE' position (if the engine is cold). For a warm engine, set it to 'RUN'.
3. Grasp the recoil starter handle firmly and pull it slowly until resistance is felt, then pull sharply to start the engine. Repeat if necessary.
4. Once the engine starts, slowly move the 3-in-1 switch knob to the 'RUN' position.

7.2 Tilslutning af elektriske apparater

• Plug your 230V AC appliances into the AC 230V 16A socket.
• Plug your USB devices into the USB 5V 1.5A socket for charging.
• Do not exceed the generator's rated output of 1800 watts.

7.3 ECO-tilstand

The ECO mode optimizes fuel consumption and reduces noise during light loads.

• To activate ECO mode, press the Eco-Mode switch. The engine speed will adjust automatically based on the load.
• To deactivate ECO mode, press the Eco-Mode switch again. The engine will run at a constant speed.

7.4 Parallel drift

For increased power, two LONCIN GR2300iS generators can be connected in parallel using a dedicated parallel kit (sold separately).

• Refer to the parallel kit's instruction manual for detailed connection procedures.
• Ensure both generators are off before connecting the parallel cable.
• Start both generators according to the standard starting procedure.

Two LONCIN GR2300iS generators linked together with a parallel cable, demonstrating the capability to combine their power output for increased electrical supply.

7.5 Standsning af motoren

1. Afbryd alle elektriske belastninger fra generatoren.
2. Turn the 3-in-1 switch knob to the 'OFF' position.

8. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og forlænger din generators levetid.

• Tjek oliestand: Before each use, verify the engine oil level and add if necessary.
• Ren luftfilter: Inspicer og rengør luftfilteret regelmæssigt, især i støvede forhold. Udskift det, hvis det er beskadiget.
• Tændrør: Inspect the spark plug for wear and carbon buildup periodically. Clean or replace as needed.
• Generel rengøring: Keep the generator exterior clean. Remove any debris from cooling vents.
• Opbevaring: Ved langtidsopbevaring skal brændstoftanken og karburatoren tømmes, eller der skal bruges en brændstofstabilisator. Opbevares tørt og godt ventileret.

9. Fejlfinding

10. Specifikationer

An image showing various outdoor activities powered by the LONCIN GR2300iS generator, with estimated runtimes for common appliances: refrigerator (200W) ~13h, lamp (60W) ~10h, fan (600W) ~8h, grill (800W) ~7h. Note: Actual runtime varies based on conditions.

A visual comparison illustrating the lighter weight of the LONCIN GR2300iS generator (17 kg) compared to other generators in its class (20 kg), emphasizing its portability advantage.

11. Garanti og support

LONCIN provides a 2-year warranty for this inverter generator, covering any manufacturing defects under normal use conditions. For warranty claims or technical support, please contact your authorized LONCIN dealer or customer service.

Gem venligst din købsbevis for at validere garantien.
