1. Produktet er slutview
The LOVMOR 2 Tier Soft Close Pull Slide Out Cabinet Organizer is designed to maximize storage efficiency and accessibility within kitchen cabinets. Constructed from natural birch and oak wood, this organizer features two adjustable tiers and a robust 100-pound load capacity, supported by full-extension, soft-close rail slides. It provides a practical solution for organizing various kitchen items, from spices and canned goods to pots and pans.
Image 1.1: The LOVMOR 2 Tier Soft Close Pull Slide Out Cabinet Organizer, showcasing its two wooden tiers and metal slide rails.
Nøglefunktioner:
- Natural Wood Construction: Made from durable birch and oak with a clear protective coating.
- Adjustable Dual Tier Design: Upper tier adjustable to 3 heights, lower tier to 2 heights.
- Soft-Close Functionality: Ensures quiet and smooth operation of the pull-out drawers.
- Høj lasteevne: Supports up to 100 lbs with thickened double fixed steel slide rails and U-shaped steel brackets.
- Nem installation: Designed for straightforward setup with included templates and instructions.
2. Opsætning og installation
2.1 Forud for installationskrav
Before beginning installation, ensure your cabinet meets the minimum size requirements for proper fit and function. Accurate measurements are crucial.
- Minimum Cabinet Clear Width Opening: 11 inches (measure clear width from hinge).
- Minimum Cabinet Clear Depth: 22-1/2 tommer.
- Minimum Cabinet Clear Height: 18 tommer.
NOTE: The pull-out drawers are designed to be mounted on the bottom of the cabinet.
Image 2.1: Diagram illustrating the minimum cabinet dimensions required for installation.
2.2 Medfølgende komponenter
Kontroller, at alle komponenter er til stede, før monteringen påbegyndes:
- Fully Assembled Box (Organizer Frame)
- Fully Extended Slides (Drawer Rails)
- Instruction Manual & Installation Templates
- Hardware Package (Screws, U-shaped brackets, etc.)
2.3 Installationstrin
Follow these steps for a successful installation. Screw positioning templates are provided to assist with accurate placement.
- Install the bottom slide rail and U-shaped bracket: Align and secure the bottom slide rail and U-shaped bracket to the cabinet floor using the provided screws and template.
- Turn over and install another slide rail: Attach the second slide rail, ensuring it is properly aligned with the first.
- Install the side slide rails of the storage shelves: Secure the slide rails to the sides of the wooden storage shelves.
- Install the slide rails into the cabinet: Carefully slide the assembled organizer frame with its rails into the cabinet, aligning with the pre-installed bottom rails.
- Install storage shelves: Place the wooden storage shelves onto their respective slide mechanisms.
- Fuldfør installationen: Ensure all screws are tightened and the organizer slides smoothly.
Image 2.2: Visual guide for the six-step installation process of the cabinet organizer.
3. Betjeningsvejledning
The LOVMOR cabinet organizer is designed for intuitive use, providing easy access to your stored items.
3.1 Brug af udtræksskuffer
To access items, simply pull the desired tier forward. The full-extension rail slides allow the entire drawer to extend out of the cabinet, providing complete visibility and easy retrieval of contents. When pushing the drawer back, the soft-close mechanism will engage, gently and quietly pulling the drawer fully into the cabinet without slamming.
Image 3.1: The pull-out organizer extended from a cabinet, showcasing organized kitchen items.
3.2 Adjusting Tier Height
The upper tier can be adjusted to 3 different heights, and the lower tier to 2 different heights, allowing you to customize the storage space to fit various item sizes. To adjust, carefully lift the tier and reposition it into the desired slots on the support frame. Ensure both sides are securely seated at the same height.
Image 3.2: The organizer in a kitchen setting, demonstrating its functionality and capacity for various items.
3.3 Lastkapacitet
The organizer is designed to hold up to 100 pounds. Distribute weight evenly across the tiers to ensure optimal performance and longevity of the slides.

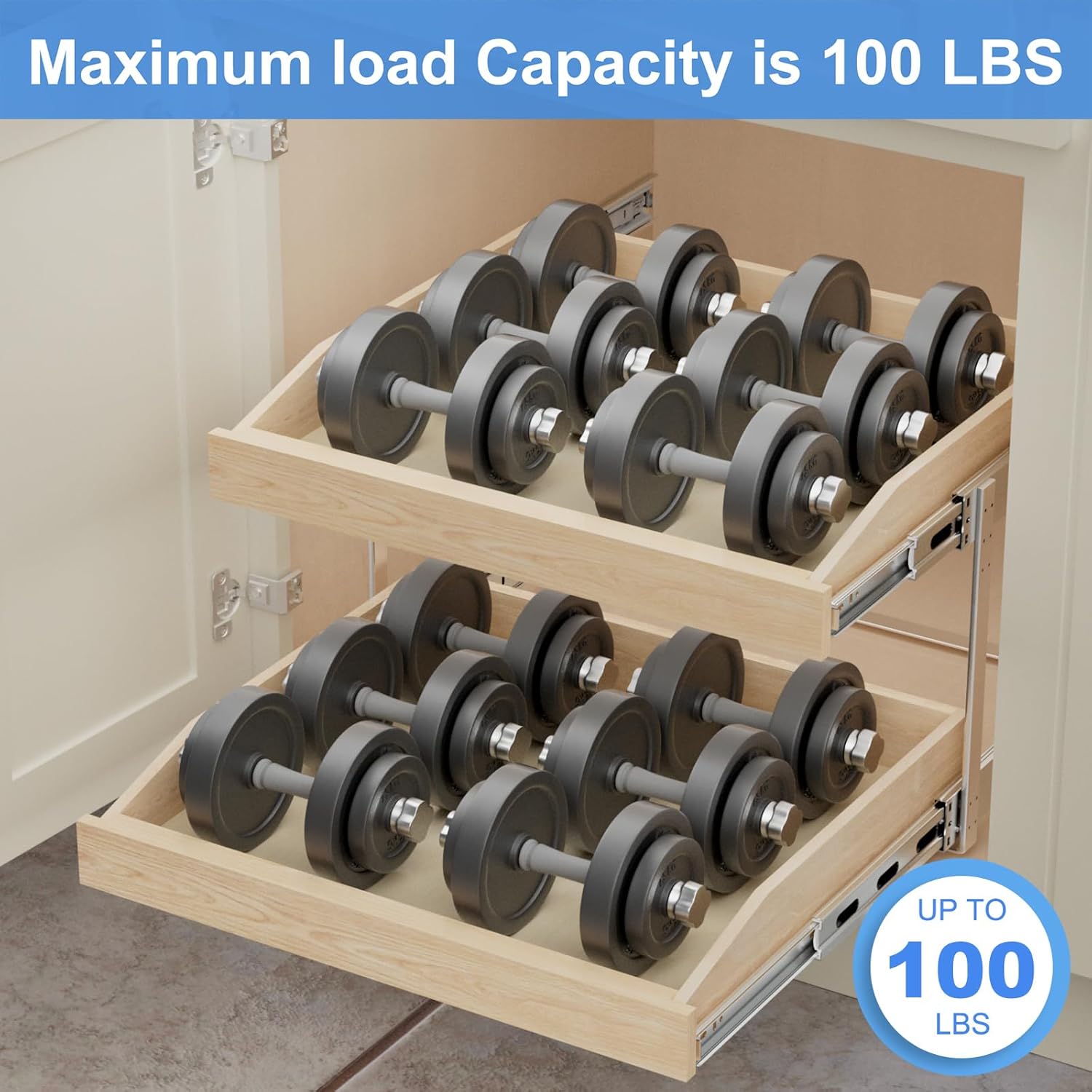

Image 3.3: The organizer demonstrating its 100 lbs load capacity with weights.
4. Vedligeholdelse
Regular maintenance will ensure the longevity and smooth operation of your LOVMOR cabinet organizer.
4.1 Rengøring
- Tør træoverflader af med en blød, damp klud. Undgå slibende rengøringsmidler eller barske kemikalier, der kan beskadige træets overflade.
- For the metal slide rails, use a dry cloth to remove dust and debris. If necessary, a slightly damp klud kan bruges, efterfulgt af øjeblikkelig tørring.
4.2 Slide Rail Care
The full-extension slides are pre-lubricated for smooth operation. If you notice any stiffness or resistance over time, a small amount of silicone-based lubricant can be applied to the slide mechanisms. Avoid using oil-based lubricants as they can attract dust and debris.
4.3 Slide Reset Procedure
If a slide rail appears to be stuck or misaligned, it may need to be reset. Follow these steps:
- Trin 1: Locate the small lever or tab on the slide mechanism. Gently push or move this lever downwards.
- Trin 2: While holding the lever, gently push the slide rail back into its fully closed position until it clicks into place. The slide rail should now be reset and operate smoothly.
Image 4.1: Visual guide for resetting the slide mechanism if it becomes misaligned.
5. Fejlfinding
This section addresses common issues you might encounter with your cabinet organizer.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Drawer does not slide smoothly or gets stuck. | Debris in slide rails, misaligned rails, or lack of lubrication. | Clean slide rails. Check for proper alignment and re-align if necessary. Apply a small amount of silicone lubricant to the rails. Refer to Section 4.3 for slide reset. |
| Soft-close function is not working. | Slide mechanism is not fully engaged or damaged. | Ensure the drawer is pushed firmly to engage the soft-close. Check for any obstructions. If the issue persists, refer to Section 4.3 for slide reset. |
| Organizeren føles vaklende eller ustabil. | Loose mounting screws or uneven installation. | Check all mounting screws and tighten them securely. Verify that the organizer is installed on a flat, level surface within the cabinet. |
| Vanskeligheder med at samle komponenter. | Parts not correctly oriented or misidentified. | Forsigtigt vedrview the installation steps and diagrams in Section 2.3. Ensure parts are oriented as shown in the instructions. |
6. Specifikationer
Detailed specifications for the LOVMOR 2 Tier Soft Close Pull Slide Out Cabinet Organizer.

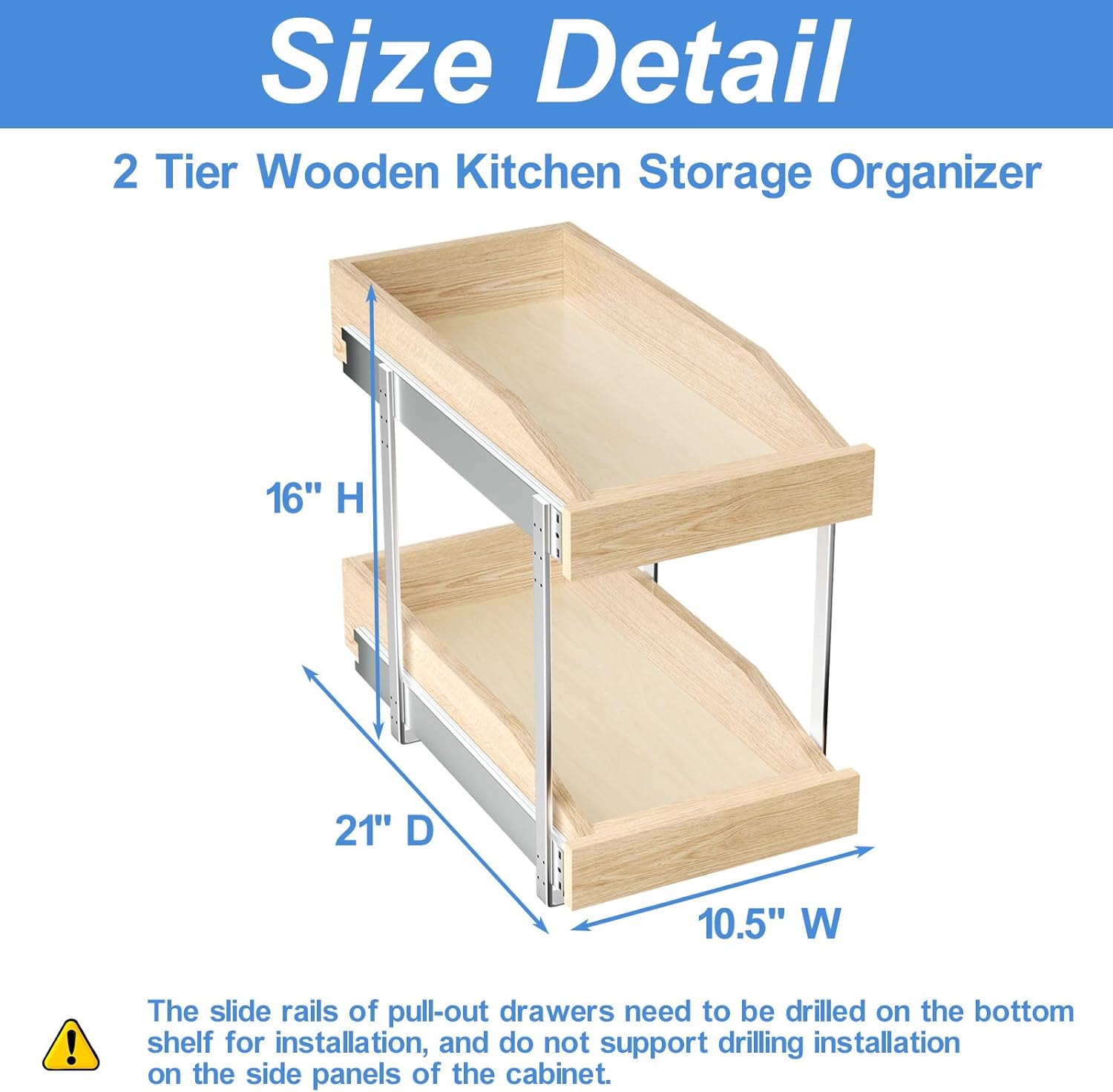

Image 6.1: Detailed dimensions of the 2-tier wooden kitchen storage organizer.
| Attribut | Værdi |
|---|---|
| Mærke | LOVMOR |
| Modelnummer | 2 Tier Pull Slide out Cabinet Organizer |
| Produktmål (D x B x H) | 21"D x 10.5"W x 3.94"H (Organizer Box) |
| Størrelse | 10½"W x 21"D |
| Materiale | Wood (Birch and Oak) |
| Rammemateriale | Træ |
| Farve | SOFT-CLOSE (2 Tier) |
| Varens vægt | 20 pund |
| Antal skuffer | 2 |
| Belastningskapacitet | Op til 100 lbs |
| Monteringstype | Tabletop Mount (Bottom of Cabinet) |
| Installationsmetode | Skru ind |
| Særlige funktioner | Adjustable Shelf, Waterproof (Coating) |
| UPC | 609516003057 |
7. Garanti og support
For any questions regarding your LOVMOR 2 Tier Soft Close Pull Slide Out Cabinet Organizer, including warranty information, technical support, or replacement parts, please contact LOVMOR customer service directly.
Refer to the product packaging or the official LOVMOR website for the most current contact details and warranty policy information.
LOVMOR is committed to providing high-quality products and customer satisfaction.
