EWORK 21V Cordless Leaf Blower Instruction Manual
Model: EK-01GY
1. Introduktion
Thank you for choosing the EWORK 21V Cordless Leaf Blower. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference.
Image 1.1: EWORK 21V Cordless Leaf Blower with included batteries.
2. Sikkerhedsoplysninger
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep children and bystanders away while operating the tool. Wear appropriate personal protective equipment, including eye protection, hearing protection, and sturdy footwear.
- Sørg for, at batteriet er fuldt opladet før brug.
- Do not operate the blower in wet conditions.
- Keep all body parts away from openings and moving parts.
- Use only EWORK approved batteries and chargers.
3. Pakkens indhold
Bekræft at alle varer er til stede i pakken:
- 1 x EWORK 21V Cordless Leaf Blower
- 2 x 3.0 Ah litium-ion-batterier
- 1 x hurtigoplader
- 1 x Blæserrør
- 1 x Brugermanual (dette dokument)
Image 3.1: All components included in the EWORK 21V Cordless Leaf Blower package.
4. Opsætning
4.1 Montering af blæserrøret
- Juster blæserrøret med luftudløbet på hovedblæserenheden.
- Drej røret med uret, indtil det klikker sikkert på plads.
4.2 Isætning af batteriet
- Sørg for, at batteriet er fuldt opladet (se afsnit 5).
- Slide the battery into the battery slot at the base of the blower handle until it clicks into place.
- For at fjerne batteriet skal du trykke på batteriets udløserknap og skubbe det ud.
5. Opladning af batteriet
The EWORK 21V Cordless Leaf Blower includes two 3.0Ah Li-ion batteries and a fast charger. Fully charge batteries before initial use.
- Tilslut hurtigopladeren til en almindelig stikkontakt.
- Slide the battery onto the charger. The LED indicator on the charger will turn red, indicating charging is in progress.
- When charging is complete, the LED indicator will turn green. A 3.0Ah battery typically charges in approximately 1.5 hours.
- Fjern batteriet fra opladeren, når det er fuldt opladet.

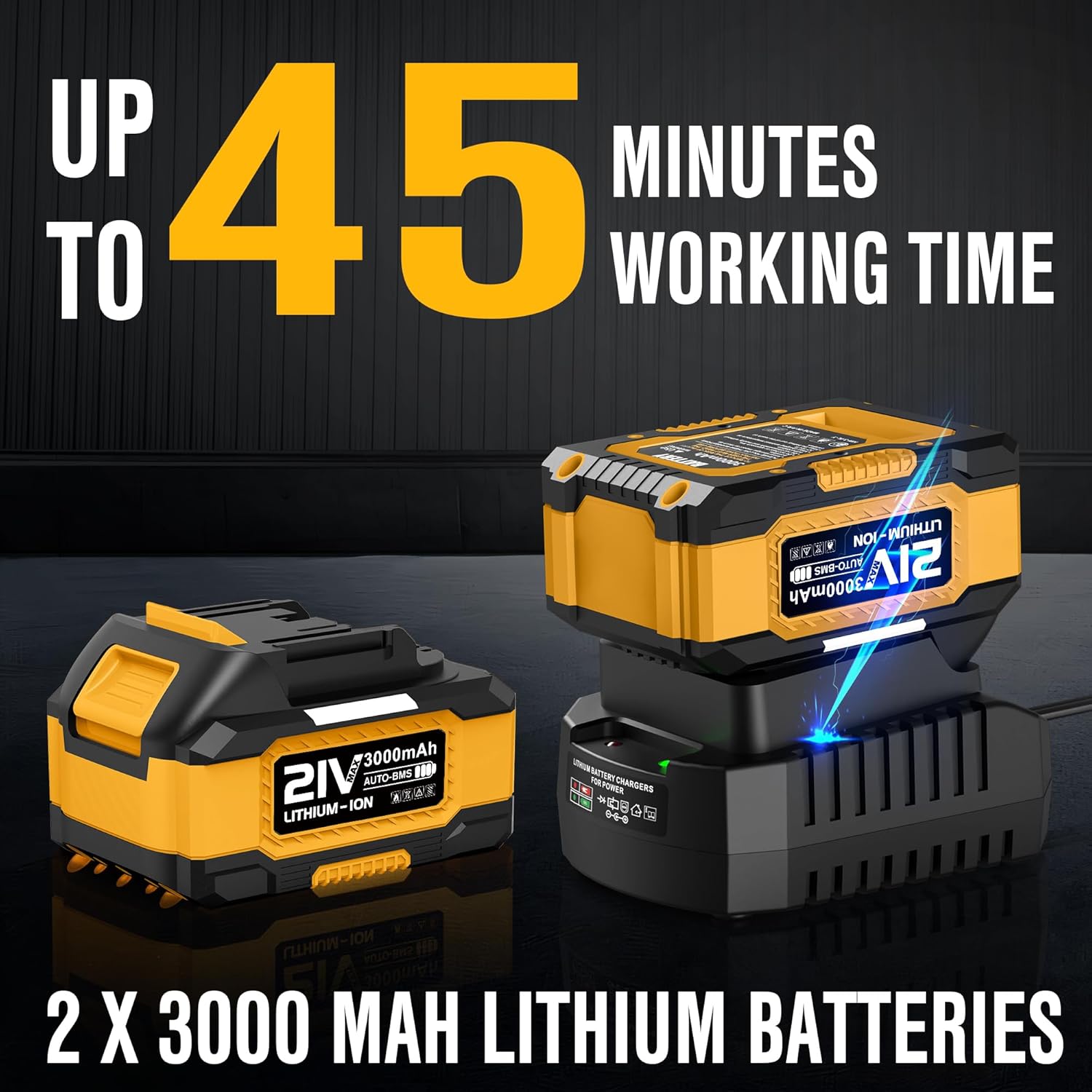

Image 5.1: EWORK 21V 3.0Ah Lithium-Ion batteries and fast charger.
The batteries are designed to retain 80% capacity after 800 cycles, offering extended lifespan. Expected runtime is up to 25 minutes in Turbo mode and 45 minutes on Low Speed, depending on operating conditions.
Image 5.2: Fast charging features with LED indicators and protection.
6. Betjeningsvejledning
6.1 Tænd/sluk og variabel hastighed
To power on the leaf blower, press the variable-speed trigger. The blower speed is controlled by the amount of pressure applied to the trigger. Release the trigger to turn off the blower.
6.2 Activating Turbo Mode
For maximum power, press the 'Turbo' button located on the top of the handle while operating the blower. This activates the turbo mode, providing up to 550 CFM (Cubic Feet per Minute) and 150 MPH (Miles Per Hour) for tougher debris.
Image 6.1: Variable-speed trigger and Turbo mode button.
Image 6.2: Air volume and speed specifications for variable and turbo modes.
6.3 Brugsscenarier
This lightweight and cordless leaf blower is ideal for clearing leaves, grass clippings, dust, and other light debris from various surfaces such as yards, sidewalks, driveways, patios, and parks.
Image 6.3: Demonstrating the lightweight and cordless operation of the leaf blower.
Image 6.4: The leaf blower features intelligent overload protection for motor and battery longevity.
6.4 Officiel produktvideo
Video 6.1: An official EWORK video demonstrating the cordless leaf blower in various outdoor settings, highlighting its ease of use and effectiveness in clearing debris.
7. Vedligeholdelse
Regular maintenance ensures optimal performance and extends the life of your EWORK leaf blower.
- Rensning: Efter hver brug skal du tørre blæserens yderside af med enamp cloth. Ensure air vents are clear of debris to prevent overheating.
- Batteripleje: Opbevar batterier et køligt, tørt sted væk fra direkte sollys. Opbevar ikke helt afladede batterier i længere perioder.
- Opbevaring: Detach the blower tube and battery for compact storage. Store the unit in a dry, secure location.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Blæser starter ikke | Batteriet er ikke isat korrekt eller er afladet | Sørg for, at batteriet er helt isat og opladet |
| Reduceret luftgennemstrømning | Luftindtag/udtag blokeret | Clear any debris from air vents and blower tube |
| Kort køretid | Battery not fully charged or operating in Turbo mode continuously | Fully charge battery; use Turbo mode only when necessary |
9. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | E-ARBEJDE |
| Modelnummer | EK-01GY |
| Strømkilde | Batteridrevet |
| Voltage | 21 volt (DC) |
| Max luftvolumen | 550 CFM (Turbo Mode) |
| Max lufthastighed | 150 MPH (Turbo Mode) |
| Varens vægt | 3.6 pund |
| Produktdimensioner | 29.9 cm L x 4.9 cm B x 9.8 cm H |
| Inkluderede komponenter | 1 x Cordless Leaf Blower, 2 x 3.0Ah Battery, Charger, User Manual |
| Særlige funktioner | Battery Charge Indicator, Compact Design, Lightweight, Overload Protection |
10. Garanti og support
EWORK provides a 365-day warranty for this product. A 30-day return policy is also available. For any inquiries or support, please contact EWORK customer service. We aim to provide a quick reply within 24 hours.
- Garanti: 365 dage
- Returpolitik: 30 dage
- Kundesupport: 24-hour quick reply
