LiTHELi U20 dobbelt batterioplader brugermanual

1. Introduktion

The LiTHELi U20 Dual Battery Charger is designed for efficient and smart charging of two U20 IPS SUPER BATTERY packs simultaneously. Its compact and portable design ensures convenient power access and sharing across various scenarios. This manual provides essential information for safe and effective use of your charger.

Nøglefunktioner:

• Built-In Charging Management: Features smart charging control in a lightweight, travel-ready design.
• Dual Charging Efficiency: Powers up two U20 IPS SUPER BATTERY packs at once, boosting overall speed.
• Kompakt og bærbar: Small footprint for easy storage and on-the-go power access.
• INFINITY POWER SHARE: Enables seamless energy sharing across different scenarios.

2. Pakkens indhold

Sørg for, at alle genstande er til stede ved udpakning:

• LiTHELi U20 Dual Battery Charger
• Strømadapter
• Instruktionsmanual (dette dokument)

Image: The LiTHELi U20 Dual Battery Charger with its accompanying power adapter.

3. Produktet er slutview

Familiarize yourself with the components of your LiTHELi U20 Dual Battery Charger:

Billede: Detaljeret view of the charger, highlighting battery compartments, pogo pin connectors, pogo pin positioning strip, and charging port.

• Batterirum: Slots for inserting U20 IPS SUPER BATTERY packs.
• Pogo Pin Connector: Ensures secure and efficient connection with the battery.
• Pogo Pin Positioning Strip: Guides the battery into the correct charging position.
• Opladningsport: Connects to the power adapter for charging.

4. Opsætning og første brug

4.1 Tilslutning af opladeren

1. Connect the power adapter cable to the charging port on the LiTHELi U20 Dual Battery Charger.
2. Sæt strømadapteren i en standard 110V AC stikkontakt.

4.2 Isætning af batterier

1. Align the U20 IPS SUPER BATTERY pack with the battery compartment, ensuring the pogo pin connectors on the battery align with the pogo pin positioning strip in the charger.
2. Skub forsigtigt batteriet ind i batterirummet, indtil det klikker sikkert på plads.
3. Repeat for the second battery pack if dual charging is desired.

5. Betjening af opladeren

5.1 Opladningsproces

The LiTHELi U20 Dual Battery Charger features smart charging management. Once batteries are correctly inserted and the charger is powered, it will automatically begin the charging process. LED indicators on the battery packs will display the charging status.

Image: The charger with two U20 batteries inserted, indicating the charging process via LED lights.

5.2 Dual Charging Efficiency

The charger is designed to efficiently power up two U20 IPS SUPER BATTERY packs simultaneously. This dual charging capability significantly reduces overall charging time. For optimal performance, ensure both battery packs are properly seated.

Image: The charger conveniently charging via Pogo Pin connection to a compatible power station (e.g., B1000).

5.3 Opladningstid

Charging time may vary based on battery capacity and discharge level. For a 2.0Ah U-Battery Plus, a full charge can be achieved in approximately 2 hours and 22 minutes.

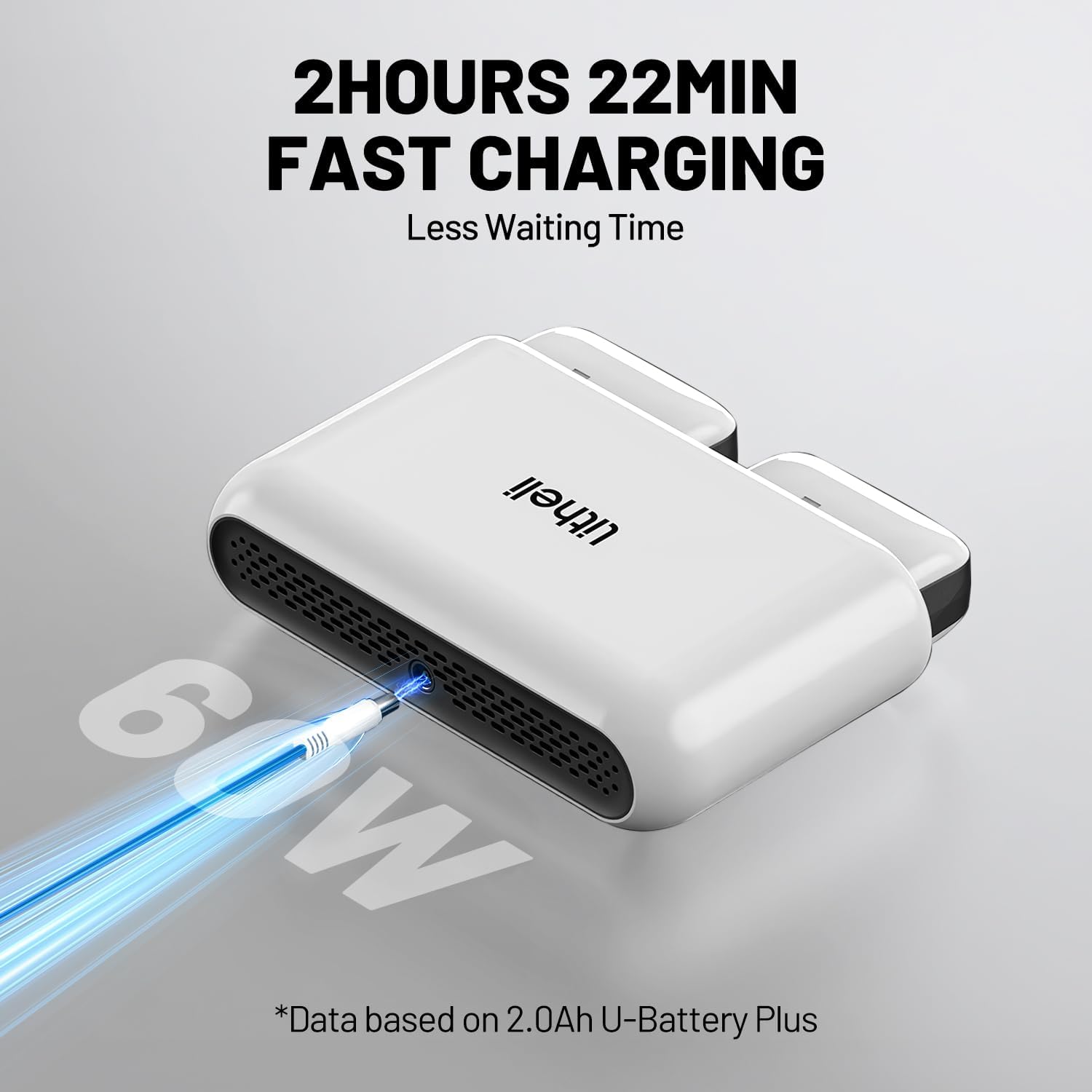

Image: Visual representation of the fast charging capability, indicating a 2-hour 22-minute charge time for a 2.0Ah U-Battery Plus.

6. Kompatibilitet

The LiTHELi U20 Dual Battery Charger is specifically designed for use with the full range of LiTHELi U20 IPS SUPER BATTERY packs. This ensures optimal performance and safety.

Image: The charger is compatible with multiple LiTHELi U20 battery pack models, shown in various colors.

The U20 battery system powers a wide array of LiTHELi tools and equipment, including lawnmowers, leaf blowers, hedge trimmers, and more, facilitating efficient power sharing across your LiTHELi ecosystem.

Image: The LiTHELi U20 battery system, charged by this unit, is compatible with a diverse range of LiTHELi U20 tools, including lawnmowers, leaf blowers, and electric wagons.

7. Specifikationer

8. Pleje & Vedligeholdelse

• Keep the charger clean and free from dust and debris. Use a dry, soft cloth for cleaning.
• Store the charger in a dry environment, away from direct sunlight and extreme temperatures.
• Avoid exposing the charger to moisture or liquids.
• Forsøg ikke selv at skille opladeren ad eller reparere den. Kontakt kundesupport for at få hjælp.

9. Fejlfinding

• Opladeren tænder ikke: Ensure the power adapter is securely plugged into both the charger and a working electrical outlet.
• Batteri oplades ikke: Verify that the battery pack is correctly inserted into the compartment and that the charger is powered. Check for any obstructions in the pogo pin connectors.
• Langsom opladning: Ensure you are using the original power adapter. Environmental factors like extreme temperatures can affect charging speed.

10. Sikkerhedsoplysninger

• Use only LiTHELi U20 IPS SUPER BATTERY packs with this charger. Using incompatible batteries may result in injury or damage.
• Brug ikke opladeren, hvis den er blevet beskadiget på nogen måde.
• Opbevar opladeren utilgængeligt for børn.
• Udsæt ikke opladeren for regn eller våde forhold.
• Always unplug the charger from the power outlet before cleaning or when not in use.

11. Officielle produktvideoer

Watch these official videos from LiTHELi US for more information on compatible batteries:

12. Garanti og support

For warranty information, technical support, or any questions regarding your LiTHELi U20 Dual Battery Charger, please contact LiTHELi US customer service. Refer to the product packaging or the official LiTHELi webwebsted for kontaktoplysninger.
