Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your GLOBE Electric 1-Light Outdoor Flush Mount Ceiling Light Fixture, Model 60000020. Please read this manual thoroughly before installation and retain it for future reference.
Image: The GLOBE Electric Sasha 1-Light Outdoor Flush Mount Ceiling Light Fixture, showcasing its matte black finish and clear glass shade.
Sikkerhedsoplysninger
ADVARSEL: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installing or servicing. All electrical connections must be in accordance with local codes and ordinances, National Electric Code (NEC), and ANSI/NFPA 70-1999.
- Ensure the mounting surface is structurally sound and can support the fixture's weight.
- Tilslut ikke denne armatur til et ujordet elektrisk system.
- Brug kun den specificerede pæretype og wattage.
- Forsøg ikke at ændre armaturet.
- Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
Pakkens indhold
Kontroller, at alle komponenter er til stede, før installationen påbegyndes:
- 1x Flush Mount Light Fixture
- 4x Glass Panes
- Monteringsudstyr (skruer, trådmøtrikker, monteringsplade)
- Instruktionsark (denne manual)
Note: Bulb (1x E26/Medium Base 60W) and dimmer switch are sold separately.
Billede: En detaljeret view of the light fixture's internal components, showing the E26 bulb socket and the clear glass shade.
Opsætning og installation
Follow these steps for proper installation of your outdoor flush mount light fixture:
- Forbered til installation: Turn off power at the circuit breaker or fuse box. Ensure the power is completely off before proceeding.
- Fastgør monteringsplade: Fastgør monteringspladen til samledåsen med de medfølgende skruer. Sørg for, at den er ordentligt fastgjort.
- Foretag elektriske forbindelser: Connect the fixture's wires to your household wiring using wire nuts. Connect black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground). Ensure all connections are secure.
- Monter armaturet: Juster forsigtigt armaturet med monteringspladen, og fastgør det med de medfølgende skruer.
- Install Glass Panes: Insert the four clear glass panes into the fixture's frame.
- Installer pære: Screw in one E26/Medium Base 60W bulb (sold separately). Compatible with LED and incandescent bulbs.
- Gendan strøm: Tænd for strømmen igen ved afbryderen eller sikringsboksen.

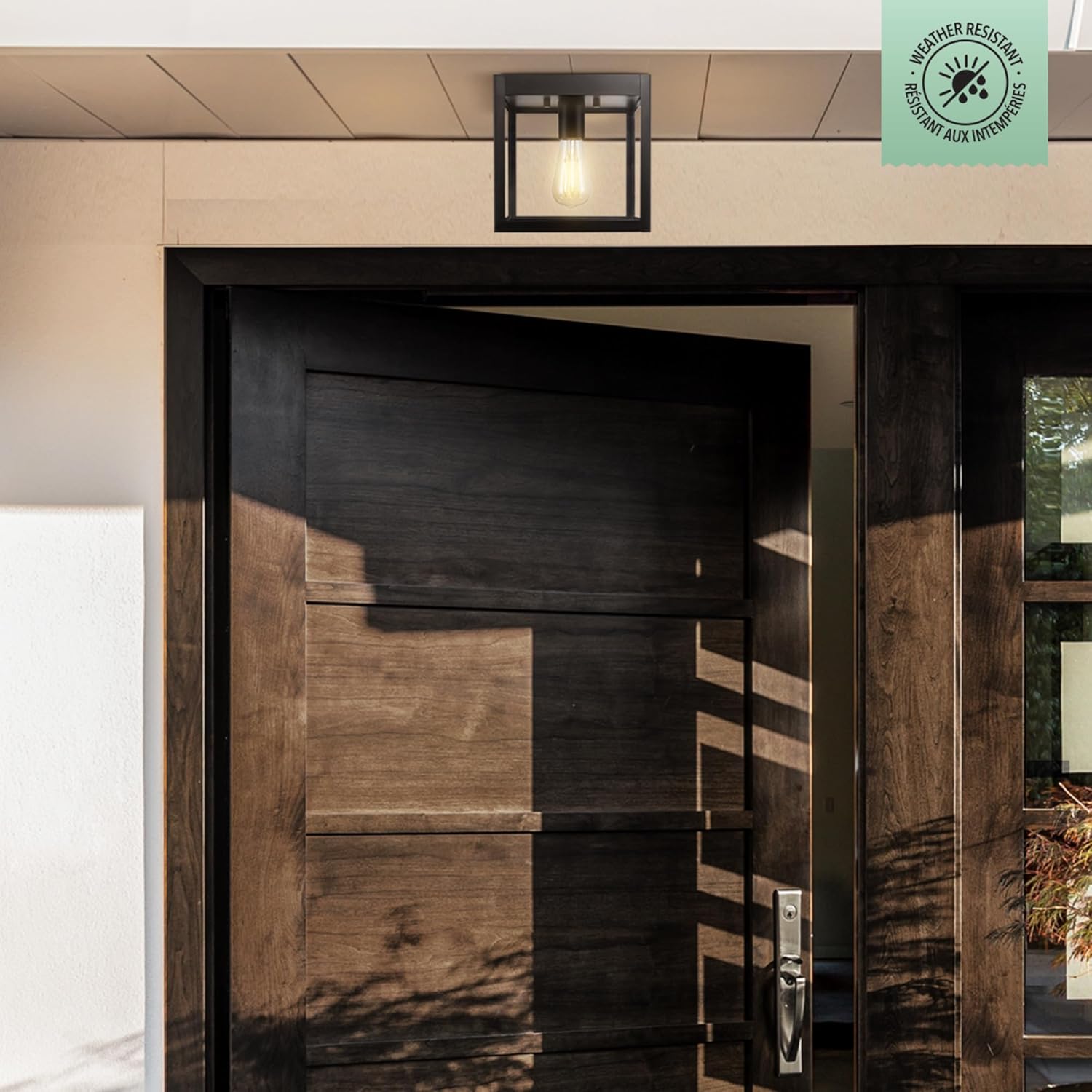

Image: The GLOBE Electric Sasha light fixture installed on a ceiling above an outdoor door, demonstrating its placement and aesthetic.
Image: Two GLOBE Electric Sasha light fixtures installed on an outdoor patio ceiling, shown in a rainy environment to highlight their weather-resistant design.
Betjeningsvejledning
This fixture operates via a standard wall light switch. For dimming functionality, ensure you use a dimmable E26 bulb and a compatible dimmer switch (both sold separately).
- Til/fra: Brug din eksisterende vægkontakt til at tænde eller slukke lysarmaturet.
- Dæmpning (valgfrit): If a compatible dimmer switch is installed, adjust the dimmer to achieve your desired brightness level.
Opretholdelse
Regular maintenance will help prolong the life and appearance of your light fixture:
- Rensning: Sørg for, at strømmen er slukket for at rengøre armaturet. Tør af med en blød, tør klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da de kan beskadige overfladen eller glasset.
- Udskiftning af pære: Ensure power is off before replacing the bulb. Allow the bulb to cool completely before touching. Replace with an E26/Medium Base bulb, up to 60W.
- Inspektion: Tjek jævnligt for løse forbindelser eller tegn på slid.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power to fixture; Loose wiring; Faulty bulb; Faulty switch. | Check circuit breaker/fuse; Check wire connections; Replace bulb; Test/replace switch. |
| Lyse flimrer. | Løs pære; Forkert pæretype til lysdæmper; Løs ledningsføring. | Tighten bulb; Ensure bulb is dimmable if using a dimmer; Check wire connections. |
| Glass panes are loose. | Improper installation of glass panes. | Re-seat glass panes firmly into the frame. |
Specifikationer
| Mærke | GLOBUS |
| Modelnavn | Sasha |
| Varenummer | 60000020 |
| Farve | Matte Black, Clear Glass Shade |
| Materiale | Metal, glas |
| Produktdimensioner | 20.4 cm L x 20.4 cm B x 20.4 cm H (8" L x 8" B x 8" H) |
| Indendørs/Udendørs brug | Udendørs |
| Strømkilde | Hardwired |
| Voltage | 120 volt |
| Wattage | Max 60 watt |
| Pære base | E26 (Mellem base) |
| Lyskildetype | Incandescent, LED (compatible) |
| Dæmpbar | Yes (with compatible dimmer switch and bulb) |
| Vejrbestandighed | Water Resistant (suitable for exposure to wind, sun, and rain) |
| Montering påkrævet | Ja |
Image: Dimensional drawing of the light fixture, indicating its 8"L x 8"W x 8"H size.
Garanti og support
This product comes with no explicit warranty as per the manufacturer's specifications. For any questions regarding installation, operation, or troubleshooting that are not covered in this manual, please contact GLOBE Electric customer support.
For further assistance, please visit the official GLOBE Electric webwebsted eller kontakt deres kundeserviceafdeling.
