Polibi Full Size Upholstered Bed with Twin Size Trundle and 2 Storage Drawers - Instruction Manual

1. Introduktion

Thank you for choosing the Polibi Full Size Upholstered Bed with Twin Size Trundle and 2 Storage Drawers. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before beginning assembly and retain them for future reference.

Figure 1: Fully assembled Polibi Full Size Upholstered Bed with trundle extended.

2. Sikkerhedsoplysninger

• Always assemble the bed frame on a soft, clean surface to prevent damage.
• Sørg for, at alle dele er til stede og ubeskadigede før montering. Må ikke anvendes, hvis nogen af ​​delene mangler eller er i stykker.
• Tighten all bolts and screws securely, but do not overtighten. Periodically check and re-tighten fasteners.
• Hold små dele og emballagematerialer væk fra børn under montering.
• Do not allow children to climb on the bed frame or trundle when not in use.
• The maximum weight capacity for the full-size bed is 400 lbs. The trundle bed is designed for a twin-size mattress and has its own weight limit (not specified, assume standard twin bed limits).
• Use only the recommended mattress sizes for both the main bed and the trundle.

3. Pakkens indhold

Before assembly, verify that all components listed below are present. If any parts are missing or damaged, please contact customer support.

Figur 2: Eksploderet view of bed components.

• Upholstered Headboard (1)
• Full Size Bed Frame Rails (2 side, 1 footboard)
• Full Size Bed Slats (Set)
• Twin Size Trundle Frame (1)
• Twin Size Trundle Slats (Set)
• Opbevaringsskuffer (2)
• Support Legs (Various sizes)
• Hardware Pack (Bolts, screws, washers, Allen wrench)

4. Opsætning og montering

Samlingen kræver typisk to voksne. Følg venligst disse trin omhyggeligt.

Step 4.1: Assemble the Main Bed Frame

1. Attach the side rails to the upholstered headboard using the provided bolts and Allen wrench. Ensure a secure connection.
2. Connect the footboard to the side rails.
3. Install the central support beam and any additional support legs for the main frame.
4. Lay out the full-size wooden slats across the bed frame. Secure them in place according to the instructions (usually with plastic caps or screws).

Figure 3: Main bed frame with headboard and slats installed.

Step 4.2: Assemble the Twin Size Trundle

1. Assemble the trundle frame components, ensuring the wheels are properly attached for smooth movement.
2. Install the twin-size wooden slats onto the trundle frame.

Figure 4: Twin size trundle frame with slats.

Step 4.3: Assemble the Storage Drawers

1. Assemble the drawer boxes according to the provided diagrams.
2. Attach the wheels to the bottom of each drawer for easy access.

Figure 5: Assembled storage drawer.

Trin 4.4: Endelig placering

1. Carefully slide the assembled trundle bed under the main bed frame.
2. Slide the two storage drawers under the main bed frame.
3. Place your full-size mattress on the main bed frame and a twin-size mattress on the trundle.

5. Betjening

5.1: Using the Trundle Bed

The twin-size trundle bed is designed for convenient extra sleeping space. To use, gently pull the trundle frame out from under the main bed. To store, push it back into place until it is fully concealed.

5.2: Using the Storage Drawers

The two storage drawers are on wheels for easy access. Pull them out to store items like bedding, clothes, or toys. Push them back in when not in use to keep your room tidy.

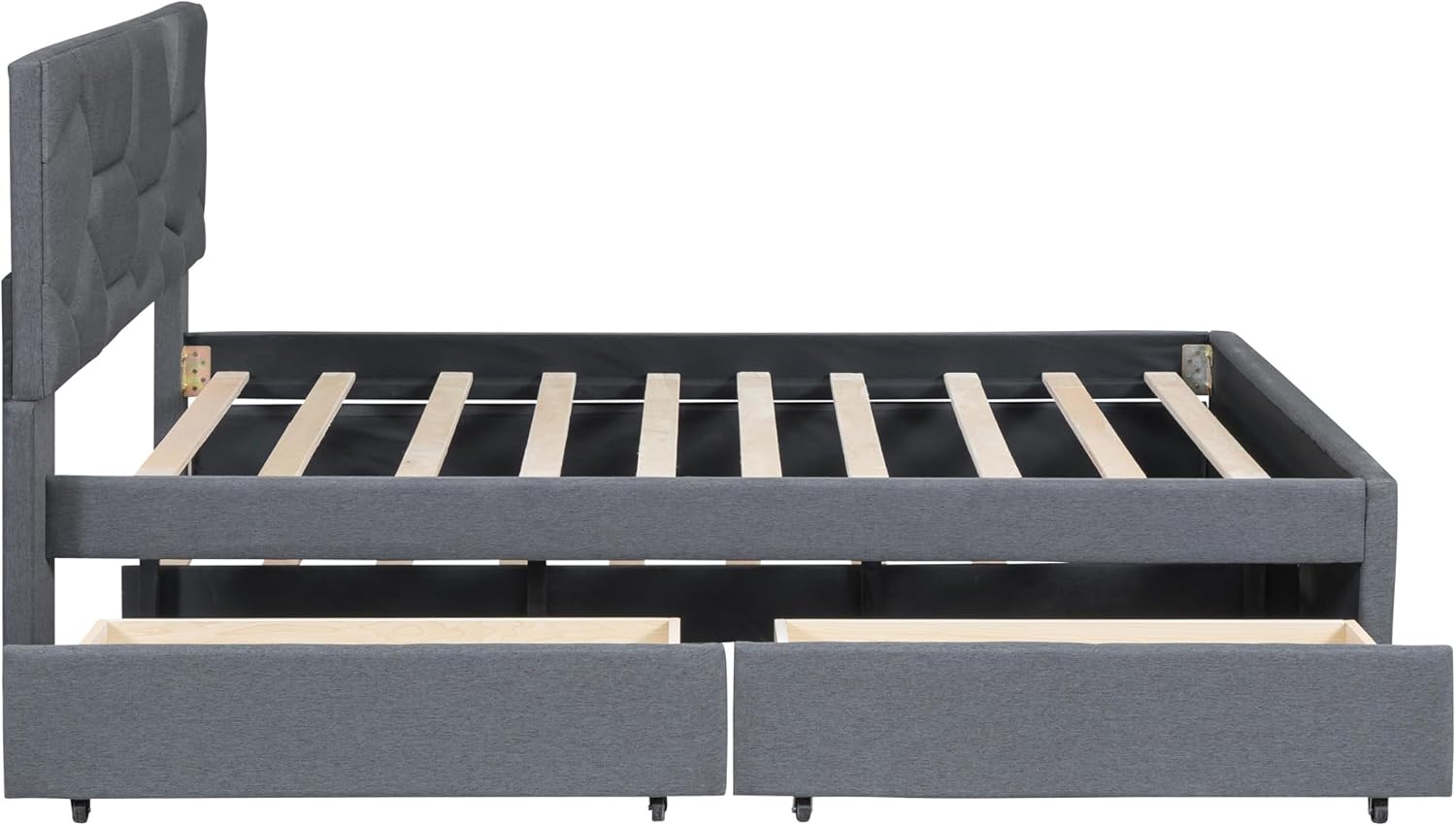

Figure 6: Main bed frame with storage drawers extended.

6. Vedligeholdelse

• Rensning: Wipe the upholstered surfaces with a dry cloth. For spills, blot immediately with a clean, damp klæde. Undgå skrappe kemikalier.
• Fastgørelsesmidler: Kontrollér regelmæssigt alle bolte og skruer for at sikre, at de forbliver stramme. Spænd efter behov for at opretholde stabiliteten.
• Flytning: Når du flytter sengen, skal du løfte den i stedet for at trække den for at undgå at beskadige rammen og gulvet.

7. Fejlfinding

8. Specifikationer

Figur 7: Produktdimensioner.

• Overordnede produktdimensioner: 79.3 cm L x 63 cm B x 39.8 cm H
• Inner Bed Dimensions: 75"L x 55"W (Full Size)
• Trundle Dimensions: 74.2"L x 40.6"W (Twin Size)
• Vægtgrænse: 400 lbs (Main Bed)
• Rammemateriale: Solid MDF and Particle Board
• Polstring materiale: Linned stof
• Farve: Grå
• Montering påkrævet: Ja
• Boxmadras påkrævet: Ingen

9. Garanti og support

Polibi products are manufactured with quality and care. While specific warranty details are not provided in this manual, please retain your proof of purchase. For any questions, missing parts, or support needs, please contact Polibi customer service through your retailer or the official Polibi webwebsted.

Fabrikant: polybi

Dato først tilgængelig: 21. juni 2023
