Tribesigns 78.74-Inch Conference Table Set Instruction Manual

Indledning

Thank you for choosing the Tribesigns 78.74-Inch Conference Table Set. This manual provides detailed instructions for the safe assembly, operation, and maintenance of your new conference table. Please read this manual thoroughly before beginning assembly and retain it for future reference.

This set is designed for versatility, allowing various configurations to suit your meeting and workspace needs. Each table unit measures 78.74 inches in length, 27.55 inches in depth, and 29.52 inches in height, and is constructed from high-quality engineered wood with sturdy metal legs.

Sikkerhedsoplysninger

• Saml altid bordet i henhold til de medfølgende instruktioner.
• Sørg for, at alle dele er forsvarligt fastgjort før brug.
• Do not place heavy objects on the table's edges to prevent tip-over risks.
• Keep the table away from heat sources and do not expose it to direct sunlight for extended periods to maintain its stability and longevity.
• Use caution when moving the assembled table to prevent injury or damage.

Pakkens indhold

Before assembly, please verify that all parts and hardware listed below are present and undamaged. If any items are missing or damaged, please contact customer support.

This image displays all the components and hardware included in the package, organized for easy identification during assembly. It includes tabletop sections, metal frames, and various screws.

Parts List (per table unit):

• Tabletop Sections (Part 3): 2 pcs
• Long Side Frames (Parts 7 & 8): 2 pcs each
• Short Side Frames (Parts 1 & 2): 2 pcs each
• Middle Support Bars (Parts 4 & 5): 2 pcs each
• Corner Brackets (Part 6): 2 pcs

Hardware liste:

Monteringsvejledning

Follow these steps to assemble each table unit. It is recommended to have two people for assembly.

1. Saml rammen: Connect the long side frames (Parts 7 and 8) using the frame connectors (F) and 8x20mm screws (E). Ensure all screws are tightened securely.
2. Attach Middle Support Bars: Insert the middle support bars (Parts 4 and 5) between the long side frames. Secure them using 8x40mm screws (A).
3. Install Short Side Frames: Attach the short side frames (Parts 1 and 2) to the ends of the assembled long frame. Use 8x40mm screws (A) to secure them.
4. Secure Corner Brackets: Place the corner brackets (Part 6) at the four corners where the long and short side frames meet. Fasten them with 8x20mm screws (E).
5. Fastgør bordplade: Carefully place the tabletop sections (Part 3) onto the assembled metal frame. Align the pre-drilled holes. Use 6x60mm screws (B) to attach the tabletop to the frame. Ensure all screws are tightened evenly to prevent warping.
6. Installer justerbare fodpuder: Screw the adjustable foot pads (C) into the bottom of each table leg. These can be adjusted to level the table on uneven surfaces.

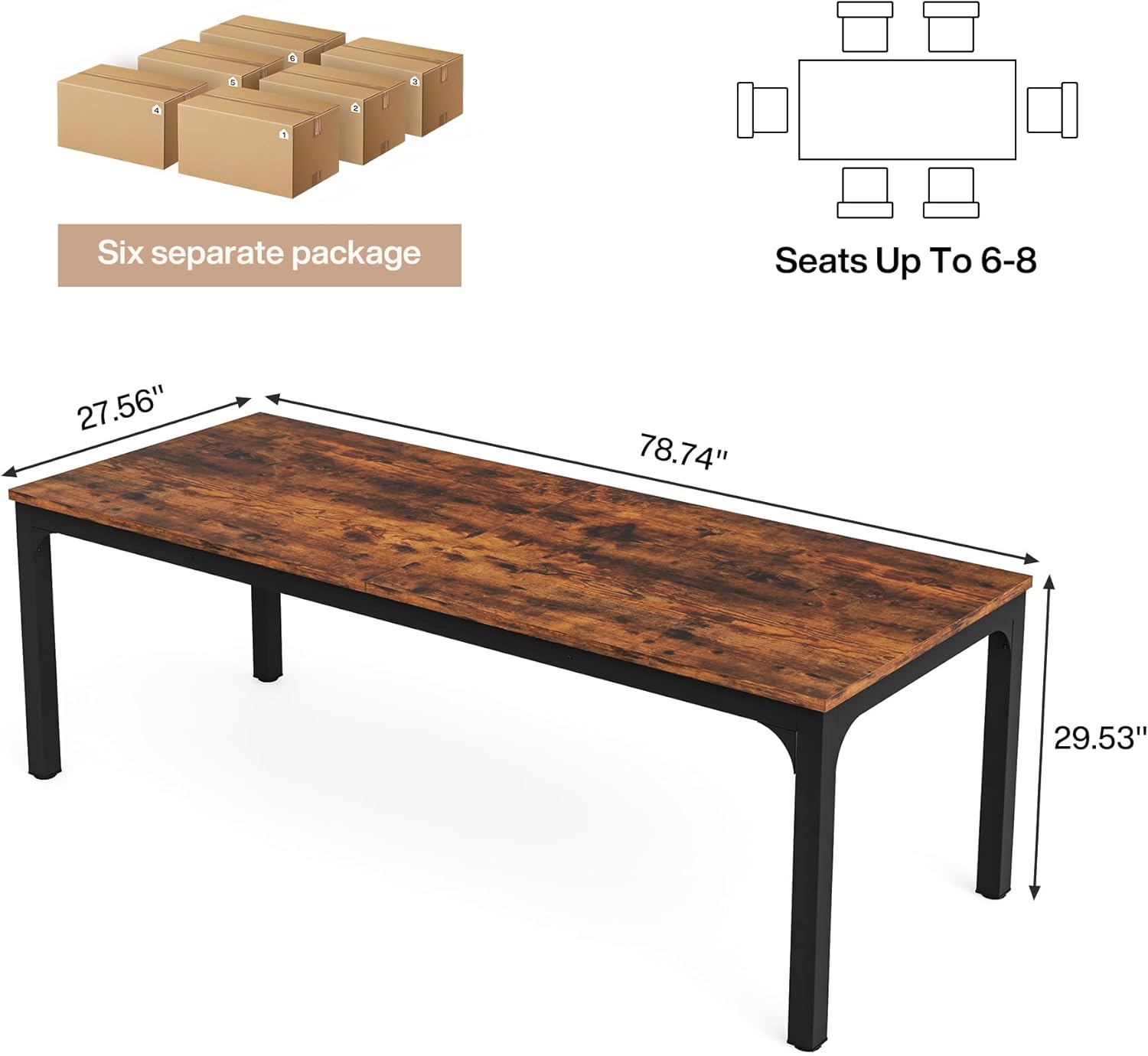

A diagram detailing the length, width, and height of one individual table unit, which measures 78.74 inches long, 27.56 inches deep, and 29.53 inches high. It also notes that the set comes in six separate packages and can seat 6-8 people per unit.

Betjeningsvejledning

The Tribesigns Conference Table Set is designed for flexible use in various office and meeting environments. Here’s how to maximize its functionality:

Arranging Table Configurations:

The individual table units can be combined in multiple ways to create different layouts:

• Long Rectangular Table: Connect multiple units end-to-end to form an extended table suitable for large seminars or collaborative workspaces.
• U-Shape Configuration: Arrange units to form a U-shape, ideal for presentations, board meetings, or training sessions where a central focus is desired.
• Hollow Rectangle: Create a hollow rectangular setup for interactive discussions or group activities.
• Individual Workstations: Each unit can also function as a standalone desk or small meeting table.

This composite image demonstrates four different ways the individual table units can be combined: a large U-shape, a long rectangular setup, a hollow rectangular arrangement, and a smaller U-shape, highlighting the versatility of the set.

Adjusting Foot Pads:

Each table leg is equipped with an adjustable foot pad. To level the table or protect your floor:

1. Gently lift the table corner slightly.
2. Rotate the foot pad clockwise to raise the corner or counter-clockwise to lower it.
3. Adjust all foot pads as needed until the table is stable and level.

Opretholdelse

Proper care will ensure the longevity and appearance of your Tribesigns Conference Table Set:

• Rensning: Wipe the table surface with a dry cloth to remove dust and spills. For stubborn marks, use a slightly damp cloth with a mild, non-abrasive cleaner, then dry immediately.
• Undgå barske kemikalier: Brug ikke skrappe kemikalier, slibende rengøringsmidler eller polermidler, der kan beskadige finishen.
• Beskyt mod varme og fugt: Use coasters for drinks and heat pads for hot items to prevent damage to the tabletop.
• Regelmæssig inspektion: Kontrollér regelmæssigt alle skruer og forbindelser for at sikre, at de forbliver fastspændte. Spænd efter om nødvendigt.

Fejlfinding

If you encounter any issues with your conference table, please refer to the following common solutions:

• Bordet er vakkelvornt:
  • Sørg for, at alle monteringsskruer er helt spændt.
  • Adjust the foot pads on each leg to level the table on uneven flooring.
• Manglende dele:
  • Double-check the package contents against the parts list. Sometimes small parts can be overlooked.
  • Contact Tribesigns customer support with details of the missing parts.
• Beskadigede dele:
  • Do not attempt to assemble with damaged parts.
  • Contact Tribesigns customer support immediately for replacement parts.

Produktspecifikationer

A visual guide illustrating different rectangular table sizes that can be created with the set, including dimensions like 157.48 inches by 55.11 inches, and 157.48 inches by 82.67 inches, along with suggested seating capacities for each.

Garanti og support

Tribesigns is committed to providing high-quality products and customer satisfaction. For any warranty claims, technical support, or assistance with missing/damaged parts, please contact Tribesigns customer service directly. Please have your model number (DU0060CFSET) and purchase information ready when contacting support.

You can typically find contact information on the product packaging or the official Tribesigns webwebsted.
