Lezyne Macro Drive 1400+ Forlygte & Strip Drive Pro 400+ Baglygte Brugermanual

Produkt overview

The Lezyne Macro Drive 1400+ Headlight and Strip Drive Pro 400+ Taillight set provides comprehensive illumination for cycling, enhancing visibility and safety. The front light offers powerful output and long endurance, while the rear light ensures wide-angle visibility with a bright flash mode. Both lights feature durable construction and convenient USB-C charging.

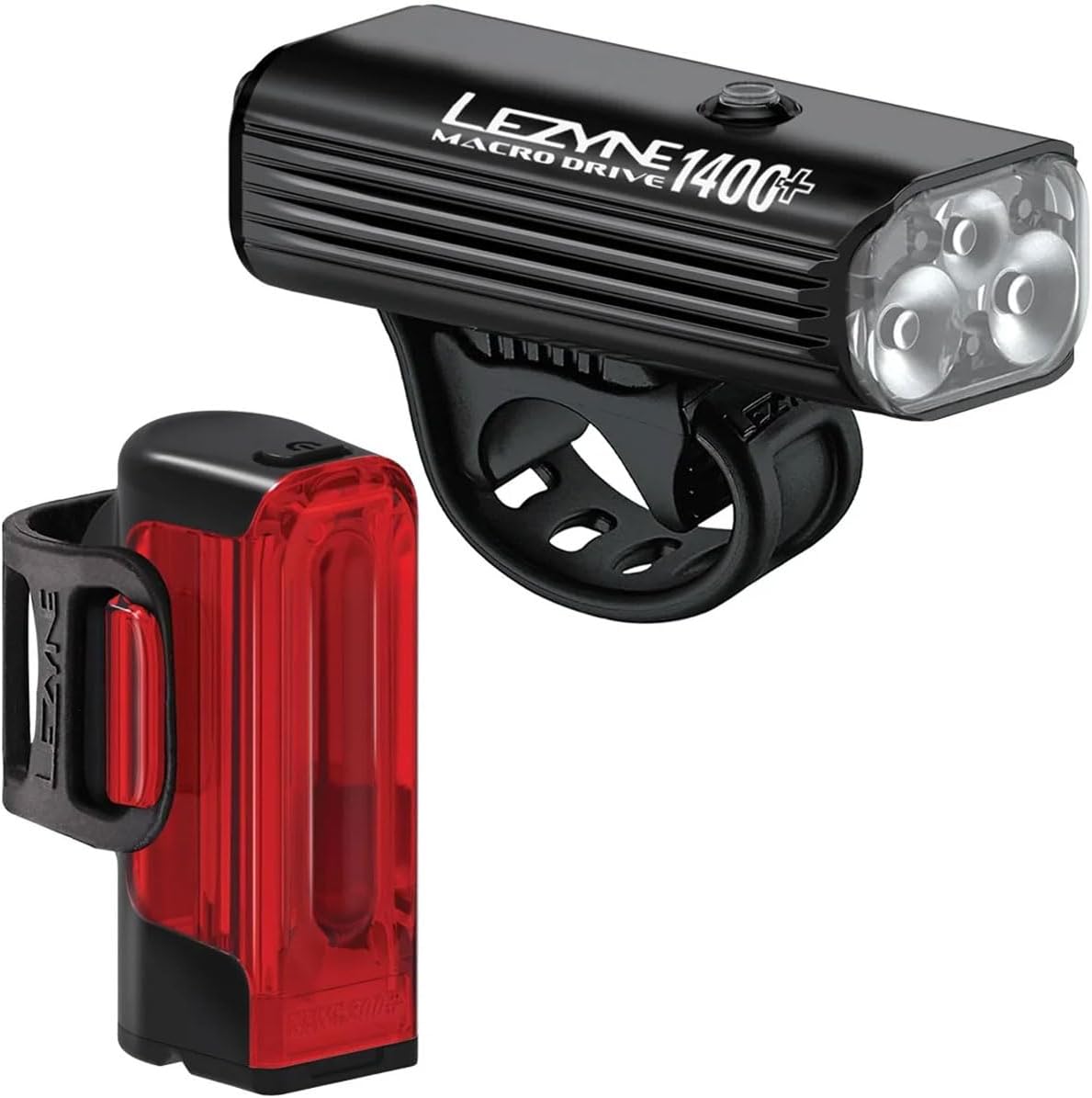

Image: The Lezyne Macro Drive 1400+ Headlight (top) and Strip Drive Pro 400+ Taillight (bottom) shown together. The headlight is black with three clear lenses, and the taillight is black with a red translucent body.

Nøglefunktioner:

• Macro Drive 1400+ Headlight: Peak 1400 Lumens, 300-Hour Endurance in Eco Mode, Tri-Focus Optics for brighter and wider beam.
• Strip Drive Pro 400+ Taillight: Peak 400 Lumens, 80-Hour Runtime in Lowest Mode, Daytime Flash Mode, Wide-Angle Optics for 270° visibility.
• Opladning: Water-Resistant USB-C Port with Charge Indicator, Rapid 2Amp Opladning.
• Holdbarhed: Durable Aluminum Body with Cooling Fins (Headlight), IPX7 Waterproof Rating.
• Batteri: 5200 mAh Battery Capacity (Headlight).

Opsætning og installation

Forlygtemontering:

1. Monteringssted: Identify a suitable location on your bicycle's handlebar. Ensure the light beam will not be obstructed and can be aimed correctly.
2. Fastgør remmen: Wrap the integrated rubber strap around the handlebar.
3. Hook the Strap: Pull the strap firmly and hook it onto the plastic clip on the opposite side of the light mount. Ensure the light is securely fastened and does not wobble.
4. Juster vinkel: Adjust the angle of the headlight so that the beam is directed forward and slightly downward, illuminating the path ahead without blinding oncoming traffic.

Image: A close-up of the Lezyne Macro Drive 1400+ Headlight, showing its black aluminum body, three lenses, and integrated rubber strap for handlebar mounting.

Taillight Installation:

1. Monteringssted: Choose a vertical section of your bicycle's seatpost. Ensure the taillight is visible from the rear.
2. Fastgør remmen: Wrap the integrated rubber strap around the seatpost.
3. Hook the Strap: Pull the strap firmly and hook it onto the plastic clip on the opposite side of the light mount. Verify the taillight is stable and facing directly backward.

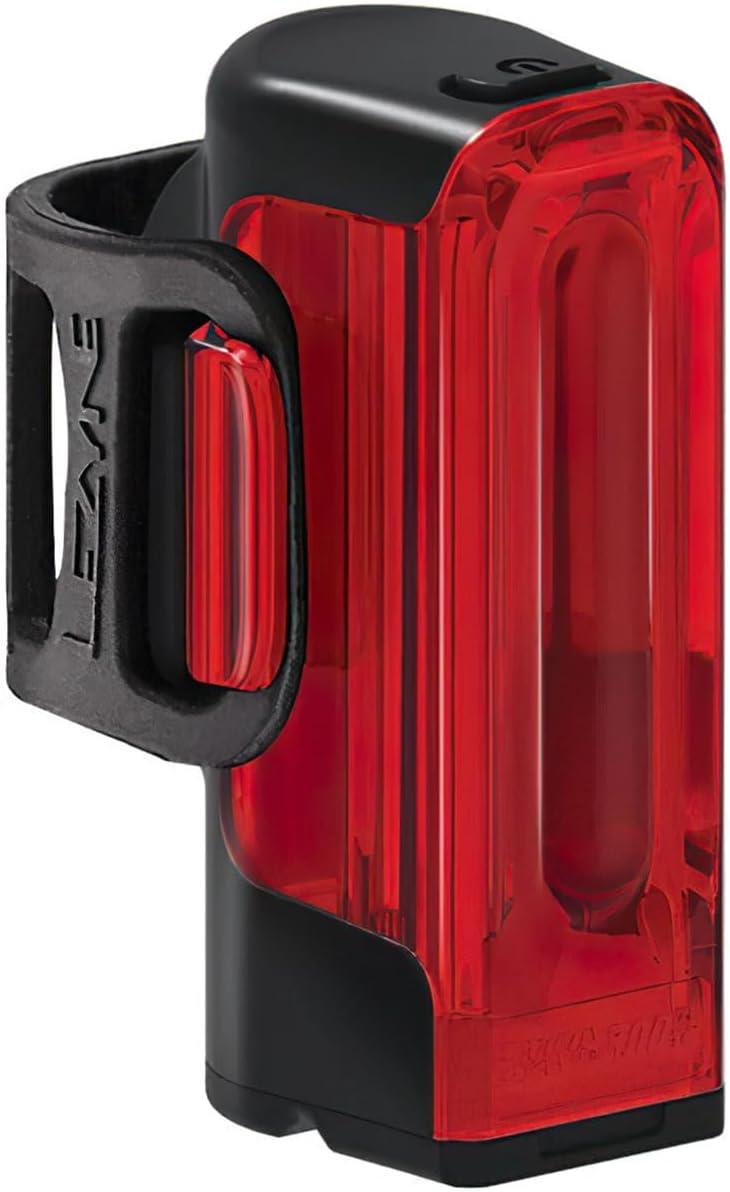

Image: A close-up of the Lezyne Strip Drive Pro 400+ Taillight, highlighting its red translucent body and black mounting strap designed for seatpost attachment.

Betjeningsvejledning

Tænd/sluk:

• To turn on, press and hold the power button located on the top of the light for approximately 2 seconds.
• To turn off, press and hold the power button for approximately 2 seconds.

Ændring af tilstande:

• While the light is on, short press the power button to cycle through the available lighting modes (e.g., Overdrive, Enduro, Economy, Flash modes).
• Refer to the specific light's packaging or Lezyne's official website for a detailed list of modes and their respective lumen outputs and runtimes.

Image: The Lezyne Macro Drive 1400+ Headlight securely mounted on bicycle handlebars, demonstrating its compact profile og placering.

Image: Three Lezyne taillights illuminated, showcasing their wide-angle optics designed for 270-degree visibility, enhancing safety from multiple angles.

Batteriindikator:

The power button also functions as a battery indicator. Its color changes to indicate the current battery level:

• Grøn: Full to high charge.
• Gul: Medium opladning.
• Rød: Lav opladning, genoplad snart.
• Blinker rødt: Critically low charge, recharge immediately.

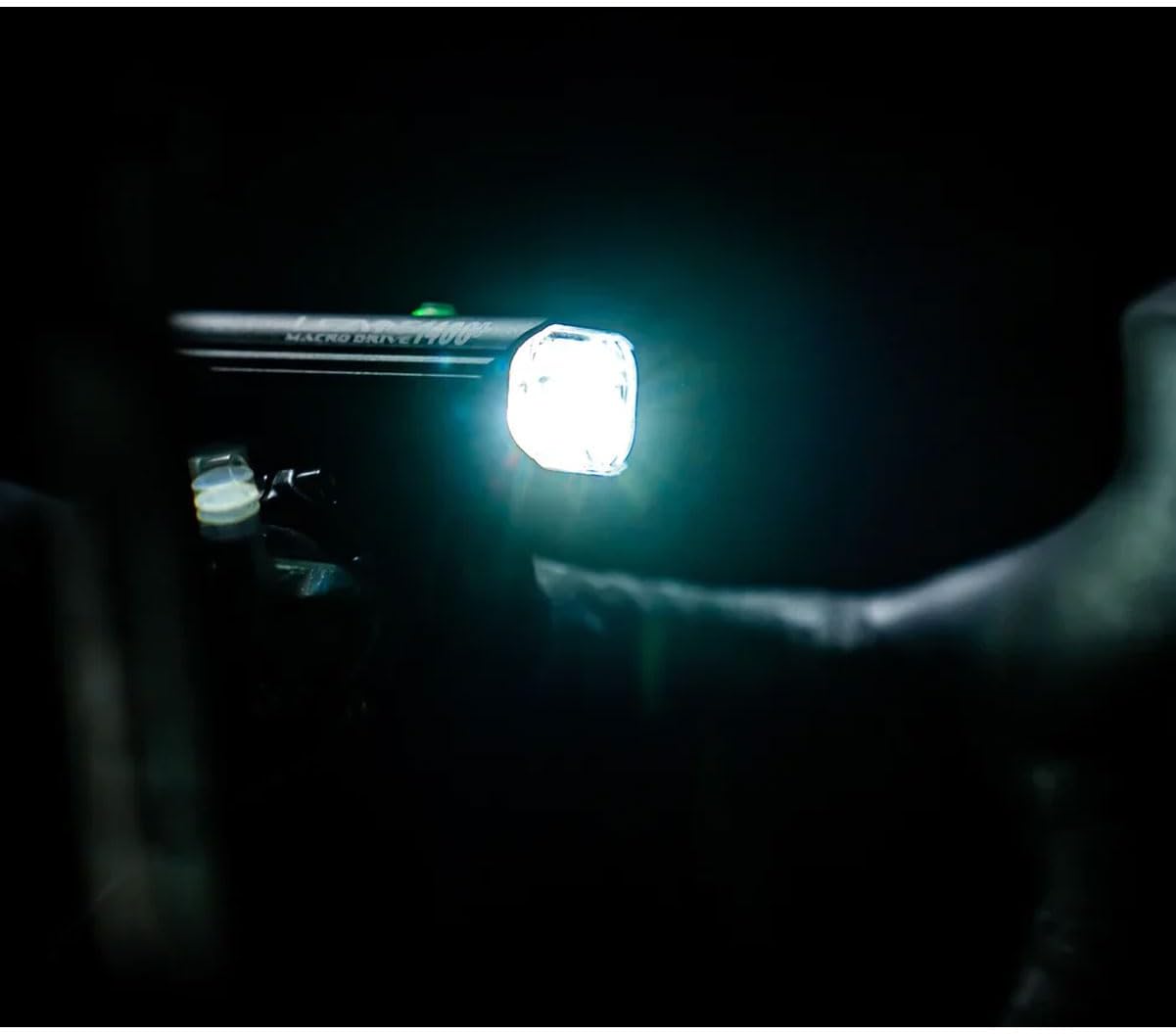

Image: The Lezyne Macro Drive 1400+ Headlight illuminating a dark path from a bicycle's handlebars, demonstrating its powerful beam.

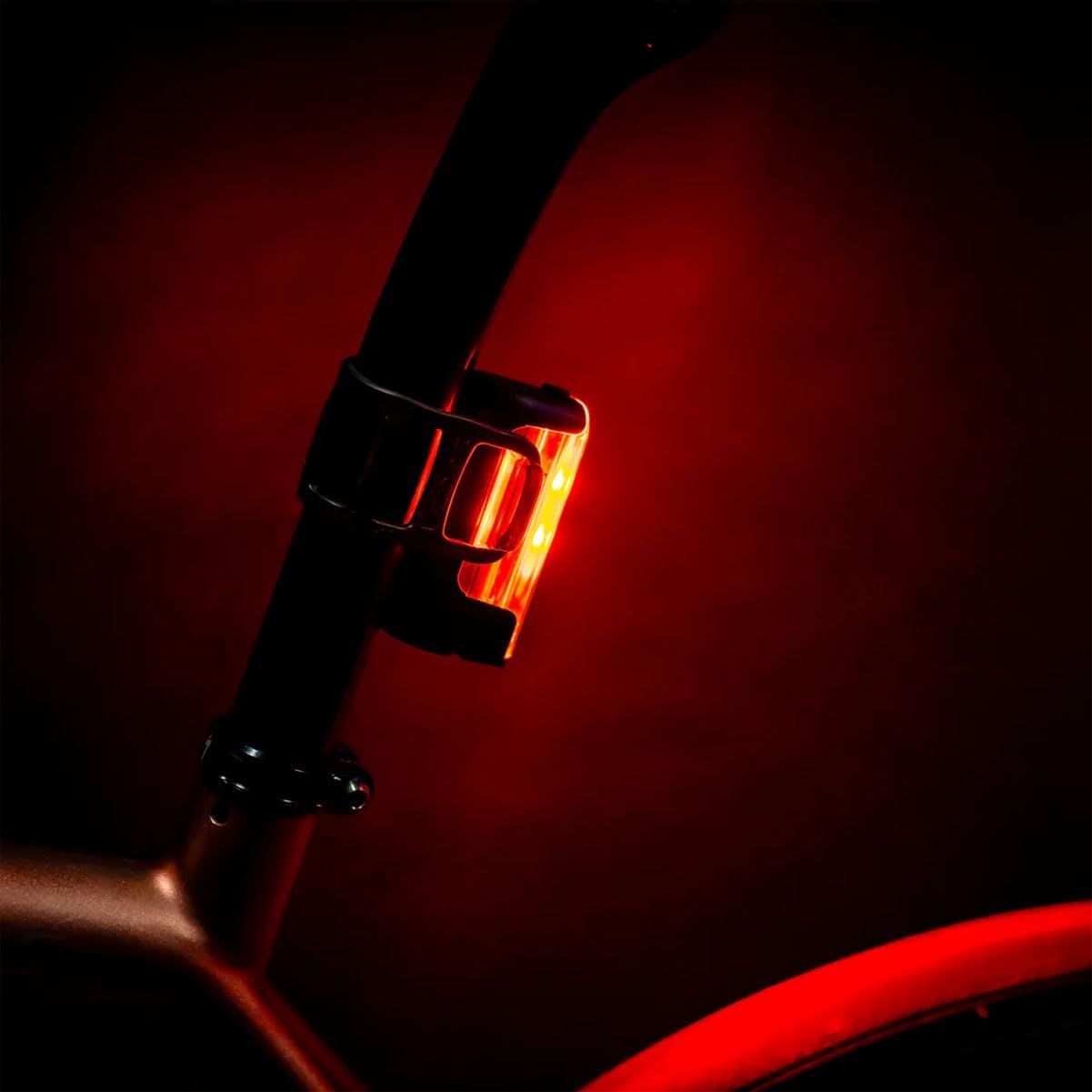

Image: The Lezyne Strip Drive Pro 400+ Taillight mounted on a bicycle's seatpost, emitting a bright red light for rear visibility in low-light conditions.

Vedligeholdelse og opladning

Opladning af lys:

1. Locate the USB-C charging port on the light. This port is typically covered by a rubber plug to ensure water resistance.
2. Carefully open the rubber plug to expose the USB-C port.
3. Connect a standard USB-C cable to the light's port and the other end to a USB power source (e.g., computer, wall adapter).
4. The charge indicator on the light will illuminate to show charging status. It will typically turn green or off when fully charged.
5. Once charging is complete, disconnect the cable and firmly close the rubber plug to maintain water resistance.

Billede: Et nærbillede view of a Lezyne light's USB-C charging port, with water droplets on the surface, emphasizing its water-resistant design. The rubber cover is shown open.

Rengøring og opbevaring:

• Tør lysene af med adamp klud til at fjerne snavs og snavs. Undgå at bruge skrappe kemikalier eller slibende rengøringsmidler.
• Ensure the USB-C port cover is securely closed when not charging to prevent water and dust ingress.
• Store the lights in a cool, dry place when not in use, especially during long periods of inactivity.
• For optimal battery life, charge the lights fully before long-term storage and recharge every few months.

Fejlfinding

Specifikationer

Garanti og support

For warranty information and customer support, please refer to the official Lezyne webwebstedet eller kontakt deres kundeservice direkte. Gem din købsbevis til garantikrav.

Lezyne Official Webwebsted: www.lezyne.com

For yderligere hjælp kan du også henvise til LEZYNE Butik på Amazon.
