1. Introduktion
Thank you for choosing the Lezyne Classic Drive 500+ and Zecto Drive 200+ bicycle light set. This manual provides essential information for the proper installation, operation, and maintenance of your new lights, ensuring optimal performance and safety during your rides. This set is designed to enhance your visibility and illuminate your path, contributing to a safer cycling experience.

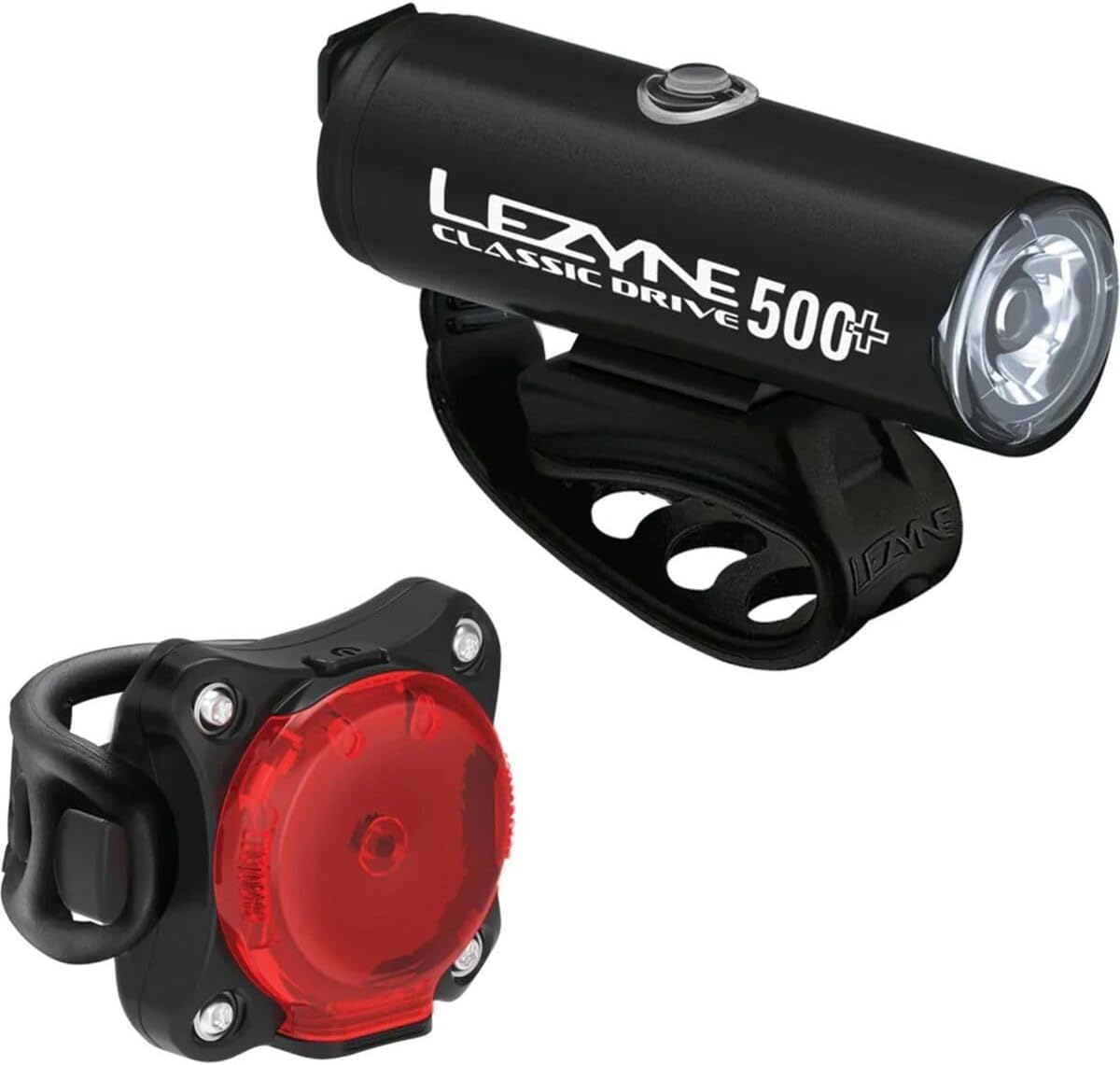

The Lezyne Classic Drive 500+ front light and Zecto Drive 200+ rear light, shown together.
2. Pakkens indhold
Kontroller venligst, at alle varer er til stede i din pakke:
- 1 x Lezyne Classic Drive 500+ Front Light
- 1 x Lezyne Zecto Drive 200+ Rear Light
- Mounting Straps (pre-attached or included separately)
- Note: A USB-C charging cable is not included and must be supplied by the user.
The Classic Drive 500+ front light and Zecto Drive 200+ rear light, ready for use.
3. Opsætning og installation
3.1 Indledende opladning
Before first use, fully charge both the front and rear lights. Connect the lights to a USB power source (e.g., computer USB port, wall adapter) using a compatible USB-C cable (not included). The charging indicator light will show charging status and turn solid when fully charged.
3.2 Mounting the Classic Drive 500+ Front Light
- Identify a suitable location on your handlebar, ensuring the light beam is unobstructed.
- Wrap the integrated silicone strap around the handlebar.
- Hook the strap onto the light's mounting tab, ensuring a secure and snug fit.
- Adjust the light angle to illuminate the road ahead without blinding oncoming traffic.
A Lezyne front light securely mounted on bicycle handlebars.
3.3 Mounting the Zecto Drive 200+ Rear Light
The Zecto Drive 200+ features a patented 2-in-1 clip and strap mounting system, allowing versatile attachment.
- Montering af sadelpind: Use the integrated silicone strap to secure the light around your seatpost. Ensure the light faces directly backward.
- Klipsmontering: The integrated clip allows attachment to saddlebags, backpacks, or clothing loops for enhanced visibility.
4. Betjeningsvejledning
4.1 Tænd/sluk
At tænde lyset ON, press and hold the power button for approximately 2 seconds. To turn the light SLUKKET, press and hold the power button for approximately 2 seconds again.
4.2 Ændring af tilstande
Both the Classic Drive 500+ and Zecto Drive 200+ offer multiple output modes to suit various riding conditions and preferences. To cycle through the modes, briefly press the power button while the light is on.
- Classic Drive 500+ (Front Light): Features six output modes, including a powerful Daytime Flash mode for increased visibility during daylight hours.
- Zecto Drive 200+ (Rear Light): Provides various flash and steady modes for optimal rear visibility.
The powerful beam of a Lezyne front light illuminating the path.
Multiple Zecto Drive rear lights demonstrating their bright red illumination.
4.3 Batteriindikator
The power button on both lights also serves as a battery life indicator. The color of the LED behind the button will change to indicate the remaining battery charge:
- Grøn: Full to high charge
- Gul: Medium opladning
- Rød: Lav opladning, oplad snart
- Blinker rødt: Critically low charge, recharge immediately
5. Vedligeholdelse og pleje
5.1 Rengøring
To maintain optimal performance and appearance, clean your lights regularly. Use a soft, damp cloth to wipe down the exterior. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish or internal components.
The lights are rigorously tested to IPX7 Waterproofing standards, meaning they can withstand immersion in water up to 1 meter for 30 minutes. This makes them suitable for use in various weather conditions, but they should not be intentionally submerged for extended periods.
Water droplets on a Lezyne light, showcasing its weather-resistant design.
5.2 Pleje af batterier
- Recharge the battery before it is completely depleted to prolong its lifespan.
- If storing the lights for an extended period, charge them to approximately 50% and store in a cool, dry place. Recharge every few months to prevent deep discharge.
- Use only the recommended USB-C cable and a standard USB power source for charging.
6. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Batteriet er afladet. | Charge the light fully. |
| Lyset tændes ikke. | Power button not pressed long enough. | Tryk og hold tænd/sluk-knappen nede i 2 sekunder. |
| Lyset oplader ikke. | Defekt USB-C-kabel eller strømkilde. | Try a different USB-C cable or USB power source. Ensure connections are secure. |
| Lyset flimrer eller slukker uventet. | Lavt batteri. | Genoplad lyset. |
| Light mount is loose. | Strap not tightened sufficiently. | Re-adjust and tighten the mounting strap securely. |
7. Specifikationer
Classic Drive 500+ (Front Light)
- Maksimal output: 500+ lumen
- Maximum Runtime: Op til 80 timer
- Tilstande: Six output modes, including Daytime Flash
- Konstruktion: Machined aluminum body
- Vandtæthed: IPX7-standard
- Strømkilde: Genopladeligt batteri
Zecto Drive 200+ (Rear Light)
- Maksimal output: 200+ lumen
- Maximum Runtime: Op til 35 timer
- Tilstande: Multiple flash and steady modes
- Konstruktion: Durable composite matrix with aluminum faceplate
- Vandtæthed: IPX7-standard
- Strømkilde: Genopladeligt batteri
General Specifications (Both Lights)
- Montering: Patented 2-in-1 clip and strap mounting system
- Opladning: USB-C (cable not included)
- Farve: Satin Black / Black
- Tema: Cykelsikkerhed
- Specifikke anvendelser: Road, Trail
- Fabrikant: Lezyne
- Modelnummer: 1-LED-29P-V737
8. Garanti og support
Lezyne products are manufactured to the highest quality standards. For detailed warranty information, product registration, or technical support, please visit the official Lezyne webhjemmeside eller kontakt deres kundeservice direkte.
