DARKROCK MH200 PC computerkabinet brugermanual

1. Introduktion

Welcome to the user manual for the DARKROCK MH200 White PC Computer Case. This compact mid-tower case is designed for both office and gaming setups, featuring high-airflow mesh panels and versatile component support. This manual provides detailed information on the case's features, specifications, installation, operation, and maintenance to ensure optimal performance and longevity.

2. Nøglefunktioner

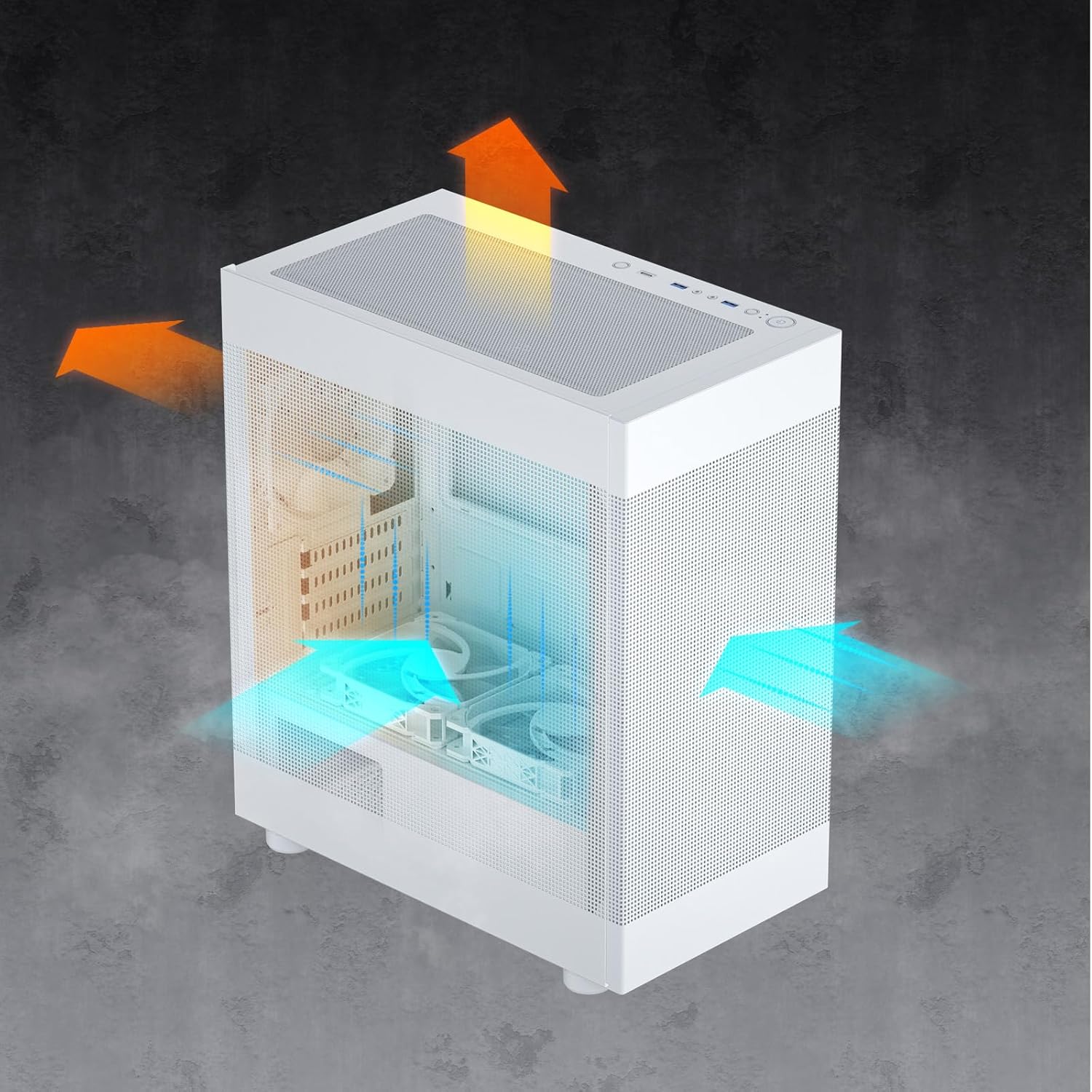

• Premium Cooling Performance: Equipped with front and side mesh panels for enhanced airflow. Top and bottom panels feature magnetic mesh dust filters for easy cleaning and improved thermal management.
• Ready for Upgrade: Spacious interior accommodates CPU coolers up to 165mm in height and graphics cards up to 330mm in length, supporting most NVIDIA GeForce RTX 40 Series GPUs.
• Powerful I/O Panel: Conveniently located top panel with a Type-C port, two USB 3.0 ports, and audio jacks for easy connectivity of peripherals and storage devices.
• Elegant og moderne design: Available in white, supporting Micro ATX and Mini-ITX motherboards. Includes a pre-installed ARGB 120mm fan in the rear for vibrant lighting effects.
• Various Cooling Options: Supports up to eight fans and a 280mm radiator on the top, ensuring excellent airflow and cooling for your PC components.

3. Specifikationer

4. Pakkens indhold

Kontroller venligst pakkens indhold ved udpakning for at sikre, at alle varer er til stede:

• DARKROCK MH200 PC Computer Case (White)
• 1x 120mm ARGB Fan (pre-installed in rear)
• Tilbehørsæske (skruer, kabelbindere, afstandsstykker osv.)
• Brugervejledning (dette dokument)

5. Opsætning og installation

Follow these steps to install your components into the DARKROCK MH200 case. For detailed visual instructions, please refer to the official Installationsmanual (PDF).

1. Forbered sagen: Carefully remove the side panels and front panel by gently pulling them away from the chassis. The mesh panels are designed for easy removal.
2. Installer bundkort: Secure your Micro ATX or Mini ITX motherboard onto the pre-installed standoffs using the appropriate screws from the accessory box.
3. Installer strømforsyning (PSU): Mount your power supply unit in the bottom rear compartment of the case. Ensure proper orientation for cable management.
4. Installer lagerdrev: Install 2.5" SSDs behind the motherboard tray and 3.5" HDDs in the removable drive cage located at the bottom front.
5. Installer grafikkort (GPU): Insert your graphics card into the appropriate PCIe slot on your motherboard. Ensure it is securely fastened. The case supports GPUs up to 330mm in length.
6. Installer CPU-køler: Mount your CPU cooler. The case supports coolers up to 165mm in height.
7. Install Additional Fans/Radiators: Install any additional cooling fans or liquid radiators as desired. Refer to the specifications section for supported sizes and locations.
8. Kabelstyring: Route all necessary cables through the cutouts and tie-down points behind the motherboard tray for a clean build and improved airflow.
9. Genmonter paneler: Once all components are installed and cables are managed, carefully reattach the front and side mesh panels.

6. Betjening

The DARKROCK MH200 case features a convenient top I/O panel for easy access to essential ports and controls.

• Power knap: Press to turn your computer on or off.
• Nulstil knap: Tryk på for at genstarte computeren.
• USB 3.0-porte: Connect high-speed USB devices such as external hard drives, flash drives, or peripherals.
• Type-C port: Connect modern USB Type-C devices for fast data transfer.
• Lydstik: Connect headphones, microphones, or speakers.
• LED knap: Control the lighting effects of the pre-installed ARGB fan and any other compatible ARGB components connected to the case's controller (if applicable).

7. Vedligeholdelse

Regelmæssig vedligeholdelse er med til at sikre optimal ydeevne og forlænger levetiden for dine pc-komponenter.

• Rengøring af støvfilter: The top and bottom panels are equipped with magnetic dust filters. Gently remove them and clean with water or a soft brush. Ensure they are completely dry before reattaching.
• Rengøring af kufferter: Brug en blød, damp cloth to wipe down the exterior of the case. Avoid abrasive cleaners or solvents.
• Fjernelse af indvendig støv: Periodically use compressed air to clear dust from internal components and fans. Ensure the system is powered off and unplugged before performing internal cleaning.

8. Fejlfinding

If you encounter issues with your DARKROCK MH200 case, refer to the common problems and solutions below:

• Ingen strøm:

  Løsning: Ensure the power supply is properly connected to the wall outlet and the motherboard. Check all front panel header connections (Power SW, Reset SW) to the motherboard.
• Ventilatorer drejer ikke / ARGB lyser ikke:

  Løsning: Verify that the fan power cables are securely connected to the motherboard or fan controller. Check ARGB connections to the motherboard's ARGB header or dedicated controller. Ensure the LED button on the I/O panel is functioning.

• USB-porte virker ikke:

  Løsning: Confirm that the USB 3.0 and Type-C headers from the case are correctly plugged into the corresponding ports on your motherboard.

• Lydstik virker ikke:

  Løsning: Ensure the HD Audio cable from the case is properly connected to the audio header on your motherboard.
• Overdreven støvophobning:

  Løsning: Regularly clean the magnetic dust filters on the top and bottom panels. Consider increasing fan airflow or adjusting fan curves if temperatures are high due to dust.

9. Garanti og support

DARKROCK products are manufactured to high quality standards. For warranty information, technical support, or to contact customer service, please visit the official DARKROCK store on Amazon or their official webwebsted.

Official DARKROCK Store: https://www.amazon.com/stores/DARKROCK/page/05A96EC3-7BC6-4877-926F-CDD98356ADCA
