Indledning
The J5create JCC157 USB-C to HDMI 2.1 8K Cable is designed to provide high-quality video and audio transmission from your USB-C enabled device to an HDMI display. Supporting resolutions up to 8K, this cable is ideal for gaming, professional presentations, and high-definition media consumption. It features a unique RGB indicator light, enhancing your setup's aesthetics and providing visual feedback.
Figur 1: The J5create JCC157 USB-C to HDMI 2.1 8K Cable, showcasing its sleek design and RGB indicator.
Funktioner
- Understøttelse af 8K-opløsning: Experience stunning visuals with support for resolutions up to 8K, ensuring crisp and clear images.
- USB-C to HDMI 2.1: Connects modern USB-C devices to HDMI 2.1 compatible displays for high-bandwidth video and audio.
- Bred kompatibilitet: Fully compatible with Windows, MacOS, and Chrome OS operating systems.
- RGB Indicator Light: Features an integrated RGB light, providing visual flair and status indication, especially suited for gaming setups.
- Plug and Play: No drivers required for most operating systems, allowing for easy setup and immediate use.
- Alsidige visningstilstande: Supports both Extended and Mirror display modes for various productivity and entertainment needs.
Figur 2: The RGB indicator light on the JCC157 cable, capable of displaying various colors.
Opsætningsinstruktioner
- Tilslut USB-C-ende: Insert the USB-C connector of the JCC157 cable into a compatible USB-C port on your source device (e.g., laptop, computer). Ensure the port supports video output (DisplayPort Alternate Mode).
- Tilslut HDMI-ende: Insert the HDMI connector of the JCC157 cable into an available HDMI input port on your display device (e.g., monitor, TV, projector).
- Tænd enheder: Sørg for, at både din kildeenhed og skærmenhed er tændt.
- Vælg input: On your display device, select the correct HDMI input source that the cable is connected to.
- Bekræft forbindelsen: The RGB indicator light on the cable will illuminate, indicating a successful connection and active signal. Your display should show the output from your source device.
Figur 3: Et nærbillede view of the JCC157 cable's connectors and the illuminated RGB indicator, demonstrating a ready state.
Betjeningsvejledning
Once connected, your operating system will typically detect the external display automatically. You can configure the display settings to suit your needs.
- Udvidet tilstand: This mode allows you to extend your desktop across multiple screens, providing more workspace. To enable, go to your operating system's display settings and select "Extend these displays."
- Mirror Mode (Duplicate Mode): This mode duplicates your primary display onto the external monitor, showing the same content on both screens. To enable, go to your operating system's display settings and select "Duplicate these displays."
Figur 4: Visual representation of Extended Mode (left) and Mirror Mode (right) display configurations, illustrating how the JCC157 cable facilitates both.
The RGB indicator light will remain illuminated when a signal is active. Its color may vary based on the device's status or specific J5create software settings, if applicable.
Opretholdelse
To ensure the longevity and optimal performance of your J5create JCC157 cable, follow these maintenance guidelines:
- Håndteres med forsigtighed: Avoid bending the cable sharply or pulling it by the cord. Always grasp the connector ends when plugging or unplugging.
- Hold rent: Use a soft, dry cloth to gently wipe the cable and connectors. Do not use liquid cleaners or abrasive materials.
- Opbevar korrekt: Når kablet ikke er i brug, skal det rulles løst op og opbevares køligt og tørt, væk fra direkte sollys og ekstreme temperaturer.
- Undgå fugt: Do not expose the cable to water or high humidity, as this can damage the internal components.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen visning på skærmen. |
|
|
| Low resolution or flickering display. |
|
|
| RGB indicator not lighting up. |
|
|
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | JCC157-1N |
| Connector Type | USB-C Male to HDMI 2.1 Male |
| Understøttelse af maksimal opløsning | Up to 8K (7680x4320) |
| Kabellængde | 1.8 meter (6 fod) |
| Kompatible operativsystemer | Windows, MacOS, Chrome OS |
| Særlige funktioner | RGB-indikatorlys |
| Kompatible enheder | Computer, Laptop |

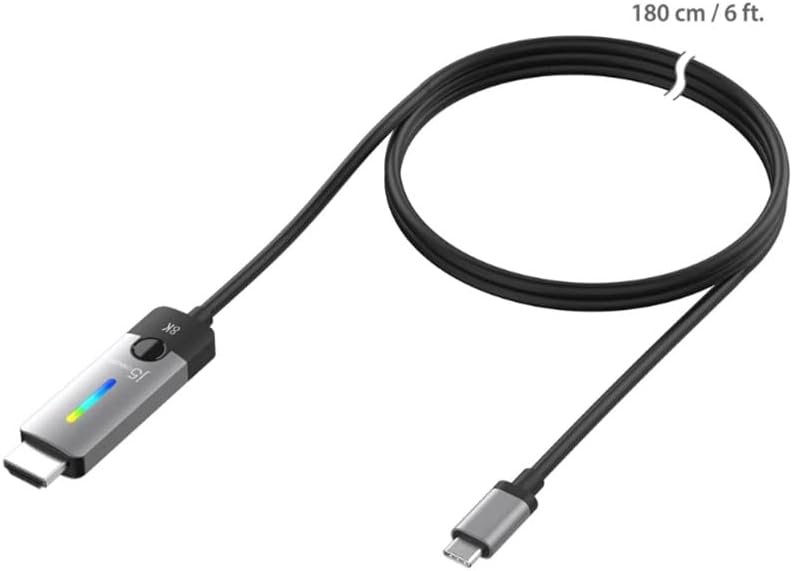

Figur 5: The JCC157 cable, illustrating its 180 cm (6 ft) length.
Garanti og support
For warranty information and technical support, please refer to the documentation included with your purchase or visit the official j5create webGarantibetingelserne kan variere afhængigt af region og forhandler.
Fabrikant: J5CREATE
