1. Produktet er slutview
The Yaheetech Nightstand with 3 Drawers and Charging Station is designed to provide convenient storage and power access for your bedroom or living space. It features three spacious drawers for organized storage and an integrated charging station with two power outlets and two USB ports, allowing you to charge electronic devices easily.
Figur 1.1: Assembled Yaheetech Nightstand. This image shows the complete nightstand with its three drawers and the integrated charging station on top.
Figur 1.2: Yaheetech Nightstand positioned next to a sofa, demonstrating its use as a side table with a lamp and charging devices.
2. Pakkens indhold
Before assembly, please verify that all components and hardware listed below are present and undamaged. Refer to the installation video for a visual guide to identifying each part.
Figur 2.1: All parts and hardware laid out for assembly. This image displays the various wooden panels, drawer slides, and fasteners included in the package.
Reservedelsliste:
- Toppanel
- Sidepaneler (2)
- Bundpanel
- Bagpanel
- Skuffefronter (3)
- Skuffesidepaneler (6)
- Skuffebagpaneler (3)
- Skuffebundpaneler (3)
- Ben (4)
- Ladestationsenhed
Hardware liste:
- Skruer (forskellige størrelser)
- Trædyvler
- Cam Locks and Cam Bolts
- Drawer Slides (6 pairs)
- Drawer Pulls (3)
- Strømledningsklips
- Allen Wrench (if applicable)
3. Sikkerhedsinstruktioner
- Saml altid produktet på en blød, ren overflade for at undgå ridser.
- Sørg for, at alle skruer og fastgørelseselementer er forsvarligt fastspændt før brug. Kontroller regelmæssigt og efterspænd om nødvendigt.
- Do not exceed the maximum recommended load capacity of 106 pounds for the top surface.
- Hold små dele og hardware væk fra børn for at forhindre kvælningsfare.
- For electrical safety, do not overload the power outlets or USB ports. Ensure the power cord is not pinched or damaged.
- Udsæt ikke natbordet for overdreven fugt eller direkte sollys.
- Use only the provided hardware for assembly. Substituting parts may compromise stability and safety.
4. Monteringsvejledning
Follow these steps carefully for proper assembly. It is recommended to have two people for certain steps to ensure stability and ease of construction. An installation video is provided below for visual guidance.
Video 4.1: Installation video for the Yaheetech Nightstand. This video provides a step-by-step visual guide to assembling the nightstand, including attaching drawer slides, constructing the frame, and installing the charging station.
Trin-for-trin guide:
- Assemble the Drawers:
- Attach the drawer side panels to the drawer front and back panels using the provided screws and dowels.
- Slide the drawer bottom panel into the grooves.
- Secure the drawer pulls to the drawer fronts.
- Attach the drawer slides (H-2(L) and H-2(R)) to the sides of each drawer using screws.
- Saml hovedrammen:
- Attach the side panels to the bottom panel using cam locks and cam bolts.
- Fastgør bagpanelet til den samlede ramme.
- Attach the main drawer slides (H-1(L) and H-1(R)) to the inner sides of the main frame using screws. Ensure they are aligned correctly for smooth drawer operation.
- Fastgør benene:
- Insert the wooden dowels into the designated holes on the bottom panel.
- Attach the four solid rubberwood legs to the bottom panel, aligning them with the dowels and securing them with screws.
Figur 4.1: This image highlights the robust construction of the solid rubberwood legs, emphasizing their strength and stability compared to MDF legs.
- Installer toppanelet:
- Place the top panel onto the assembled frame, aligning the pre-drilled holes.
- Secure the top panel using screws.
- Installer ladestationen:
- Carefully feed the power cord of the charging station through the cutout on the top panel.
- Insert the charging station unit into the opening on the top panel.
- Secure the charging station with the provided screws.
Figur 4.2: Detaljeret view of the charging station, showing 2 AC outlets (125V/12A), 2 USB ports (5V/2A), a power switch, and the 6.5-foot power cord with a hook & loop strap for management.
- Indsæt skuffer:
- Carefully slide each assembled drawer into the corresponding drawer slides on the main frame.
- Ensure smooth operation. If a drawer is stiff, check alignment of the slides.
Figur 4.3: Nærbillede view illustrating the smooth operation of the drawer slides, designed for quiet and effortless opening and closing.
5. Operating Instructions (Charging Station)
The integrated charging station provides convenient power access for your electronic devices.
- Strømtilslutning: Sæt det 6.5 meter lange netkabel i en standard 120V AC-stikkontakt.
- AC stikkontakter: The charging station includes two 125V/12A AC outlets. Use these for devices requiring standard wall power, such as lamps, laptops, or small appliances.
- USB-porte: To 5V/2A USB-porte er tilgængelige til opladning af smartphones, tablets og andre USB-drevne enheder.
- Afbryderen: A master power switch controls the flow of electricity to both the AC outlets and USB ports. Press the switch to turn the charging station ON or OFF.
- Ledningsstyring: Use the included hook & loop strap to manage excess power cord length and keep your space tidy.
Vigtig: Do not exceed the maximum electrical load capacity of the charging station. Avoid plugging in high-power appliances that may draw more than 12A. If the charging station trips a circuit breaker, unplug devices and reset the breaker before resuming use.
6. Vedligeholdelse og pleje
Proper care will help maintain the appearance and longevity of your nightstand.
- Rensning: Tør overfladen af med en blød, damp klud. Brug et mildt, ikke-slibende rengøringsmiddel til genstridige mærker. Tør straks med en ren klud.
- Spild: The nightstand features a water-resistant painting. Promptly wipe up any spills to prevent damage to the finish.
- Undgå barske kemikalier: Do not use abrasive cleaners, ammonia-based products, or silicone-based polishes, as these can damage the finish.
- Skuffeslider: Kontrollér jævnligt, at skuffeskinnerne fungerer problemfrit. Hvis de bliver stive, kan der påføres en lille mængde silikone-smøremiddel.
- Fastgørelsesmidler: Regularly check all screws and bolts to ensure they remain tight. Re-tighten as needed to maintain structural integrity.
Figur 6.1: Demonstrates wiping water droplets from the nightstand surface, highlighting its easy-to-clean and water-resistant properties.
7. Fejlfinding
If you encounter any issues with your Yaheetech Nightstand, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Skufferne glider ikke gnidningsløst. | Forkert justerede skuffeskinner eller løse skruer. | Check the alignment of the drawer slides on both the drawer and the main frame. Tighten all screws securing the slides. Apply a small amount of silicone lubricant if needed. |
| Charging station not powering devices. | Power cord not plugged in, power switch off, or circuit overload. | Ensure the power cord is securely plugged into a working wall outlet. Check if the power switch on the charging station is ON. Unplug some devices if overloaded and check your household circuit breaker. |
| Natbordet føles ustabilt. | Løse fastgørelseselementer eller ujævnt gulv. | Tighten all assembly screws and bolts. Ensure the nightstand is placed on a level surface. If necessary, use furniture pads under the legs to stabilize. |
8. Specifikationer
- Produktdimensioner: 15.75 x 15.75 x 23.62 tommer (L x B x H)
- Varens vægt: 27.2 pund
- Maksimal anbefalet belastning: 106 pounds (top surface)
- Drawer Storage Space: 10 x 11.3 x 4 tommer (B x D x H)
- Materialer: CARB P2 MDF board, Solid Rubberwood legs
- Ladestation:
- AC Outlets: 2 (125V/12A)
- USB Ports: 2 (5V/2A)
- Netledningslængde: 6.5 fod
- Montering påkrævet: Ja

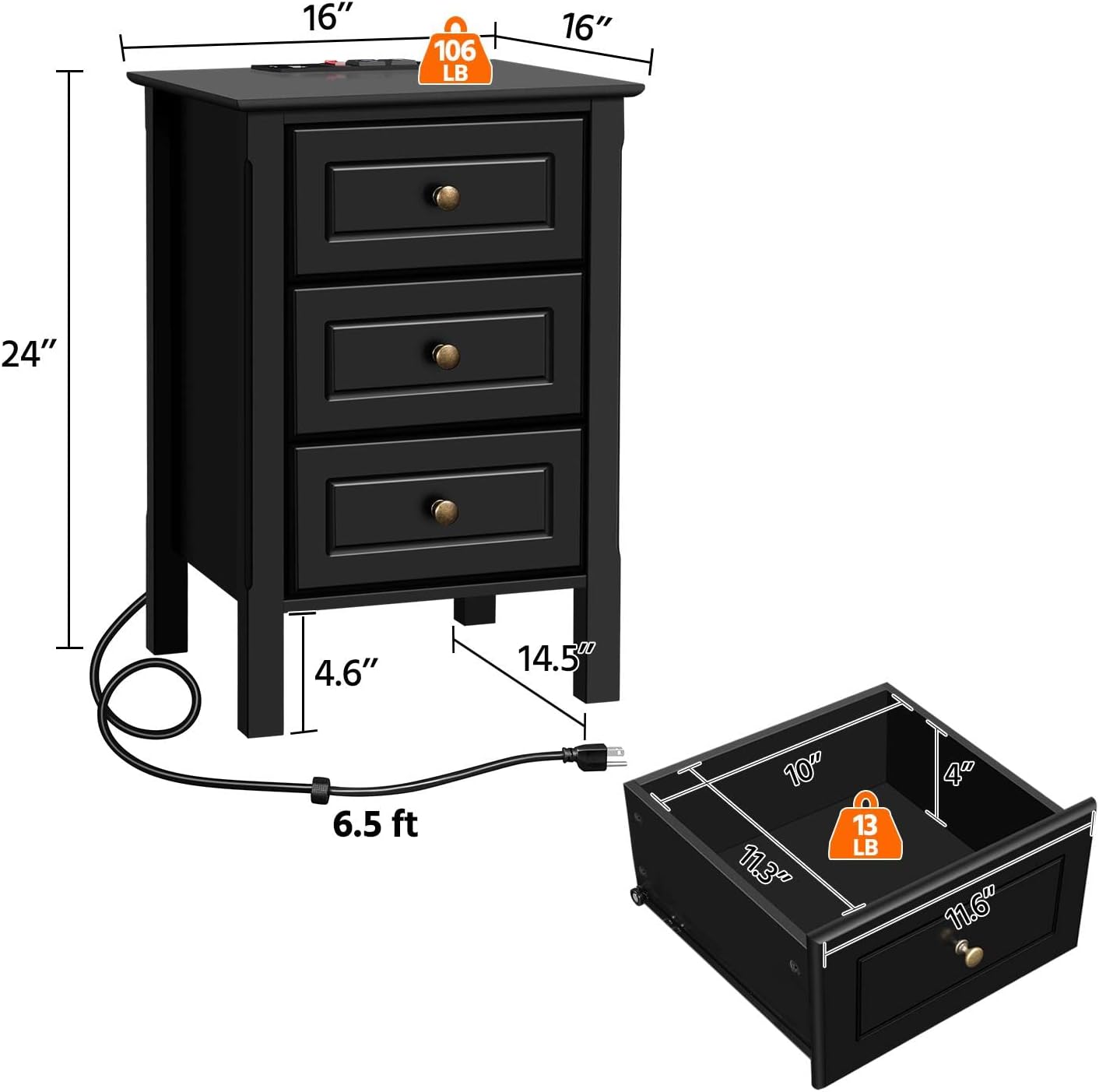

Figur 8.1: Diagram illustrating the overall dimensions of the nightstand (16" W x 16" D x 24" H) and the internal dimensions of a drawer (10" W x 11.3" D x 4" H), along with weight capacities.
9. Garanti og support
For warranty information, technical support, or any questions regarding your Yaheetech Nightstand, please contact Yaheetech customer service. Refer to the product packaging or the official Yaheetech webwebsted for kontaktoplysninger.
Fabrikant: Yaheetech
