AM ARROWMAX SES PRO Electric Precision Screwdriver User Manual

Indledning

This manual provides essential instructions for the safe and effective operation, maintenance, and troubleshooting of your AM ARROWMAX SES PRO Electric Precision Screwdriver. Please read this manual thoroughly before using the product and retain it for future reference.

Pakkens indhold

Bekræft, at alle nedenstående varer er til stede i din pakke:

• AM ARROWMAX SES PRO Electric Precision Screwdriver
• 34 Precision Magnetic Bits (S2 Steel, 4mm)
• Bit Storage Cases
• USB-A til USB-C ladekabel
• Instruktionsmanual (dette dokument)

Produkt overview

The AM ARROWMAX SES PRO is a compact and powerful electric precision screwdriver designed for delicate tasks. Key features include an OLED screen, adjustable torque, and smart motion control.

Komponenter:

• Bitinstallationsport: For inserting and securing screwdriver bits.
• Aluminiumslegering krop: Holdbar og let konstruktion.
• Status Display (OLED Screen): Shows battery level, torque setting, and rotation direction.
• LED lys: Oplyser arbejdsområdet.
• Power knap: Turns the device on/off and adjusts settings.
• Type-C opladningsport: Til genopladning af det interne batteri.

Opsætning

Opladning af enheden:

1. Locate the USB-C charging port at the end of the screwdriver.
2. Tilslut det medfølgende USB-A til USB-C-opladerkabel til skruetrækkeren og en kompatibel USB-A-strømadapter (medfølger ikke).
3. The OLED screen will indicate charging status. A full charge typically takes approximately 60 minutes.
4. Note: This device only supports USB-A to USB-C charging and is not compatible with USB-C PD chargers.

Installing a Bit:

1. Select the appropriate precision bit from the storage case. The bits are magnetic for easy handling.
2. Insert the bit firmly into the bit installation port at the tip of the screwdriver until it clicks into place.
3. To remove, pull the bit straight out from the port.

Betjeningsvejledning

Tænd/sluk:

Press and hold the power button for approximately 2 seconds to turn the screwdriver on or off. The OLED screen will illuminate upon activation.

Justering af moment:

The SES PRO offers 5 adjustable torque levels for various applications. To cycle through the torque settings:

1. With the screwdriver powered on, press the power button three times continuously.
2. Each subsequent triple press will advance to the next torque level. The current torque setting will be displayed on the OLED screen.

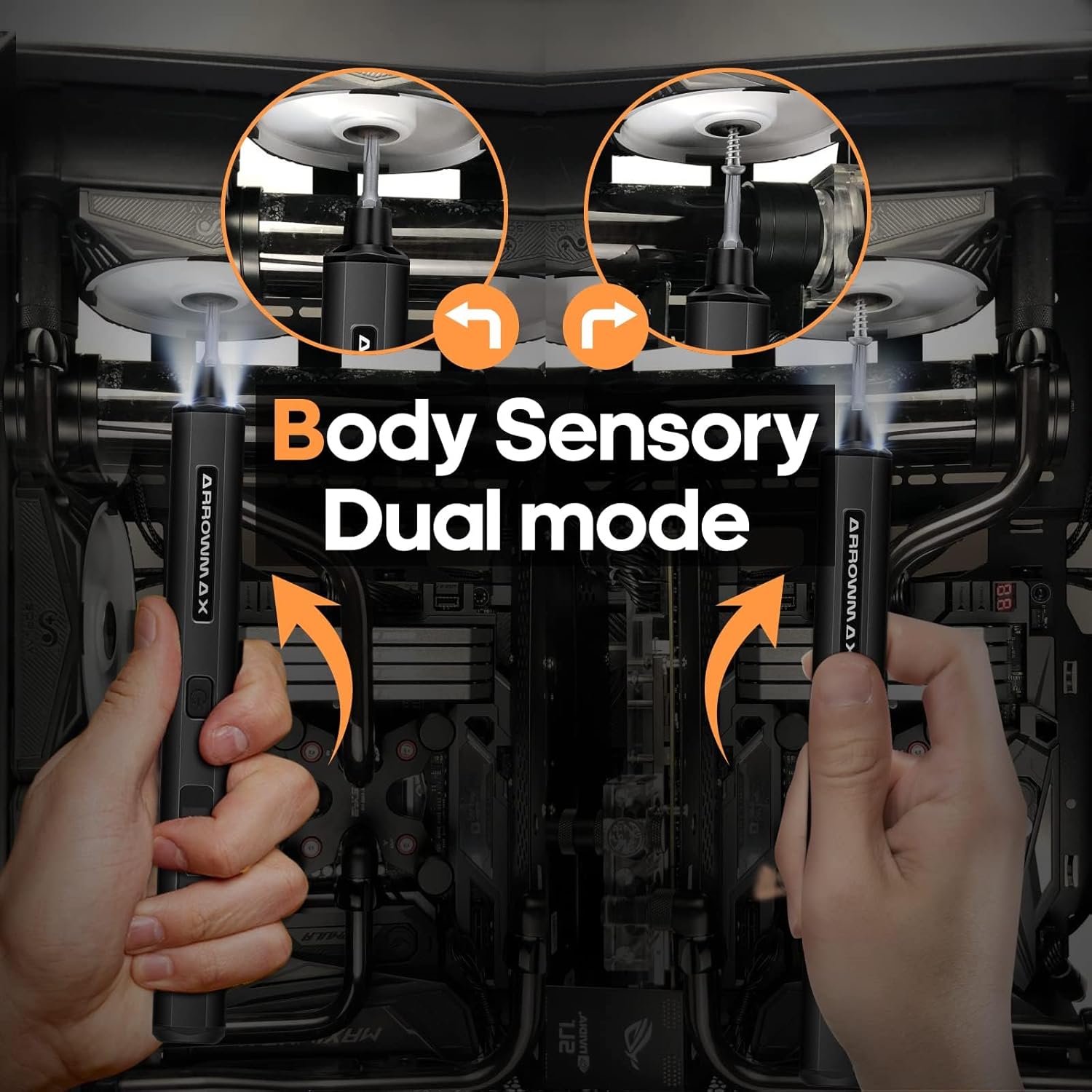

Body Sensory Dual-Mode:

This feature allows intuitive control of the screwdriver's rotation direction:

• Fremadrotation: Tilt the screwdriver slightly forward (towards the tip) to drive screws in.
• Omvendt rotation: Tilt the screwdriver slightly backward (towards the base) to loosen screws.

Manuel tilstand:

If the battery is depleted or for tasks requiring manual control, the screwdriver can be operated manually. Simply twist the screwdriver handle as you would with a traditional manual screwdriver.

LED lys:

The integrated LED lights automatically illuminate the work area when the screwdriver is in operation, providing better visibility for precision tasks.

Opretholdelse

Rensning:

Wipe the screwdriver body and bits with a clean, dry cloth. Do not use abrasive cleaners or immerse the device in water.

Opbevaring:

Store the screwdriver and its bits in the provided protective case when not in use. Keep in a cool, dry place away from direct sunlight and extreme temperatures.

Fejlfinding

• Enheden tænder ikke: Ensure the battery is charged. Connect to a power source using the USB-A to USB-C cable.
• Lidt glidende: Ensure the bit is fully inserted into the port. Verify that the correct bit size is being used for the screw.
• Screwdriver not rotating: Check battery level. Ensure the body sensory mode is correctly engaged by tilting the device.
• Opladningsproblemer: Confirm you are using a USB-A to USB-C cable and a compatible USB-A power adapter. USB-C PD chargers are not supported.

If issues persist, please refer to the product's official support channels.

Specifikationer

Garanti og support

For warranty information, please refer to the documentation included with your purchase or contact the retailer. For technical support or further assistance, please visit the official AM ARROWMAX webwebsted eller kontakt deres kundeserviceafdeling.
