1. Introduktion
This manual provides detailed instructions for the installation, operation, and maintenance of your TAFFIO Digital Instrumental Cluster Speedometer, model TAFC-1311. Please read this manual thoroughly before installation and use to ensure proper function and to avoid damage.
The TAFFIO Digital Instrumental Cluster is designed to replace the original speedometer in compatible BMW X1 E84 models, offering enhanced digital display features and customizable themes.
2. Kompatibilitet
- Køretøjsmodel: BMW X1 E84
- Modelår: 2009 til 2015
- Head-Up Display: Compatible with models both with and without a head-up display.
- Motortype: Suitable for both Gasoline and Diesel models.
3. Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- 1x TAFFIO Digital Speedometer (TAFC-1311)
- 1x Cluster Cover
- 1x USB-kabel (til softwareopdateringer)
- 1x Warranty Certificate
Image: Contents of the TAFFIO Digital Cluster package, showing the digital cluster unit, a cluster cover, and a USB cable.
4. Opsætning og installation
The TAFFIO Digital Instrumental Cluster is designed for a plug-and-play installation, requiring no additional adapters or mounting frames. No coding is necessary; simply replace the original speedometer unit.
4.1 Installationstrin (generelt overview)
- Sørg for, at køretøjets tænding er slukket, og at batteriet er frakoblet, før installationen påbegyndes.
- Carefully remove the original speedometer unit from the dashboard. Consult your vehicle's service manual for specific removal instructions.
- Connect the TAFFIO Digital Instrumental Cluster to the vehicle's existing wiring harness. The connections are designed to match the original ports.
- Secure the new digital cluster in the dashboard opening.
- Tilslut bilens batteri igen, og tænd for tændingen for at teste enheden.
- If necessary, use the provided USB cable to perform any software updates.

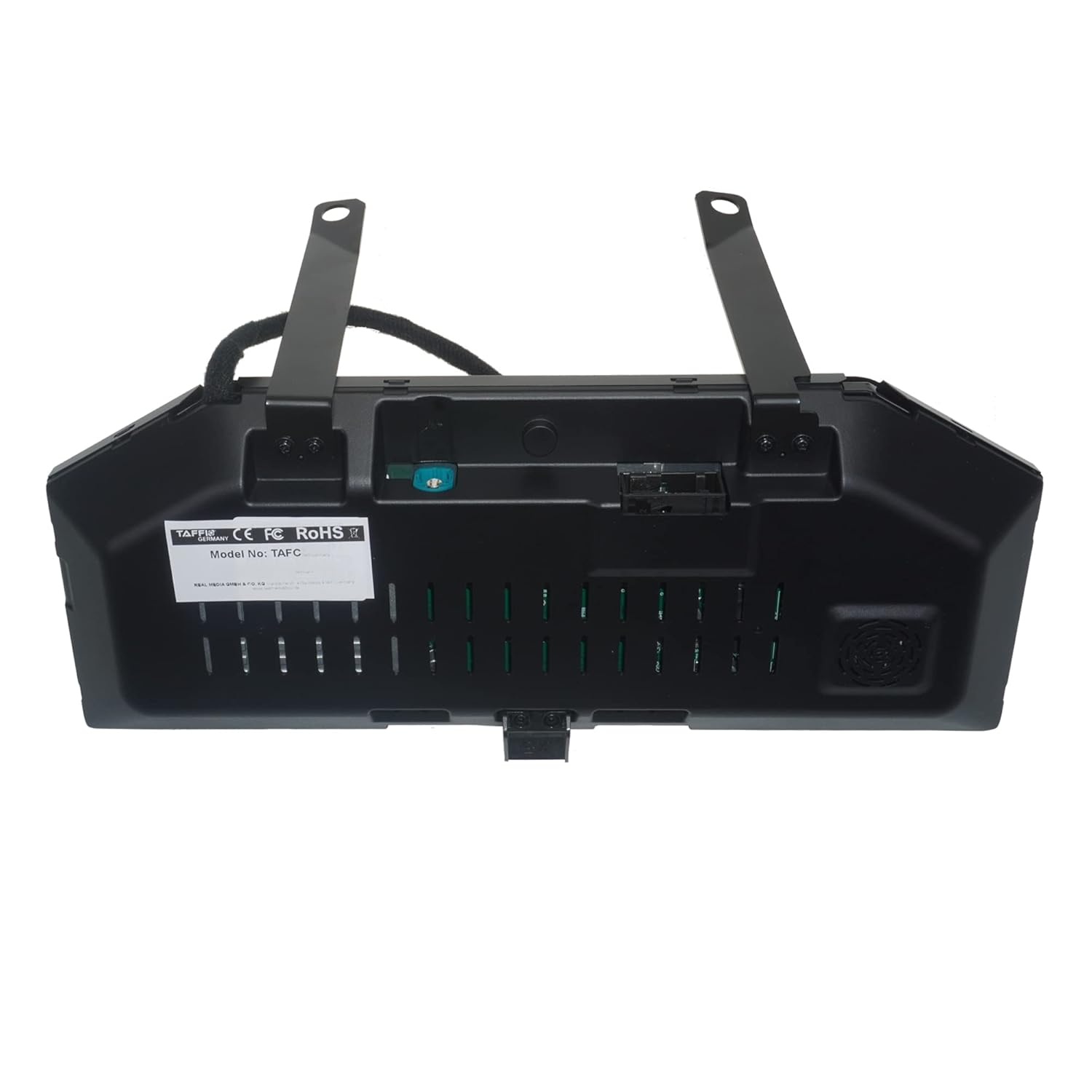

Billede: Bagside view of the TAFFIO Digital Instrumental Cluster, highlighting the connection ports for plug-and-play installation.
Billede: Forside view of the TAFFIO Digital Instrumental Cluster, displaying a default theme with speedometer, tachometer, and vehicle information.
Image: The TAFFIO Digital Instrumental Cluster seamlessly integrated into a BMW X1 E84 dashboard, viewed from the driver's perspective.
5. Betjeningsvejledning
The digital cluster retains all original functions and provides additional customization options.
5.1 Navigation og kontrol
The speedometer is operated using the vehicle's existing BC button (Board Computer button), typically located on the turn signal stalk. Pressing the BC button allows you to scroll through menus and options. Pressing and holding the BC button selects a function or confirms a setting.
Image: Illustration showing various display themes and the operation of the BC button on the turn signal stalk to navigate the digital cluster menus.
5.2 Display Themes
The digital cluster offers multiple themes to personalize your driving experience. You can switch between these themes via the menu system using the BC button.
Image: Display showing a red-themed classic gauge layout with real-time vehicle information.
Image: Display showing a red-themed digital bar graph layout with system settings and real-time information.
Image: Display showing a blue-themed classic gauge layout with real-time vehicle information.
Image: Display showing a blue-themed digital bar graph layout with general setup options and real-time information.
5.3 Informationsdisplay
The cluster provides all important vehicle information at a glance, including:
- Speed (MPH/KMH)
- Motorens omdrejningstal
- Brændstofniveau
- Kølevæsketemperatur
- Olietemperatur
- Distance (Odometer/Trip)
- Brændstofforbrug (L/100 km)
- Driving Mode (e.g., ECO PRO, SPORT+)
- Time and Ambient Temperature
- Supports Mileage and Fahrenheit (°F) Display.
6. Vedligeholdelse
For at sikre din digitale klynges lange levetid og optimale ydeevne skal du følge disse vedligeholdelsesretningslinjer:
- Rensning: Use a soft, lint-free cloth to clean the display. Avoid abrasive cleaners or solvents that could damage the screen surface.
- Softwareopdateringer: Kontroller jævnligt producentens website for available software updates. Updates can improve performance, add features, or resolve issues. Use the provided USB cable for this purpose.
- Miljøforhold: Avoid exposing the unit to extreme temperatures or direct sunlight for prolonged periods when the vehicle is parked.
7. Fejlfinding
If you encounter issues with your TAFFIO Digital Instrumental Cluster, refer to the following common troubleshooting steps:
- Ingen skærm/strøm: Ensure all connections are secure and the vehicle battery is properly connected. Check vehicle fuses related to the instrument cluster.
- Forkerte aflæsninger: Verify that the unit is correctly installed and that no error messages are displayed. If issues persist, a software update might be required.
- Fejlmeddelelser: The unit is designed to operate without error or fault messages. If an error appears, consult the vehicle's diagnostic system or contact technical support.
- Funktionsproblemer: If certain functions are not working as expected, try restarting the vehicle. If the problem persists, consider performing a software update.
For persistent issues not resolved by these steps, please contact TAFFIO customer support.
8. Specifikationer
| Modelnummer | TAFC-1311 |
| Kompatibilitet | BMW X1 E84 (2009-2015) |
| Installation | Plug-and-play, no coding required |
| Displayfunktioner | Multiple themes, real-time vehicle data, mileage, Fahrenheit (°F) support |
| Fabrikant | Real Media GmbH & Co. KG |
9. Garanti og support
Your TAFFIO Digital Instrumental Cluster comes with a 2-year warranty from the date of purchase. Please retain your invoice or proof of purchase for warranty claims.
For technical support, warranty inquiries, or further assistance, please contact the seller, Real Media Shop, or refer to the contact information provided with your product or on the TAFFIO official webwebsted.
