Brugermanual til DrunkDeer A75 Rapid Trigger mekanisk tastatur

1. Produktet er slutview

The DrunkDeer A75 is a 75% layout mechanical keyboard designed for high-performance gaming and efficient typing. It features magnetic switches, adjustable actuation distance, and rapid trigger technology for precise and responsive input. This manual provides essential information for setting up, operating, customizing, and maintaining your keyboard.

Nøglefunktioner

• Adjustable Actuation Distance: Customize key actuation from 0.2mm to 3.8mm with 0.1mm precision.
• Hurtig udløser: Keys trigger upon press and reset upon release, allowing for quick, repeated inputs. Sensitivity is adjustable from 0.1-3.6mm with 0.1mm accuracy.
• Magnetiske afbrydere: Utilizes the Hall effect for actuation, eliminating physical contact for a lifespan of 100 million keystrokes.
• OEM Profile PBT-taster: Ergonomically designed keycaps reduce hand fatigue and offer durability with a comfortable touch.
• 75% ANSI Layout: Compact design with 82 keys, including a function row and arrow keys.
• Ultra Response Speed: Up to 10 times faster than traditional mechanical keyboards.

2. Opsætningsvejledning

Pakkens indhold

Your DrunkDeer A75 keyboard package includes:

• DrunkDeer A75 Mechanical Keyboard
• USB-C kabel
• Keycap aftrækker
• Spare Magnetic Switches (2 pieces)

Indledende forbindelse

Connect the provided USB-C cable from the keyboard to an available USB port on your computer. The keyboard is plug-and-play and should be recognized automatically by your operating system.

Firmware Warning

WARNING: Ensure you have the A75 ANSI model and download the correct firmware. Installing the wrong firmware can cause hardware problems. If you encounter any issues, contact DrunkDeer customer support immediately.

3. Betjeningsvejledning

Grundlæggende tastaturfunktioner

The DrunkDeer A75 features a standard 75% ANSI layout. All keys function as labeled. For advanced functions, refer to the key combinations listed on the underside of the keyboard or within the software driver.

RGB lysstyring

The keyboard features customizable RGB backlighting. You can cycle through 18 different light effects and adjust brightness with 10 levels directly on the keyboard using function key combinations. Single key custom RGB lamp effects are also supported via the software.

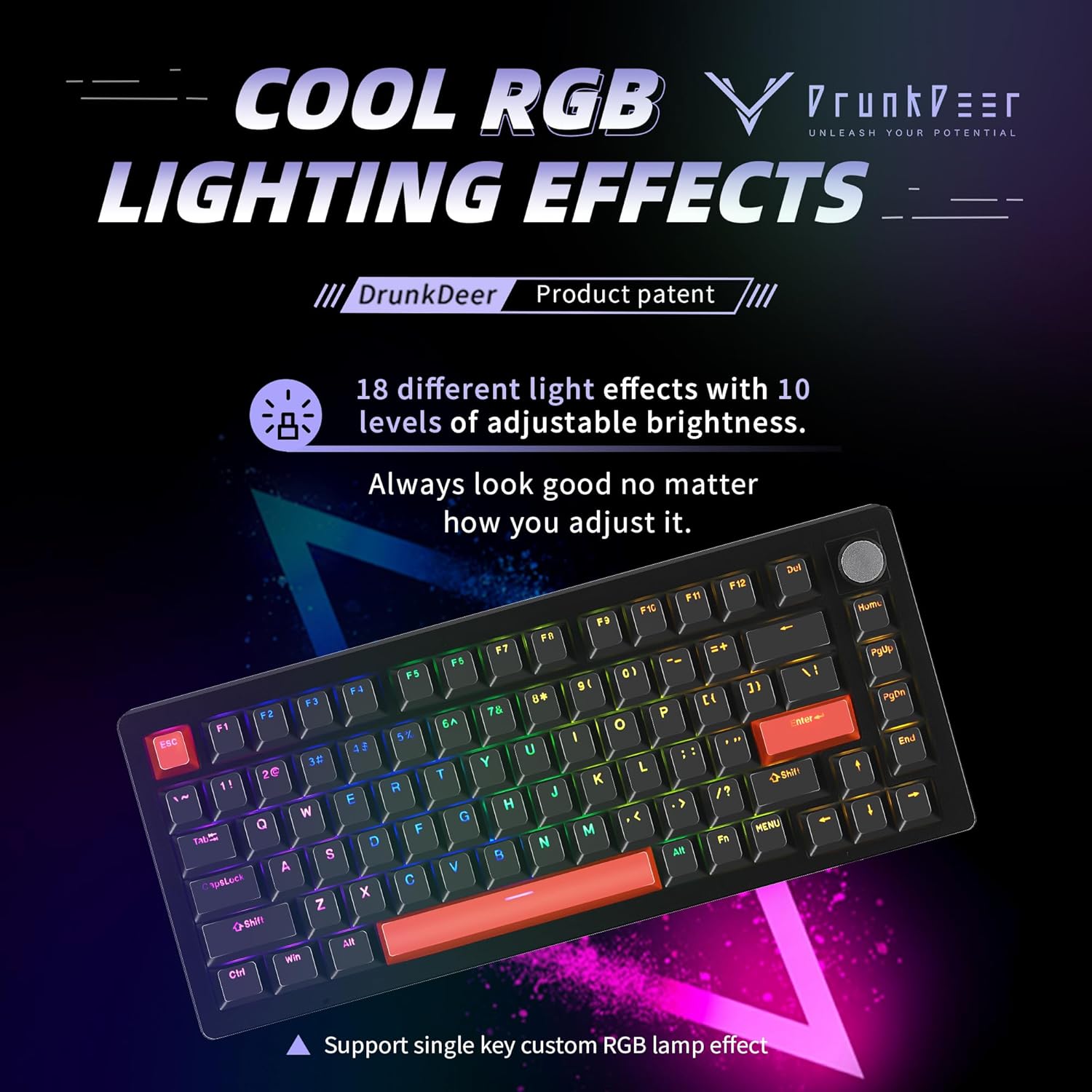

Image: DrunkDeer A75 keyboard showcasing its customizable RGB lighting effects.

4. Customization and Software

Adjustable Actuation Distance & Rapid Trigger

The DrunkDeer A75 allows for precise adjustment of key actuation distance and rapid trigger sensitivity. This is managed through the dedicated web driver software. Users can set actuation points from 0.2mm to 3.8mm and rapid trigger sensitivity from 0.1mm to 3.6mm, with 0.1mm accuracy. This feature is particularly beneficial for competitive gaming, enabling faster and more precise inputs.

Image: Visual explanation of the adjustable actuation distance and rapid trigger features, showing the range of customization for key presses.

Web Driver software

The DrunkDeer A75 utilizes a self-developed web driver for convenient customization. This allows users to adjust key bindings, performance settings (actuation point, rapid trigger), and RGB lighting effects without the need for bulky downloadable software. Settings are saved directly to the keyboard's onboard memory, ensuring consistent performance across different devices.

Image: The easy-to-use web driver interface for the DrunkDeer A75, providing comprehensive customization for keyboard settings.

5. Vedligeholdelse

Rensning

To maintain your keyboard's performance and appearance, regularly clean it using a soft, dry cloth. For deeper cleaning, use the provided keycap puller to remove keycaps and gently clean any dust or debris from the switches and plate. Avoid using harsh chemicals or abrasive materials.

Udskiftning af tastatur og kontakt

The DrunkDeer A75 features hot-swappable magnetic switches. Use the provided keycap puller to remove keycaps. To remove a switch, gently pull it straight up. Only use compatible magnetic switches designed for the DrunkDeer A75, as standard mechanical switches are not compatible due to the Hall effect design.

6. Fejlfinding

Fælles problemer

• Tastaturet reagerer ikke: Sørg for, at USB-C-kablet er korrekt tilsluttet til både tastaturet og din computer. Prøv en anden USB-port eller et andet kabel.
• Incorrect key input: Verify that the correct firmware for your A75 ANSI model is installed. Reset the keyboard to factory settings via the web driver if necessary.
• RGB-belysning virker ikke: Check function key combinations for lighting control. Ensure the keyboard is properly connected and the web driver is accessible.

Kontakt support

If you encounter persistent issues that cannot be resolved with the troubleshooting steps, please contact DrunkDeer customer support for assistance.

7. Produktspecifikationer

8. Garanti og support

For warranty information or further technical assistance, please refer to the official DrunkDeer webwebstedet eller kontakt deres kundesupport direkte. Gem din købskvittering til garantikrav.
