Lorex N883A64B 16-Channel 4K Pro Series NVR

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your Lorex N883A64B 16-Channel 4K Pro Series Network Video Recorder (NVR). Please read this manual thoroughly before using the product to ensure proper setup and optimal performance. Keep this manual for future reference.

The Lorex N883A64B NVR is designed to record and manage video from up to 16 4K Ultra HD security cameras, offering advanced features like person and vehicle detection, extensive local storage, and real-time 4K recording at 30 frames per second.

Hvad er der i æsken

• Lorex N883A64B 16-Channel 4K Pro Series NVR (Recorder)
• Strømadapter
• USB-mus
• Ethernet kabel
• HDMI kabel
• Hurtig startvejledning

Nøglefunktioner

• Ultra HD 4K Resolution Recording: Records video at 4K resolution up to 30 frames per second, providing smooth, real-time footage. Supports digital zoom for enhanced clarity.
• Local Storage with No Monthly Fees: Equipped with 2 hard drive bays, supporting up to 2 x 10TB of storage space. Features a security-grade hard drive designed for 24/7 recording and storage mirroring for continuous data backup.
• Advanced Person and Vehicle Detection: Reduces false alarms by sending push notifications only when motion from a person or vehicle is detected. Includes Smart Søg efter quick review of motion-triggered events.
• Plug-and-play PoE Installation: Integrated Power-over-Ethernet (PoE) ports simplify camera connection, requiring only a single Ethernet cable per camera for both power and video transmission.
• Secure Access Anytime, Anywhere: Access your security system remotely via the Lorex Cloud app on mobile devices or the Lorex Cloud client on computers. View live feeds, watch recorded playback, and receive motion-triggered notifications.

Opsætningsvejledning

1. Udpakning og indledende inspektion

Carefully remove all components from the packaging. Inspect the NVR and accessories for any signs of damage. If any items are missing or damaged, contact Lorex customer support immediately.

2. NVR Overview

Figur 1: Front panel of the Lorex N883A64B NVR, showing the Lorex logo, status indicators, channel numbers, control buttons (prev, next, play, pause, stop, shift, rec, fn, esc), a directional pad, and a USB port.

Figur 2: Rear panel of the Lorex N883A64B NVR, displaying the power input, cooling fan, 16 PoE ports, alarm input/output terminals, VGA, RS232, HDMI, USB 3.0, Ethernet, and audio input/output ports.

3. Connecting the NVR

1. Tilslut til en skærm: Use the provided HDMI cable to connect the NVR's HDMI output port to an HDMI input on your monitor or TV. Alternatively, use a VGA cable for VGA connections.
2. Tilslut musen: Plug the USB mouse into one of the USB ports on the NVR (front or rear).
3. Opret forbindelse til netværk: Connect an Ethernet cable from the NVR's LAN port to your router or network switch. This is essential for remote access and network features.
4. Tilslut kameraer: Connect your Lorex IP cameras to the PoE ports on the rear of the NVR using Ethernet cables. Each camera will receive power and transmit video data through a single cable.
5. Tænd: Tilslut strømadapteren til NVR'ens strømindgang, og sæt den derefter i en stikkontakt. NVR'en tænder automatisk.

4. Indledende konfiguration

Ved første opstart vil NVR'en guide dig gennem en opsætningsguide. Følg instruktionerne på skærmen for at:

• Set up a secure password for the administrator account.
• Konfigurer indstillinger for dato og klokkeslæt.
• Adjust network settings (DHCP is recommended for most home networks).
• Initialize the hard drive(s) for recording.
• Scan and add connected IP cameras.

Betjening af NVR'en

1. Lev View

Efter opsætningen viser NVR'en live-dataene view fra alle tilsluttede kameraer. Du kan skifte mellem enkeltkamera-visning view, multi-camera grids (e.g., 4-channel, 9-channel, 16-channel), and sequence modes using the on-screen controls or the NVR's front panel buttons/mouse.

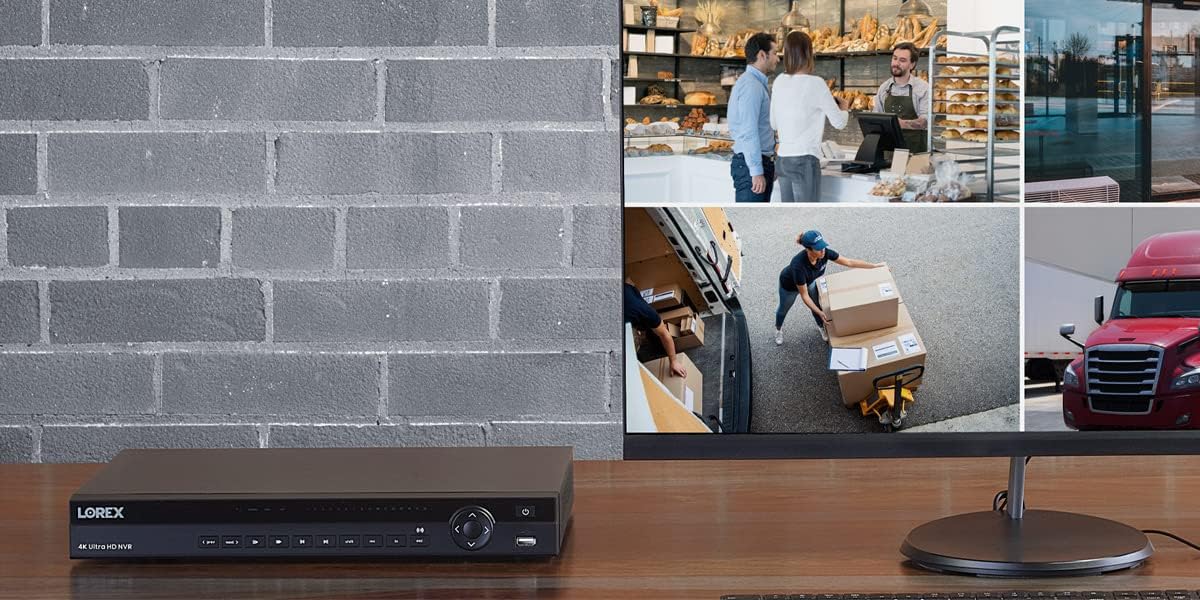

Figur 3: En eksample setup showing the Lorex NVR connected to a monitor, displaying a multi-view grid of surveillance camera feeds from various locations.

2. Optagelse og afspilning

• Kontinuerlig optagelse: The NVR is configured for 24/7 continuous recording by default, utilizing its security-grade hard drive.
• Optagelse af bevægelsesdetektering: Configure specific channels to record only when motion is detected. With advanced person and vehicle detection, this reduces unnecessary recordings and saves storage space.
• Planlagt optagelse: Set up custom recording schedules based on time of day or day of the week.
• Afspilning: Få adgang til optaget footage by navigating to the playback menu. Use the timeline to select specific dates and times. Utilize the Smart Search feature to quickly filter and review motion events.

3. Fjernadgang (Lorex Cloud)

The Lorex Cloud platform allows you to access your NVR remotely from anywhere with an internet connection.

1. Download appen: Download the Lorex Cloud app from your mobile device's app store (iOS/Android) or the Lorex Cloud client for your computer (Windows/macOS).
2. Opret en konto: Register for a Lorex Cloud account if you don't already have one.
3. Tilføj din enhed: Follow the in-app instructions to add your NVR by scanning the QR code on the NVR or manually entering its device ID.
4. Adgangsfunktioner: Når du er tilsluttet, kan du view live feeds, play back recorded video, receive push notifications for motion events, and configure certain NVR settings remotely.

Figur 4: The Lorex Cloud application interface displayed across various devices including a laptop, desktop monitor, tablet, and smartphone, demonstrating remote access capabilities for surveillance systems.

Opretholdelse

• Regelmæssig rengøring: Gently wipe the NVR's exterior with a soft, dry cloth. Do not use liquid cleaners or aerosols. Ensure ventilation openings are clear of dust and debris.
• Firmwareopdateringer: Periodically check the Lorex support webwebsted for firmwareopdateringer. Ved at holde din NVR's firmware opdateret sikrer du optimal ydeevne, sikkerhed og adgang til nye funktioner.
• Harddiskens tilstand: The NVR's hard drive is designed for 24/7 operation. Monitor its health through the NVR's system settings. Consider backing up critical footage med jævne mellemrum.
• Adgangskodesikkerhed: Regularly change your NVR and Lorex Cloud account passwords to strong, unique combinations to prevent unauthorized access.

Fejlfinding

Specifikationer

Kompatibilitet

The Lorex N883A64B NVR is compatible with a wide range of Lorex IP cameras. Compatible models include, but are not limited to:

E581CB, E581CD, E861ABB, E891AB, LNB8111, LNB8921, LNB8973, LNB9232, LNB9242B, LNB9252B, LNB9272, LNB9282B, LNE8950AB, LNE8964ABW, LNE8974, LNE9242B, LNE9252B, LNZ32P12S, LNZ32P4, LNZ3522, LNZ44P12B, LNZ44P4B, LNB3143, LNB3153, LNB3163, LNB3321, LNB3373, LNB4163, LNB4321, LNB4421, LND3152, LND3374B, LND4750AB, LND4751AB, LNE3142RB, LNE3162, LNE4162, LNE4322, LNE4422, E841CA, E841CAB, E841CD, E881AP, LNB8963BW, LNB9292B, LNE9282B, LNE9292B, LNZ81P25.

Garanti og support

This Lorex N883A64B NVR is a renewed product. Please refer to the specific warranty terms provided by the seller or Amazon Renewed at the time of purchase. Typically, renewed products come with a limited warranty.

For technical support, troubleshooting assistance, or warranty inquiries, please contact Lorex customer support or the seller from whom you purchased the renewed product. You can often find support contact information on the Lorex official webwebstedet eller via dine Amazon-ordreoplysninger.

Online ressourcer: For the latest manuals, software downloads, and FAQs, visit the official Lorex support webwebsted: www.lorex.com/support
