Einhell PRESSITO 18/25 Power X-Change Cordless Air Compressor

Indledning

The Einhell PRESSITO 18/25 compressor is a versatile and portable tool designed for various inflation and deflation tasks. As part of the Power X-Change family, it operates on an 18-volt battery (sold separately), offering cordless convenience for use anywhere.

This compressor features both high-pressure and low-pressure capabilities. The high-pressure pump can reach up to 11 bar, making it ideal for inflating vehicle tires, bicycle tires, and sports balls. The low-pressure pump is suitable for inflating and deflating air beds, inflatable pools, and similar items. Its intuitive two-line LCD display shows both actual and target pressure in bar, PSI, or kPa, and the unit automatically shuts off once the desired pressure is reached. For quick inflation without a preset target, a manual push-button option is available.

Nøglefunktioner omfatter:

• Member of the Einhell Power X-Change battery system (1 x 18V battery required, not included).
• High-pressure function for tires and balls (up to 11 bar).
• Low-pressure function for air beds and inflatables, with suction option for deflation.
• Automatic shut-off when target pressure is reached.
• Two-line LCD display for actual and target pressure (bar, PSI, kPa).
• Manual inflation button for high-pressure tasks without preset.
• Integrated storage for included 3-piece adapter set (ball needle, tire adapter, conical adapter).
• Integrated storage for high-pressure and low-pressure hoses.
• Lightweight design with a practical carrying handle.

Sikkerhedsoplysninger

Læs og forstå altid alle sikkerhedsadvarsler, instruktioner, illustrationer og specifikationer, der følger med dette elværktøj. Manglende overholdelse af alle nedenstående instruktioner kan resultere i elektrisk stød, brand og/eller alvorlig personskade.

• Sikkerhed på arbejdsområdet: Hold dit arbejdsområde rent og godt oplyst. Rodede eller mørke områder indbyder til ulykker. Brug ikke elværktøj i eksplosive atmosfærer, f.eks. i nærheden af ​​brandfarlige væsker, gasser eller støv.
• Elektrisk sikkerhed: This tool is cordless and battery-operated. Ensure the battery and charger (if purchased separately) are compatible with the tool. Do not expose the tool to rain or wet conditions.
• Personlig sikkerhed: Always wear appropriate personal protective equipment, including safety glasses. Stay alert, watch what you are doing, and use common sense when operating a power tool.
• Brug og pleje af værktøj: Tving ikke elværktøjet. Brug det korrekte elværktøj til din opgave. Frakobl batteriet fra elværktøjet, før du foretager justeringer, skifter tilbehør eller opbevarer elværktøjet.
• Tryksikkerhed: Do not exceed the maximum pressure rating of the item being inflated. Over-inflation can cause bursting and serious injury. Always monitor the pressure gauge during inflation.
• Hose and Adapter Safety: Ensure all hoses and adapters are securely connected before operating the compressor. Do not point the air nozzle at yourself or others.
• Opbevaring: Opbevar inaktivt elværktøj utilgængeligt for børn, og lad ikke personer, der ikke er bekendt med elværktøjet eller disse instruktioner, betjene elværktøjet.

Komponenter og pakkeindhold

The Einhell PRESSITO 18/25 Cordless Air Compressor comes with the following components:

• Einhell PRESSITO 18/25 Cordless Air Compressor Unit
• High-pressure hose with valve connector
• Low-pressure hose with quick connector
• 3-piece adapter set:
  • Kuglenål
  • Tire adapter (Presta/Dunlop valve adapter)
  • Conical adapter (for inflatables)

Bemærk: Batteri og oplader er ikke inkluderet og skal købes separat.

Image: The main unit of the Einhell PRESSITO 18/25 Cordless Air Compressor, showcasing dens kompakte design og integrerede håndtag.

Image: The compressor unit displayed with its high-pressure hose, low-pressure hose, and the three included adapters laid out for clear visibility.

Billede: A view of the Einhell PRESSITO 18/25 highlighting the integrated storage compartments for the hoses and adapter set, ensuring all components are kept together.

Opsætning

Before using your Einhell PRESSITO 18/25, ensure you have a compatible Einhell Power X-Change 18V battery charged and ready.

1. Indsæt batteri: Locate the battery slot on the compressor. Align the battery with the slot and slide it in until it clicks securely into place. Ensure it is fully seated.
2. Attach Hoses:
   • For high-pressure tasks (tires, balls), connect the high-pressure hose to the designated high-pressure port.
   • For low-pressure inflation/deflation (air beds), connect the larger low-pressure hose to its respective port.
3. Vælg adapter: Choose the appropriate adapter from the integrated storage compartment for your inflation task (ball needle, tire adapter, or conical adapter). Attach it firmly to the end of the relevant hose.
4. Indledende kontrol: Once the battery is inserted, the LCD display will illuminate, showing the current pressure reading. This indicates the unit is ready for operation.

Billede: En side view of the compressor, illustrating the battery compartment and hose connection points.

Betjeningsvejledning

High-Pressure Inflation (Tires, Balls)

Use the high-pressure hose and the appropriate adapter for inflating items requiring high pressure.

1. Forbinde: Securely attach the high-pressure hose to the item to be inflated (e.g., tire valve, ball valve).
2. Indstil måltryk: The LCD display will show the current pressure. Use the + og - buttons to set your desired target pressure. You can cycle through units (bar, PSI, kPa) using the unit selection button.
3. Start inflation: Press the high-pressure inflation button (often indicated by a tire or ball icon). The compressor will start and automatically stop once the target pressure is reached.
4. Manuel inflation: For continuous inflation without a preset target, press and hold the MANUEL button. Release the button when the desired pressure is achieved. Monitor the display carefully during manual operation.
5. Afbryde: Once inflation is complete, disconnect the hose from the item.

Billede: Et nærbillede view of the compressor's two-line LCD display, showing current and target pressure readings in Bar.

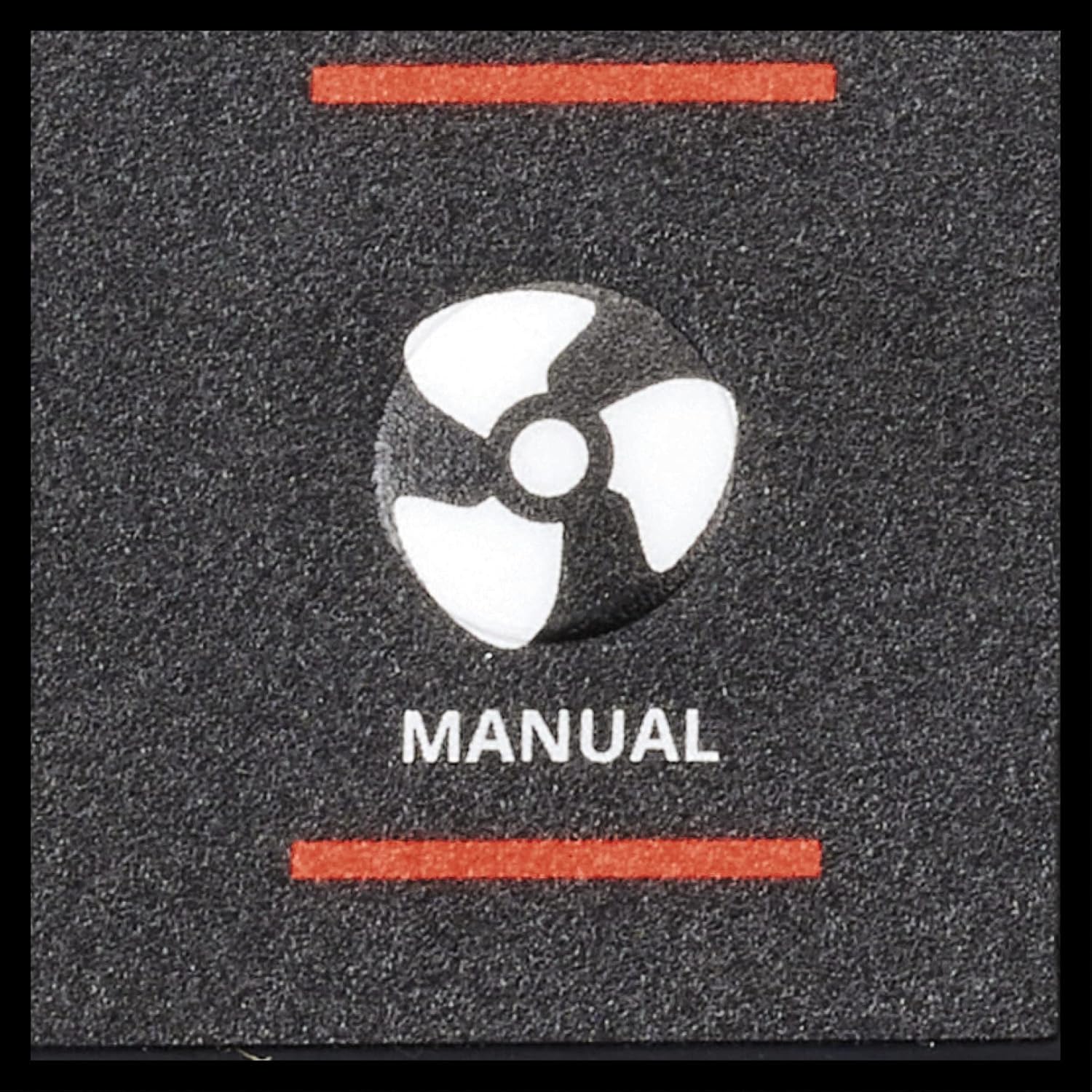

Image: A detailed shot of the "MANUAL" button on the control panel, used for continuous inflation without a preset pressure.

Image: A woman using the Einhell PRESSITO 18/25 to inflate a car tire, demonstrating its portability and ease of use for automotive applications.

Image: A man inflating a bicycle tire with the compressor, highlighting its utility for various sporting equipment.

Low-Pressure Inflation and Deflation (Air Beds, Inflatables)

Use the larger low-pressure hose and the conical adapter for inflating or deflating larger volume items.

1. Connect for Inflation: Attach the low-pressure hose to the inflation port of the item.
2. Set Target Pressure (Optional): For low-pressure items, you can set a target pressure or use manual operation.
3. Start inflation: Press the low-pressure inflation button (often indicated by a fan icon). The compressor will inflate the item.
4. Connect for Deflation: To deflate, connect the low-pressure hose to the suction port of the compressor and the item's valve.
5. Start deflation: Activate the low-pressure suction function (refer to your unit's specific button, often the same low-pressure button but used for suction). The compressor will draw air out of the item.
6. Afbryde: Once complete, disconnect the hose.

Image: A man using the Einhell PRESSITO 18/25 to inflate an inflatable boat near a swimming pool, demonstrating its capability for larger inflatables.

Pleje og vedligeholdelse

Proper care and maintenance will ensure the longevity and optimal performance of your Einhell PRESSITO 18/25 compressor.

• Rensning: After each use, wipe down the exterior of the compressor with a soft, damp klud. Brug ikke skrappe kemikalier eller slibende rengøringsmidler. Sørg for, at der ikke samler sig støv eller snavs i luftventilerne.
• Hose and Adapter Care: Inspect hoses and adapters regularly for any signs of wear, cracks, or damage. Replace them if necessary. Clean any residue from the adapters.
• Opbevaring: Store the compressor in a clean, dry place, away from direct sunlight and extreme temperatures. Utilize the integrated storage compartments for the hoses and adapters to prevent loss and damage.
• Batteripleje: If storing for extended periods, remove the battery from the compressor. Store the battery in a cool, dry place, partially charged (around 50%) to prolong its lifespan.

Fejlfinding

If you encounter issues with your Einhell PRESSITO 18/25, refer to the following common problems and solutions:

Tekniske specifikationer

Garanti og kundesupport

Einhell products are designed for quality and reliability. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Einhell webwebsted.

Spare parts availability for this product is guaranteed for a duration of 2 years within the EU. For technical assistance, troubleshooting beyond this manual, or to inquire about spare parts, please contact Einhell customer support through their official channels. Contact information can typically be found on the Einhell webwebstedet eller på din produktemballage.

When contacting support, please have your product model number (4020420) and purchase details readily available.
