1. Introduktion
The WYRESTORM Halo-COM-MIC is an advanced 360° omnidirectional stereo conference USB microphone designed to enhance audio pickup in various meeting environments. It features Acoustic Echo Cancellation (AEC), Automatic Gain Control (AGC), and noise suppression technologies to deliver clear and consistent audio. This microphone can also be cascaded up to three times with the APO-60-UC for extended voice pickup range in larger spaces. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Halo-COM-MIC.
2. Produktet er slutview
2.1 Nøglefunktioner
- Built-in MEMS Microphone Array: Incorporates AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control), and noise-cancelling for superior sound pickup.
- Cascade Functionality: Allows cascading up to 3 units for extended voice pickup range when used with the APO-60-UC.
- Easy and Flexible Installation: Compact design with minimal footprint, supporting various cable routing options.
- One-button Mute: Convenient mute toggle button with an LED indicator for quick control.
- 360° stemmeoptagelse: Round design with 4 microphones ensures comprehensive sound capture within a 10-16ft radius.
2.2 Produktkomponenter
The Halo-COM-MIC package includes the microphone unit and a 3M USB cable.
Figur 2.2.1: Top-down view of the WYRESTORM Halo-COM-MIC microphone, showing its compact, circular design with a central mute button.
Figure 2.2.2: Illustration demonstrating the 360-degree voice pickup capability of the Halo-COM-MIC, covering a 16.4ft (approximately 5-meter) radius in a conference setting.
Figur 2.2.3: Nærbillede view of a finger pressing the central mute/unmute button on the Halo-COM-MIC, which features an LED indicator.
3. Opsætning
3.1 Tilslutning af mikrofonen
- Place the Halo-COM-MIC on a flat surface in the center of your meeting area for optimal 360° voice pickup.
- Connect the provided 3M USB cable to the USB Type-A port on the Halo-COM-MIC.
- Plug the other end of the USB cable into an available USB port on your computer (laptop or personal computer).
- Mikrofonen er plug-and-play og burde automatisk blive genkendt af dit operativsystem.
3.2 Daisy-Chaining Multiple Microphones
For larger conference rooms or extended voice pickup, multiple Halo-COM-MIC units can be daisy-chained using the WyreStorm APO-60-UC. Up to three Halo-COM-MIC units can be connected in a cascade configuration.
- Connect the first Halo-COM-MIC to the APO-60-UC using a USB cable.
- Connect subsequent Halo-COM-MIC units to each other using their respective USB ports, forming a chain.
- Ensure proper cable routing to avoid interference and maintain a tidy setup. The microphone supports both same-direction and opposite-direction cable output.
Figure 3.2.1: Schematic diagram illustrating various configurations for daisy-chaining multiple Halo-COM-MIC units with an APO-60-UC for expanded coverage in large conference rooms.

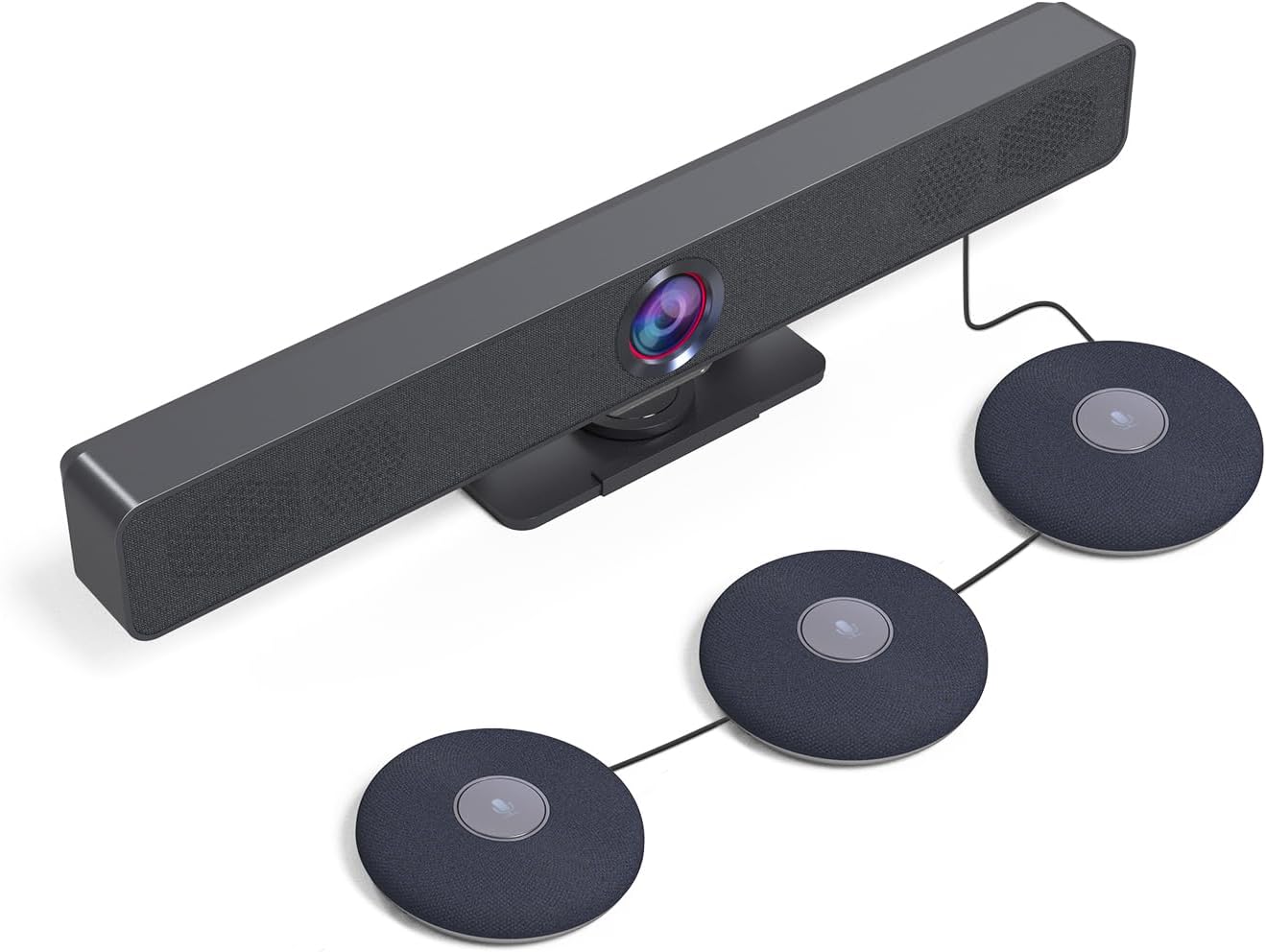

Figur 3.2.2: Et example setup showing a WyreStorm video bar connected to three cascaded Halo-COM-MIC microphones, demonstrating a typical conference room integration.
4. Betjening
4.1 Grundlæggende brug
Once connected to your computer, the Halo-COM-MIC functions as a standard USB audio input device. Select it as your primary microphone in your communication software (e.g., Zoom, Microsoft Teams, Google Meet) settings.
4.2 Mute-funktion
The central button on the microphone serves as a mute toggle. Press the button once to mute the microphone. The LED indicator will change color (typically red) to indicate that the microphone is muted. Press the button again to unmute the microphone, and the LED will return to its active state (typically blue or green).
4.3 Audio Enhancement Technologies
- Acoustic Echo Cancellation (AEC): Eliminates echoes that can occur when microphone picks up audio from speakers in the same room, ensuring clear two-way communication.
- Automatisk forstærkningskontrol (AGC): Automatically adjusts the microphone's sensitivity to ensure consistent volume levels for all participants, regardless of their distance from the microphone.
- Støjdæmpning: Reduces background noise, such as keyboard clicks, air conditioning hum, or general room ambiance, to focus on speech.
5. Vedligeholdelse
5.1 Rengøring
To maintain the appearance and functionality of your Halo-COM-MIC, follow these cleaning guidelines:
- Disconnect the microphone from the power source (USB port) before cleaning.
- Brug en blød, tør og fnugfri klud til at tørre de udvendige overflader af.
- For genstridige mærker, let dampRengør kluden med vand. Undgå at bruge skrappe kemikalier, slibende rengøringsmidler eller opløsningsmidler.
- Lad ikke væsker trænge ind i nogen åbninger.
5.2 Opbevaring
When not in use for extended periods, store the microphone in a cool, dry place, away from direct sunlight and extreme temperatures. Protect it from dust and physical damage.
6. Fejlfinding
6.1 Almindelige problemer og løsninger
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No sound pickup / Microphone not detected | USB cable loose or disconnected; Incorrect audio input selected; Driver issue. |
|
| Dårlig lydkvalitet / Baggrundsstøj | Microphone too far from speakers; Excessive ambient noise; Software settings. |
|
| Mute button LED not responding | Temporary software glitch; Power issue. |
|
| Daisy-chaining not working | Incorrect connection order; Faulty cable; APO-60-UC not detected. |
|
7. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | HALO-COM-MIC |
| Mikrofon formfaktor | Table Array, Boundary |
| Polar mønster | Omnidirektionel |
| Stemme afhentningsområde | 10-16 feet (360°) |
| Særlige funktioner | 4 Noise-canceling Mics, Acoustic Echo Cancellation (AEC), Automatic Gain Control (AGC), Built-in Microphone |
| Forbindelsesteknologi | USB |
| Connector Type | USB Type-A |
| Kompatible enheder | Bærbar, personlig computer |
| Strømkilde | Ledningsdrevet elektrisk (USB-drevet) |
| Antal kanaler | 2 |
| Varedimensioner (L x B x H) | 4 x 4 x 0.86 tommer (10.16 x 10.16 x 2.18 cm) |
| Varens vægt | 1.1 pund (0.5 kg) |
| Inkluderede komponenter | 3M USB-kabel |
| Fabrikant | WYRESTORM |
| Oprindelsesland | Hong Kong |
8. Garanti og support
8.1 Produktgaranti
WYRESTORM products are manufactured to high standards and are designed for reliable performance. Specific warranty terms and conditions may vary by region and retailer. Please refer to the warranty information provided at the time of purchase or visit the official WYRESTORM webwebstedet for detaljerede oplysninger om garantipolitikken.
8.2 Teknisk support
For technical assistance, troubleshooting beyond this manual, or inquiries regarding your WYRESTORM Halo-COM-MIC, please contact WYRESTORM customer support. Contact information can typically be found on the official WYRESTORM webwebstedet eller på din produktemballage.
