YuanLey 8 Port 2.5G Unmanaged Desktop Ethernet Switch med 10G SFP Brugermanual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your YuanLey 8 Port 2.5G Unmanaged Desktop Ethernet Switch with 10G SFP. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage.

2. Pakkens indhold

Bekræft, at din pakke indeholder følgende varer:

• 1 x YuanLey 8 Port 2.5G Ethernet Switch
• 1 x strømkabel
• 1 x brugermanual

3. Produktfunktioner

• 9 Port Configuration: Includes 8 x 2.5 Gigabit Ethernet ports and 1 x 10G SFP+ Port.
• Højhastighedsydelse: Delivers 2.5 times faster network performance than traditional Gigabit switches, with a switching capacity of up to 60Gbps.
• Plug and Play: Unmanaged design requires no configuration for immediate use.
• Durable and Quiet: Features a metal case with 6KV lightning protection and a fanless design for silent operation.
• Bred driftstemperatur: Functions reliably in temperatures ranging from -10°C to 50°C.
• Alsidig placering: Supports both wall mount and desktop placement.

4. Produktet er slutview

Figure 4.1: YuanLey 8 Port 2.5G Unmanaged Desktop Ethernet Switch

Figur 4.2: Frontpanel overview with Ports and Indicators

The switch features 8 RJ45 ports supporting 10/100/1000Mbps/2.5G adaptive speeds and 1 SFP+ port for 1G/2.5G/10G fiber connections. LED indicators provide status for power and link activity.

Figur 4.3: Bagpanel overview with Power Input

Figur 4.4: Detaljeret View of Ports and Indicators

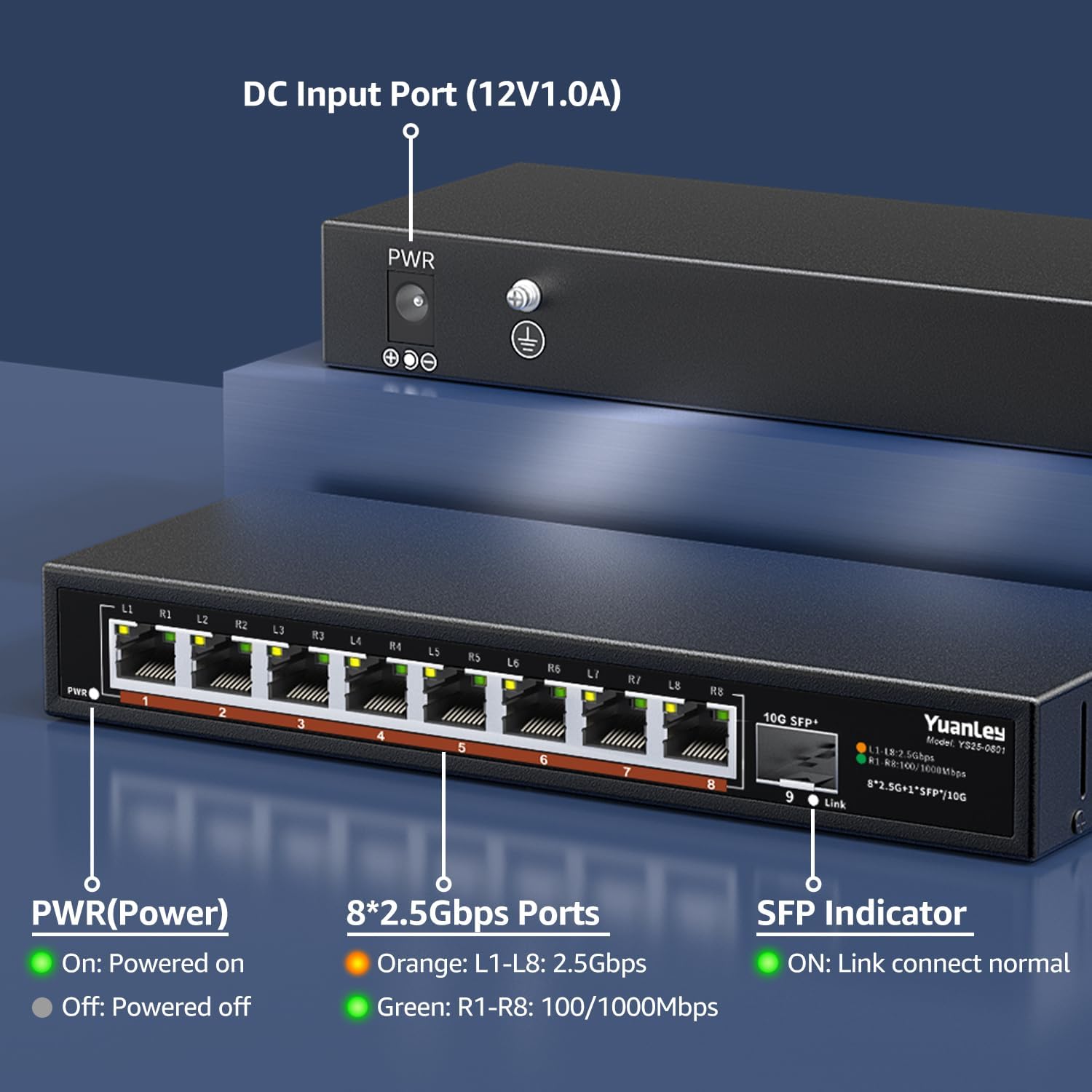

The rear panel includes the DC 12V/1.0A power input port and a grounding screw for electrical safety. The front panel LEDs indicate power status, 2.5Gbps link speed (orange), and 100/1000Mbps link speed (green) for RJ45 ports, and link status for the SFP+ port.

5. Opsætning

Follow these steps to set up your YuanLey Ethernet Switch:

1. Tilslut strøm: Plug the provided power adapter into the DC 12V/1.0A input port on the rear of the switch, then plug the adapter into a power outlet. The PWR LED on the front panel will illuminate green.
2. Connect Ethernet Devices: Connect your network devices (e.g., computers, NAS, WiFi 6 APs, gaming PCs) to the 2.5G Base-T ports (1-8) using standard Ethernet cables (Cat5e or higher recommended for 2.5G speeds). The corresponding port LEDs will light up to indicate a successful connection and speed.
3. Connect SFP+ Module (Optional): If using the 10G SFP+ port, insert a compatible 1G/2.5G/10G SFP/SFP+ module (not included) into the SFP+ slot. Then, connect a fiber optic cable or DAC cable to the module. The SFP indicator LED will light up when a link is established.

Figure 5.1: Typical Network Setup with the YuanLey Switch

6. Betjening af kontakten

The YuanLey 2.5G Unmanaged Ethernet Switch is designed for simple plug-and-play operation. Once powered on and connected to your network devices, it will automatically detect the link speed and establish connections without any further configuration.

• LED-indikatorer: Observe the PWR, L1-L8, and SFP+ Link LEDs to monitor the switch's status and network activity.
• Automatisk MDI/MDIX: The switch supports Auto MDI/MDIX, eliminating the need for crossover cables.
• Adaptive Speed: RJ45 ports automatically adapt to 10/100/1000Mbps or 2.5Gbps.

7. Vedligeholdelse

To ensure optimal performance and longevity of your switch, consider the following maintenance guidelines:

• Placering: Place the switch in a well-ventilated area, away from direct sunlight, heat sources, and excessive moisture. The fanless design relies on natural convection for cooling.
• Rensning: Periodically clean the exterior of the switch with a soft, dry cloth. Avoid using liquid or aerosol cleaners.
• Kabelstyring: Sørg for, at netværkskablerne er pænt organiseret og ikke er for bøjede eller forstrakte.
• Strømforsyning: Use only the original power adapter provided with the switch.

Figure 7.1: Fanless Design and Environmental Considerations

8. Fejlfinding

Hvis du støder på problemer med din switch, kan du se følgende almindelige problemer og løsninger:

• Ingen strøm:
  • Sørg for, at strømadapteren er korrekt tilsluttet afbryderen og en fungerende stikkontakt.
  • Check if the PWR LED is illuminated. If not, try a different power outlet.
• Ingen link/aktivitet på en port:
  • Kontroller, at Ethernet-kablet er korrekt tilsluttet til både switchporten og netværksenheden.
  • Prøv et andet Ethernet-kabel.
  • Sørg for, at den tilsluttede enhed er tændt og fungerer korrekt.
  • Check the LED indicator for the specific port. If it's off, there might be no link.
• Langsom netværkshastighed:
  • Ensure all devices in the network path (NICs, cables, routers) support 2.5G speeds to achieve maximum performance.
  • Use Cat5e or higher-rated Ethernet cables for 2.5G connections.
  • Check the color of the port LED: Orange indicates 2.5Gbps, Green indicates 100/1000Mbps.
• SFP+ Port Issues:
  • Ensure the SFP/SFP+ module is correctly inserted and compatible with the switch.
  • Verify the fiber optic or DAC cable is properly connected and undamaged.
  • Check the SFP indicator LED for link status.

9. Specifikationer

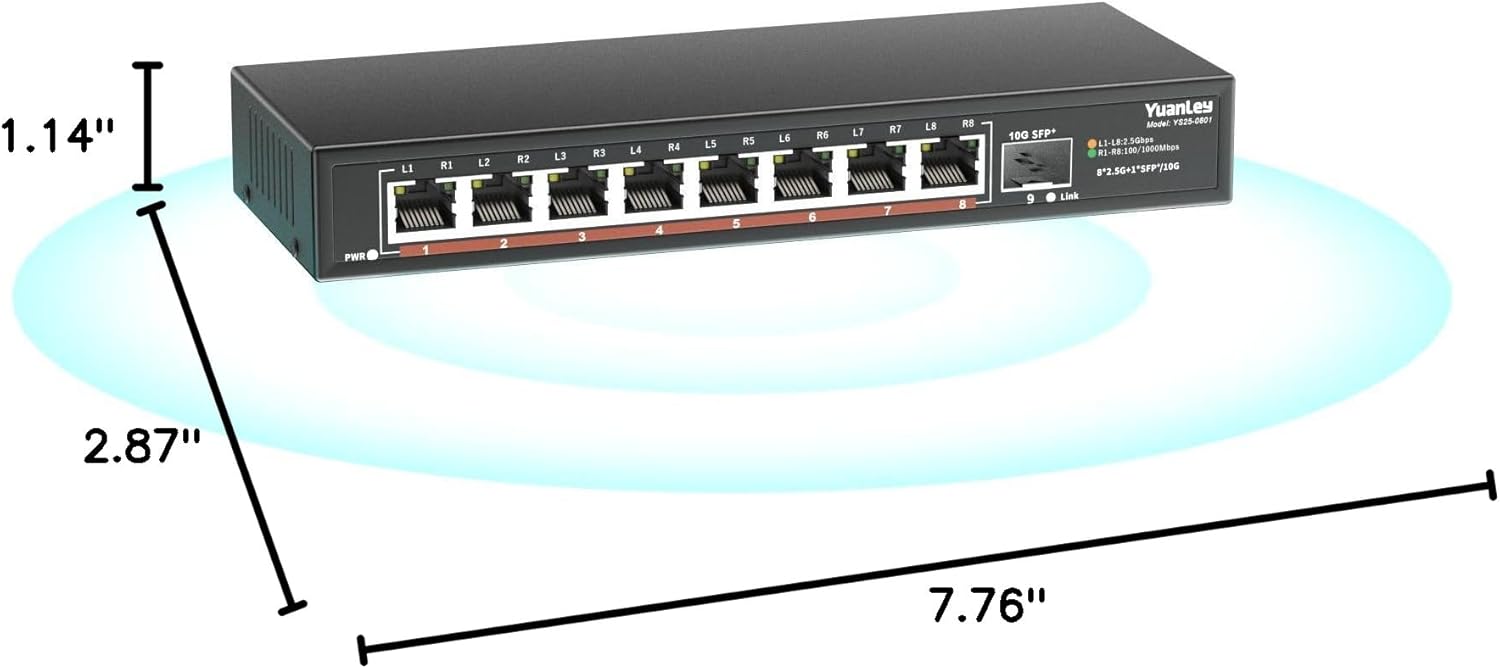

Figur 9.1: Produktmål

10. Garanti og support

YuanLey products are designed for reliability and performance. For warranty information and technical support, please refer to the official YuanLey webwebstedet eller kontakt deres kundeservice direkte. Gem din købskvittering til garantikrav.

For yderligere hjælp kan du besøge YuanLey Store on Amazon.
