1. Introduktion
This manual provides detailed instructions for the assembly, operation, and maintenance of your Liink1Ga Black Metal Twin Bed Frame with Headboard, Simplified Style. Please read this manual thoroughly before assembly and retain it for future reference. Proper assembly and care will ensure the longevity and stability of your bed frame.
2. Sikkerhedsoplysninger
- Voksensamling påkrævet: This product requires adult assembly. Keep small parts away from children during assembly.
- Brug de rigtige værktøjer: Ensure you have the necessary tools as specified in the assembly section.
- Følg instruktionerne: Adhere strictly to the assembly steps to prevent structural damage or injury.
- Placering: Placer sengerammen på en flad, jævn overflade.
- Vægtgrænse: Do not exceed the recommended weight capacity for a twin bed frame. Overloading can cause damage and injury.
- Regelmæssig inspektion: Kontrollér regelmæssigt alle bolte og forbindelser for at sikre, at de forbliver stramme. Efterspænd efter behov.
- Undgå klatring: Do not allow children to climb on the bed frame or headboard.
3. Pakkens indhold
Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer support.
- Komponenter til hovedgærdet
- Fodpladekomponenter
- Sideskinner
- Støtteben
- Metallameller
- Hardwarepakke (bolte, skiver, møtrikker, unbrakonøgle)
Billede: Overview of bed frame components. This image displays the various metal parts that make up the bed frame, including the headboard, footboard, side rails, and support slats, before assembly.
4. Opsætnings- og monteringsvejledning
Assembly typically requires two adults and takes approximately 1-2 hours. An Allen wrench is usually included in the hardware pack. A Phillips head screwdriver may also be required for some models (not explicitly stated, but good general advice).
- Udpak og identificer dele: Carefully unpack all components and lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratching. Refer to the parts list to ensure all pieces are present.
- Samling af hovedgærde og fodgærde: Connect the vertical and horizontal bars of the headboard and footboard sections using the provided bolts and Allen wrench. Do not fully tighten bolts until all sections are loosely assembled.
- Fastgør sideskinner: Connect the side rails to the assembled headboard and footboard sections. Ensure the connection points are secure.
- Installer midterste støtteben: Attach any central support legs to the main frame structure as indicated in the diagrams.
- Indsæt lameller: Place the metal slats into the designated slots or attach them to the side rails. Ensure each slat is firmly seated. The design allows for easy insertion without additional tools.
- Endelig stramning: Once all components are in place and aligned, systematically tighten all bolts using the Allen wrench. Do not overtighten.
- Tjek stabilitet: Ryst forsigtigt den samlede ramme for at sikre, at den er stabil, og at alle forbindelser er sikre.
Image: Detail of slat connection. This image illustrates how the metal slats connect securely to the bed frame, showing a simple slot-in mechanism for easy assembly.
Image: Fully assembled bed frame. This image shows the Liink1Ga Black Metal Twin Bed Frame with Headboard, Simplified Style, fully assembled and ready for use in a bedroom environment.
5. Brugsvejledning
- Madrasplacering: Place your twin-sized mattress directly onto the metal slats. A box spring is not required for this bed frame.
- Opbevaring under sengen: The bed frame provides approximately 13 inches of clearance from the floor, allowing for convenient under-bed storage.
- Vægtfordeling: Distribute weight evenly across the bed frame to maintain stability and prevent damage.
Image: Under-bed clearance. This close-up image highlights the space beneath the bed frame, demonstrating the ample clearance for storage containers.
6. Vedligeholdelse
- Rensning: Tør metalrammen af med en blød kludamp klud. Undgå slibende rengøringsmidler eller barske kemikalier, der kan beskadige den pulverlakerede overflade.
- Regelmæssig kontrol: Periodically (e.g., every 3-6 months) inspect all bolts and connections. Retighten any loose hardware to maintain the frame's stability and prevent squeaking.
- Flytning af rammen: Når du flytter sengerammen, skal du løfte den i stedet for at trække den for at undgå at beskadige benene eller gulvet.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Knirkende støj | Løse bolte eller forbindelser. | Inspect all bolts and retighten them. Ensure slats are properly seated. |
| Ustabilitet/Vinklen | Ujævn gulvoverflade eller løse forbindelser. | Ensure the bed frame is on a level surface. Check and tighten all assembly bolts. |
| Manglende/beskadigede dele | Produktionsfejl eller forsendelsesskade. | Do not proceed with assembly. Contact Liink1Ga customer support immediately for replacement parts. |
8. Specifikationer
- Model: Twin Simplified
- Mærke: Liink1Ga
- Størrelse: Tvilling
- Produktdimensioner: 77.56 cm L x 39.17 cm B x 31.5 cm H
- Farve: Sort
- Materiale: Metal (pulverlakeret finish)
- Inkluderede komponenter: Headboard, Footboard, Slats, Support Legs
- Boxmadras påkrævet: Ingen
- Udsalg under sengen: Ca. 13 tommer
- Varens vægt: 21.5 pund

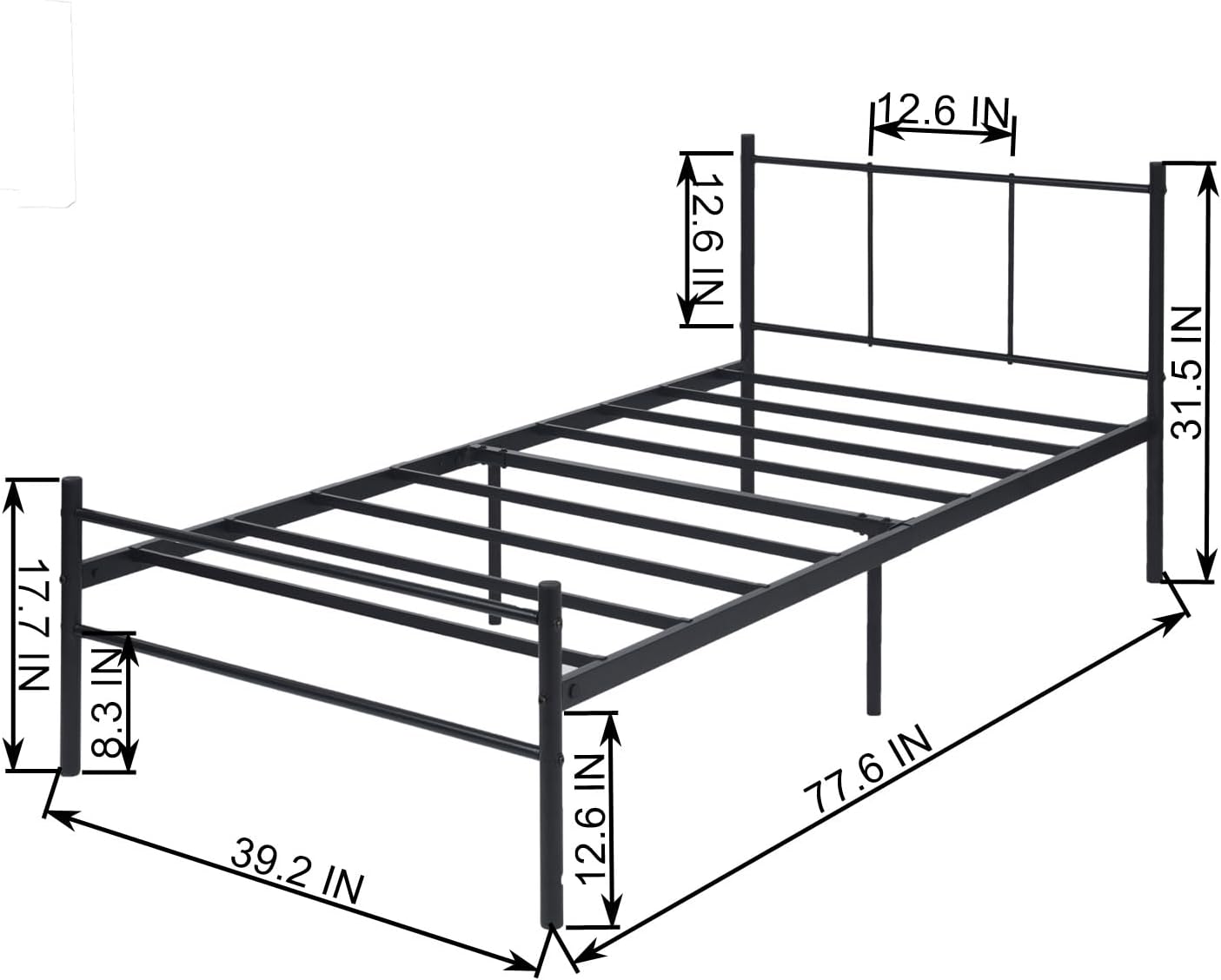

Image: Product dimensions diagram. This diagram provides a visual representation of the bed frame's length, width, and height, including the headboard and footboard measurements.
9. Garanti og support
For warranty information or customer support, please refer to the documentation included with your purchase or contact Liink1Ga directly through their official channels. Keep your purchase receipt as proof of purchase for any warranty claims.
Fabrikant: Liink1Ga
ASIN: B0C6169D8X
