Sunco 6 tommer LED indbygget lampe med natlys - brugsanvisning

1. Introduktion

This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your Sunco 6 Inch LED Recessed Lights with Night Light feature. Please read this manual thoroughly before installation and retain it for future reference.

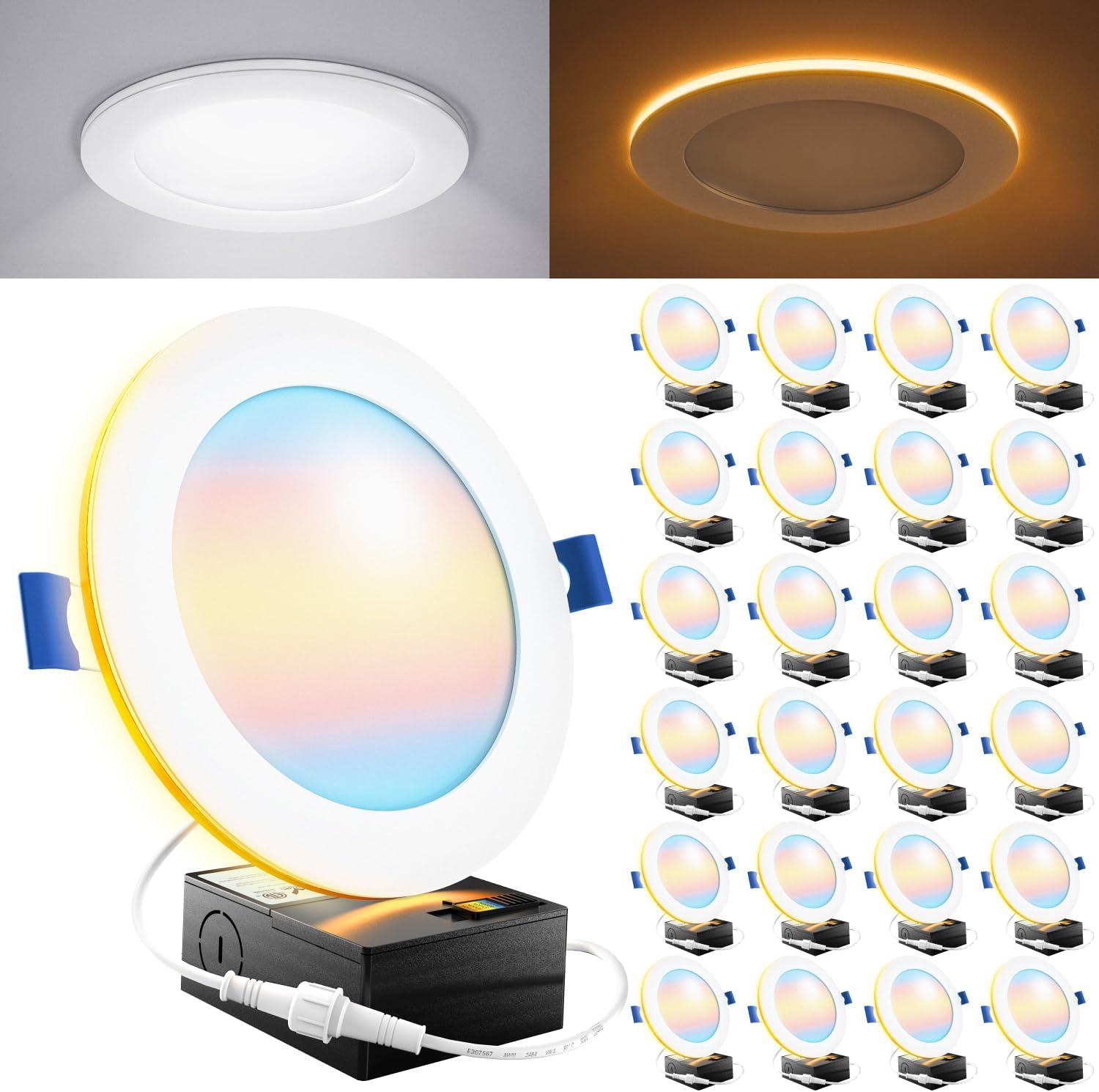

This image displays the Sunco 6-inch LED recessed light, highlighting its dual functionality as a bright downlight and a warm night light. A full pack of 24 lights, each with its associated junction box, is also shown.

2. Nøglefunktioner

• Valgbar farvetemperatur (CCT): Choose from 5 color temperatures (2700K, 3000K, 4000K, 5000K, 6000K) to match your desired ambiance.
• Integreret natlys: Activate a soft 2700K night light by simply toggling your light switch twice.
• Dæmpbar: Both the main downlight and night light are dimmable from 10% to 100% with compatible dimmers.
• Nem installation: Features spring-loaded brackets for quick and secure setup in various ceiling types, including single or double drywall and soffits.
• IC-Rated: Safe for direct contact with insulation, ensuring energy efficiency and fire safety.
• Høj lysstyrke: Delivers 1500 lumens of illumination.
• Lang levetid: Designed for an average life of 50,000 hours.

3. Specifikationer

This image provides detailed dimensions of the 6-inch recessed light (6.6 inches outer diameter, 5 inches inner diameter) and its junction box (2.9 x 3.4 inches), including the 7.3-inch wire length. It also highlights the FCC, ETL, and RoHS certifications for quality and safety.

4. Opsætning og installation

Sikkerhedsforanstaltninger:

• Sluk altid for strømmen ved afbryderen, inden installationen påbegyndes.
• Kontakt en kvalificeret elektriker, hvis du er usikker på installationsprocessen.
• Sørg for, at alle ledningsforbindelser er sikre og overholder lokale el-forskrifter.
• This fixture is IC-rated, allowing direct contact with insulation.

Installationstrin:

1. Forbered åbningen: Cut a 6.25-inch (15.9 cm) diameter hole in the ceiling at your desired location. Ensure there are no obstructions like studs or pipes.
2. Tilslut ledninger: Open the junction box cover. Connect the household electrical wires to the corresponding wires in the junction box (black to black, white to white, ground to ground) using the provided wire nuts. Secure the connections.
3. Vælg CCT: Before closing the junction box, use the switch inside the box to select your desired color temperature (2700K, 3000K, 4000K, 5000K, or 6000K).
4. Sikker samledåse: Close the junction box cover and place the box through the ceiling opening.
5. Installer lysarmatur: Connect the light fixture cable to the junction box cable. Push the spring-loaded clips on the side of the light fixture upwards and insert the fixture into the ceiling opening. Release the clips to secure the light in place.
6. Gendan strøm: Tænd for strømmen igen ved afbryderen.

This diagram demonstrates the straightforward installation of the Sunco recessed light. It shows the slim profile of the light (0.83 inches) and the spring-loaded brackets that secure it into the ceiling, suitable for various ceiling types.

5. Betjeningsvejledning

Justering af farvetemperatur (CCT):

The desired color temperature (2700K, 3000K, 4000K, 5000K, or 6000K) is selected via a switch located inside the junction box during installation. This setting is fixed until manually changed again from the junction box.

A visual representation of the five selectable color temperatures available with the Sunco recessed light: 2700K (Soft White), 3000K (Warm White), 4000K (Cool White), 5000K (Daylight), and 6000K (Clear White). The image shows how different CCTs can alter the ambiance of a room.

Activating the Night Light Feature:

To activate the 2700K night light, simply turn the light switch OFF and then ON again within 2 seconds. The light will switch to the warm night light mode. To return to the main downlight mode, turn the switch OFF and then ON again.

This image illustrates the difference between the bright 1500 lumen downlight and the cozy 2000K nightlight feature. It also shows how a standard light switch can be used to toggle between modes.

Dæmpningsfunktion:

Both the main downlight and the night light feature are dimmable from 10% to 100%. Use a compatible LED dimmer switch for optimal performance. Ensure your dimmer is rated for LED lighting.

This image showcases the dimmable functionality of the Sunco recessed lights, showing the light output at 100% brightness, 50% brightness, and in nightlight mode. It also indicates compatibility with most dimmer switches.

Videodemonstration:

6. Vedligeholdelse

The Sunco LED Recessed Light requires minimal maintenance. To clean the fixture, ensure the power is off at the circuit breaker. Use a soft, dry, or slightly damp cloth to wipe the surface. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish or electrical components.

7. Fejlfinding

• Lyset tænder ikke:
  • Kontroller afbryderen for at sikre, at der er strøm til armaturet.
  • Verify all wiring connections in the junction box are secure.
  • Sørg for, at lyskontakten fungerer korrekt.
• Forkert farvetemperatur:
  • The CCT selection switch is located inside the junction box. If the color is not as desired, you may need to access the junction box to adjust the switch.
• Night Light Not Activating/Deactivating:
  • Ensure you are toggling the light switch OFF and ON within 2 seconds to activate or deactivate the night light mode.
• Flimrende eller dæmpende problemer:
  • Verify that you are using an LED-compatible dimmer switch. Incompatible dimmers can cause flickering or improper dimming.
  • Tjek for løse ledningsforbindelser.

8. Garanti og support

Sunco Lighting leverer en 7 års beskyttelse for this product. For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official Sunco Lighting website. Our dedicated team is available to assist you.
